Model LG 60PG60 – Common Parts & Diagrams
Diagram 0
Diagram 1
Common parts from model LG 60PG60
120
Speaker,Woofer LGE EAB41280403 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284403 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ39798810 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ39798804 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR37177101 Contact Us For Availability

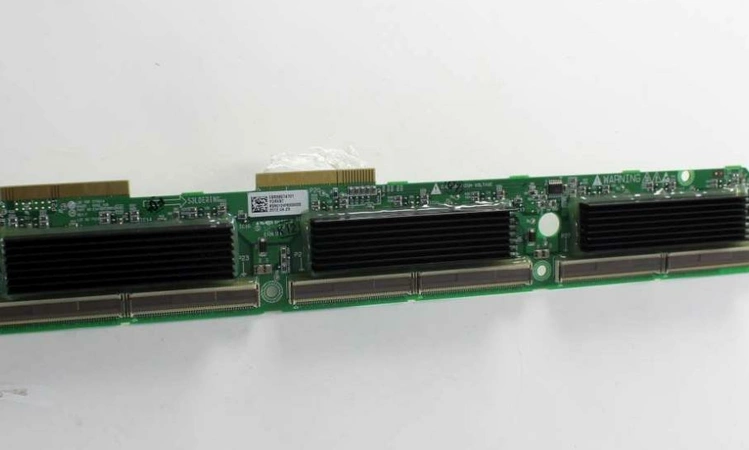

202
Hand Insert PCB Assembly LGE EBR38574601 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR39099101 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR39099001 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR39099201 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR38585901 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR38586001 Contact Us For Availability
210
Hand Insert PCB Assembly LGE EBR39571401 Contact Us For Availability
240
Supporter Assembly LGE AJJ35097402 Contact Us For Availability
250
Supporter Assembly LGE AJJ35097502 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35095412 Contact Us For Availability
301
Supporter Assembly LGE AJJ35095902 Contact Us For Availability
302
Supporter Assembly LGE AJJ35095702 Contact Us For Availability
303
Supporter Assembly LGE AJJ35095606 Contact Us For Availability
304
Supporter Assembly LGE AJJ35095802 Contact Us For Availability
305
Filter LGE MDJ41311503 Contact Us For Availability
306
Bracket Assembly LGE ABA36825011 Contact Us For Availability
307
Bracket Assembly LGE ABA35659908 Contact Us For Availability
310
Button,Control LGE MBG40265702 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35095508 Contact Us For Availability
501
Supporter LGE MJH40272603 Contact Us For Availability
520
Chassis Assembly LGE EBT50714703 Contact Us For Availability
560
Chassis Assembly LGE EBT44078903 Contact Us For Availability
570
IR Assembly LGE EBT44078703 Contact Us For Availability
571
Button,Power LGE MBG40265501 Contact Us For Availability
580
SMPS,AC/DC LGE EAY41391501 Contact Us For Availability
590
Filter,AC Line LGE EAM35012716 Contact Us For Availability
601
Bracket Assembly LGE ABA35619214 Contact Us For Availability
602
Plate,Shield LGE MGJ40268206 Contact Us For Availability
603
Plate LGE MGJ41164522 Contact Us For Availability
900
Base Assembly LGE AAN35096005 Contact Us For Availability
901
Cover LGE MCK40421102 Contact Us For Availability
A1
Manual,Owners LGE MFL34797048 Contact Us For Availability
A2
Remote Controller LGE MKJ40653823 Contact Us For Availability
A4
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A12
Cover,Rear LGE MCK40397404 Contact Us For Availability
A14
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
AR200
Resistor,Array LGE 0RJ1001C687 Contact Us For Availability
AR352
Resistor,Array LGE EBC32260404 Contact Us For Availability
AR356
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C207
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C273
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C304
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C320
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C323
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C325
Capacitor,Ceramic,Ch LGE EAE32479401 Contact Us For Availability
C357
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C361
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C397
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C405
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C410
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C505
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C511
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C517
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C520
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C521
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C527
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C543
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C560
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C580
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C682
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C738
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C754
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C809
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C813
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C839
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C841
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C856
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C857
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C858
Capacitor,Ceramic,Chip LGE 0CK153CK51A Contact Us For Availability
C871
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C896
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C8000
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
CA3
Harness,Single LGE EAD42767308 Contact Us For Availability
CA5
Harness,Single LGE EAD42465505 Contact Us For Availability
CA10
Harness,Single LGE EAD43532601 Contact Us For Availability
CA11
Harness,Single LGE EAD42463801 Contact Us For Availability
CA12
Harness,Single LGE EAD42463806 Contact Us For Availability
CA13
Harness,Single LGE EAD42465305 Contact Us For Availability
D402
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D701
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D800
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D801
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
IC101
IC,NOR Flash Memory LGE EAN30399001 Contact Us For Availability
IC102
IC,EEPROM LGE 0IMMRCS012D Contact Us For Availability
IC201
IC,Analog Switch LGE EAN30267601 Contact Us For Availability
IC303
IC,SDRAM LGE 0IMMRIH038B Contact Us For Availability
IC304
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC400
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC401
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC403
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC406
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC407
IC,Microcontrollers LGE 0IMCR02227A Contact Us For Availability
IC408
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC500
IC,A/D Converter LGE EAN40076401 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN41584001 Contact Us For Availability
IC503
IC,BiCMOS LGE EAN33624801 Contact Us For Availability
IC600
IC,Analog Switch LGE EAN39310001 Contact Us For Availability
IC701
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC703
IC,Analog Switch LGE EAN43489301 Contact Us For Availability
IC803
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC805
IC,DC,DC Converter LGE EAN31513601 Contact Us For Availability
IC808
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
IC809
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC810
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC811
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
JK500
Jack,RCA LGE EAG35542202 Contact Us For Availability
JK501
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK700
Jack,RCA LGE EAG35540801 Contact Us For Availability
JK701
Jack,Complex LGE EAG35541101 Contact Us For Availability
JK704
Jack,RCA LGE EAG35541501 Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004P Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK708
Jack,DIN LGE EAG42025501 Contact Us For Availability
L206
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L302
Filter,Line Noise LGE 6200J000091 Contact Us For Availability
L403
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L408
INDUCTOR,CHIP LGE 0LC2000005K Contact Us For Availability
L602
FILTER(CIRC),EMC LGE 6210TCE001Z Contact Us For Availability
L704
Inductor,Multilayer, LGE 6210TCE001T Contact Us For Availability
L711
Filter,Bead LGE EAM38769503 Contact Us For Availability
L801
Filter,Bead LGE 6210TCE001E Contact Us For Availability
L802
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L805
FILTER(CIRC),EMC LGE 6200J000123 Contact Us For Availability
L807
COIL,CHOKE LGE 6140TBZ047B Contact Us For Availability
L811
Filter,Bead LGE EAM38769505 Contact Us For Availability
LD803
LED LGE 0DL233309AC Contact Us For Availability
LV1
Harness,Single LGE EAD42557901 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P102
Connector,Wafer LGE 6602V12001C Contact Us For Availability
P400
Connector,DSUB LGE 6630G00001D Contact Us For Availability
P401
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P402
JACK,PHONE LGE 6612F00099A Contact Us For Availability
P501
WAFER LGE 6602T25009C Contact Us For Availability
P800
Connector,Wafer LGE EAG42057301 Contact Us For Availability
P901
Connector,Wafer LGE 366-932B Contact Us For Availability
P903
Connector,Wafer LGE EAG33942601 Contact Us For Availability
Q600
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q607
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q612
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
R106
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R107
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R108
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RH9100D622 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R212
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R219
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R241
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R402
RESISTOR,METAL GLAZE LGE 0RJ1101D677 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R479
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R507
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R517
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R541
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R639
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R703
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R748
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R773
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R775
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R777
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R794
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R821
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R838
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R839
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R840
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R862
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R863
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R2147
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R2162
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R2401
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R2600
Resistor,Chip LGE EBC37049601 Contact Us For Availability
R2620
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R2640
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R2643
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R2677
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R2706
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R2709
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R3000
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R3041
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3052
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3073
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R3114
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R3134
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R3140
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R3605
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3609
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R5002
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
SW103
Switch,Tact LGE EBF43466201 Contact Us For Availability
TU1
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
VR607
VARISTOR LGE 6102W5V016A Contact Us For Availability
X200
Crystal LGE 6212AA2600B Contact Us For Availability
ZD600
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
ZD710
Diode,TVS LGE EAH33945901 Contact Us For Availability
ZD720
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
ZD729
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
