Model LG 60PC1DC – Common Parts & Diagrams

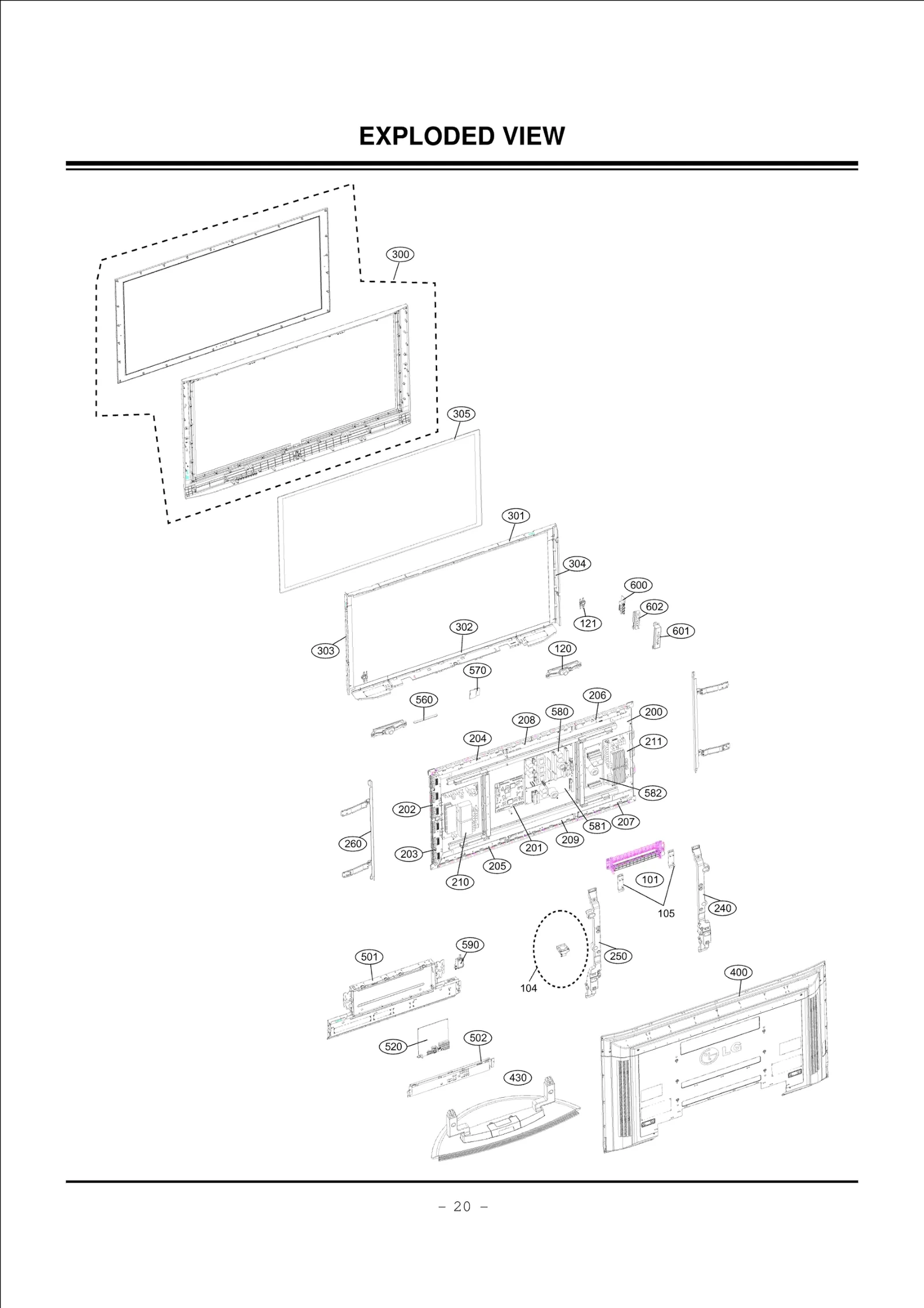

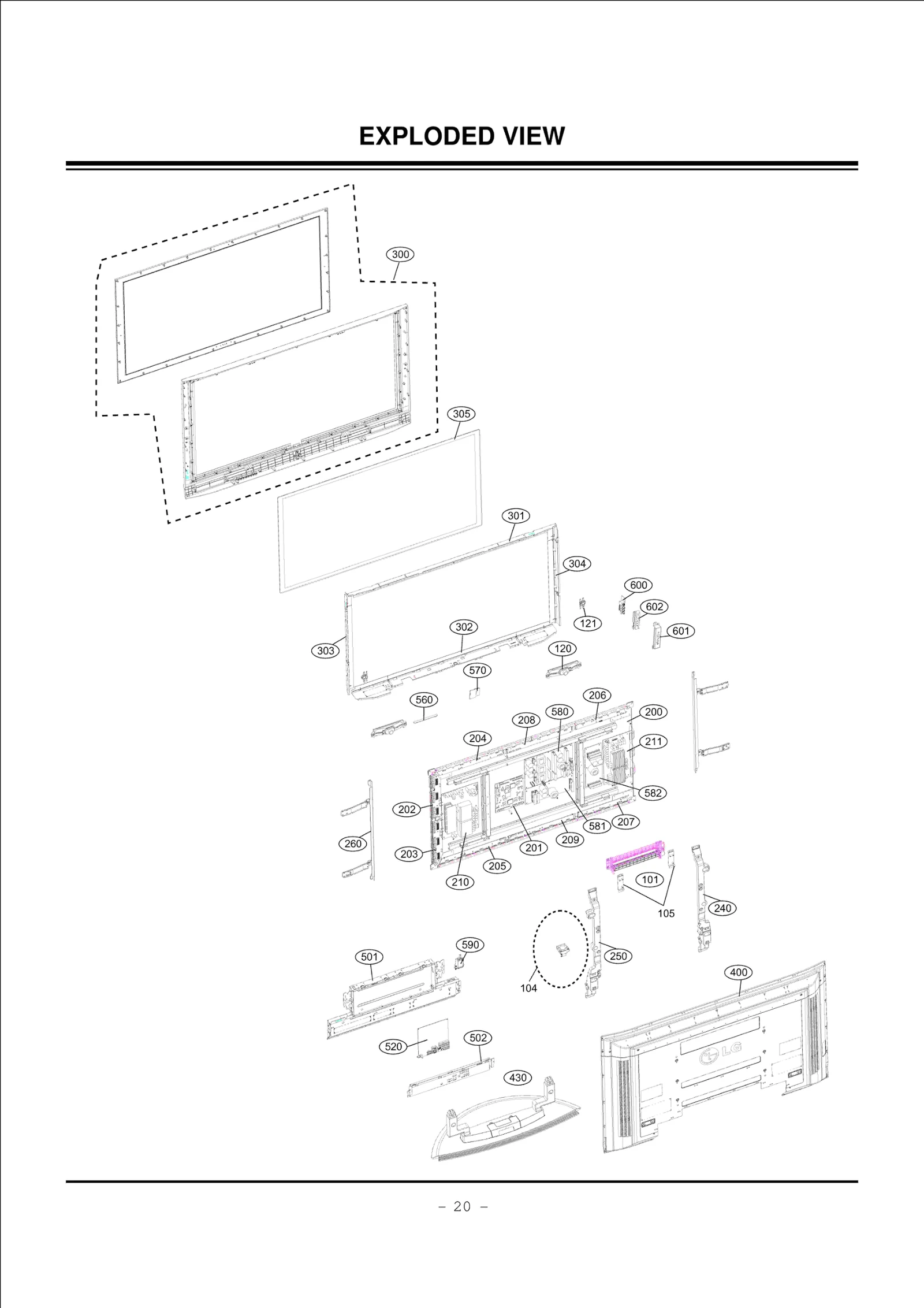

Diagram 0
Diagram 1
Common parts from model LG 60PC1DC
101
FAN LGE 5900904001A Contact Us For Availability
104
Supporter Assembly LGE AJJ32303802 Contact Us For Availability
105
Supporter LGE 4980900389B Contact Us For Availability
120
Speaker,Woofer LGE EAB30829601 Contact Us For Availability
121
Speaker,Tweeter LGE EAB30824301 Contact Us For Availability
200
PDP,Module-XGA NO FILTER LGE EAJ36648601 Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QCH080A Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QDH123A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QDH124A Contact Us For Availability
204
PWB(PCB) ASSEMBLY,DI LGE 6871QLH054A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QRH062A Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QLH053A Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QRH063A Contact Us For Availability
208
PWB(PCB) ASSEMBLY,DI LGE 6871QXH031A Contact Us For Availability
209
PWB(PCB) ASSEMBLY,DI LGE 6871QXH032A Contact Us For Availability
210
Hand Insert PCB Assembly LGE 6871QYH057B Contact Us For Availability
211
PWB(PCB) ASSEMBLY,DI LGE 6871QZH060A Contact Us For Availability
240
Supporter Assembly LGE AJJ30325103 Contact Us For Availability
250
Supporter Assembly LGE AJJ30325104 Contact Us For Availability
260
Supporter LGE MJH38374001 Contact Us For Availability
260
Supporter LGE 4980V00E25G Contact Us For Availability
300
Cover Assembly LGE ACQ30323205 Contact Us For Availability
301
Supporter Assembly LGE AJJ30324602 Contact Us For Availability
302
Supporter Assembly LGE AJJ30324702 Contact Us For Availability
303
Supporter Assembly LGE AJJ30325002 Contact Us For Availability
304
Supporter Assembly LGE AJJ30324802 Contact Us For Availability
305
Filter LGE MDJ38042601 Contact Us For Availability
400
Cover Assembly LGE ACQ30321302 Contact Us For Availability
430
Base Assembly LGE AAN30325802 Contact Us For Availability
501
Plate Assembly LGE AGU30325301 Contact Us For Availability
502
Cover LGE 3808900566A Contact Us For Availability
520
Chassis Assembly LGE EBT32929501 Contact Us For Availability
560
Chassis Assembly LGE EBT32652701 Contact Us For Availability
570
Chassis Assembly LGE EBT32662101 Contact Us For Availability
580
SMPS,AC/DC LGE EAY32961801 Contact Us For Availability
581
SMPS,AC/DC LGE EAY32961901 Contact Us For Availability
590
Chassis Assembly LGE 31419SF081B Contact Us For Availability
600
Chassis Assembly LGE EBT32662201 Contact Us For Availability
601
BRACKET ASSEMBLY LGE 4811900021A Contact Us For Availability
602
SHIELD LGE 48149V0003B Contact Us For Availability
A1
Manual,Owners LGE MFL34797021 Contact Us For Availability
A2
Remote Controller LGE MKJ39927803 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
CA2
CONNECTOR ASSEMBLY LGE 6631900097D Contact Us For Availability
CA3
CONNECTOR ASSEMBLY LGE 6631900098C Contact Us For Availability
CA4
CONNECTOR ASSEMBLY LGE 6631V39002C Contact Us For Availability
CA4
Harness,Single LGE 6631900050D Contact Us For Availability
CA5
CONNECTOR ASSEMBLY LGE 6631V39002P Contact Us For Availability
CAB1
CORD,A/V LGE 6852TAZ010F Contact Us For Availability
J100
JACK,RCA LGE 6612J10033A Contact Us For Availability
R108
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
× ![]()
