Model LG 60PA6500 – Common Parts & Diagrams

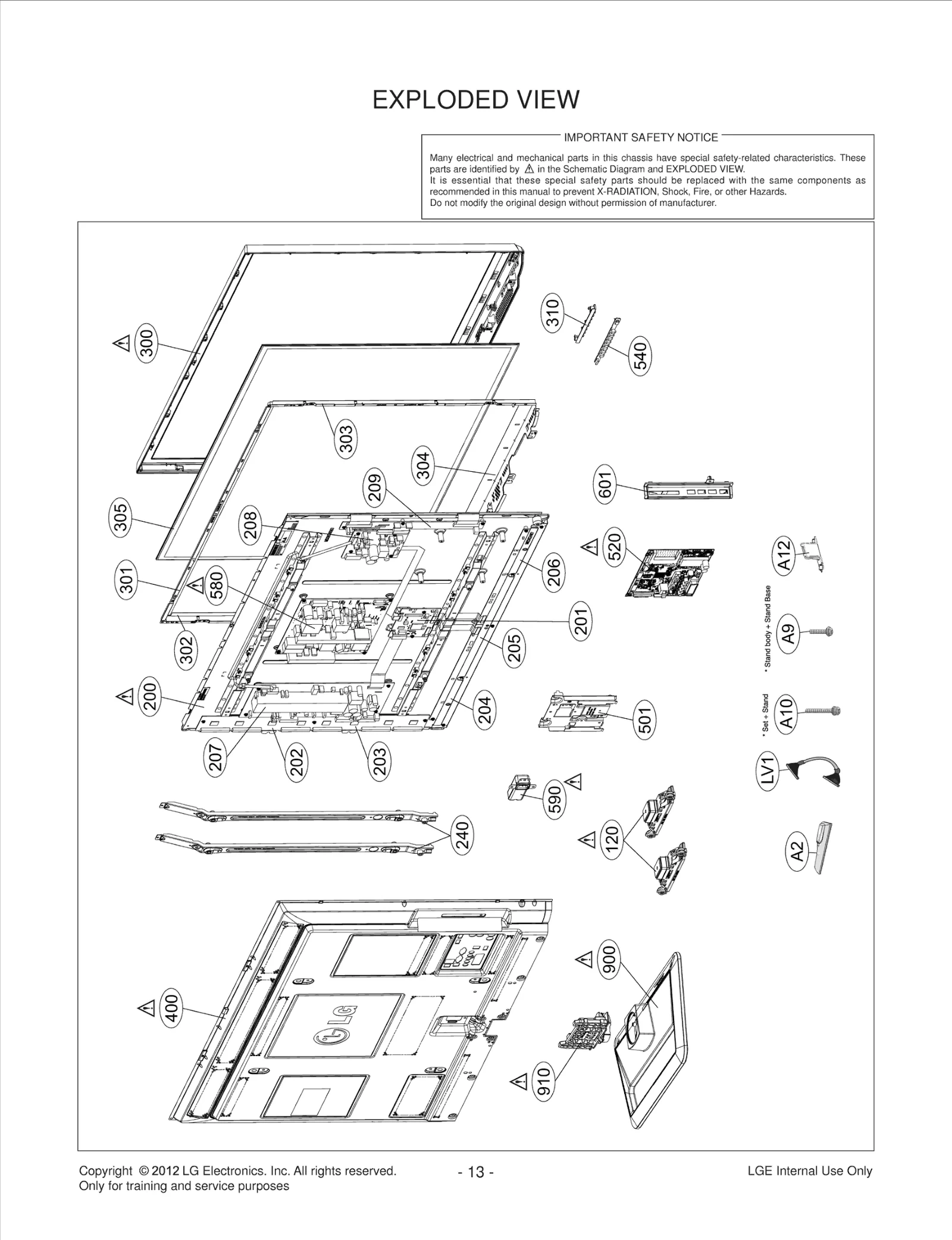

Diagram 0
Diagram 1
Common parts from model LG 60PA6500
200
PDP,Module-FullHD LGE EAJ61908703 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR73749601 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR73749801 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR73749701 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR73733601 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR73733701 Contact Us For Availability
240
Supporter Assembly LGE AJJ73518502 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73667511 Contact Us For Availability
301
Supporter Assembly LGE AJJ73578505 Contact Us For Availability
302
Supporter Assembly LGE AJJ73578805 Contact Us For Availability
303
Supporter Assembly LGE AJJ73578705 Contact Us For Availability
304
Supporter Assembly LGE AJJ73578605 Contact Us For Availability
305
Filter LGE MDJ63404402 Contact Us For Availability
310
Button,Control LGE MBG64385301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85734216 Contact Us For Availability
520
PCB Assembly LGE EBR74988101 Contact Us For Availability
540
PCB Assembly LGE EBR74904101 Contact Us For Availability
590
Filter,AC Line LGE EAM62450201 Contact Us For Availability
601
Bracket Assembly LGE ABA74128712 Contact Us For Availability
900
Base Assembly LGE AAN73949511 Contact Us For Availability
910
Supporter LGE MJH62575602 Contact Us For Availability
A1
Manual,Owners LGE MFL67468606 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73615337 Contact Us For Availability
A4
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A12
Bracket LGE MAZ63286402 Contact Us For Availability
A13
Filter,Ferrite Core LGE EAM62154801 Contact Us For Availability
A14
Holder LGE MEG42255502 Contact Us For Availability
AR519
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C418
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C431
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C446
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C450
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C473
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C517
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C534
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C544
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C604
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C626
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C632
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C637
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C647
Capacitor,Ceramic,Chip LGE EAE58399101 Contact Us For Availability
C650
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C654
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C656
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C660
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C661
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C662
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C669
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C675
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
CA1
Harness,Single LGE EAD61646234 Contact Us For Availability
CA2
Harness,Single LGE EAD61646703 Contact Us For Availability
CA3
Harness,Single LGE EAD61646603 Contact Us For Availability
CA3
Harness,Single LGE EAD56480806 Contact Us For Availability
D400
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
DSS
Label LGE 3850VK0001U Contact Us For Availability
EDSX
Bag LGE 3880TVZ021H Contact Us For Availability
IC1
IC,Ambient Light Sensor LGE EAN62389201 Contact Us For Availability
IC2
Receiver Module LGE EAV61932201 Contact Us For Availability
IC204
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC400
Display SOC,Digital TV LGE EAN62331501 Contact Us For Availability
IC500
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC503
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC505
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC604
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC605
IC,DC,DC Converter LGE EAN62326801 Contact Us For Availability
IC606
IC,Audio Amplifier LGE EAN61834801 Contact Us For Availability
JK202
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK203
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK205
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK207
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK211
Jack,RCA LGE EAG61008001 Contact Us For Availability
L401
Filter,Bead LGE EAM32500903 Contact Us For Availability
L500
Filter,Bead LGE EAM58113401 Contact Us For Availability
L605
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L607
Inductor,Wire Wound,Chip LGE EAP61746101 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD61668703 Contact Us For Availability
P1
Connector,Wafer LGE EAG58732904 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P601
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q301
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R9
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R14
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R258
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R268
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R316
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R464
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R468
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R469
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R617
Resistor,Chip LGE EBC32920101 Contact Us For Availability
R619
Resistor,Chip LGE EBC42649901 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ3903E472 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R643
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R648
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R653
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R654
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R655
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R656
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R662
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R688
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
SW2
Switch,Tact LGE EBF61734801 Contact Us For Availability
TU301
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
X400
Crystal LGE EAW61645501 Contact Us For Availability
ZD6
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD6
Diode,Zener LGE EAH61752501 Contact Us For Availability
ZD501
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
× ![]()
