Model LG 60LX341C – Common Parts & Diagrams

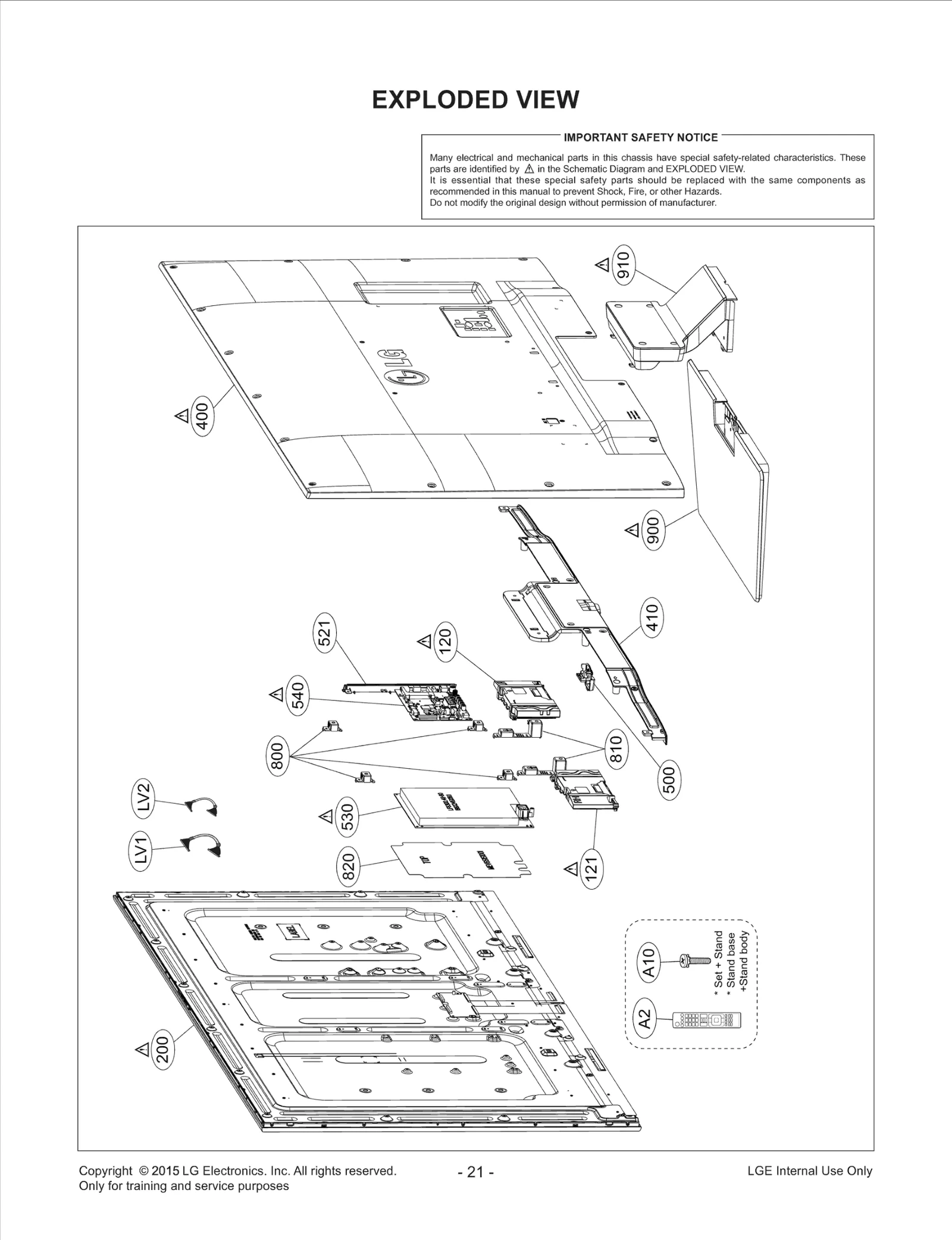

Diagram 0
Diagram 1
Common parts from model LG 60LX341C
120
Speaker Assembly LGE EAB63650701 Contact Us For Availability
121
Speaker Assembly LGE EAB63650702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63368401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87633222 Contact Us For Availability
410
Cover Assembly LGE ACQ87653604 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR79942702 Contact Us For Availability
521
Bracket LGE MAZ64427839 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
810
Supporter LGE MJH63693201 Contact Us For Availability
820
Insulator LGE MEV65151003 Contact Us For Availability
910
Bracket Assembly LGE ABA75229107 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692632 Contact Us For Availability
A2S
Remote Controller Assembly LGE AKB74475455 Contact Us For Availability
AM
Manual Assembly LGE AFN76974102 Contact Us For Availability
AM1
Manual,Owners LGE MFL68925802 Contact Us For Availability
AR103
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR802
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR804
Resistor,Array LGE EBC62582709 Contact Us For Availability
B2
Box LGE MAY66251034 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C222
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C418
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C439
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C442
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C703
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C2901
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C3200
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C3305
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3401
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3403
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C3407
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C3412
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C3415
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C3701
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C4604
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5609
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C5617
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5621
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C5631
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C5633
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6149
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C6167
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C6301
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C6307
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C6320
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
CA1
Harness,Multi LGE EAD63266901 Contact Us For Availability
CA3
Harness,Single LGE EAD62526505 Contact Us For Availability
D800
Diode,Switching LGE EAH61714301 Contact Us For Availability
D806
Diode,TVS LGE EAH62135001 Contact Us For Availability
D3202
Diode,Switching LGE EAH60666101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708703 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN63530601 Contact Us For Availability
IC401
IC,Voltage Detector LGE EAN61829902 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN63127201 Contact Us For Availability
IC3400
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
IC6301
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC6303
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
JK700
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1001
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK4400
Jack,RCA LGE EAG60968213 Contact Us For Availability
L411
Filter,Bead LGE EAM62091201 Contact Us For Availability
L413
Inductor,Wire Wound,Chip LGE EAP62506404 Contact Us For Availability
L415
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L2901
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L3300
Filter,Bead LGE EAM54407902 Contact Us For Availability
L3401
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L5600
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5604
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L6103
Filter,Bead LGE EAM32500903 Contact Us For Availability
L6303
Inductor,Wire Wound,Chip LGE EAP62886506 Contact Us For Availability
LV1
Cable,FFC LGE EAD63265803 Contact Us For Availability
LV2
Cable,FFC LGE EAD63265701 Contact Us For Availability
P401
Connector,Wafer LGE EAG63590906 Contact Us For Availability
P3200
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P3300
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P6402
Connector,FFC/FPC/PIC LGE EAG64329802 Contact Us For Availability
Q401
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q405
FET LGE EBK61913702 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R121
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R409
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R416
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R430
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R446
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R450
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R468
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R469
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R700
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1209
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R3300
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R3303
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3402
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R3717
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R4401
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R4407
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R4604
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R5607
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R5608
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R5610
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R6125
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R6141
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R6146
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6152
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R6301
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R6302
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R6304
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R6308
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R6310
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R6313
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R6315
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
TU3700
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA800
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
VA804
Varistor LGE EAF61530301 Contact Us For Availability
VA808
Varistor LGE EAF61530101 Contact Us For Availability
× ![]()
