Model LG 60LS579C – Common Parts & Diagrams

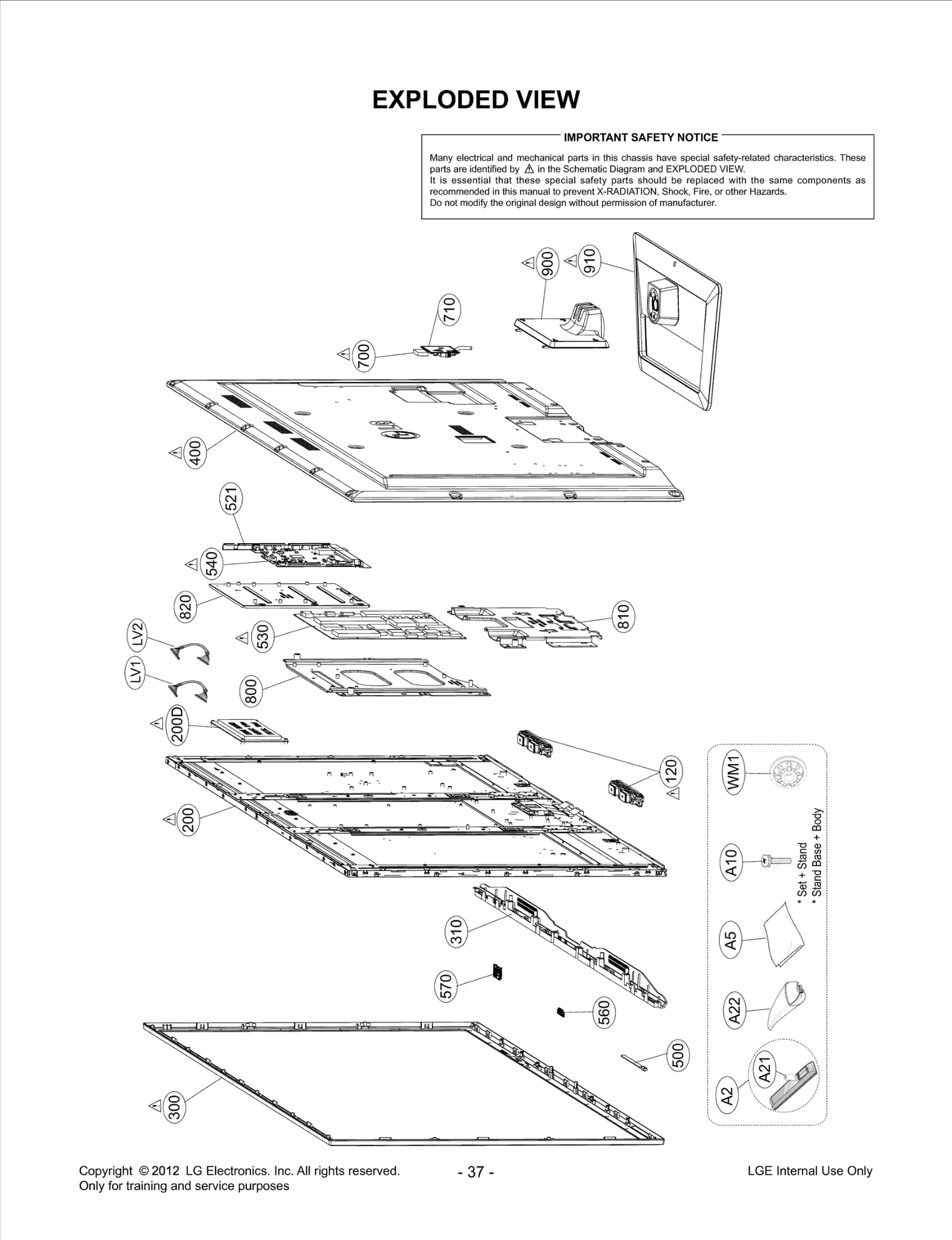

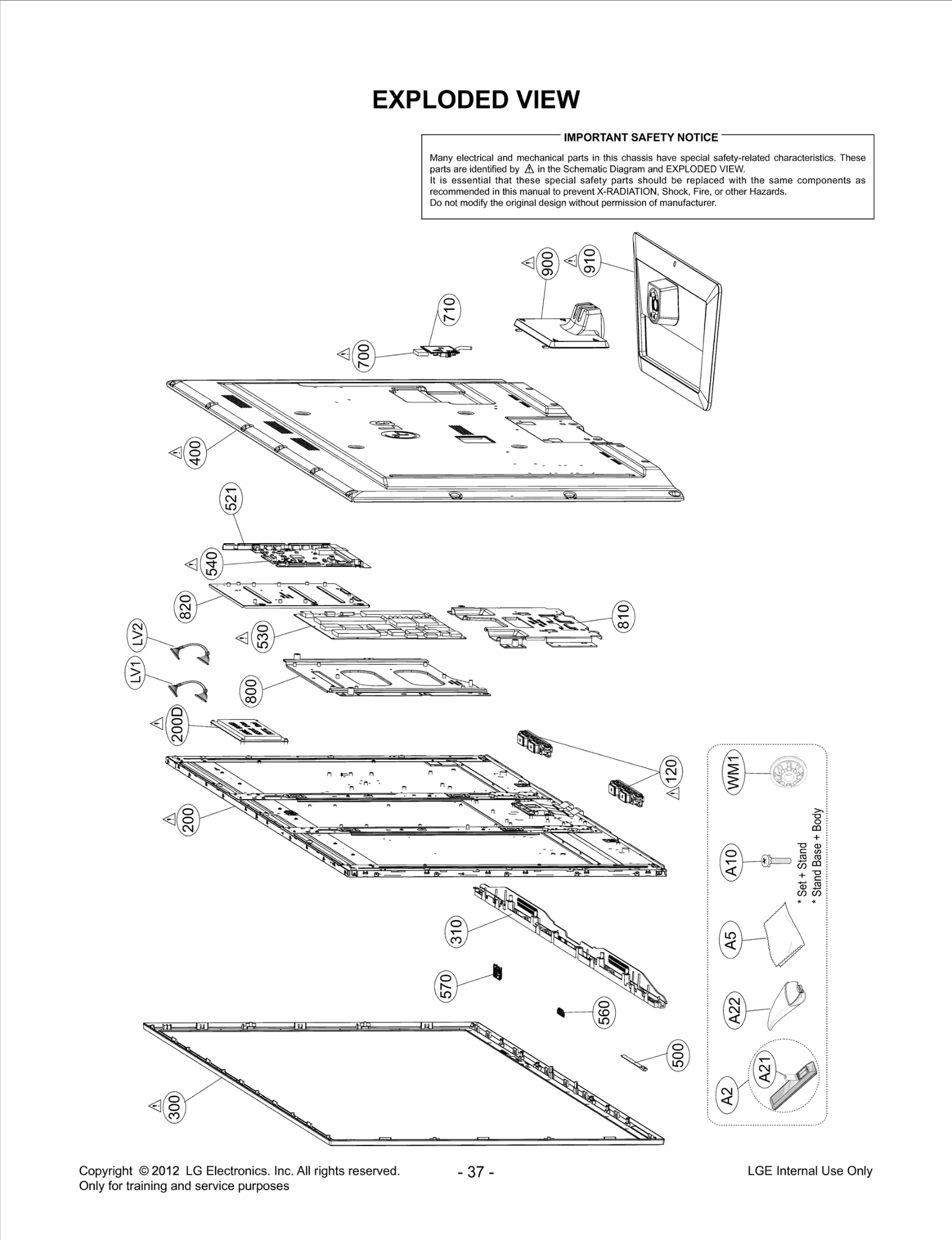

Diagram 0
Diagram 1
Common parts from model LG 60LS579C
120
Speaker,Full Range LGE EAB62648901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62112801 Contact Us For Availability
200D
PCB Assembly,LED Driver LGE EBR75270601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73809502 Contact Us For Availability
310
Bracket LGE MAZ63343202 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85954702 Contact Us For Availability
521
Plate Assembly LGE AGU73908208 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169701 Contact Us For Availability
540
PCB Assembly,Main LGE EBR75394101 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
800
Supporter LGE MJH62753302 Contact Us For Availability
810
Supporter LGE MJH62653202 Contact Us For Availability
820
Supporter LGE MJH62713102 Contact Us For Availability
900
Supporter LGE MJH62635705 Contact Us For Availability
910
Base Assembly LGE AAN73950911 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73656002 Contact Us For Availability
C361
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C2415
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C5407
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C5420
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
LV1
Cable,FFC LGE EAD62046907 Contact Us For Availability
LV2
Cable,FFC LGE EAD62047001 Contact Us For Availability
R6521
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
× ![]()
