Model Maytag 5VMTM21BW00 REFRIGERATOR – Common Parts & Diagrams

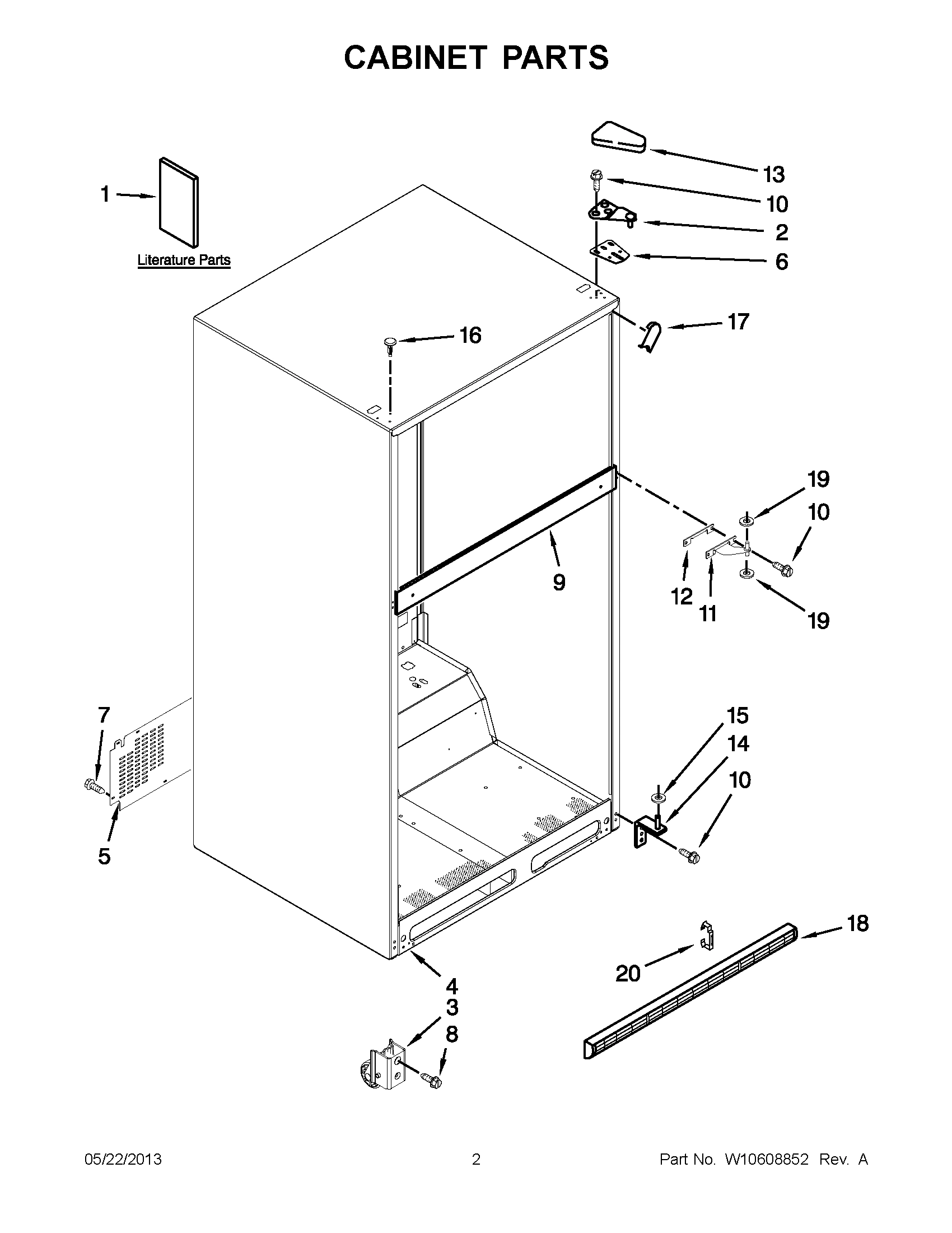

01 - CABINET PARTS

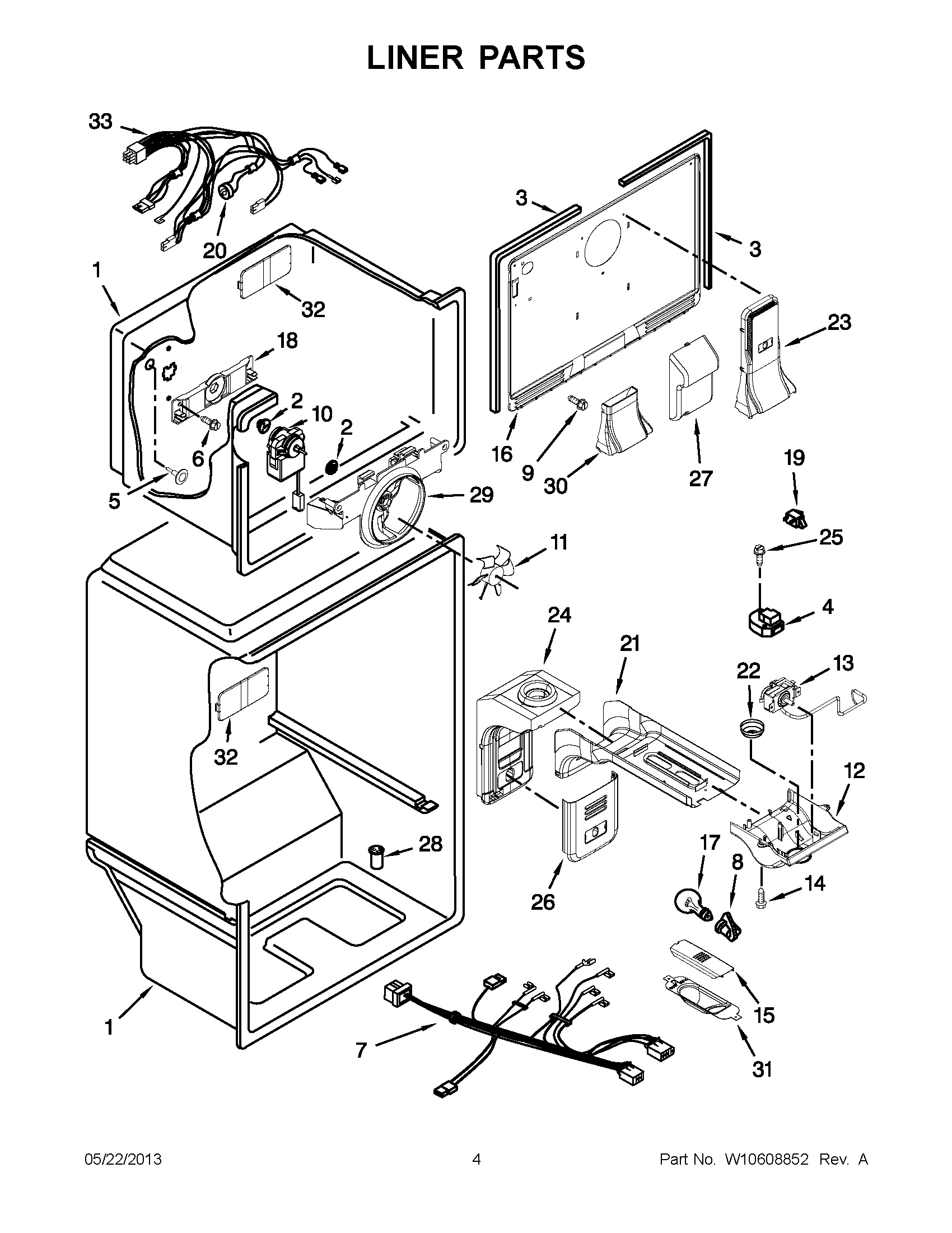

02 - LINER PARTS
03 - SHELF PARTS
04 - DOOR PARTS
05 - UNIT PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag 5VMTM21BW00 REFRIGERATOR
1
MAY W10462294 MAY W10462294 Contact Us For Availability
1
MAY W10469939 MAY W10469939 Contact Us For Availability
1
MAY W10578500 MAY W10578500 Contact Us For Availability
1
SHELF ASSEMBLY, FULL (30``) MAY W10486290 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 6) (WHITE) MAY 2183948 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
2
ASSEMBLY, HINGE, TOP MAY 2261963 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
CRISPER PAN (8``) MAY W10373941 Contact Us For Availability
2
MAY 2193143W MAY 2193143W Contact Us For Availability
2
DRAIN TRAY MAY W10466213 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10327136 Contact Us For Availability
3
MAY W10468762 MAY W10468762 Contact Us For Availability
3
MAY W10468557 MAY W10468557 Contact Us For Availability
3
MAY 2254533W MAY 2254533W Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
4
TIMER, DEFROST MAY 2321259 Contact Us For Availability
4
MAY W10477088 MAY W10477088 Contact Us For Availability
4
MAY 489357 MAY 489357 Contact Us For Availability
4
MAY W10405108 MAY W10405108 Contact Us For Availability
5
MAY W10425027 MAY W10425027 Contact Us For Availability
5
MAY 941839 MAY 941839 Contact Us For Availability
5
MAY W10468556 MAY W10468556 Contact Us For Availability
5
MAY 8281146 MAY 8281146 Contact Us For Availability
5
EVAPORATOR ASSEMBLY MAY W10314205 Contact Us For Availability
6
SHIM, TOP HINGE MAY 2221885 Contact Us For Availability
6
Screw MAY 488208 Contact Us For Availability
6
MAY W10468555 MAY W10468555 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (BEIGE) MAY 2202874 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
7
MAY 2262176 MAY 2262176 Contact Us For Availability
7
MAY W10403661 MAY W10403661 Contact Us For Availability
7
HUMIDITY CONTROL MAY W10356844 Contact Us For Availability
7
MAY W10463615 MAY W10463615 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
8
MAY 3400517 MAY 3400517 Contact Us For Availability
8
MAY W10134764 MAY W10134764 Contact Us For Availability
8
CRISPER PAN (16``) MAY W10373936 Contact Us For Availability
8
NAMEPLATE (SILVER) MAY W10170766 Contact Us For Availability
8
MAY 2302129 MAY 2302129 Contact Us For Availability
9
MAY W10142283 MAY W10142283 Contact Us For Availability
9
Cup, Shelf MAY W10130299 Contact Us For Availability
9
MAY W10421482 MAY W10421482 Contact Us For Availability
9
BAFFLE, AIR MAY 2315541 Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
MAY W10173141 MAY W10173141 Contact Us For Availability
10
WIRE SHELF, REFRIGERATOR (30``) MAY W10310934 Contact Us For Availability
10
TRIM ENDCAP MAY 2195915 Contact Us For Availability
10
MOTOR, CONDENSER MAY 2321271 Contact Us For Availability
11
MAY 2254618 MAY 2254618 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
FREEZER DOOR (INCLUDES ILLUS. 15) (WHITE) MAY 2182487 Contact Us For Availability
11
WIRE ASSEMBLY, UNIT MAY W10402413 Contact Us For Availability
12
MAY 2183852 MAY 2183852 Contact Us For Availability
12
MAY W10440730 MAY W10440730 Contact Us For Availability
12
Hole PLug (White) MAY 2189000 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
13
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
13
THERMOSTAT ASSEMBLY MAY W10343913 Contact Us For Availability
13
MAY W10291249 MAY W10291249 Contact Us For Availability
13
MAY W10139483 MAY W10139483 Contact Us For Availability
14
HINGE, BOTTOM MAY 2254473 Contact Us For Availability
14
MAY 489174 MAY 489174 Contact Us For Availability
14
MAY 2314293 MAY 2314293 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
15
Washer, Plastic MAY 487576 Contact Us For Availability
15
MAY W10348614 MAY W10348614 Contact Us For Availability
15
DOOR GASKET, MAGNETIC (BEIGE) MAY 2214966 Contact Us For Availability
15
START DEVICE MAY 2312007 Contact Us For Availability
16
MAY W10520304 MAY W10520304 Contact Us For Availability
16
COVER-EVAPORATOR MAY W10385128 Contact Us For Availability
16
MAY 8281206 MAY 8281206 Contact Us For Availability
16
MAY W10466682 MAY W10466682 Contact Us For Availability
17
MAY W10283959 MAY W10283959 Contact Us For Availability
17
BULB, LIGHT MAY 851682 Contact Us For Availability
17
BRACKET, DOOR STOP (SILVER) MAY 2189202 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY 2254386 MAY 2254386 Contact Us For Availability
18
BRACKET EVAPORATOR FAN, REAR MAY 2254454 Contact Us For Availability
18
MAY 488921 MAY 488921 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
19
WASHER, PLASTIC MAY 489341 Contact Us For Availability
19
SWITCH, ROCKER ARM (REF) MAY 1118894 Contact Us For Availability
19
Hole Plug (White) MAY 2212648 Contact Us For Availability
19
CAPACITOR MAY 2321245 Contact Us For Availability
20
CLIP, GRILLE (LEFT) MAY 2189356 Contact Us For Availability
20
CLIP, GRILLE (RIGHT) MAY 2254385 Contact Us For Availability
20
DEFROST, BI-METAL MAY W10392132 Contact Us For Availability
20
END CAP, DOOR TRIM MAY 2156003 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
21
AIR DIFFUSER COVER MAY W10305175 Contact Us For Availability
21
MAY W10463613 MAY W10463613 Contact Us For Availability
21
MAY W10314197 MAY W10314197 Contact Us For Availability
22
KNOB MAY W10356940 Contact Us For Availability
22
DOOR, COMPARTMENT MAY 2218113 Contact Us For Availability
22
MAY W10349514 MAY W10349514 Contact Us For Availability
23
MAY W10305174 MAY W10305174 Contact Us For Availability
23
MAY W10464028 MAY W10464028 Contact Us For Availability
23
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
24
AIR DIFFUSER ASSEMBLY MAY W10376137 Contact Us For Availability
24
MAY W10421484 MAY W10421484 Contact Us For Availability
24
MAY W10190413 MAY W10190413 Contact Us For Availability
25
SCREW MAY 97787 Contact Us For Availability
25
MAY W10463614 MAY W10463614 Contact Us For Availability
25
Clip, Harness MAY 2219077 Contact Us For Availability
26
MAY W10310927 MAY W10310927 Contact Us For Availability
26
MAY 2154109 MAY 2154109 Contact Us For Availability
27
WATER TUBE COVER MAY W10339203 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
MAY 2210509 MAY 2210509 Contact Us For Availability
28
COMPRESSOR MAY W10120455 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
30
ASSEMBLY, TOWER CONNECTION MAY W10396926 Contact Us For Availability
30
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
31
MAY W10300161 MAY W10300161 Contact Us For Availability
31
DRAIN VALVE MAY W10519112 Contact Us For Availability
32
SCREW CUP MAY W10336009 Contact Us For Availability
32
MAY 2215468 MAY 2215468 Contact Us For Availability
33
EVAP FAN WIRE ASSEMBLY MAY W10495656 Contact Us For Availability
33
MAY 8281232 MAY 8281232 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, 3ECKMF87 MAY 1129317 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
DOOR REVERSAL KIT MAY W10437912 Contact Us For Availability
× ![]()
