Model Maytag 5VM9BXGFYA00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - LINER PARTS

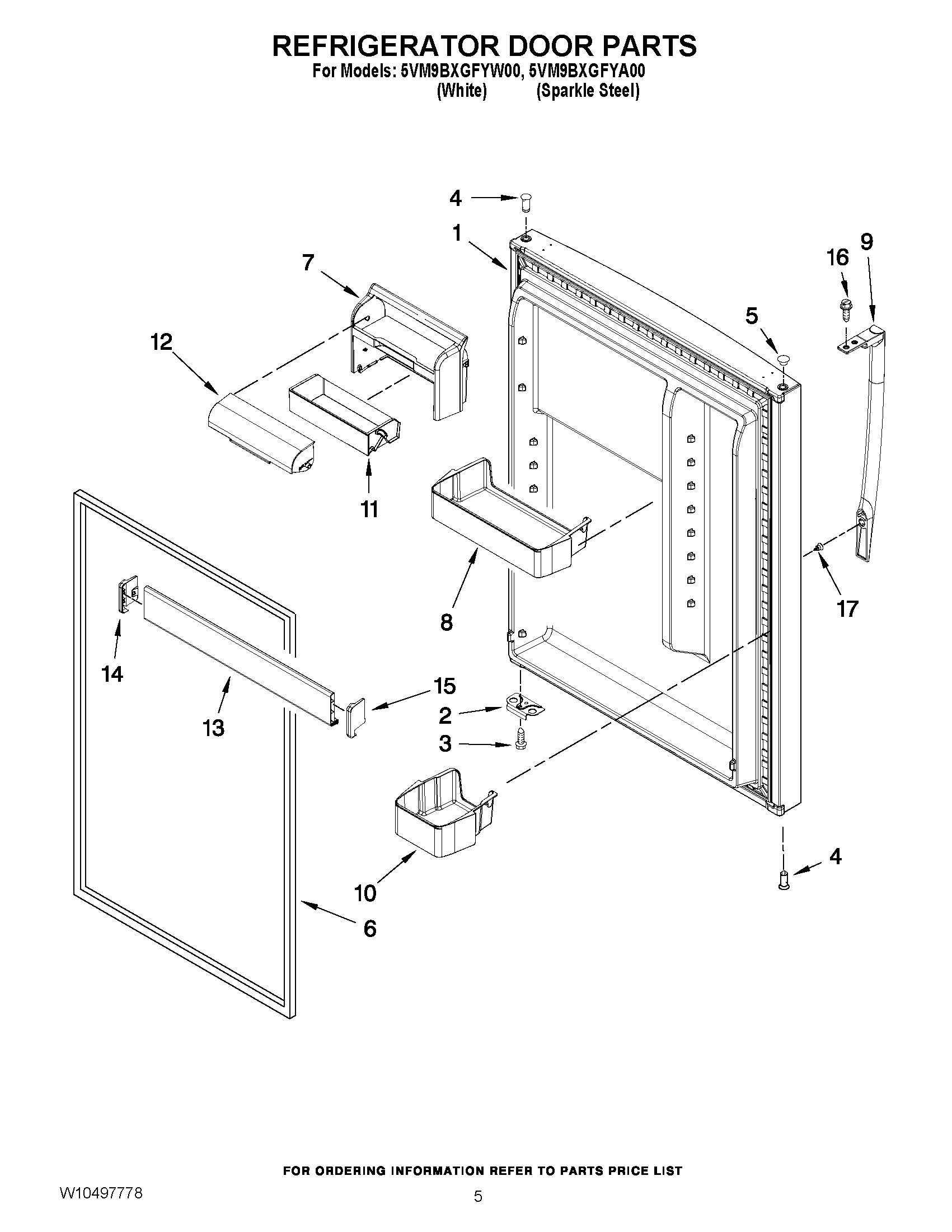

03 - REFRIGERATOR DOOR PARTS

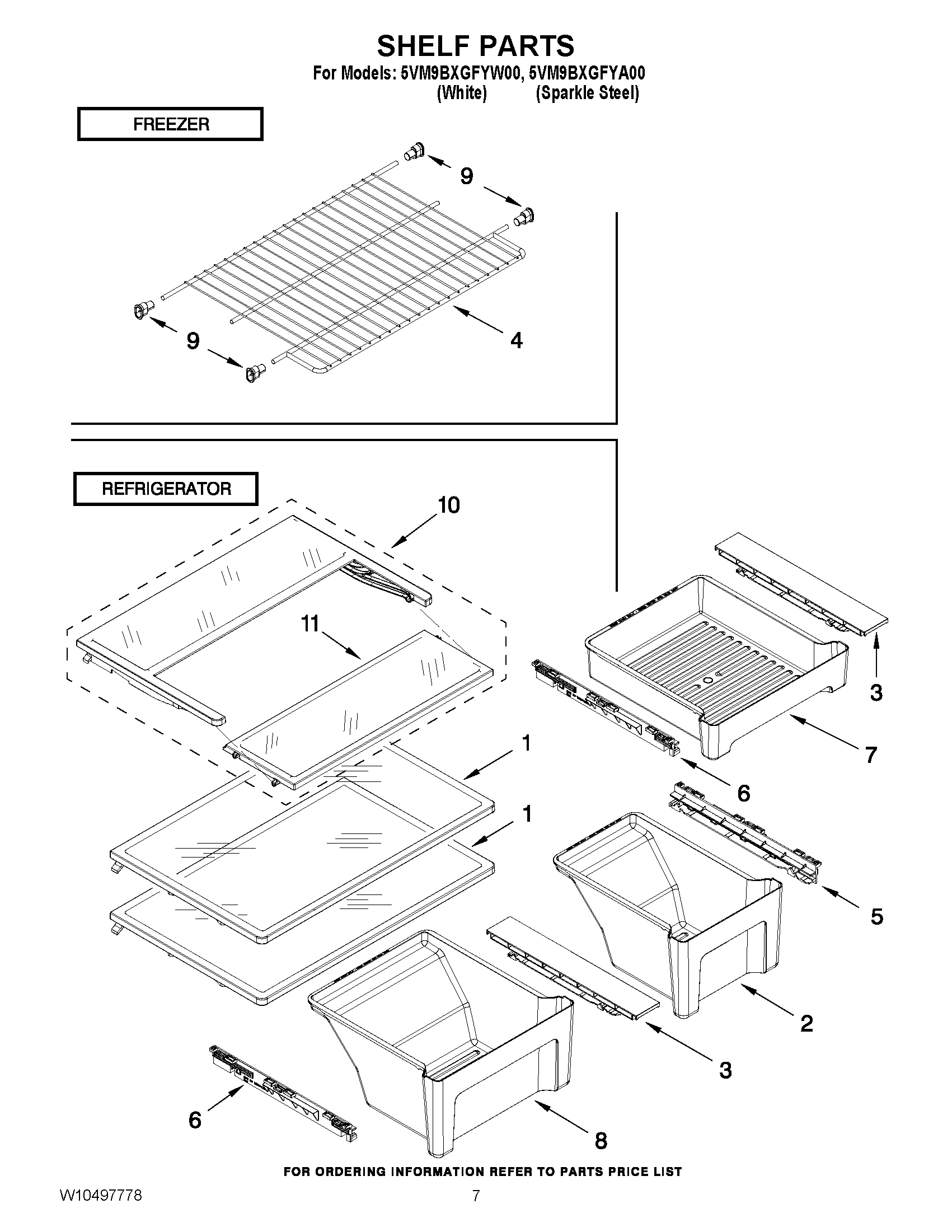

04 - SHELF PARTS

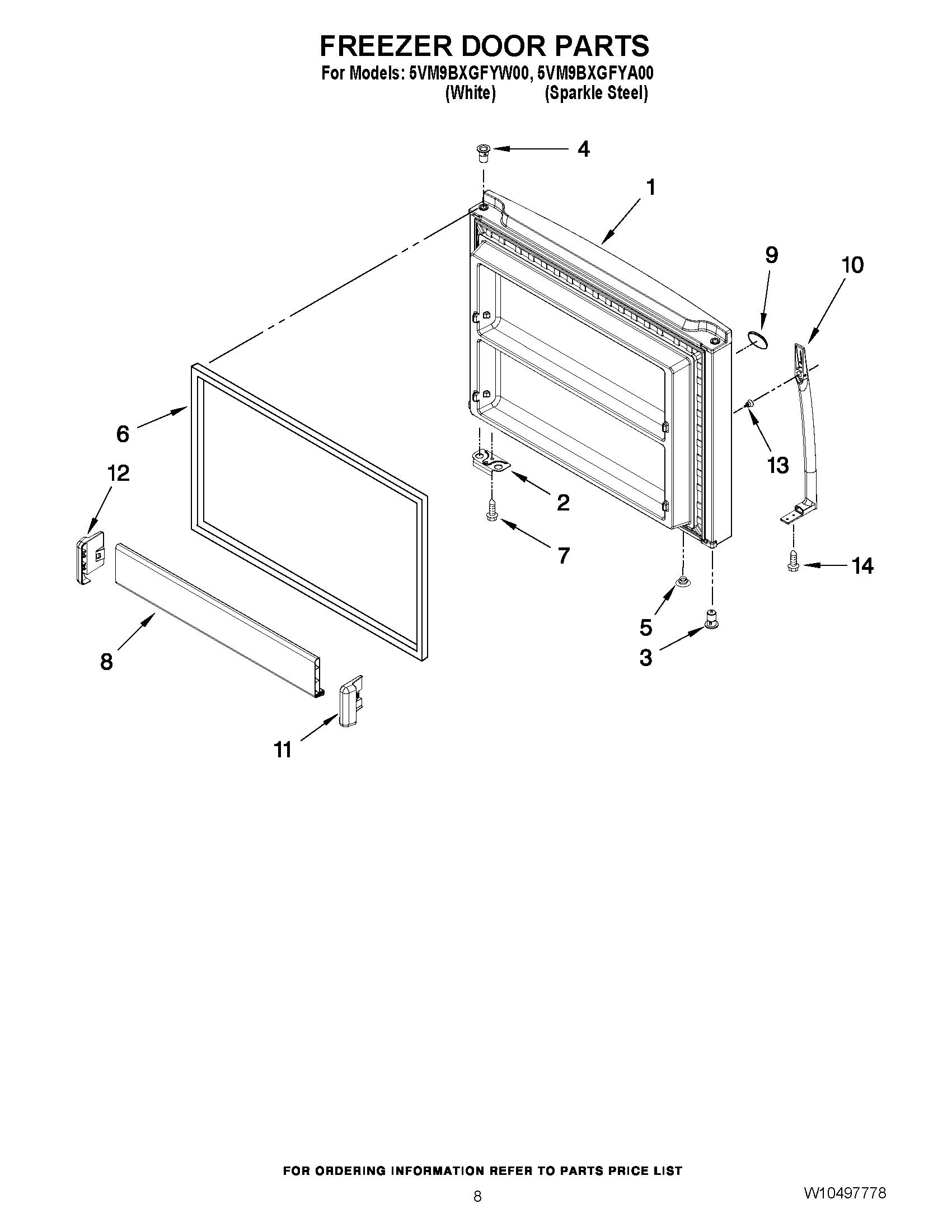

05 - FREEZER DOOR PARTS

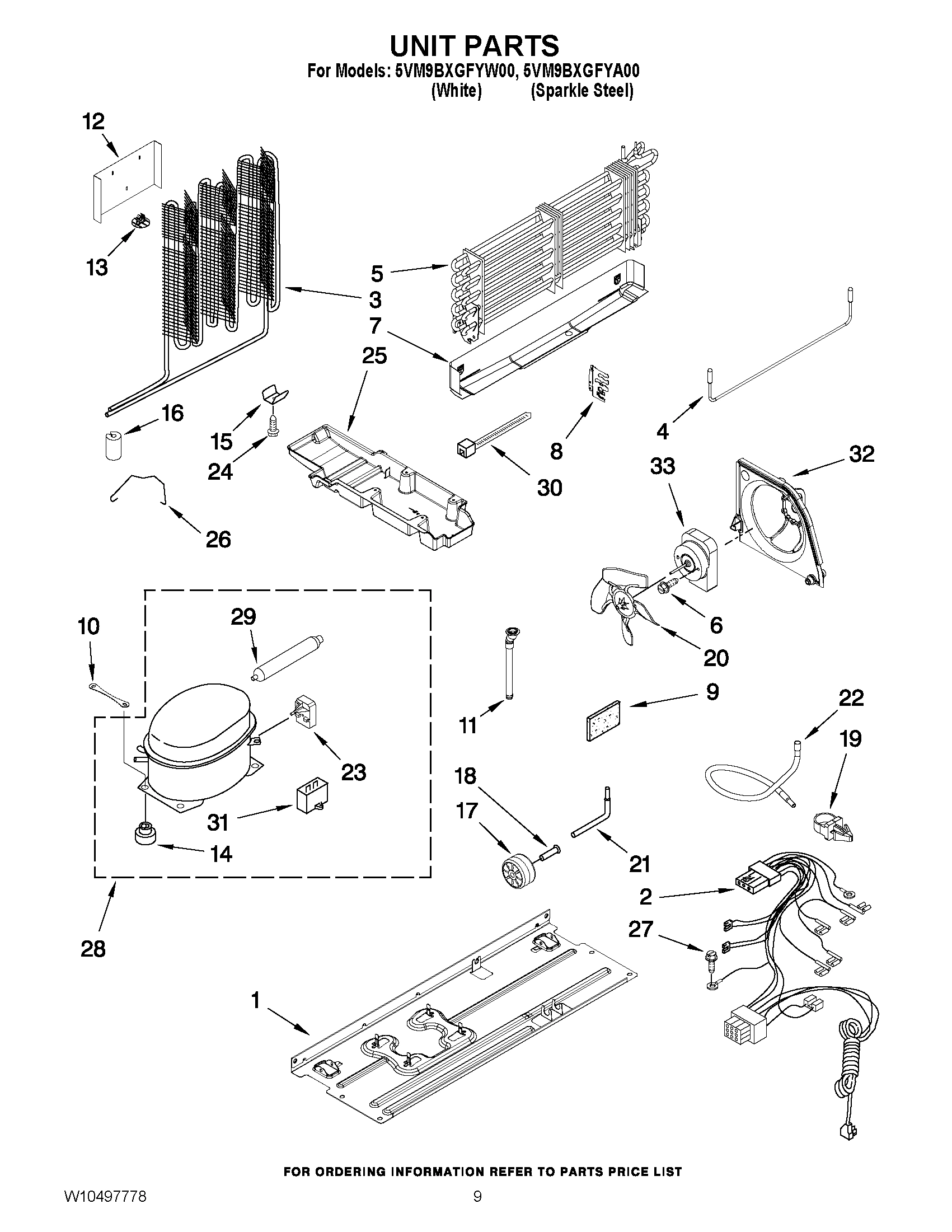

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag 5VM9BXGFYA00 REFRIGERATOR
1
MAY W10462294 MAY W10462294 Contact Us For Availability
1
MAY W10469939 MAY W10469939 Contact Us For Availability
1
WIRING SHEET ARABIAN MAY W10470600 Contact Us For Availability
1
MAY W10329581 MAY W10329581 Contact Us For Availability
1
MAY W10462417 MAY W10462417 Contact Us For Availability
1
SHELF ASSY 30`` MAY W10423887 Contact Us For Availability
1
MAY W10329576 MAY W10329576 Contact Us For Availability
1
MAY W10462420 MAY W10462420 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
2
MAY W10300065 MAY W10300065 Contact Us For Availability
2
MAY W10337503 MAY W10337503 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
MAY W10373950 MAY W10373950 Contact Us For Availability
2
MAY W10402413 MAY W10402413 Contact Us For Availability
3
MAY W10338247 MAY W10338247 Contact Us For Availability
3
GASKET, EVAP COVER MAY 2254359 Contact Us For Availability
3
MAY W10334042 MAY W10334042 Contact Us For Availability
3
MAY W10404446 MAY W10404446 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
4
MAY W10331226 MAY W10331226 Contact Us For Availability
4
MAY 2321259 MAY 2321259 Contact Us For Availability
4
WIRE SHELF, FC MAY W10384383 Contact Us For Availability
4
THIMBLE MAY 2200087 Contact Us For Availability
4
MAY W10405108 MAY W10405108 Contact Us For Availability
5
CLAMP, TUBE MAY 489385 Contact Us For Availability
5
SCREW MAY 97787 Contact Us For Availability
5
PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
5
PLUG, HINGE (APOLLO GREY) MAY 2254517 Contact Us For Availability
5
MAY W10404450 MAY W10404450 Contact Us For Availability
5
EVAPORATOR ASSY. MAY W10314205 Contact Us For Availability
6
MAY W10425027 MAY W10425027 Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
6
MAY 2202874 MAY 2202874 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10279664 Contact Us For Availability
6
MAY W10404449 MAY W10404449 Contact Us For Availability
6
MAY 2214966 MAY 2214966 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10279559 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
7
COVER, TOE GRILLE (HINGE SIDE) (WHITE) MAY W10381059 Contact Us For Availability
7
COVER, TOE GRILLE (HINGE SIDE) (MIDNIGHT GREY MAY W10381064 Contact Us For Availability
7
MAY W10403661 MAY W10403661 Contact Us For Availability
7
MAY 489276 MAY 489276 Contact Us For Availability
7
MAY W10308809 MAY W10308809 Contact Us For Availability
7
MAY W10310944 MAY W10310944 Contact Us For Availability
7
HEAT SHIELD MAY W10314195 Contact Us For Availability
8
COVER, TOE GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
COVER, TOE GRILLE (MIDNIGHT GREY) MAY W10353932 Contact Us For Availability
8
MAY W10134764 MAY W10134764 Contact Us For Availability
8
BIN, LARGE MAY W10331763 Contact Us For Availability
8
MAY W10373948 MAY W10373948 Contact Us For Availability
8
TRIM DOOR SHELF MAY W10308873 Contact Us For Availability
8
BRACKET, EVAP MAY W10314197 Contact Us For Availability
9
MAY W10326386 MAY W10326386 Contact Us For Availability
9
MAY W10353938 MAY W10353938 Contact Us For Availability
9
Screw MAY 488208 Contact Us For Availability
9
Cup, Shelf MAY W10130299 Contact Us For Availability
9
Nameplate MAY W10170766 Contact Us For Availability
9
MAY 2215468 MAY 2215468 Contact Us For Availability
10
MAY 2262176 MAY 2262176 Contact Us For Availability
10
MAY W10173141 MAY W10173141 Contact Us For Availability
10
MAY W10366329 MAY W10366329 Contact Us For Availability
10
MAY W10370624 MAY W10370624 Contact Us For Availability
10
MAY W10331762 MAY W10331762 Contact Us For Availability
10
MAY W10352270 MAY W10352270 Contact Us For Availability
10
MAY W10236396 MAY W10236396 Contact Us For Availability
11
WASHER, PLASTIC MAY 489341 Contact Us For Availability
11
MAY 2200509 MAY 2200509 Contact Us For Availability
11
MAY W10356444 MAY W10356444 Contact Us For Availability
11
ENDCAP, TRIM RS MAY W10308871 Contact Us For Availability
11
SHELF FRONT, FLIP MAY W10305243 Contact Us For Availability
11
MAY W10316650 MAY W10316650 Contact Us For Availability
12
MAY W10440730 MAY W10440730 Contact Us For Availability
12
MAY W10308843 MAY W10308843 Contact Us For Availability
12
ENDCAP, TRIM LS MAY W10338485 Contact Us For Availability
12
MAY W10349514 MAY W10349514 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
MAY W10343913 MAY W10343913 Contact Us For Availability
13
MAY W10308872 MAY W10308872 Contact Us For Availability
13
MOUNTING SCREW MAY W10129563 Contact Us For Availability
13
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
14
MAY 2254618 MAY 2254618 Contact Us For Availability
14
MAY 489174 MAY 489174 Contact Us For Availability
14
MAY 489357 MAY 489357 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
15
HINGE SHIM, CENER MAY 2183852 Contact Us For Availability
15
MAY W10495656 MAY W10495656 Contact Us For Availability
15
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
16
MAY 8281265 MAY 8281265 Contact Us For Availability
16
COVER-EVAPORATOR MAY W10385128 Contact Us For Availability
16
CONDENSER, GROMMET MAY 2319835 Contact Us For Availability
17
HINGE, BOTTOM MAY 2254473 Contact Us For Availability
17
Light Bulb MAY 851682 Contact Us For Availability
17
ROLLER, REAR MAY 2150304 Contact Us For Availability
18
Washer, Nylon MAY 487576 Contact Us For Availability
18
BRACKET, EVAP. FAN MAY 2254454 Contact Us For Availability
18
RIVET, AXLE MAY 2179826 Contact Us For Availability
19
HOLE PLUG (WHITE) MAY 2201012 Contact Us For Availability
19
HOLE PLUG (MIDNIGHT GREY) MAY 2254506 Contact Us For Availability
19
Switch, Rocker Arm MAY 1118894 Contact Us For Availability
19
Clip, Harness MAY 2219077 Contact Us For Availability
20
FILLER, CORNER (WHITE) MAY W10283959 Contact Us For Availability
20
FILLER, CORNER (APOLLO GREY) MAY W10283961 Contact Us For Availability
20
DEFROST, BI-METAL MAY W10392132 Contact Us For Availability
20
FAN BLADE MAY W10139483 Contact Us For Availability
21
COVER, HINGE (WHITE, RS) MAY W10331560 Contact Us For Availability
21
COVER, HINGE (WHITE, LS) MAY W10331654 Contact Us For Availability
21
COVER, HINGE (MIDNIGHT GREY, RS) MAY W10353947 Contact Us For Availability
21
COVER, HINGE (MIDNIGHT GREY, LS) MAY W10353950 Contact Us For Availability
21
MAY W10459451 MAY W10459451 Contact Us For Availability
21
MAY 2154109 MAY 2154109 Contact Us For Availability
22
MAY W10356940 MAY W10356940 Contact Us For Availability
22
MAY W10466682 MAY W10466682 Contact Us For Availability
23
MAY W10359255 MAY W10359255 Contact Us For Availability
23
MAY W10359256 MAY W10359256 Contact Us For Availability
23
AIR TOWER MAY W10305174 Contact Us For Availability
23
START DEVICE COMBINATION RELAY & OVERLOAD MAY 2312007 Contact Us For Availability
24
BRAKE, FRONT ROLLER MAY W10141622 Contact Us For Availability
24
MAY W10376137 MAY W10376137 Contact Us For Availability
24
MAY 8281232 MAY 8281232 Contact Us For Availability
25
MAY W10474788 MAY W10474788 Contact Us For Availability
25
LIGHT COVER MAY W10348614 Contact Us For Availability
25
EVAPORATOR TRAY MAY W10466213 Contact Us For Availability
26
MAY W10310927 MAY W10310927 Contact Us For Availability
26
MAY 2302129 MAY 2302129 Contact Us For Availability
27
FITTING, TUBE COVER MAY W10339203 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
Valve-Tube, Body MAY 2210509 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 23, 29 & 31) ( MAY W10120455 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
29
Drier MAY W10177049 Contact Us For Availability
30
TOWER CONN ASSY MAY W10396926 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY W10300161 MAY W10300161 Contact Us For Availability
31
CAPACITOR MAY 2321245 Contact Us For Availability
32
SCREW CUP MAY W10336009 Contact Us For Availability
32
MAY 2315541 MAY 2315541 Contact Us For Availability
33
THERMISTOR MAY W10383615 Contact Us For Availability
33
MOTOR, CONDENSER MAY 2321271 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.00 OZS. (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, 3ECKMF87 MAY 1129317 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (ENAMEL, WH MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (ENAMEL, GR MAY 8171357 Contact Us For Availability
NI
MAY 8212473 MAY 8212473 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
MAY W10437916 MAY W10437916 Contact Us For Availability
NI
KIT, DOOR REVERSAL (STAINLESS) MAY W10437918 Contact Us For Availability
× ![]()
