Model Maytag 5MSF25N4BA00 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

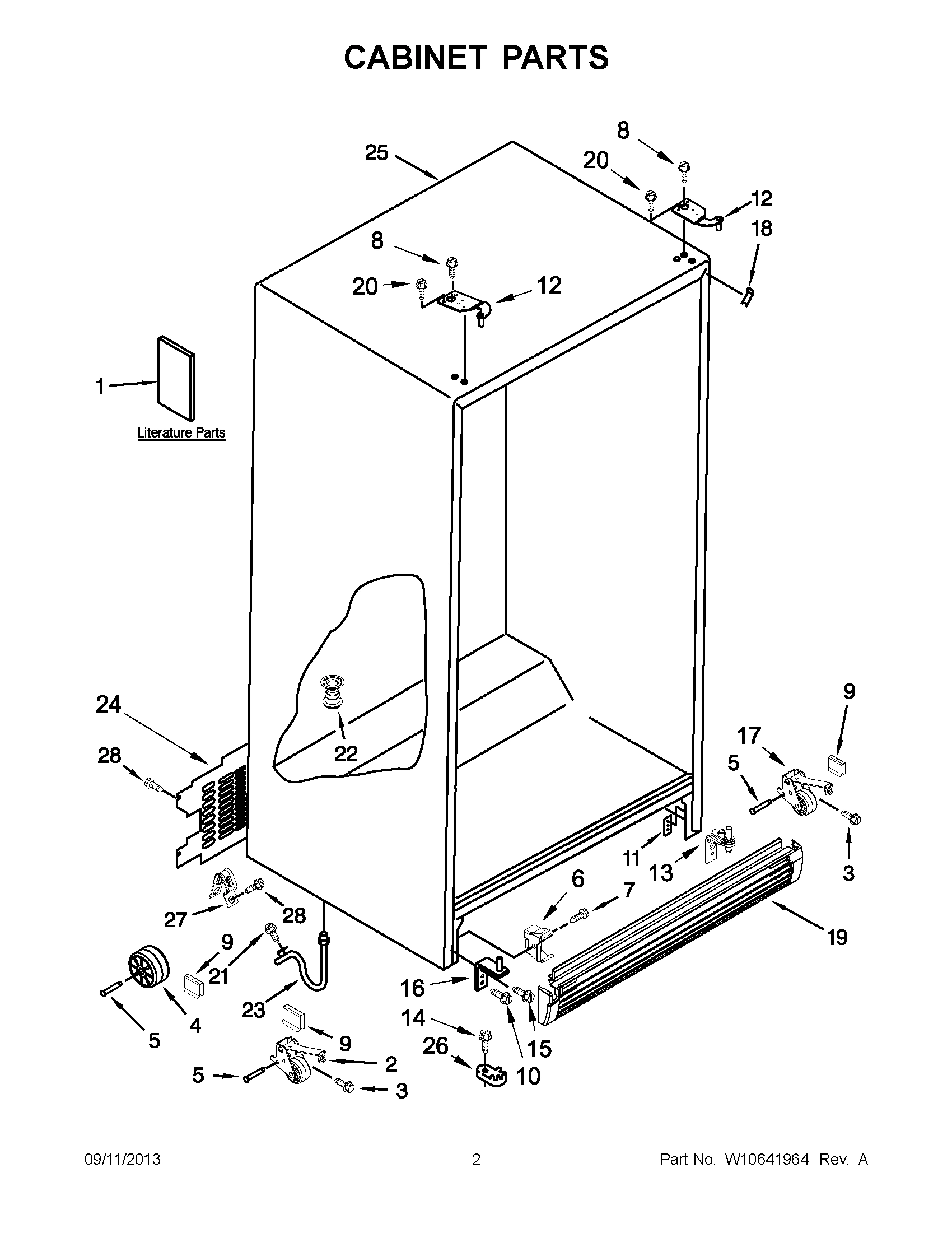

02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS
04 - REFRIGERATOR SHELF PARTS
05 - FREEZER LINER PARTS
06 - REFRIGERATOR DOOR PARTS
07 - FREEZER DOOR PARTS
08 - AIR FLOW PARTS
09 - CONTROL BOX PARTS
10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 5MSF25N4BA00 REFRIGERATOR
1
USE & CARE GUIDE MAY W10583333 Contact Us For Availability
1
MAY W10595224 MAY W10595224 Contact Us For Availability
1
SHELF ASSEMBLY, SPILLGUARD MAY W10276348 Contact Us For Availability
1
MAY W10407713 MAY W10407713 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEM No.8) (SPARK MAY W10573453 Contact Us For Availability
1
MAY W10451840 MAY W10451840 Contact Us For Availability
1
MAY W10573456 MAY W10573456 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY W10590040 MAY W10590040 Contact Us For Availability
1
BOLT MAY 489340 Contact Us For Availability
2
ROLLER MAY W10304660 Contact Us For Availability
2
MAY W10151378 MAY W10151378 Contact Us For Availability
2
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
2
ASSEMBLY, SHELF STUD MAY W10173127 Contact Us For Availability
2
MAY W10439132 MAY W10439132 Contact Us For Availability
2
MAY W10439228 MAY W10439228 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
MAY 2161466 MAY 2161466 Contact Us For Availability
2
MAY 12825802 MAY 12825802 Contact Us For Availability
3
COVER, AIR DIFFUSER MAY 2212240 Contact Us For Availability
3
MAY W10623514 MAY W10623514 Contact Us For Availability
3
MAY W10485332 MAY W10485332 Contact Us For Availability
3
Door, Compartment MAY 2256101 Contact Us For Availability
3
SET SCREW (SILVER) MAY W10010140 Contact Us For Availability
3
MAY 2161229 MAY 2161229 Contact Us For Availability
3
Screw MAY 489214 Contact Us For Availability
3
Condenser Assembly MAY 2324712 Contact Us For Availability
4
MAY W10475495 MAY W10475495 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY W10550195 MAY W10550195 Contact Us For Availability
4
MAY W10191954 MAY W10191954 Contact Us For Availability
4
MAY 2223173 MAY 2223173 Contact Us For Availability
4
Trivet MAY 2309941 Contact Us For Availability
4
MAY 489420 MAY 489420 Contact Us For Availability
4
MAY W10129958 MAY W10129958 Contact Us For Availability
4
Switch, Light MAY 2321287 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
MAY W10623513 MAY W10623513 Contact Us For Availability
5
GLASS COVER MAY 2179259 Contact Us For Availability
5
MAY W10191952 MAY W10191952 Contact Us For Availability
5
MAY W10460893 MAY W10460893 Contact Us For Availability
5
MAY 2203594 MAY 2203594 Contact Us For Availability
5
TUBE, BARRIER THERMOSTAT MAY 2182150 Contact Us For Availability
5
MAY 2311725 MAY 2311725 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY 489084 MAY 489084 Contact Us For Availability
6
MAY 2309519 MAY 2309519 Contact Us For Availability
6
MAY 2315163 MAY 2315163 Contact Us For Availability
6
MAY W10252006 MAY W10252006 Contact Us For Availability
6
THIMBLE MAY 2182181 Contact Us For Availability
6
TIMER, DEFROST MAY 2321261 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
7
MAY 488500 MAY 488500 Contact Us For Availability
7
Cover, Crisper MAY 2209698 Contact Us For Availability
7
SHELF-WIRE MAY W10318945 Contact Us For Availability
7
DOOR GASKET, MAGNETIC (SERVICE) (BEIGE) MAY 2309532 Contact Us For Availability
7
DOOR GASKET, MAGNETIC (SERVICE) (GREY) MAY 2327164 Contact Us For Availability
7
MAY 2321275 MAY 2321275 Contact Us For Availability
7
MAY 2321305 MAY 2321305 Contact Us For Availability
7
Heat Shield And Drain Pan MAY W10194475 Contact Us For Availability
8
MAY W10336489 MAY W10336489 Contact Us For Availability
8
MAY 2150331 MAY 2150331 Contact Us For Availability
8
MAY 2188652 MAY 2188652 Contact Us For Availability
8
MAY W10318947 MAY W10318947 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (SERVICE) (BEIGE) MAY 2309528 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (SERVICE) (GREY) MAY 2327163 Contact Us For Availability
8
Trivet MAY 2171157 Contact Us For Availability
8
MAY 2169142 MAY 2169142 Contact Us For Availability
8
MAY 2321289 MAY 2321289 Contact Us For Availability
8
MAY 2205765 MAY 2205765 Contact Us For Availability
9
CLIP, ROLLER MAY 2174706 Contact Us For Availability
9
Cup, Shelf MAY W10130299 Contact Us For Availability
9
MAY 3400012 MAY 3400012 Contact Us For Availability
9
Gasket MAY 2304241 Contact Us For Availability
9
MAY W10603968 MAY W10603968 Contact Us For Availability
9
TUBE, PROCESS MAY 2325479 Contact Us For Availability
10
MAY 3400103 MAY 3400103 Contact Us For Availability
10
MAY W10318961 MAY W10318961 Contact Us For Availability
10
THIMBLE, CAM MAY 2182178 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
START DEVICE MAY 2312007 Contact Us For Availability
11
MAY 2304249 MAY 2304249 Contact Us For Availability
11
Trim, Pan MAY 2255593 Contact Us For Availability
11
MAY 2309757 MAY 2309757 Contact Us For Availability
11
MAY 2306940 MAY 2306940 Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
12
MAY W10400479 MAY W10400479 Contact Us For Availability
12
MAY W10402730 MAY W10402730 Contact Us For Availability
12
PAN, MEAT MAY 2188654 Contact Us For Availability
12
MAY W10318948 MAY W10318948 Contact Us For Availability
12
HARNESS, FAN EVAPORATOR MAY W10242395 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
13
MAY W10409481 MAY W10409481 Contact Us For Availability
13
MAY 2179342 MAY 2179342 Contact Us For Availability
13
MAY W10219801 MAY W10219801 Contact Us For Availability
13
GASKET MAY 2155789 Contact Us For Availability
13
MAY 8281232 MAY 8281232 Contact Us For Availability
14
MAY W10142234 MAY W10142234 Contact Us For Availability
14
Body, Humidity Control MAY 2179343 Contact Us For Availability
14
MAY 2160912 MAY 2160912 Contact Us For Availability
14
NAMEPLATE (BADGE, MAYTAG) MAY W10170766 Contact Us For Availability
14
MAY 2203876 MAY 2203876 Contact Us For Availability
14
MAY 2161324 MAY 2161324 Contact Us For Availability
15
MAY 3400113 MAY 3400113 Contact Us For Availability
15
Trim, Pan MAY 2179234 Contact Us For Availability
15
MAY 2321286 MAY 2321286 Contact Us For Availability
15
MAY 2223883 MAY 2223883 Contact Us For Availability
15
MAY W10463013 MAY W10463013 Contact Us For Availability
15
MAY 1110663 MAY 1110663 Contact Us For Availability
16
MAY W10414753 MAY W10414753 Contact Us For Availability
16
PAN, SNACK MAY 2309518 Contact Us For Availability
16
MAY 8281159 MAY 8281159 Contact Us For Availability
16
Sleeve, Pressure Switch Hose MAY 2161302 Contact Us For Availability
17
FRONT ROLLER, RIGHT MAY W10304659 Contact Us For Availability
17
MAY W10276341 MAY W10276341 Contact Us For Availability
17
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
17
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
17
CAPACITOR MAY 2321245 Contact Us For Availability
18
MAY 489427 MAY 489427 Contact Us For Availability
18
MAY W10283959 MAY W10283959 Contact Us For Availability
18
MAY W10283961 MAY W10283961 Contact Us For Availability
19
MAY W10449698 MAY W10449698 Contact Us For Availability
19
MAY W10449700 MAY W10449700 Contact Us For Availability
19
MAY 489478 MAY 489478 Contact Us For Availability
20
SCREW (WHITE) MAY W10308750 Contact Us For Availability
20
SCREW (BLACK) MAY W10308751 Contact Us For Availability
20
MAY W10466698 MAY W10466698 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
22
MAY 2304888 MAY 2304888 Contact Us For Availability
22
MAY 2188823 MAY 2188823 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
MAY 2326941 MAY 2326941 Contact Us For Availability
24
MAY 2214574 MAY 2214574 Contact Us For Availability
24
MAY W10293680 MAY W10293680 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
26
DOOR CLOSER, FREEZER MAY 2223751 Contact Us For Availability
26
MAY W10554745 MAY W10554745 Contact Us For Availability
27
Clamp, Power Cord MAY 549193 Contact Us For Availability
27
Drier MAY W10177049 Contact Us For Availability
28
COMPRESSOR MAY W10120455 Contact Us For Availability
29
MAY W10196321 MAY W10196321 Contact Us For Availability
30
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
31
MAY W10123653 MAY W10123653 Contact Us For Availability
32
MAY W10476309 MAY W10476309 Contact Us For Availability
33
GROMMET (PRODUCTION) MAY 10835903 Contact Us For Availability
34
AIR BAFFLE MAY W10332806 Contact Us For Availability
35
Unit Mounting Rail MAY W10196313 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
MAY W10476817 MAY W10476817 Contact Us For Availability
NI
MAY W10476819 MAY W10476819 Contact Us For Availability
NI
MAY W10476821 MAY W10476821 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 2217192 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
