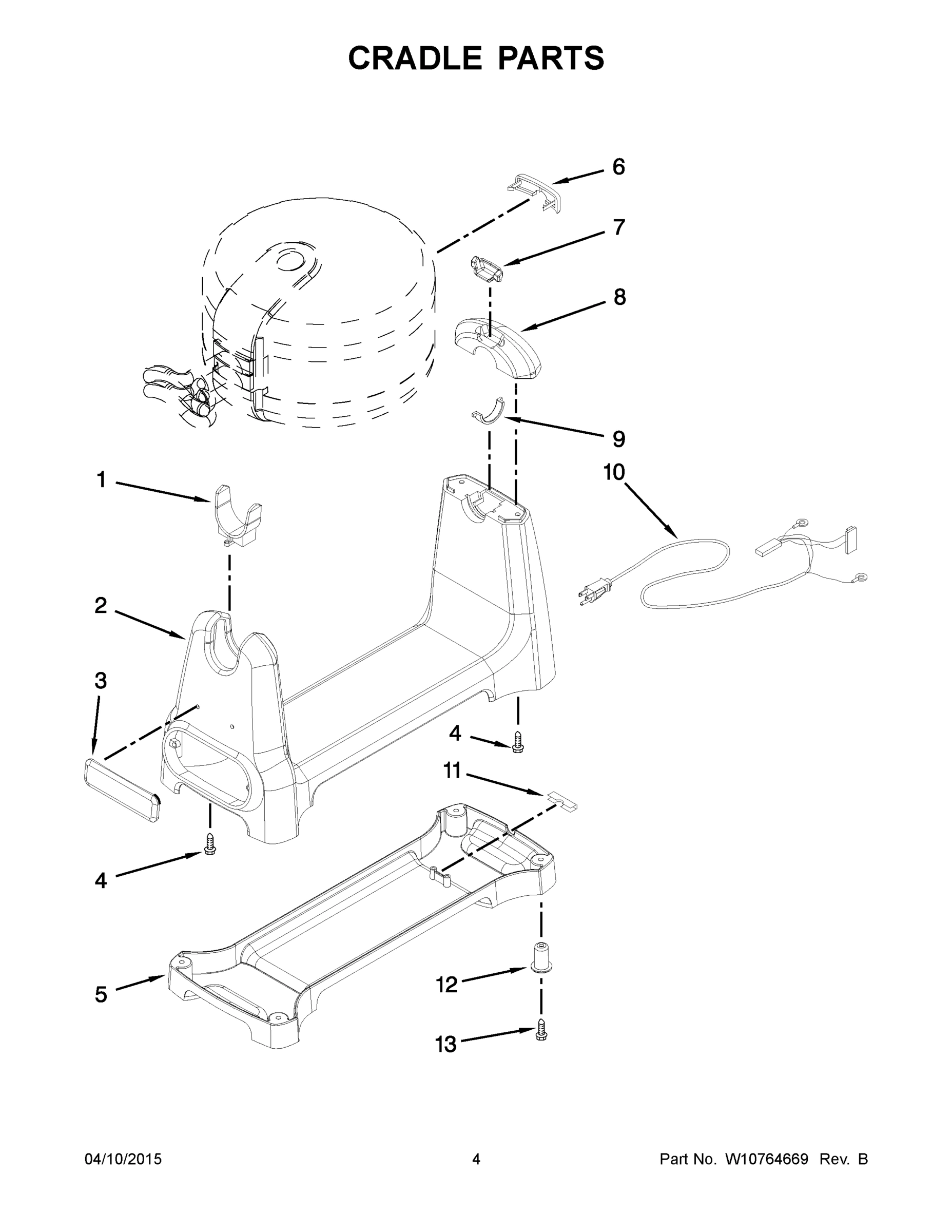

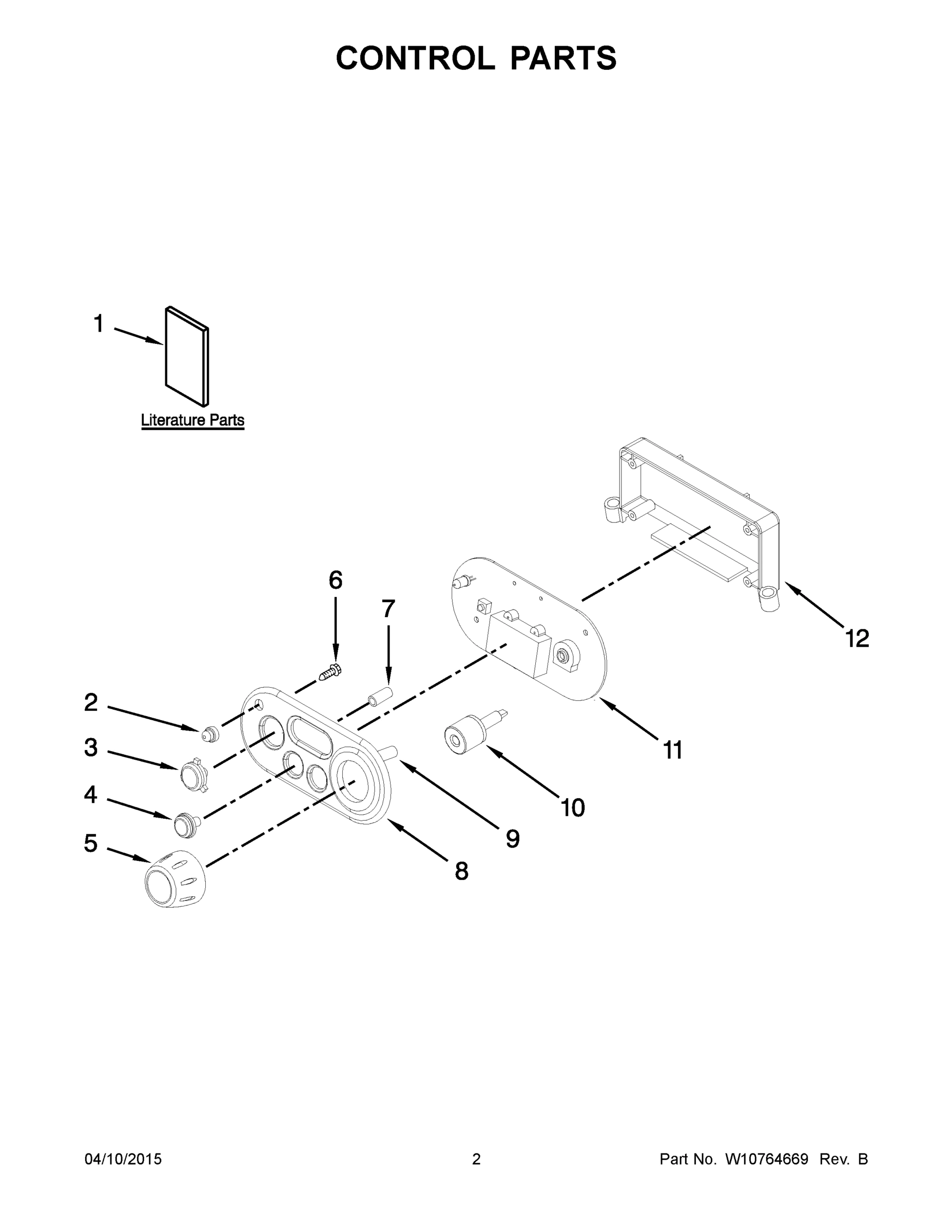

Model Whirlpool 5KWB110EAC0 WAFFLE MAKER – Common Parts & Diagrams

1
GUIDE, USE & CARE
GUIDE, USE & CARE WPL W10158016 Contact Us For Availability
View on Model
2
LENS, LED
LENS, LED WPL 8211489 Contact Us For Availability
View on Model
2
BASE (ONYX BLACK)
BASE (ONYX BLACK) WPL W10157757 Contact Us For Availability
View on Model
2A
BASE (ALMOND CREME)
BASE (ALMOND CREME) WPL W10240854 Contact Us For Availability
View on Model
2B
BASE (EMPIRE RED)
BASE (EMPIRE RED) WPL W10240853 Contact Us For Availability
View on Model
2C
BASE (MEDALLION SILVER)
BASE (MEDALLION SILVER) WPL W10768181 Contact Us For Availability
View on Model
3
NAMEPLATE
NAMEPLATE WPL W10757967 Contact Us For Availability
View on Model
3A
BUTTON, POWER (EUROPEAN)
BUTTON, POWER (EUROPEAN) WPL W10240848 Contact Us For Availability
View on Model
4
BUTTON, START (US)
BUTTON, START (US) WPL 8211486 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 8211495 Contact Us For Availability
View on Model
4A
BUTTON, START (EUROPEAN)
BUTTON, START (EUROPEAN) WPL W10240849 Contact Us For Availability
View on Model
5
KNOB
KNOB WPL 8211485 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 8211490 Contact Us For Availability
View on Model
6
COVER, SPRING
COVER, SPRING WPL 8211504 Contact Us For Availability
View on Model
7
CLAMP
CLAMP WPL 8211498 Contact Us For Availability
View on Model
8
CAP (ONYX BLACK)
CAP (ONYX BLACK) WPL W10157758 Contact Us For Availability
View on Model
8A
CAP (ALMOND CREME)
CAP (ALMOND CREME) WPL W10240858 Contact Us For Availability
View on Model
8B
CAP (EMPIRE RED)
CAP (EMPIRE RED) WPL W10240857 Contact Us For Availability
View on Model
8C
CAP (MEDALLION SILVER)
CAP (MEDALLION SILVER) WPL W10768180 Contact Us For Availability
View on Model
9
SPRING
SPRING WPL 8211514 Contact Us For Availability
View on Model
9
HOLDER, AXLE
HOLDER, AXLE WPL W10757968 Contact Us For Availability
View on Model
10
BRACKET, KNOB
BRACKET, KNOB WPL 8211513 Contact Us For Availability
View on Model
10
CORD, POWER (INCLUDES MOV BOARD AND PCB) (120
CORD, POWER (INCLUDES MOV BOARD AND PCB) (120 WPL 8212256 Contact Us For Availability
View on Model
10A
CORD, POWER (INCLUDES MOV BOARD AND PCB) (230
CORD, POWER (INCLUDES MOV BOARD AND PCB) (230 WPL W10240859 Contact Us For Availability
View on Model
11
MCU PCB ASSEMBLY (120V - US)
MCU PCB ASSEMBLY (120V - US) WPL 8211491 Contact Us For Availability
View on Model
11
CLAMP, CORD
CLAMP, CORD WPL 8211503 Contact Us For Availability
View on Model
11A
MCU PCB ASSEMBLY (230V - EUROPEAN)
MCU PCB ASSEMBLY (230V - EUROPEAN) WPL W10768182 Contact Us For Availability
View on Model
12
HOLDER, PCB
HOLDER, PCB WPL 8211493 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 8211502 Contact Us For Availability
View on Model
