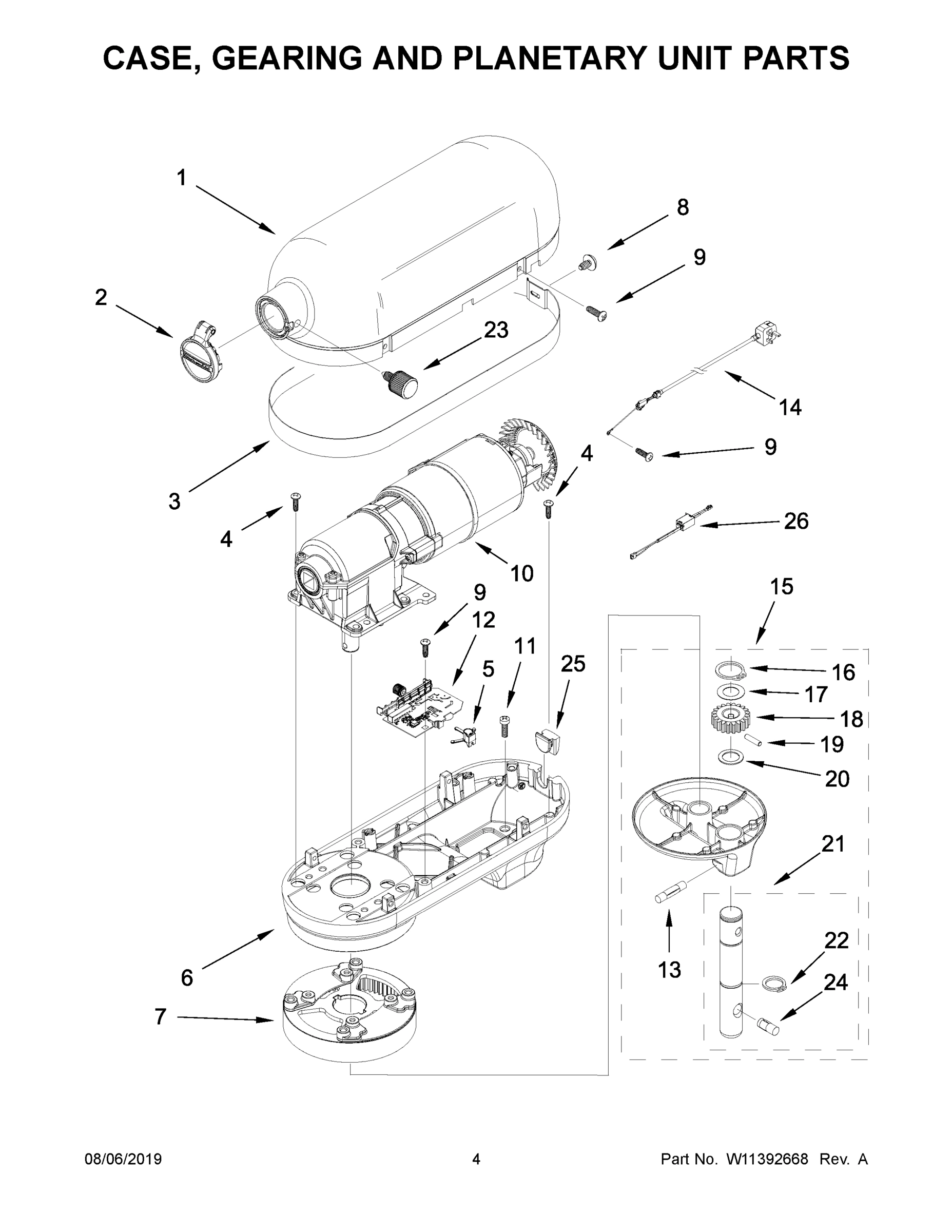

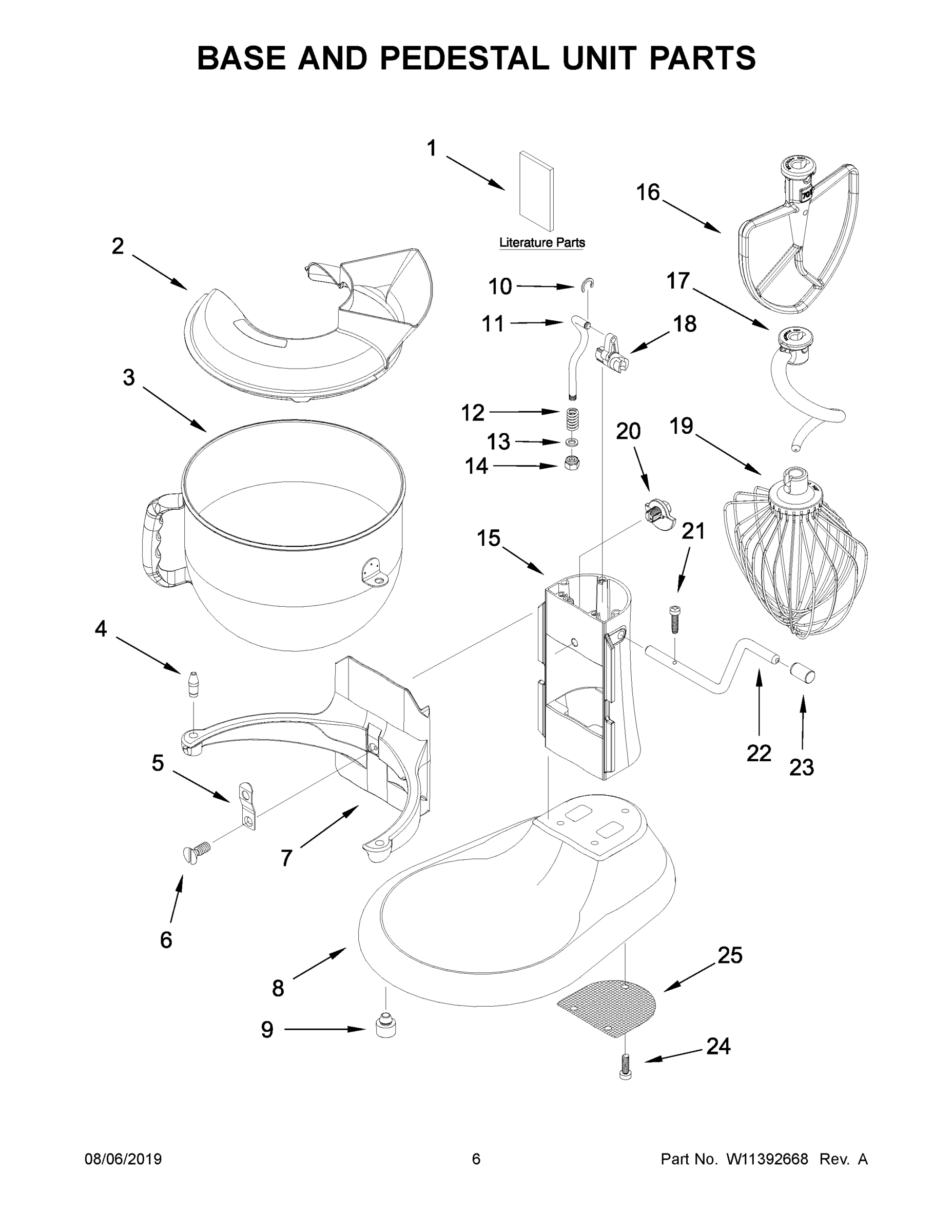

Model Whirlpool 5KSM7580XEBK0 SMALL APPLIANCE, STAND MIXER, 7 QT – Common Parts & Diagrams

1
USE & CARE GUIDE
USE & CARE GUIDE WPL W11356007 Contact Us For Availability
View on Model
1C
MOTOR HOUSING (EMPIRE RED)
MOTOR HOUSING (EMPIRE RED) WPL 9705300 Contact Us For Availability
View on Model
1F
MOTOR HOUSING (ONYX BLACK)
MOTOR HOUSING (ONYX BLACK) WPL 9705296 Contact Us For Availability
View on Model
3
LOWER GEARCASE (ALMOND CREME)
LOWER GEARCASE (ALMOND CREME) WPL W10668598 Contact Us For Availability
View on Model
3B
LOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLAC
LOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLAC WPL W10737001 Contact Us For Availability
View on Model
3G
LOWER GEARCASE (SILVER)
LOWER GEARCASE (SILVER) WPL W10234491 Contact Us For Availability
View on Model
4
PLANETARY (ALMOND CREME)
PLANETARY (ALMOND CREME) WPL W10668601 Contact Us For Availability
View on Model
4B
PLANETARY (CAST IRON BLACK/IMPERIAL BLACK)
PLANETARY (CAST IRON BLACK/IMPERIAL BLACK) WPL W10737004 Contact Us For Availability
View on Model
4G
PLANETARY (MATTE DRIED ROSE)
PLANETARY (MATTE DRIED ROSE) WPL W11438598 Contact Us For Availability
View on Model
5
BOWL SUPPORT AND PINS (ALMOND CREAM/CREME)
BOWL SUPPORT AND PINS (ALMOND CREAM/CREME) WPL 9705358 Contact Us For Availability
View on Model
5B
BOWL SUPPORT AND PINS (CAST IRON BLACK/IMPERI
BOWL SUPPORT AND PINS (CAST IRON BLACK/IMPERI WPL 9703520 Contact Us For Availability
View on Model
5C
BOWL SUPPORT AND PINS (EMPIRE RED)
BOWL SUPPORT AND PINS (EMPIRE RED) WPL 9705360 Contact Us For Availability
View on Model
5D
BOWL SUPPORT AND PINS (FROSTED PEARL)
BOWL SUPPORT AND PINS (FROSTED PEARL) WPL W10448659 Contact Us For Availability
View on Model
5F
BOWL SUP
BOWL SUP WPL 9705356 Contact Us For Availability
View on Model
5G
WPL W11438574
WPL W11438574 WPL W11438574 Contact Us For Availability
View on Model
6
WPL W10668596
WPL W10668596 WPL W10668596 Contact Us For Availability
View on Model
6B
WPL W11376412
WPL W11376412 WPL W11376412 Contact Us For Availability
View on Model
6G
WPL W11438679
WPL W11438679 WPL W11438679 Contact Us For Availability
View on Model
7
GEAR, RING AND PLATE ASSEMBLY
GEAR, RING AND PLATE ASSEMBLY WPL W10234493 Contact Us For Availability
View on Model
7
WPL 9705346
WPL 9705346 WPL 9705346 Contact Us For Availability
View on Model
7B
WPL 9703511
WPL 9703511 WPL 9703511 Contact Us For Availability
View on Model
7C
WPL 9705348
WPL 9705348 WPL 9705348 Contact Us For Availability
View on Model
7D
WPL W10448638
WPL W10448638 WPL W10448638 Contact Us For Availability
View on Model
7F
WPL 9705344
WPL 9705344 WPL 9705344 Contact Us For Availability
View on Model
7G
WPL W11236428
WPL W11236428 WPL W11236428 Contact Us For Availability
View on Model
11
ROD, BOWL LIFT
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL 9703439 Contact Us For Availability
View on Model
14
NUT
NUT WPL 8533907 Contact Us For Availability
View on Model
15
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
View on Model
20
CAM, ADJUSTING
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
View on Model
22
HANDLE, BOWL LIFT
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
View on Model
25
CLIP, PLUG
CLIP, PLUG WPL W10417201 Contact Us For Availability
View on Model
25
SCREEN, VENT
SCREEN, VENT WPL 9706814 Contact Us For Availability
View on Model
26
RFI FILTER
RFI FILTER WPL W10703125 Contact Us For Availability
View on Model
