Model Whirlpool 5KSM70SHXWER0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

1
MOTOR HOUSING (EMPIRE RED)
MOTOR HOUSING (EMPIRE RED) WPL 9705300 Contact Us For Availability
View on Model
1
USE & CARE GUIDE (EMEA)
USE & CARE GUIDE (EMEA) WPL W11556523 Contact Us For Availability
View on Model
1A
MOTOR HOUSING (WHITE)
MOTOR HOUSING (WHITE) WPL 9703311 Contact Us For Availability
View on Model
2
COVER, ATTACHMENT HUB - DUAL FINISH
COVER, ATTACHMENT HUB - DUAL FINISH WPL W11591898 Contact Us For Availability
View on Model
3
BOWL, 7 QT. (BRUSHED)
BOWL, 7 QT. (BRUSHED) WPL W11512549 Contact Us For Availability
View on Model
5
THUMB SCREW (CHROME)
THUMB SCREW (CHROME) WPL W11521863 Contact Us For Availability
View on Model
5A
BOWL SUPPORT AND PINS (WHITE)
BOWL SUPPORT AND PINS (WHITE) WPL 9703674 Contact Us For Availability
View on Model
6A
COLUMN AND PINS (WHITE)
COLUMN AND PINS (WHITE) WPL 9703673 Contact Us For Availability
View on Model
7
BASE AND FOOT ASSEMBLY (EMPIRE RED)
BASE AND FOOT ASSEMBLY (EMPIRE RED) WPL 9705348 Contact Us For Availability
View on Model
7
GEAR, RING AND PLATE ASSEMBLY
GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability
View on Model
7A
BASE AND FOOT ASSEMBLY (WHITE)
BASE AND FOOT ASSEMBLY (WHITE) WPL 9703690 Contact Us For Availability
View on Model
10
MOTOR, 230 VOLT ASSEMBLY
MOTOR, 230 VOLT ASSEMBLY WPL W11480076 Contact Us For Availability
View on Model
11
ROD, BOWL LIFT
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL 9703439 Contact Us For Availability
View on Model
14
NUT
NUT WPL 8533907 Contact Us For Availability
View on Model
14
CORD, POWER (BLACK)
CORD, POWER (BLACK) WPL W11459270 Contact Us For Availability
View on Model
15

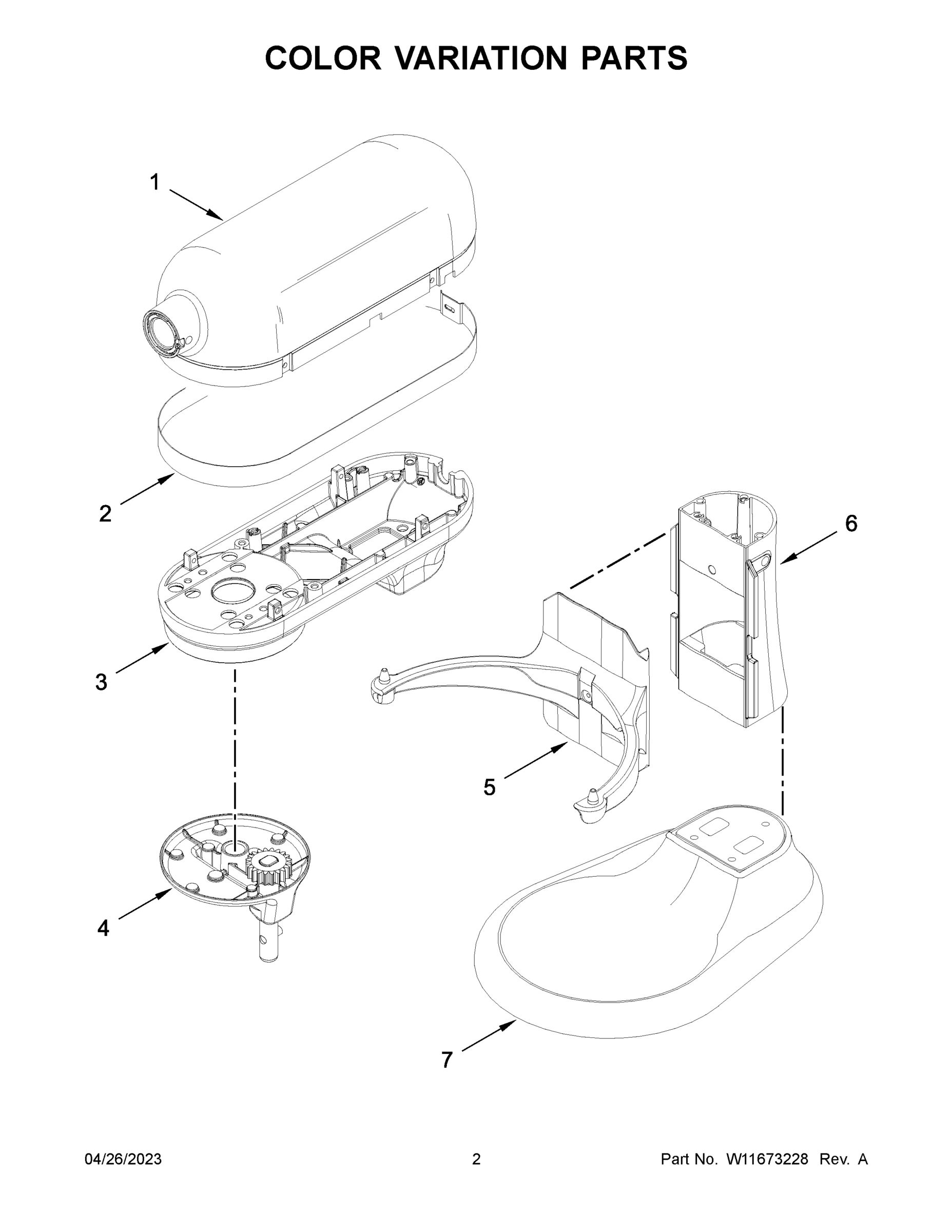

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
View on Model
17
PLATE, LOWER HOUSING
PLATE, LOWER HOUSING WPL W11560130 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL W10419037 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL W11457471 Contact Us For Availability
View on Model
20
CAM, ADJUSTING
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
View on Model
22
HANDLE, BOWL LIFT
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
View on Model
23
CAP, HANDLE
CAP, HANDLE WPL W11627641 Contact Us For Availability
View on Model
24
BEATER, DOUBLE FLEX EDGE
BEATER, DOUBLE FLEX EDGE WPL W11569891 Contact Us For Availability
View on Model
25
SHIELD, POURING (WIDE)
SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability
View on Model
