Model Whirlpool 5KSM70SHXADR0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams
01 - COVER SHEET
02 - COLOR VARIATION PARTS

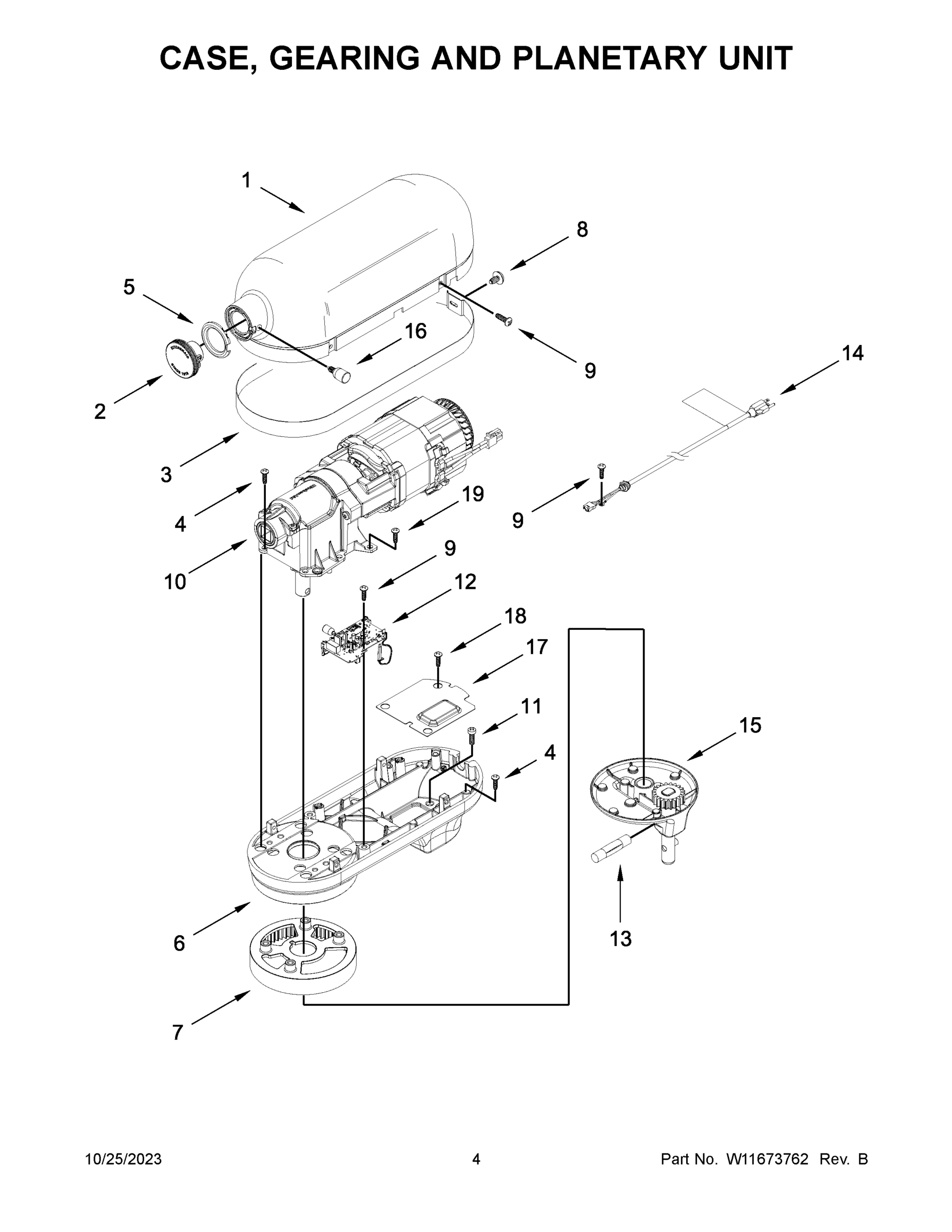

03 - CASE, GEARING AND PLANETARY UNIT

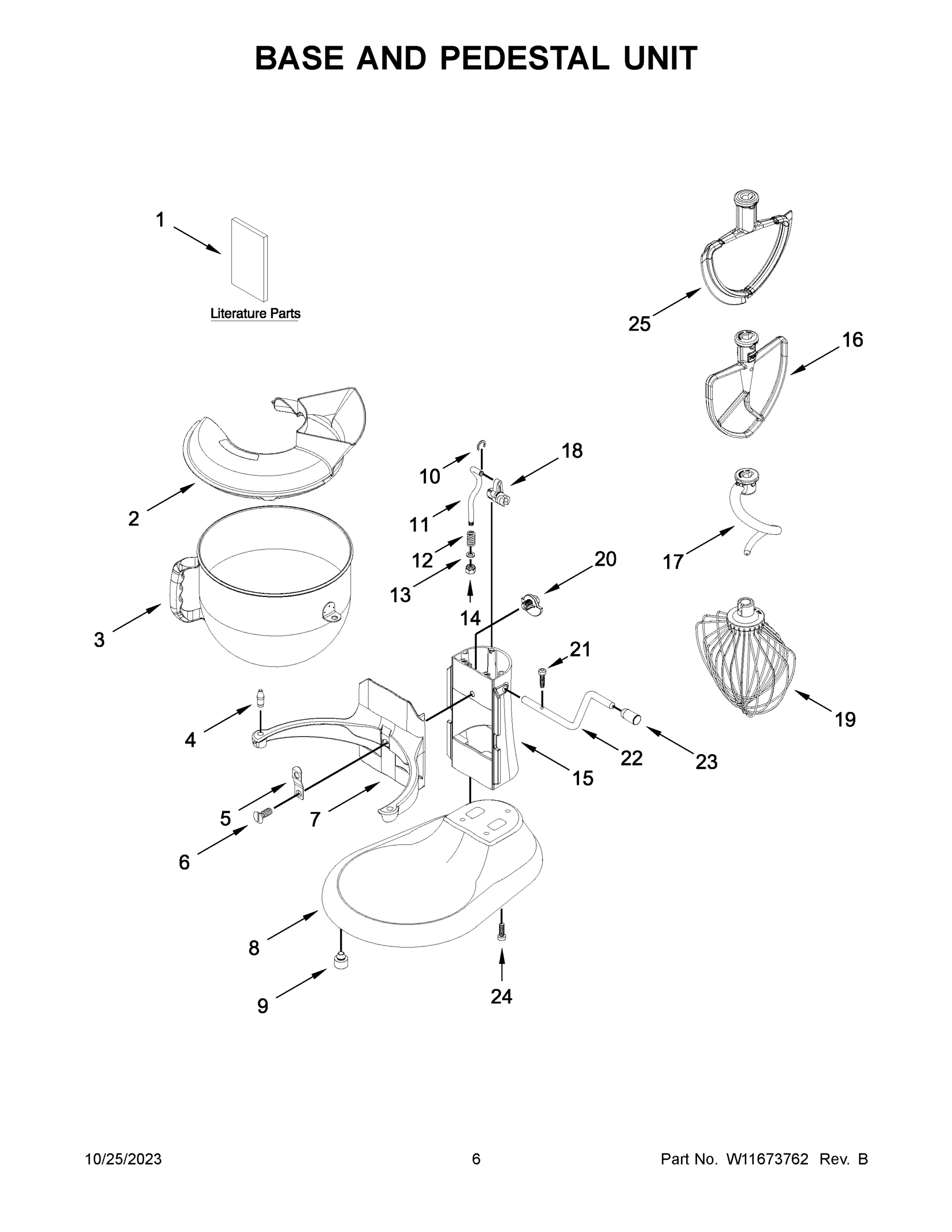

04 - BASE AND PEDESTAL UNIT
Common parts from model Whirlpool 5KSM70SHXADR0 SMALL APPLIANCE, STAND MIXER
1
GEARCASE MOTOR HOUSING (REFER TO COLOR VARIAT WPL ARI33F21CE8839E6A9E729A46FBA298BEC9 Contact Us For Availability
1
USE AND CARE GUIDE WPL W11616370 Contact Us For Availability
2
COVER, ATTACHMENT HUB - DUAL FINISH WPL W11591898 Contact Us For Availability
2
SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability
3
BAND, TRIM (REFER TO COLOR VARIATION PARTS PA WPL ARIBCA4922FCDA0811E32A4250D3BAC8839 Contact Us For Availability
3
BOWL, 7 QT. (BRUSHED) WPL W11512549 Contact Us For Availability
3C
LOWER GEARCASE (MATTE DRIED ROSE) WPL W11520139 Contact Us For Availability
3D
LOWER GEARCASE (EMPIRE RED) WPL W11520142 Contact Us For Availability
3E
LOWER GEARCASE (PEBBLED PALM) WPL W11520128 Contact Us For Availability
3F
LOWER GEARCASE (PISTACHIO) WPL W11520137 Contact Us For Availability
4
PLANETARY (SILENT SILVER) WPL W11595416 Contact Us For Availability
5
BOWL SUPPORT AND PINS (ALMOND CREAM/CREME) WPL 9705358 Contact Us For Availability
5A
BOWL SUPPORT AND PINS (CAST IRON BLACK/IMPERI WPL 9703520 Contact Us For Availability
5C
BOWL SUPPORT AND PINS (MATTE DRIED ROSE) WPL W11438574 Contact Us For Availability
5F
BOWL SUPPORT AND PINS (PISTACHIO) WPL W11417635 Contact Us For Availability
6
COLUMN AND PINS (ALMOND CREAM/CREME) WPL 9705322 Contact Us For Availability
6
LOWER GEARCASE (REFER TO COLOR VARIATION PART WPL ARI8B12F47A83C5A0C26A834B1BD94F178F Contact Us For Availability
6A
COLUMN AND PINS (CAST IRON BLACK/IMPERIAL BLA WPL 9703526 Contact Us For Availability
6C
COLUMN AND PINS (MATTE DRIED ROSE) WPL W11234594 Contact Us For Availability
6E
COLUMN AND PINS (PEBBLED PALM) WPL W11415374 Contact Us For Availability
6F
COLUM WPL 9708104 Contact Us For Availability
7
WPL 9705346 WPL 9705346 Contact Us For Availability
7
GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability
7
BOWL SUPPORT (REFER TO COLOR VARIATION PARTS WPL ARI4980FA4F89CD9DADED6078D081567037 Contact Us For Availability
7A
WPL 9703511 WPL 9703511 Contact Us For Availability
7C
WPL W11236428 WPL W11236428 Contact Us For Availability
7E
WPL W11415375 WPL W11415375 Contact Us For Availability
7F
WPL 9708107 WPL 9708107 Contact Us For Availability
8
BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIAT WPL ARIE3AF1D82A6A4B7D31EBF980CFE7ECCF0 Contact Us For Availability
10
MOTOR, 230 VOLT ASSEMBLY WPL W11480076 Contact Us For Availability
11
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
13
WASHER WPL 9703439 Contact Us For Availability
14
CORD, POWER (BLACK) WPL W11459273 Contact Us For Availability
15
PLANETARY ASSEMBLY (REFER TO COLOR VARIATION WPL ARI2C54D97F5D296EF7DCEE4AED6DC7F137 Contact Us For Availability
15
COLUMN ASSEMBLY (REFER TO COLOR VARIATION PAR WPL ARIBD06E68AD0288B7063FE4A14C0B20BBA Contact Us For Availability
16
THUMB SCREW (CHROME) WPL W11521863 Contact Us For Availability
17
PLATE, LOWER HOUSING WPL W11560130 Contact Us For Availability
18
SCREW WPL W10419037 Contact Us For Availability
19
SCREW WPL W11457471 Contact Us For Availability
20
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
23
CAP, HANDLE WPL W11663366 Contact Us For Availability
25
BEATER, DOUBLE FLEX EDGE WPL W11569891 Contact Us For Availability
× ![]()
