Model Whirlpool 5KSM6583CES0 SMALL APPLIANCE, STAND MIXER, 6 QT – Common Parts & Diagrams

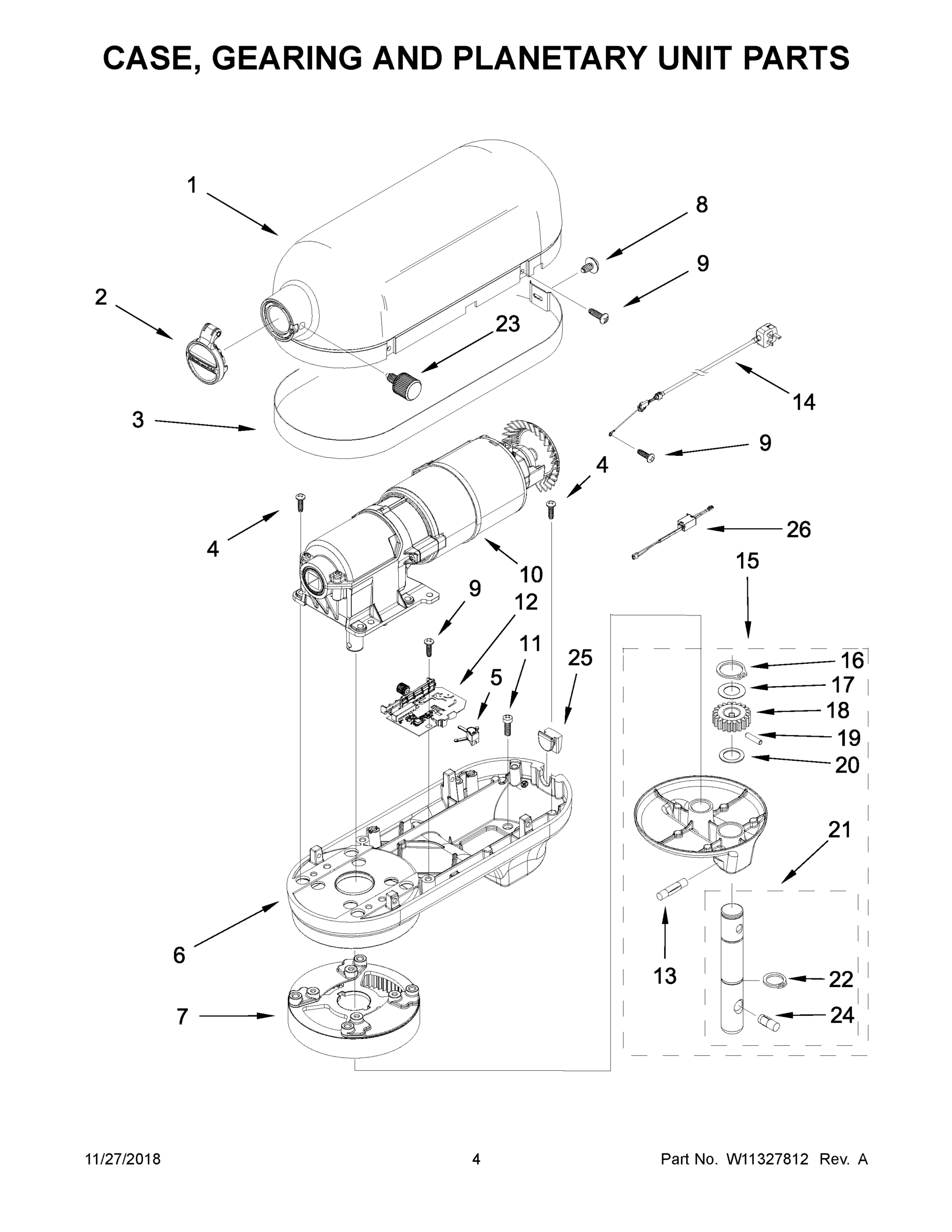

03 - CASE, GEARING AND PLANETARY UNIT PARTS

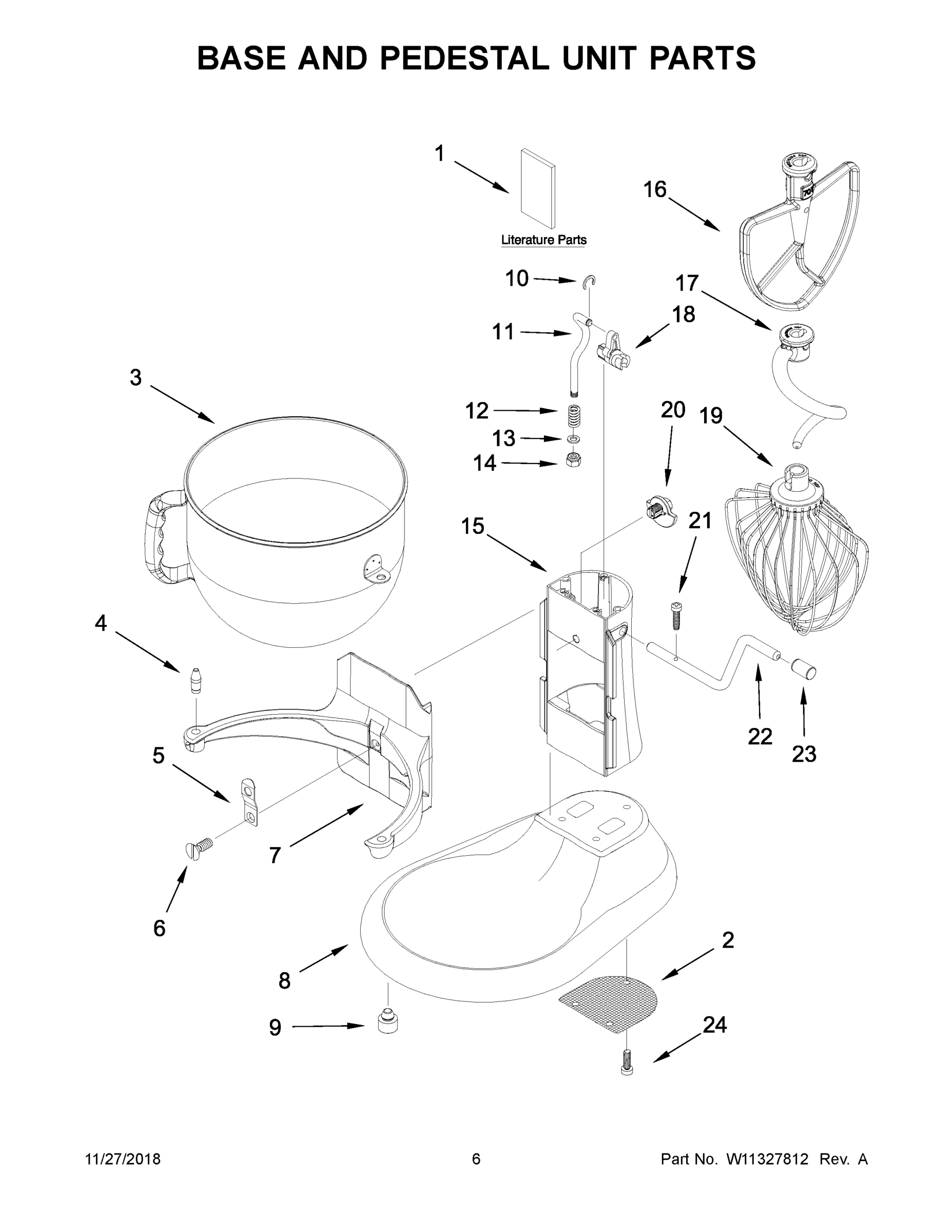

04 - BASE AND PEDESTAL UNIT PARTS
02 - COLOR VARIATION PARTS
01 - COVER SHEET
Common parts from model Whirlpool 5KSM6583CES0 SMALL APPLIANCE, STAND MIXER, 6 QT
1
MOTOR HOUSING (BUTTERCUP) WPL W11260883 Contact Us For Availability
1A
MOTOR HOUSING (EMPIRE RED) WPL 9705300 Contact Us For Availability
1C
MOTOR HOUSING (GUAVA GLAZE) WPL W11113695 Contact Us For Availability
1D
MOTOR HOUSING (ICE) WPL W10726426 Contact Us For Availability
1E
MOTOR HOUSING (WHITE) WPL 9703311 Contact Us For Availability
2
TRIM BAND (DARK PLATINUM) WPL W10668069 Contact Us For Availability
3
LOWER GEARCASE (BUTTERCUP) WPL W11260869 Contact Us For Availability
3A
LOWER GEARCASE (EMPIRE RED) WPL W10410014 Contact Us For Availability
3B
LOWER GEARCASE (ESPRESSO) WPL W11260874 Contact Us For Availability
3C
LOWER GEARCASE (GUAVA GLAZE) WPL W11199005 Contact Us For Availability
3D
LOWER GEARCASE (ICE) WPL W11260870 Contact Us For Availability
3E
LOWER GEARCASE (WHITE) WPL W10234489 Contact Us For Availability
4
PLANETARY (BUTTERCUP) WPL W11260873 Contact Us For Availability
4B
PLANETARY (ESPRESSO) WPL W11260881 Contact Us For Availability
4C
PLANETARY (GUAVA GLAZE) WPL W11199004 Contact Us For Availability
4D
PLANETARY (ICE) WPL W11260876 Contact Us For Availability
5
BOWL SUPPORT AND PINS (BUTTERCUP) WPL W11298593 Contact Us For Availability
5A
BOWL SUPPORT AND PINS (EMPIRE RED) WPL 9705360 Contact Us For Availability
5C
BOWL SUPPORT AND PINS (GUAVA GLAZE) WPL W11113675 Contact Us For Availability
5D
BOWL SUPPORT AND PINS (ICE) WPL W10726436 Contact Us For Availability
5E
BOWL SUPPORT AND PINS (WHITE) WPL 9703674 Contact Us For Availability
6
COLUMN AND PINS (BUTTERCUP) WPL W11260858 Contact Us For Availability
6B
COLUMN AND PINS (ESPRESSO) WPL W11260867 Contact Us For Availability
6C
COLUMN AND PINS (GUAVA GLAZE) WPL W11199065 Contact Us For Availability
6D
COLUMN AND PINS (ICE) WPL W11260864 Contact Us For Availability
6E
COLUMN AND PINS (WHITE) WPL W10451002 Contact Us For Availability
7
GEAR, RING AND PLATE ASSEMBLY WPL W10234493 Contact Us For Availability
7
BASE & FOOT ASSEMBLY (BUTTERCUP) WPL W11298590 Contact Us For Availability
7A
BASE & FOOT ASSEMBLY (EMPIRE RED) WPL 9705348 Contact Us For Availability
7C
BASE & FOOT ASSEMBLY (GUAVA GLAZE) WPL W11113668 Contact Us For Availability
7D
BASE & FOOT ASSEMBLY (ICE) WPL W10726441 Contact Us For Availability
7E
BASE & FOOT ASSEMBLY (WHITE) WPL 9703690 Contact Us For Availability
11
ROD, BOWL LIFT WPL W10598835 Contact Us For Availability
14
NUT WPL 8533907 Contact Us For Availability
15
COLUMN ASSEMBLY (REFER TO COLOR VARIATION PAR WPL NP Contact Us For Availability
20
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
× ![]()
