Model Whirlpool 5KSM60SPXEAC0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

1
USE AND CARE GUIDE
USE AND CARE GUIDE WPL W11616370 Contact Us For Availability
View on Model
2
CAP, ATTACHMENT HUB
CAP, ATTACHMENT HUB WPL W11618094 Contact Us For Availability
View on Model
2
SHIELD, POURING (WIDE)
SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability
View on Model
3
BOWL, 6 QUART (BRUSHED)
BOWL, 6 QUART (BRUSHED) WPL W11512548 Contact Us For Availability
View on Model
4
PLANETARY (ALMOND CREME)
PLANETARY (ALMOND CREME) WPL W11527670 Contact Us For Availability
View on Model
4A
PLANETARY (BLACK MATTE)
PLANETARY (BLACK MATTE) WPL W11513622 Contact Us For Availability
View on Model
4B
PLANETARY (CONTOUR SILVER)
PLANETARY (CONTOUR SILVER) WPL W11513269 Contact Us For Availability
View on Model
6
COLUMN AND PINS (ALMOND CREAM/CREME)
COLUMN AND PINS (ALMOND CREAM/CREME) WPL 9705322 Contact Us For Availability
View on Model
6D
COLUMN AND PINS (PISTACHIO)
COLUMN AND PINS (PISTACHIO) WPL 9708104 Contact Us For Availability
View on Model
7
BASE AND FOOT ASSEMBLY (ALMOND CREAM/CREME)
BASE AND FOOT ASSEMBLY (ALMOND CREAM/CREME) WPL 9705346 Contact Us For Availability
View on Model
7
GEAR, RING AND PLATE ASSEMBLY
GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability
View on Model
7D
BASE AND FOOT ASSEMBLY (PISTACHIO)
BASE AND FOOT ASSEMBLY (PISTACHIO) WPL 9708107 Contact Us For Availability
View on Model
10
MOTOR, 230 VOLT ASSEMBLY
MOTOR, 230 VOLT ASSEMBLY WPL W11480076 Contact Us For Availability
View on Model
11
ROD, BOWL LIFT
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
View on Model
12
CONTROL ASSEMBLY, 220/230 VOLT
CONTROL ASSEMBLY, 220/230 VOLT WPL W11512562 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL 9703439 Contact Us For Availability
View on Model
15

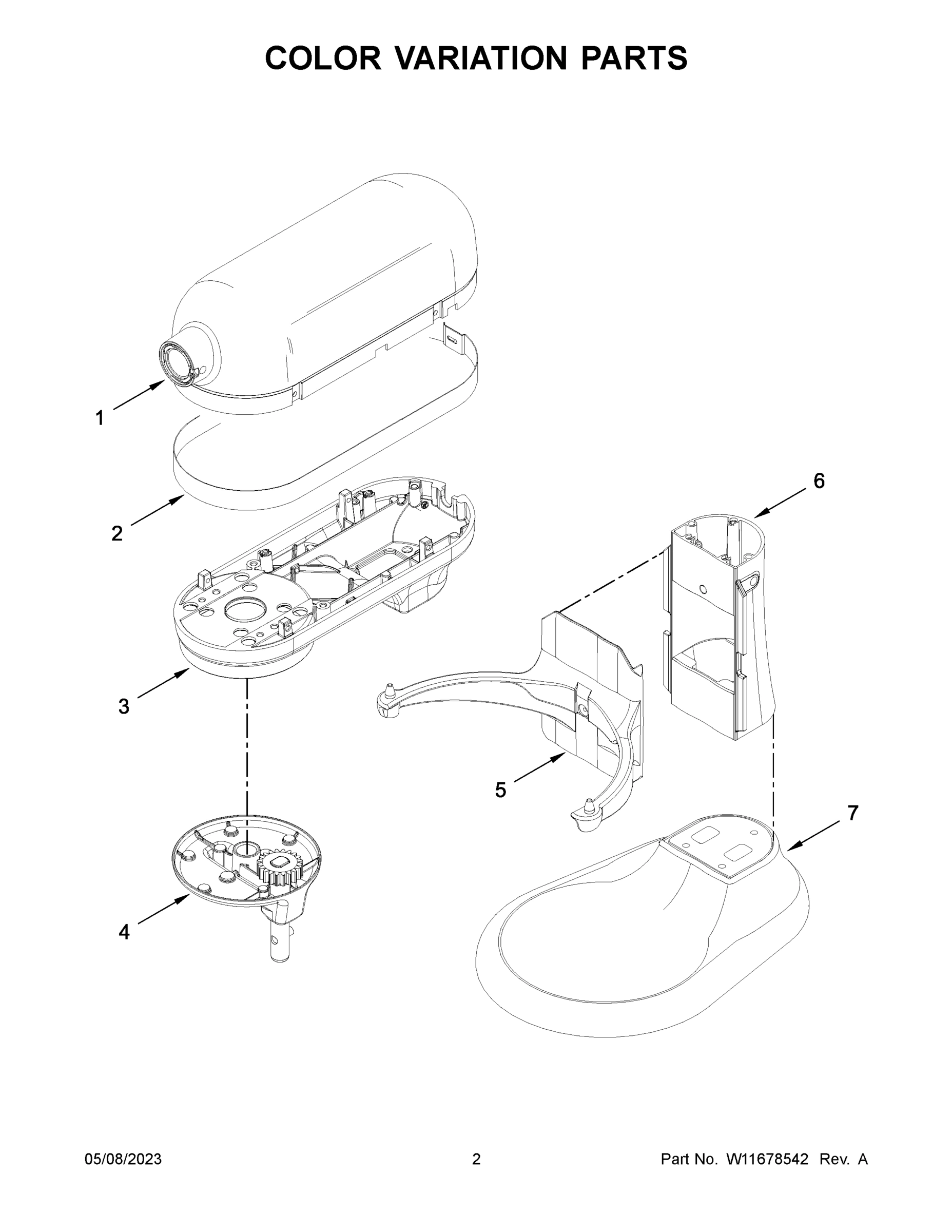

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
View on Model
16
THUMB SCREW (SATIN CHROME)
THUMB SCREW (SATIN CHROME) WPL W11521862 Contact Us For Availability
View on Model
16
BEATER, FLAT (SILENT SILVER)
BEATER, FLAT (SILENT SILVER) WPL W11571991 Contact Us For Availability
View on Model
17
HOOK, DOUGH (SILENT SILVER)
HOOK, DOUGH (SILENT SILVER) WPL W11571994 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL W10419037 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL W11457471 Contact Us For Availability
View on Model
20
CAM, ADJUSTING
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
View on Model
22
HANDLE, BOWL LIFT
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
View on Model
23
CAP, HANDLE
CAP, HANDLE WPL W11421150 Contact Us For Availability
View on Model
