Model Whirlpool 5KSM60SPXBER0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams
01 - COVER SHEET
02 - COLOR VARIATION PARTS
03 - CASE, GEARING AND PLANETARY UNIT

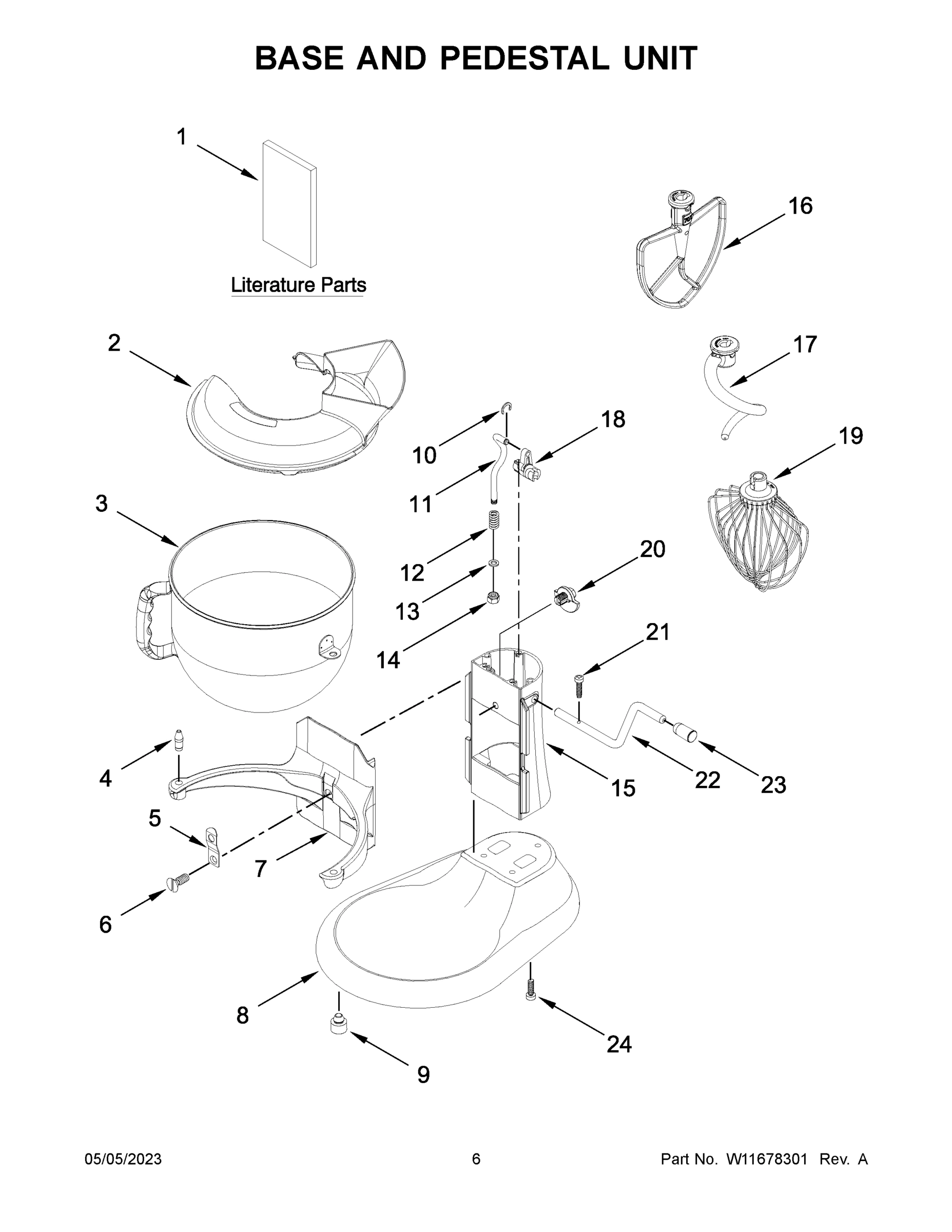

04 - BASE AND PEDESTAL UNIT
Common parts from model Whirlpool 5KSM60SPXBER0 SMALL APPLIANCE, STAND MIXER
1
USE AND CARE GUIDE WPL W11616370 Contact Us For Availability
1B
MOTOR HOUSING (EMPIRE RED) WPL 9705300 Contact Us For Availability
2
TRIM BAND (BRIGHT ALUMINUM) WPL W11420352 Contact Us For Availability
2
CAP, ATTACHMENT HUB WPL W11618094 Contact Us For Availability
2
SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability
3
LOWER GEARCASE (ALMOND CREAM/CREME) WPL W11527636 Contact Us For Availability
3
BOWL, 6 QUART (BRUSHED) WPL W11512548 Contact Us For Availability
3A
LOWER GEARCASE (BLACK MATTE) WPL W11520136 Contact Us For Availability
3B
LOWER GEARCASE (EMPIRE RED) WPL W11520142 Contact Us For Availability
3C
LOWER GEARCASE (PISTACHIO) WPL W11520137 Contact Us For Availability
4
PLANETARY (ALMOND CREME) WPL W11527670 Contact Us For Availability
4A
PLANETARY (BLACK MATTE) WPL W11513622 Contact Us For Availability
4B
PLANETARY (EMPIRE RED) WPL W11513270 Contact Us For Availability
4C
PLANETARY (PISTACHIO) WPL W11513621 Contact Us For Availability
5
BOWL SUPPORT AND PINS (ALMOND CREAM/CREME) WPL 9705358 Contact Us For Availability
5A
BOWL SUPPORT AND PINS (BLACK MATTE) WPL W11328664 Contact Us For Availability
5B
BOWL SUPPORT AND PINS (EMPIRE RED) WPL 9705360 Contact Us For Availability
5C
BOWL SUPPORT AND PINS (PISTACHIO) WPL W11417635 Contact Us For Availability
6
COLUMN AND PINS (ALMOND CREAM/CREME) WPL 9705322 Contact Us For Availability
6A
COLUMN AND PINS (BLACK MATTE) WPL W11123140 Contact Us For Availability
6B
COLUMN AND PINS (EMPIRE RED) WPL 9705324 Contact Us For Availability
6C
COLUMN AND PINS (PISTACHIO) WPL 9708104 Contact Us For Availability
7
BASE AND FOOT ASSEMBLY (ALMOND CREAM/CREME) WPL 9705346 Contact Us For Availability
7
GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability
7A
BASE AND FOOT ASSEMBLY (BLACK MATTE) WPL W11123131 Contact Us For Availability
7B
BASE AND FOOT ASSEMBLY (EMPIRE RED) WPL 9705348 Contact Us For Availability
7C
BASE AND FOOT ASSEMBLY (PISTACHIO) WPL 9708107 Contact Us For Availability
10
MOTOR, 230 VOLT ASSEMBLY WPL W11480076 Contact Us For Availability
11
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
12
CONTROL ASSEMBLY, 220/230 VOLT WPL W11512562 Contact Us For Availability
13
WASHER WPL 9703439 Contact Us For Availability
14
NUT WPL 8533907 Contact Us For Availability
14
CORD, POWER (BLACK) WPL W11459249 Contact Us For Availability
15
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
16
THUMB SCREW (SATIN CHROME) WPL W11521862 Contact Us For Availability
16
BEATER, FLAT (SILENT SILVER) WPL W11571991 Contact Us For Availability
17
PLATE, LOWER HOUSING WPL W11560130 Contact Us For Availability
17
HOOK, DOUGH (SILENT SILVER) WPL W11571994 Contact Us For Availability
18
SCREW WPL W10419037 Contact Us For Availability
19
SCREW WPL W11457471 Contact Us For Availability
20
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
22
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
23
CAP, HANDLE WPL W11421150 Contact Us For Availability
× ![]()
