Model Whirlpool 5KSM3311XBHT0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 3.5 QT – Common Parts & Diagrams
01 - COVER SHEET
02 - BASE AND PEDESTAL UNIT PARTS

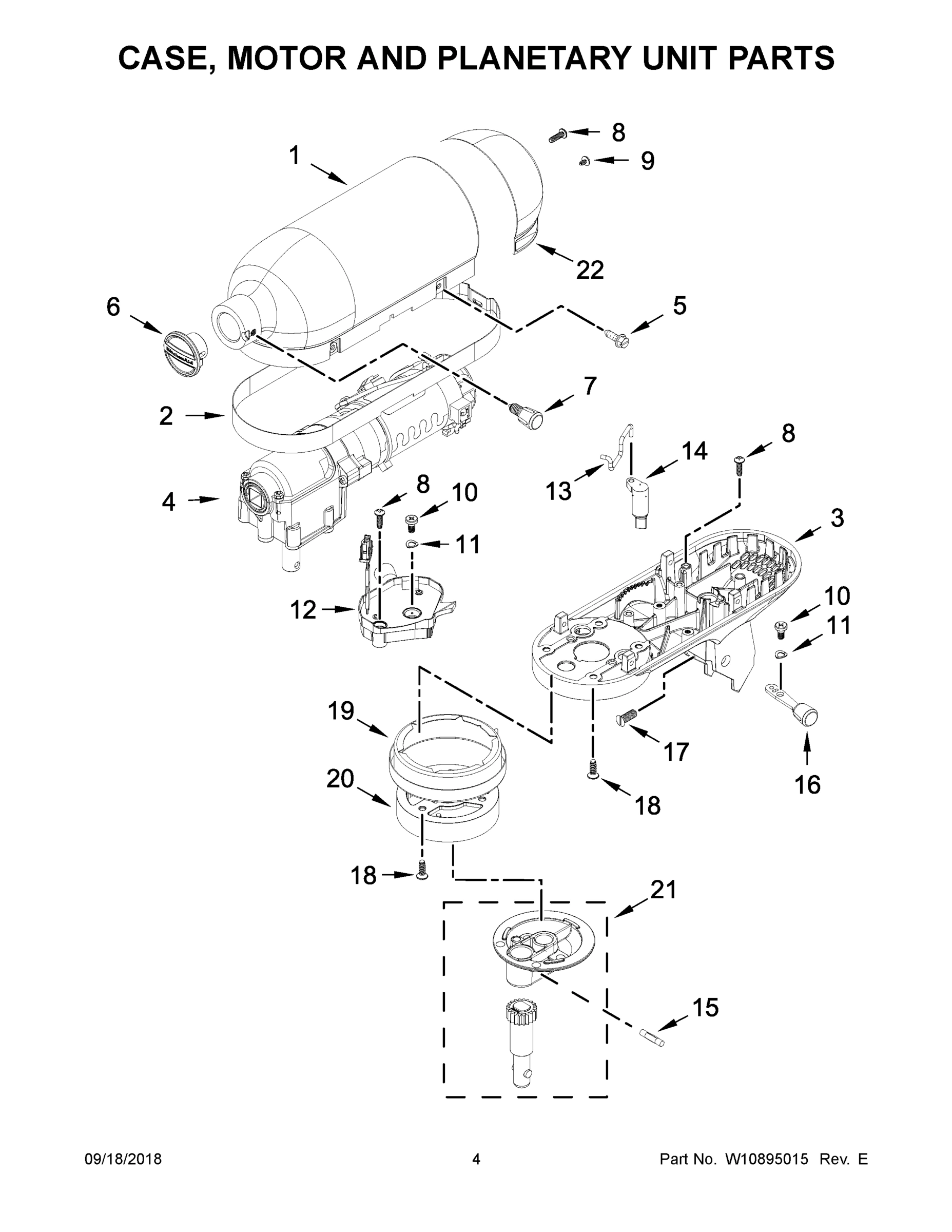

03 - CASE, MOTOR AND PLANETARY UNIT PARTS
Common parts from model Whirlpool 5KSM3311XBHT0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 3.5 QT
1
UPPER HOUSING (ALMOND CREME) WPL W10816046 Contact Us For Availability
1A
UPPER HOUSING (CANDY APPLE) WPL W10883853 Contact Us For Availability
1B
UPPER HOUSING (CONTOUR SILVER) WPL W10870579 Contact Us For Availability
1C
UPPER HOUSING (EMPIRE RED) WPL W10870578 Contact Us For Availability
1D
UPPER HOUSING (GUAVA GLAZE) WPL W10835950 Contact Us For Availability
1E
UPPER HOUSING (HONEYDEW) WPL W10835948 Contact Us For Availability
1F
UPPER HOUSING (HOT SAUCE) WPL W10765462 Contact Us For Availability
1G
UPPER HOUSING (ICE) WPL W10765465 Contact Us For Availability
1H
UPPER HOUSING (BLACK MATTE) WPL W10835947 Contact Us For Availability
1I
UPPER HOUSING (MATTE GRAY) WPL W10835946 Contact Us For Availability
1J
UPPER HOUSING (MATTE WHITE) WPL W10835945 Contact Us For Availability
1K
UPPER HOUSING (ONYX BLACK) WPL W11210627 Contact Us For Availability
1L
UPPER HOUSING (ORANGE SORBET) WPL W10765466 Contact Us For Availability
1M
UPPER HOUSING (TWILIGHT BLUE) WPL W10765463 Contact Us For Availability
1N
UPPER HOUSING (CAST IRON BLACK) WPL W11186744 Contact Us For Availability
1O
UPPER HOUSING (DRIED ROSE) WPL W11446672 Contact Us For Availability
1P
UPPER HOUSING (PISTACHIO) WPL W11446670 Contact Us For Availability
2
TRIM BAND WPL W10812505 Contact Us For Availability
3
SCREW WPL 3400020 Contact Us For Availability
3
LOWER HOUSING (ALMOND CREME) WPL W10815985 Contact Us For Availability
3A
LOWER HOUSING (CANDY APPLE) WPL W10883850 Contact Us For Availability
3B
LOWER HOUSING (CONTOUR SILVER) WPL W10870571 Contact Us For Availability
3C
LOWER HOUSING (EMPIRE RED) WPL W10870570 Contact Us For Availability
3D
LOWER HOUSING (GUAVA GLAZE) WPL W10835918 Contact Us For Availability
3E
LOWER HOUSING (HONEYDEW) WPL W10835916 Contact Us For Availability
3F
LOWER HOUSING (HOT SAUCE) WPL W10765437 Contact Us For Availability
3G
LOWER HOUSING (ICE) WPL W10765440 Contact Us For Availability
3H
LOWER HOUSING (BLACK MATTE) WPL W10835915 Contact Us For Availability
3I
LOWER HOUSING (MATTE GRAY) WPL W10835914 Contact Us For Availability
3J
LOWER HOUSING (MATTE WHITE) WPL W10835913 Contact Us For Availability
3K
LOWER HOUSING (ONYX BLACK) WPL W11210622 Contact Us For Availability
3L
LOWER HOUSING (ORANGE SORBET) WPL W10765441 Contact Us For Availability
3M
LOWER HOUSING (TWILIGHT BLUE) WPL W10765438 Contact Us For Availability
3N
LOWER HOUSING (CAST IRON BLACK) WPL W11186736 Contact Us For Availability
3O
LOWER HOUSING (DRIED ROSE) WPL W11446471 Contact Us For Availability
3P
LOWER HOUSING (PISTACHIO) WPL W11446468 Contact Us For Availability
4A
MOTOR & TRANSMISSION ASSEMBLY (120 WPL W10882088 Contact Us For Availability
6
POWER CORD (BLACK (EUROPE)) WPL W10773881 Contact Us For Availability
6A
POWER CORD (BLACK (UNITED KINGDOM)) WPL W10773878 Contact Us For Availability
6B
POWER CORD (BLACK (AUSTRALIA)) WPL W10774203 Contact Us For Availability
6C
POWER CORD (BLACK (CHINA)) WPL W10920187 Contact Us For Availability
6D
POWER CORD (BLACK (ARGENTINA)) WPL W10920182 Contact Us For Availability
6E
POWER CORD (BLACK (BRAZIL - 220V)) WPL W10920184 Contact Us For Availability
6F
POWER CORD (BLACK (BRAZIL - 127V)) WPL W10915001 Contact Us For Availability
6G
POWER CORD (WHITE (AUSTRALIA)) WPL W10774202 Contact Us For Availability
7
PEDESTAL (ALMOND CREME) WPL W10815975 Contact Us For Availability
7A
PEDESTAL (BLACK MATTE) WPL W10835909 Contact Us For Availability
7B
PEDESTAL (CANDY APPLE) WPL W10883848 Contact Us For Availability
7C
PEDESTAL (CONTOUR SILVER) WPL W10870567 Contact Us For Availability
7D
PEDESTAL (EMPIRE RED) WPL W10870566 Contact Us For Availability
7E
PEDESTAL (GUAVA GLAZE) WPL W10835912 Contact Us For Availability
7F
PEDESTAL (HONEYDEW) WPL W10835910 Contact Us For Availability
7G
PEDESTAL (HOT SAUCE) WPL W10756517 Contact Us For Availability
7H
PEDESTAL (ICE) WPL W10767837 Contact Us For Availability
7I
PEDESTAL (MATTE GRAY) WPL W10835908 Contact Us For Availability
7J
PEDESTAL (MATTE WHITE) WPL W10835907 Contact Us For Availability
7K
PEDESTAL (ONYX BLACK) WPL W11210621 Contact Us For Availability
7L
PEDESTAL (ORANGE SORBET) WPL W10767838 Contact Us For Availability
7M
PEDESTAL (TWILIGHT BLUE) WPL W10767835 Contact Us For Availability
7N
PEDESTAL (CAST IRON BLACK) WPL W11186735 Contact Us For Availability
7O
PEDESTAL (DRIED ROSE) WPL W11445744 Contact Us For Availability
7P
PEDESTAL (PISTACHIO) WPL W11445742 Contact Us For Availability
8
COVER, BOTTOM WPL W10755036 Contact Us For Availability
13
WPL W10772250 WPL W10772250 Contact Us For Availability
14
WPL W10840237 WPL W10840237 Contact Us For Availability
16
FILTER, RFI WPL W10831730 Contact Us For Availability
18
WPL W10830178 WPL W10830178 Contact Us For Availability
20
WPL W10749720 WPL W10749720 Contact Us For Availability
21
WPL W10816045 WPL W10816045 Contact Us For Availability
21A
WPL W10883851 WPL W10883851 Contact Us For Availability
21B
WPL W10870573 WPL W10870573 Contact Us For Availability
21C
WPL W10870572 WPL W10870572 Contact Us For Availability
21D
WPL W10835938 WPL W10835938 Contact Us For Availability
21E
WPL W10835936 WPL W10835936 Contact Us For Availability
21F
WPL W10750140 WPL W10750140 Contact Us For Availability
21G
WPL W10765476 WPL W10765476 Contact Us For Availability
21H
WPL W10835935 WPL W10835935 Contact Us For Availability
21I
WPL W10835934 WPL W10835934 Contact Us For Availability
21J
WPL W10835933 WPL W10835933 Contact Us For Availability
21K
WPL W11210626 WPL W11210626 Contact Us For Availability
21L
WPL W10765477 WPL W10765477 Contact Us For Availability
21M
WPL W10765474 WPL W10765474 Contact Us For Availability
21N
WPL W11186741 WPL W11186741 Contact Us For Availability
21O
WPL W11446547 WPL W11446547 Contact Us For Availability
21P
WPL W11446545 WPL W11446545 Contact Us For Availability
22
WPL W10816048 WPL W10816048 Contact Us For Availability
22A
WPL W10883855 WPL W10883855 Contact Us For Availability
22B
WPL W10870583 WPL W10870583 Contact Us For Availability
22C
WPL W10870582 WPL W10870582 Contact Us For Availability
22D
WPL W10835956 WPL W10835956 Contact Us For Availability
22E
WPL W10835954 WPL W10835954 Contact Us For Availability
22F
WPL W10765455 WPL W10765455 Contact Us For Availability
22G
WPL W10765460 WPL W10765460 Contact Us For Availability
22H
WPL W10835953 WPL W10835953 Contact Us For Availability
22I
WPL W10835952 WPL W10835952 Contact Us For Availability
22J
WPL W10835951 WPL W10835951 Contact Us For Availability
22K
WPL W11210625 WPL W11210625 Contact Us For Availability
22L
WPL W10765458 WPL W10765458 Contact Us For Availability
22M
WPL W10765456 WPL W10765456 Contact Us For Availability
22N
WPL W11186742 WPL W11186742 Contact Us For Availability
22O
WPL W11446694 WPL W11446694 Contact Us For Availability
22P
WPL W11446692 WPL W11446692 Contact Us For Availability
× ![]()
