Model Whirlpool 5KSM150PSEGR0 5 QT. STAND MIXER – Common Parts & Diagrams
02 - CASE, GEARING AND PLANETARY UNIT
04 - BASE AND PEDESTAL UNIT - ACCESSORY PARTS

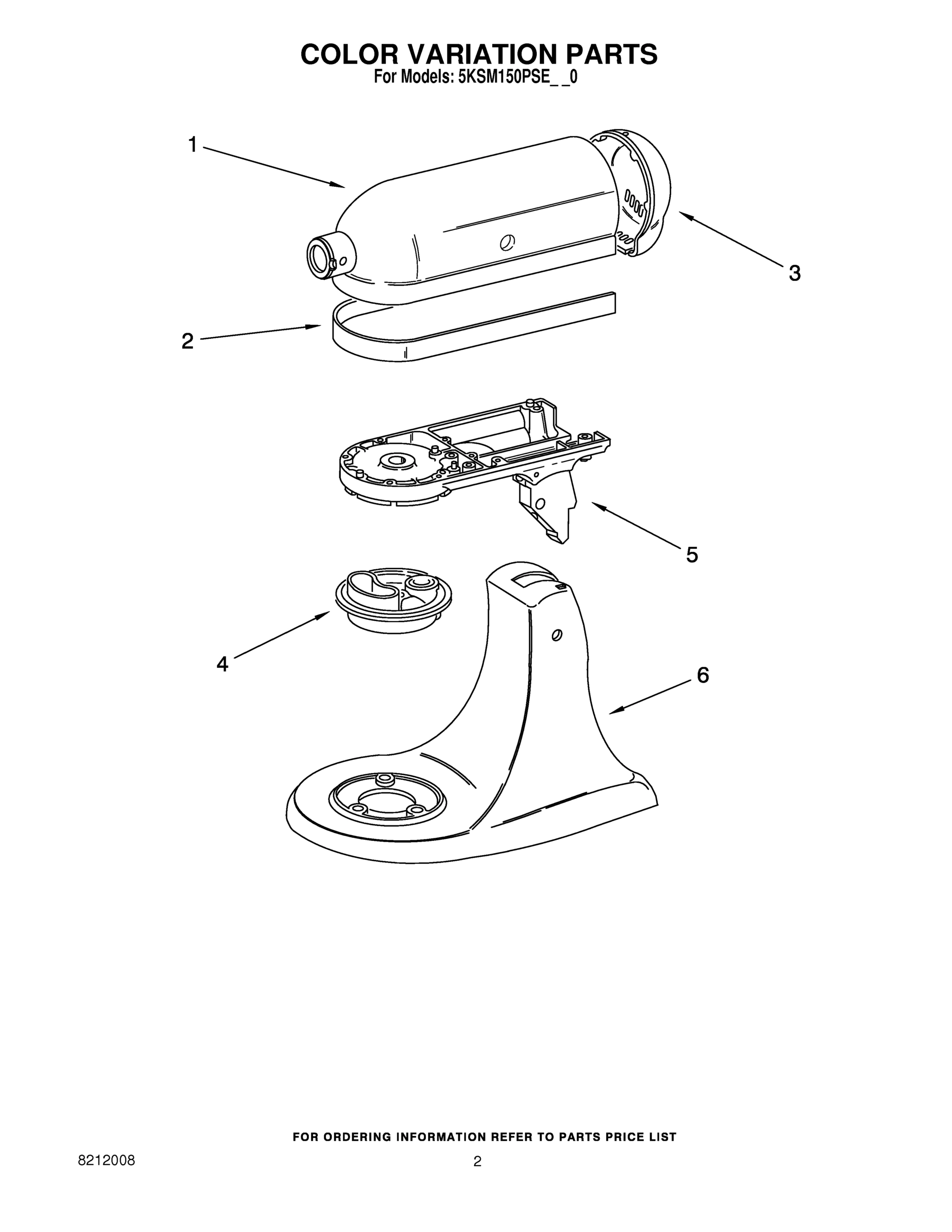

01 - COLOR VARIATION PARTS

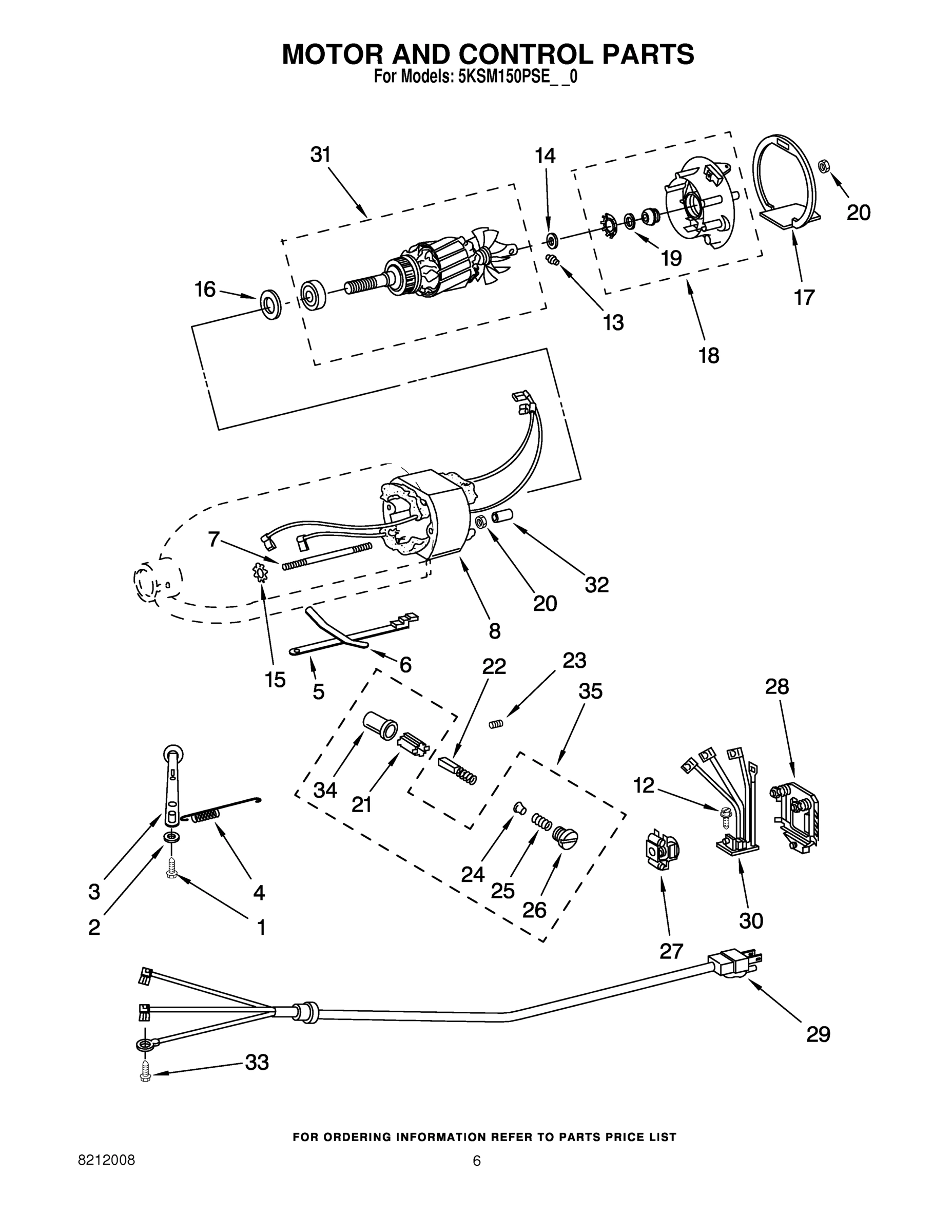

03 - MOTOR AND CONTROL PARTS
Common parts from model Whirlpool 5KSM150PSEGR0 5 QT. STAND MIXER
Bowl Cover, Plastic Non-Sealing WPL 3177924 Contact Us For Availability
Bowl, 3 Qt. WPL 3180262 Contact Us For Availability
Cover, Decorative (Cotton Polyester) WPL 3180617 Contact Us For Availability
Food Tray (FT) WPL 4162838 Contact Us For Availability
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
JUICER (JE) WPL 4164748 Contact Us For Availability
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
Rotor Slicer/Shredder (With 4 Standard Cones) WPL 4164750 Contact Us For Availability
Grain Mill (GM-A) WPL 4164751 Contact Us For Availability
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FV WPL 4164774 Contact Us For Availability
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A WPL 4164775 Contact Us For Availability
Mixer Attachment Pak (Includes Food Grinder ( WPL 4164778 Contact Us For Availability
SAUSAGE STUFFER KIT (SSA) WPL 4164803 Contact Us For Availability
PASTA MAKER PLATES (SNPA) WPL 4164824 Contact Us For Availability
Speed Disc (Service Tool) WPL 4164839 Contact Us For Availability
WPL 9707963 WPL 9707963 Contact Us For Availability
1
Repair Parts List WPL 8212008 Contact Us For Availability
1
Use & Care Guide WPL 9709309 Contact Us For Availability
1
Motor Housing (White) WPL 2402911 Contact Us For Availability
1
Motor Housing (Onyx Black) WPL 24029113 Contact Us For Availability
1
Motor Housing (Almond Creme) WPL 24029116 Contact Us For Availability
1
Motor Housing (Chrome) WPL 24029119 Contact Us For Availability
1
Motor Housing (Majestic Yellow) WPL 24029120 Contact Us For Availability
1
Motor Housing (Empire Red) WPL 24029121 Contact Us For Availability
1
Motor Housing (Imperial Grey) WPL 24029122 Contact Us For Availability
1
Motor Housing (Cobalt Blue) WPL 2402917 Contact Us For Availability
1
MOTOR HOUSING-Caviar WPL 9705243 Contact Us For Availability
1
Motor Housing-Nickel WPL 9706461 Contact Us For Availability
1
MOTOR HOUSING-Pistachio WPL 9706836 Contact Us For Availability
1
MOTOR HOUSING-Tangerine WPL 9706849 Contact Us For Availability
3
END COVER-White WPL 2402531 Contact Us For Availability
3
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3
End Cover (Almond Creme) WPL 24025316 Contact Us For Availability
3
End Cover-Chrome WPL 24025320 Contact Us For Availability
3
END COVER-Majestic Yellow WPL 24025321 Contact Us For Availability
3
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3
END COVER-Imperial Gray WPL 24025323 Contact Us For Availability
3
END COVER-Cobalt Blue WPL 2402538 Contact Us For Availability
4
PLANETARY-White WPL 2402861 Contact Us For Availability
4
PLANETARY-Cobalt Blue WPL 24028610 Contact Us For Availability
4
PLANETARY-Onyx Black WPL 24028616 Contact Us For Availability
4
Planetary (Almond Creme) WPL 24028618 Contact Us For Availability
4
Planetary-Chrome WPL 24028621 Contact Us For Availability
4
PLANETARY-Majestic Yellow WPL 24028622 Contact Us For Availability
4
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
4
PLANETARY-Imperial Gray WPL 24028624 Contact Us For Availability
4
PLANETARY-Caviar WPL 9705244 Contact Us For Availability
4
PLANETARY-NICKEL WPL 9706271 Contact Us For Availability
4
PLANETARY-Pink WPL 9706475 Contact Us For Availability
4
PLANETARY-Pistachio WPL 9706839 Contact Us For Availability
4
PLANETARY-Tangeri WPL 9706852 Contact Us For Availability
5
Foot, Base WPL 115792 Contact Us For Availability
5
Speed Link & Cam WPL 3184176 Contact Us For Availability
5
WPL 2403504 WPL 2403504 Contact Us For Availability
5
WPL 24035056 WPL 24035056 Contact Us For Availability
5
WPL 24035062 WPL 24035062 Contact Us For Availability
5
WPL 24035086 WPL 24035086 Contact Us For Availability
5
WPL 24035091 WPL 24035091 Contact Us For Availability
5
WPL 24035093 WPL 24035093 Contact Us For Availability
5
WPL 9701420 WPL 9701420 Contact Us For Availability
5
WPL 9706911 WPL 9706911 Contact Us For Availability
5
WPL 9707123 WPL 9707123 Contact Us For Availability
5
WPL 9707364 WPL 9707364 Contact Us For Availability
5
WPL 9708868 WPL 9708868 Contact Us For Availability
6
WPL 9701765 WPL 9701765 Contact Us For Availability
6
WPL 9701767 WPL 9701767 Contact Us For Availability
6
WPL 9703245 WPL 9703245 Contact Us For Availability
6
WPL 9703246 WPL 9703246 Contact Us For Availability
6
WPL 9703247 WPL 9703247 Contact Us For Availability
6
WPL 9703248 WPL 9703248 Contact Us For Availability
6
WPL 9706457 WPL 9706457 Contact Us For Availability
6
WPL 9707189 WPL 9707189 Contact Us For Availability
6
WPL 9707362 WPL 9707362 Contact Us For Availability
6
WPL 9708638 WPL 9708638 Contact Us For Availability
6
WPL 9708866 WPL 9708866 Contact Us For Availability
6
WPL 9709631 WPL 9709631 Contact Us For Availability
6
WPL 9709636 WPL 9709636 Contact Us For Availability
10
Latch WPL 2404942 Contact Us For Availability
11
SCREW WPL 3400020 Contact Us For Availability
15
Beater, Flat (Coated, White) WPL 9707944 Contact Us For Availability
19
WASHER WPL 3180238 Contact Us For Availability
28
Control Plate Assembly WPL 2409042 Contact Us For Availability
× ![]()
