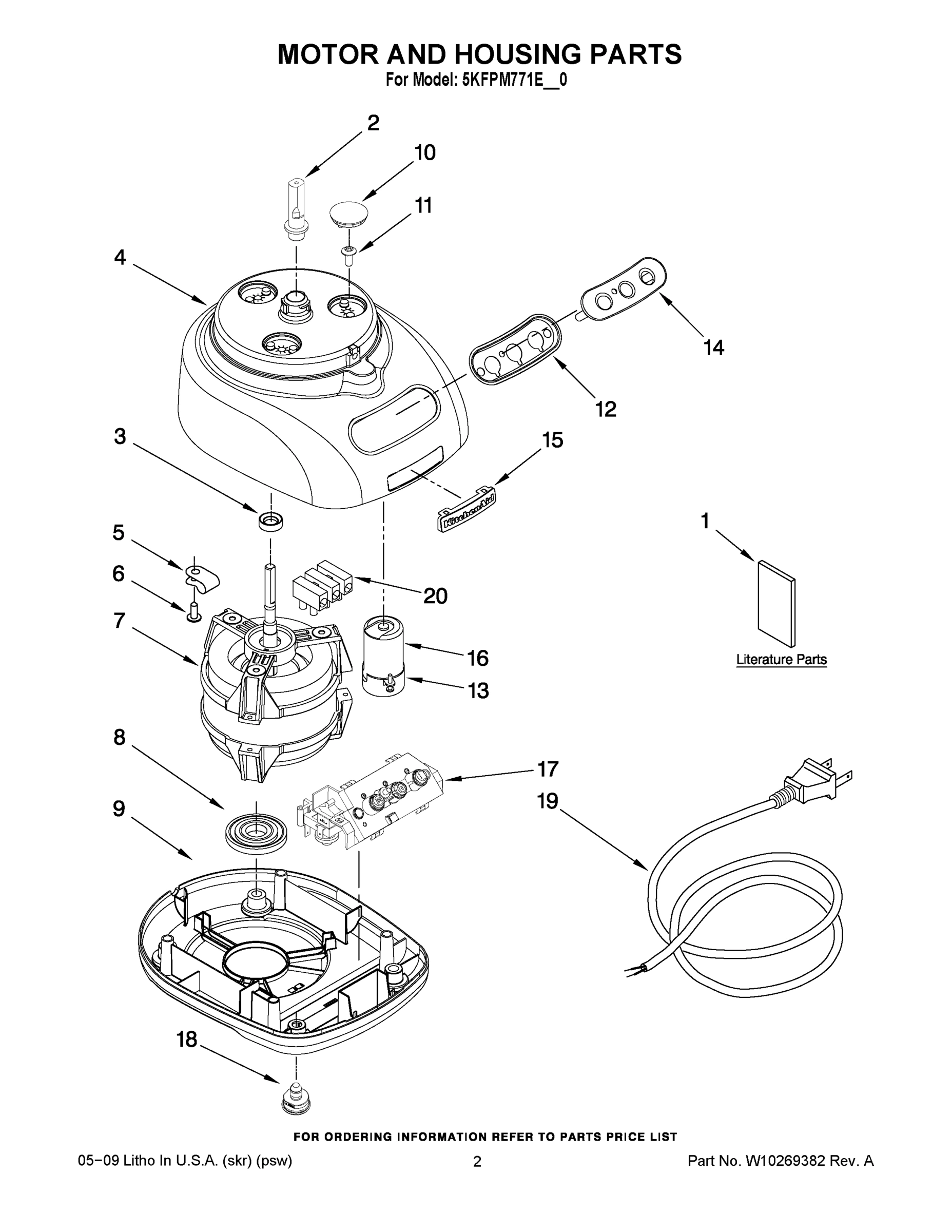

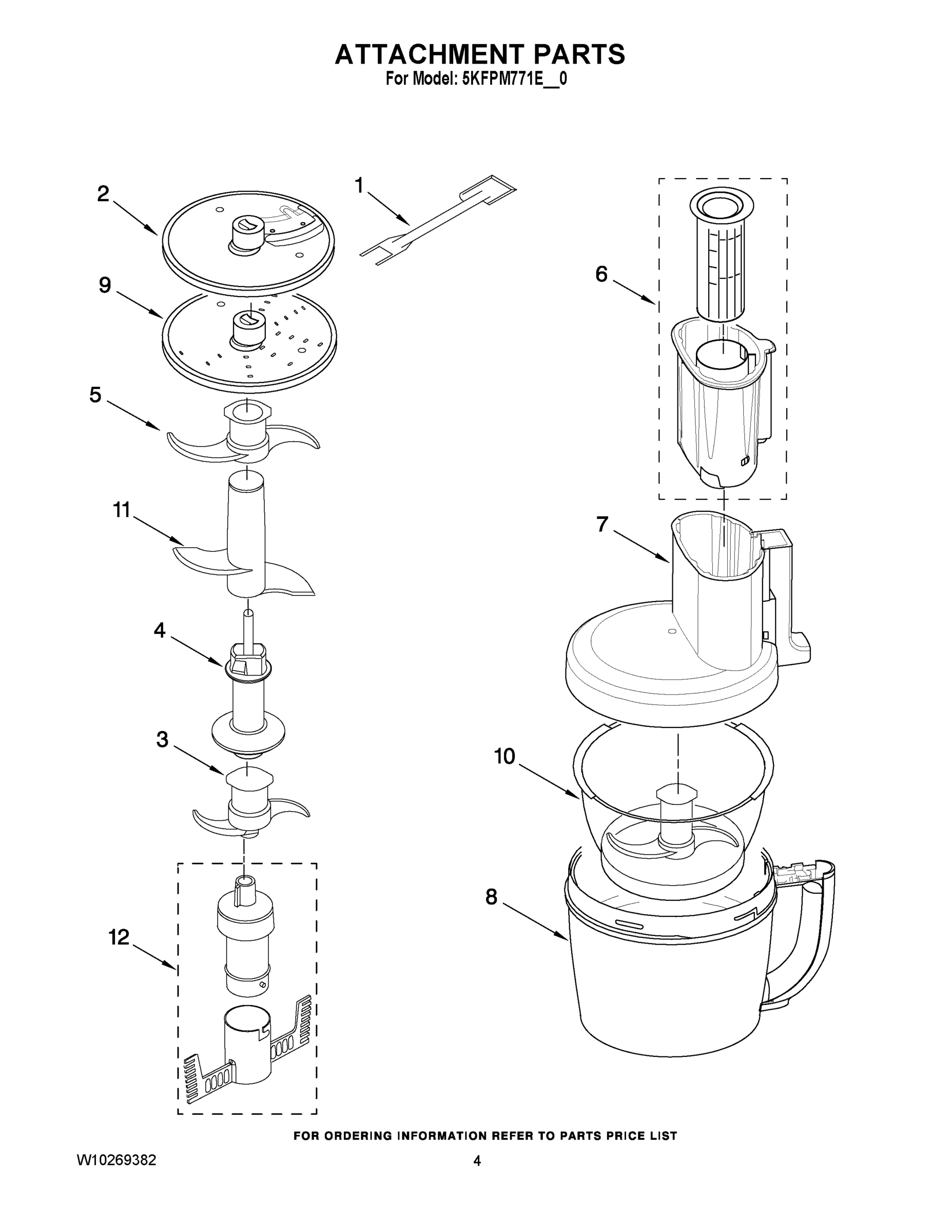

Model Whirlpool 5KFPM771EWH0 12 CUP - FOOD PROCESSOR – Common Parts & Diagrams

1
REPAIR PARTS LIST
REPAIR PARTS LIST WPL W10269382 Contact Us For Availability
View on Model
1
USE & CARE GUIDE
USE & CARE GUIDE WPL W10274084 Contact Us For Availability
View on Model
2
DISC,SLICING (2 MM)
DISC,SLICING (2 MM) WPL W10274086 Contact Us For Availability
View on Model
2
DISC,SLICING (4 MM)
DISC,SLICING (4 MM) WPL W10274087 Contact Us For Availability
View on Model
2
Sleeve, Motor Shaft
Sleeve, Motor Shaft WPL W10187053 Contact Us For Availability
View on Model
3
Mini Blade
Mini Blade WPL 8212012 Contact Us For Availability
View on Model
3
Seal, Oil
Seal, Oil WPL 8211828 Contact Us For Availability
View on Model
4
Adapter, Shaft & Disc
Adapter, Shaft & Disc WPL 8211858 Contact Us For Availability
View on Model
4
Housing, Motor
Housing, Motor WPL 8212068 Contact Us For Availability
View on Model
5
Blade, Multipurpose
Blade, Multipurpose WPL W10187050 Contact Us For Availability
View on Model
6
Pusher, Food
Pusher, Food WPL 8212020 Contact Us For Availability
View on Model
6
Screw, Clamp
Screw, Clamp WPL 8211835 Contact Us For Availability
View on Model
7
Cover, Work Bowl (White)
Cover, Work Bowl (White) WPL 8212062 Contact Us For Availability
View on Model
7
Motor
Motor WPL 8212079 Contact Us For Availability
View on Model
8
Bowl, Work (White)
Bowl, Work (White) WPL 8212065 Contact Us For Availability
View on Model
8
Grommet, Motor
Grommet, Motor WPL 8212091 Contact Us For Availability
View on Model
9
DISC, SHREDDING W/PLASTIC HUB (4 MM)
DISC, SHREDDING W/PLASTIC HUB (4 MM) WPL W10274088 Contact Us For Availability
View on Model
9
Base, Housing
Base, Housing WPL 8212081 Contact Us For Availability
View on Model
10
Bowl, Mini
Bowl, Mini WPL 8211926 Contact Us For Availability
View on Model
10
Cover, Screw
Cover, Screw WPL 8212084 Contact Us For Availability
View on Model
11
Blade, Dough
Blade, Dough WPL W10187052 Contact Us For Availability
View on Model
11
Screw, Motor Locking
Screw, Motor Locking WPL W10249231 Contact Us For Availability
View on Model
12
Whip, Egg
Whip, Egg WPL W10187049 Contact Us For Availability
View on Model
12
Bezel, Switch Panel
Bezel, Switch Panel WPL W10249232 Contact Us For Availability
View on Model
13
Clip, Capacitor
Clip, Capacitor WPL 8211607 Contact Us For Availability
View on Model
14
Overlay w/Cover
Overlay w/Cover WPL 8212088 Contact Us For Availability
View on Model
15
NAMEPLATE
NAMEPLATE WPL W10274085 Contact Us For Availability
View on Model
16
Capacitor
Capacitor WPL 8212089 Contact Us For Availability
View on Model
17
Relay/Switch Assy
Relay/Switch Assy WPL 8212090 Contact Us For Availability
View on Model
18
Foot
Foot WPL 8211844 Contact Us For Availability
View on Model
19
CORD, POWER
CORD, POWER WPL 8212076 Contact Us For Availability
View on Model
20
Block, Terminal
Block, Terminal WPL 8211605 Contact Us For Availability
View on Model
NI
Bowl, Chef`s
Bowl, Chef`s WPL 8211928 Contact Us For Availability
View on Model
NI
Disc, Julienne
Disc, Julienne WPL 8211935 Contact Us For Availability
View on Model
NI
Accessory Box
Accessory Box WPL W10186743 Contact Us For Availability
View on Model
NI
Presser, Citrus
Presser, Citrus WPL W10186748 Contact Us For Availability
View on Model
