Model Whirlpool 5KFPM770ANK1 12 CUP FOOD PROCESSOR – Common Parts & Diagrams

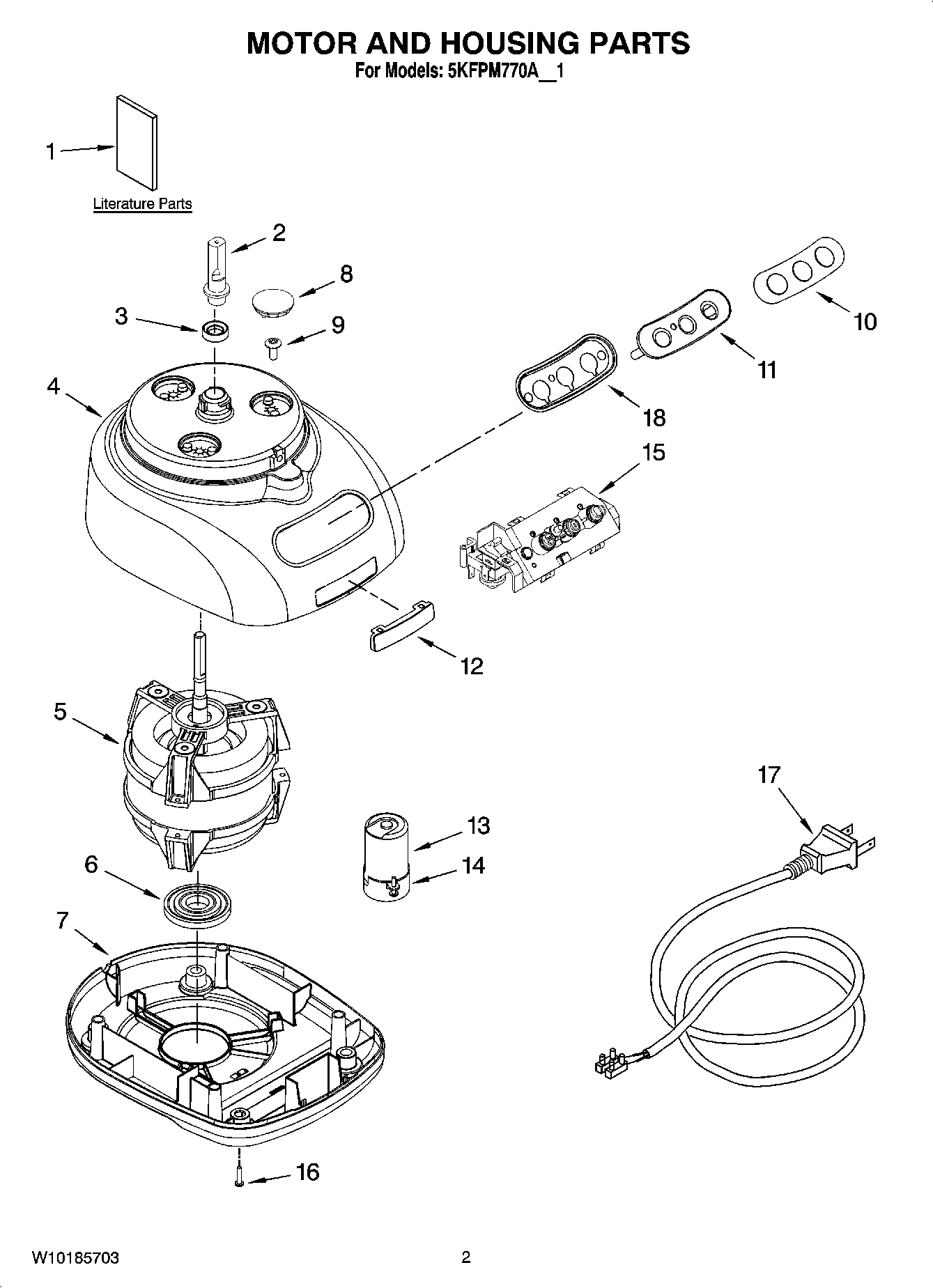

01 - MOTOR AND HOUSING PARTS

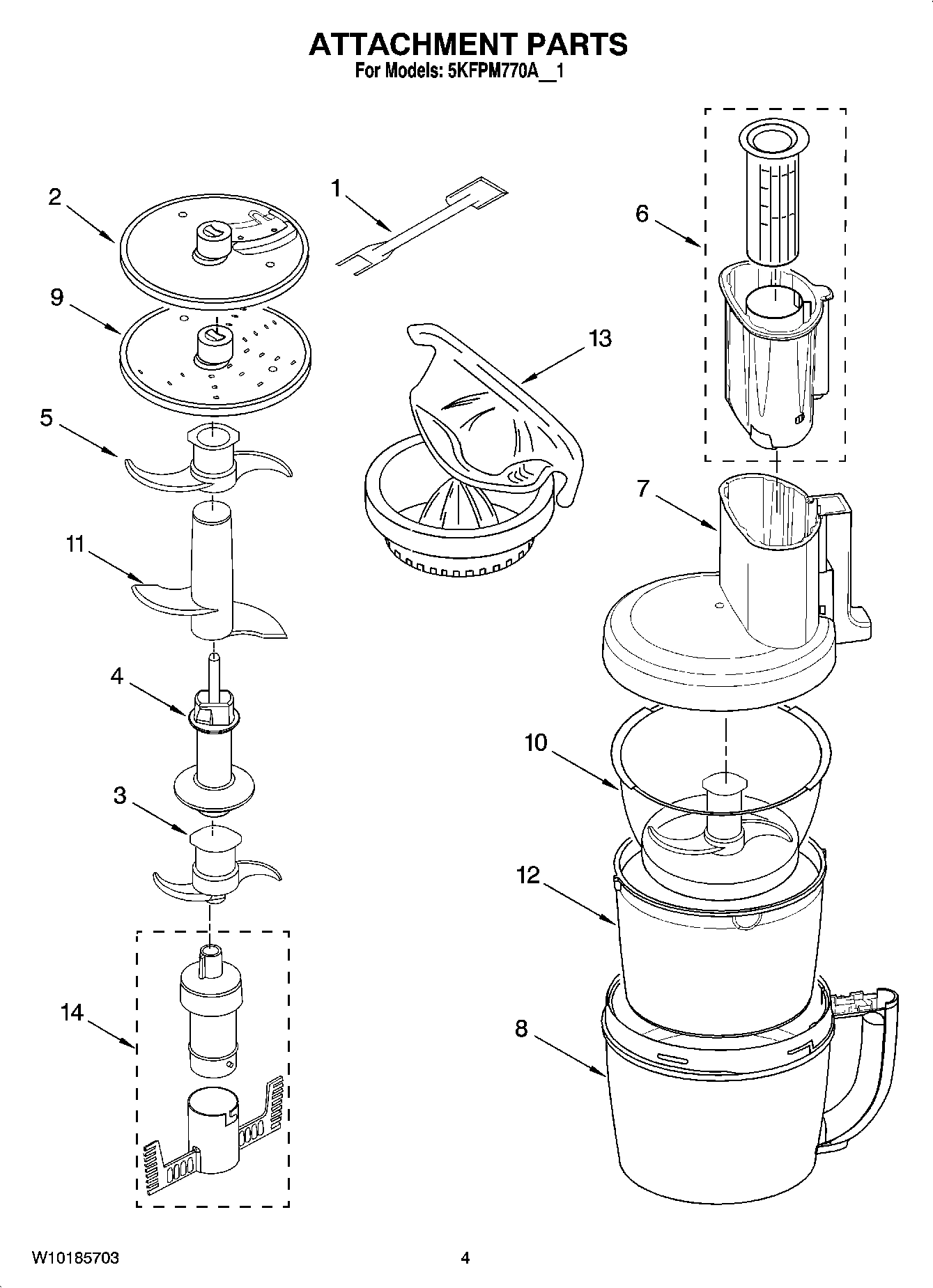

02 - ATTACHMENT PARTS
Common parts from model Whirlpool 5KFPM770ANK1 12 CUP FOOD PROCESSOR
Lid, Mini Bowl WPL 8211927 Contact Us For Availability
Disc, Slicing 6 mm WPL 8211931 Contact Us For Availability
Disc, Shredding 2 mm WPL 8211932 Contact Us For Availability
Disc, Shredding (6 mm) WPL 8211934 Contact Us For Availability
Disc, Julienne WPL 8211935 Contact Us For Availability
Disc, Grating Parmesan/Ice WPL 8211936 Contact Us For Availability
Disc, Cutting French Fry WPL 8211937 Contact Us For Availability
Rack, Disc WPL 8211938 Contact Us For Availability
Mini Bowl and Lids (2) WPL 8212059 Contact Us For Availability
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI15281A3 Contact Us For Availability
Accessory Box WPL W10186743 Contact Us For Availability
1
Use & Care Guide WPL 8212058 Contact Us For Availability
1
Repair Parts List WPL W10185703 Contact Us For Availability
2
Sleeve, Motor Shaft WPL W10187053 Contact Us For Availability
2
Disc, Slicing (2 mm) WPL 8211929 Contact Us For Availability
2
Disc, Slicing (4 mm) WPL 8211930 Contact Us For Availability
3
Seal, Oil WPL 8211828 Contact Us For Availability
3
Mini Blade WPL 8212012 Contact Us For Availability
4
Housing, Motor (Nickel) WPL 8211823 Contact Us For Availability
4
Housing, Motor (White) WPL 8212068 Contact Us For Availability
4
Housing, Motor (Empire Red) WPL 8212069 Contact Us For Availability
4
Housing, Motor (Almond Creme) WPL 8212070 Contact Us For Availability
4
Housing, Motor (Pearl Metallic) WPL W10221703 Contact Us For Availability
4
Adapter, Shaft & Disc WPL 8211858 Contact Us For Availability
5
Motor WPL 8212079 Contact Us For Availability
5
Blade, Multipurpose WPL W10187050 Contact Us For Availability
6
Grommet, Motor WPL 8212091 Contact Us For Availability
6
Pusher, Food WPL 8212020 Contact Us For Availability
7
Base, Housing (Onyx Black) WPL 8212080 Contact Us For Availability
7
Base, Housing (White) WPL 8212081 Contact Us For Availability
7
Base, Housing (Empire Red) WPL 8212082 Contact Us For Availability
7
Base, Housing (Almond Creme) WPL 8212083 Contact Us For Availability
7
Cover, Work Bowl (Onyx Black) WPL 8212024 Contact Us For Availability
7
Cover, Work Bowl (White) WPL 8212062 Contact Us For Availability
7
Cover, Work Bowl (Empire Red) WPL 8212063 Contact Us For Availability
7
Cover, Work Bowl (Almond Creme) WPL 8212064 Contact Us For Availability
8
Cover, Screw (Onyx Black) WPL 8211827 Contact Us For Availability
8
Cover, Screw (White) WPL 8212084 Contact Us For Availability
8
Cover, Screw (Empire Red) WPL 8212085 Contact Us For Availability
8
Cover, Screw (Almond Creme) WPL 8212086 Contact Us For Availability
8
Bowl, Work (Onyx Black) WPL 8212019 Contact Us For Availability
8
Bowl, Work (White) WPL 8212065 Contact Us For Availability
8
Bowl, Work (Empire Red) WPL 8212066 Contact Us For Availability
8
Bowl, Work (Almond Creme) WPL 8212067 Contact Us For Availability
9
Screw, Motor Locking WPL 8211586 Contact Us For Availability
9
Disc, Shredding (4 mm) WPL 8211933 Contact Us For Availability
10
Overlay, Switch (Black) WPL 8212087 Contact Us For Availability
10
Overlay, Switch (Silver) WPL 8212088 Contact Us For Availability
10
Bowl, Mini WPL 8211926 Contact Us For Availability
11
Cover, Panel Switch (Transparent) WPL 8212093 Contact Us For Availability
11
Cover, Panel Switch (Silver) WPL 8212094 Contact Us For Availability
11
Blade, Dough WPL W10187052 Contact Us For Availability
12
Nameplate WPL 8211842 Contact Us For Availability
12
Bowl, Chef`s WPL 8211928 Contact Us For Availability
13
Capacitor WPL 8212089 Contact Us For Availability
13
Presser, Citrus WPL W10186748 Contact Us For Availability
14
Clip, Capacitor WPL 8211607 Contact Us For Availability
14
Whip, Egg WPL W10187049 Contact Us For Availability
15
Relay & Switch Assembly WPL 8212090 Contact Us For Availability
16
Foot (White) WPL 8211844 Contact Us For Availability
16
Foot (Black) WPL 8211845 Contact Us For Availability
17
Cord, Power (Black) WPL 8212071 Contact Us For Availability
17
Cord, Power (White) WPL 8212072 Contact Us For Availability
18
Bezel, Switch Panel WPL 8212095 Contact Us For Availability
× ![]()
