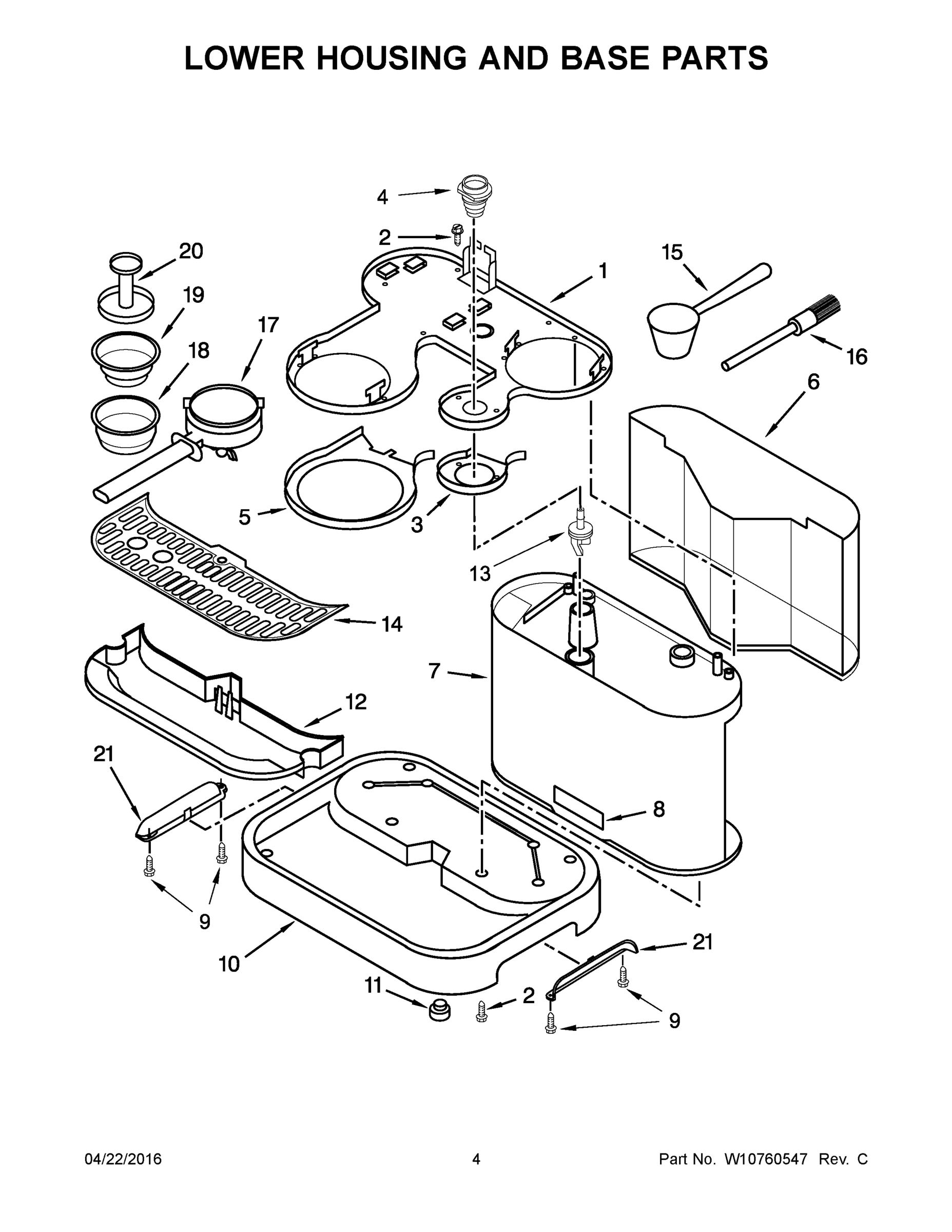

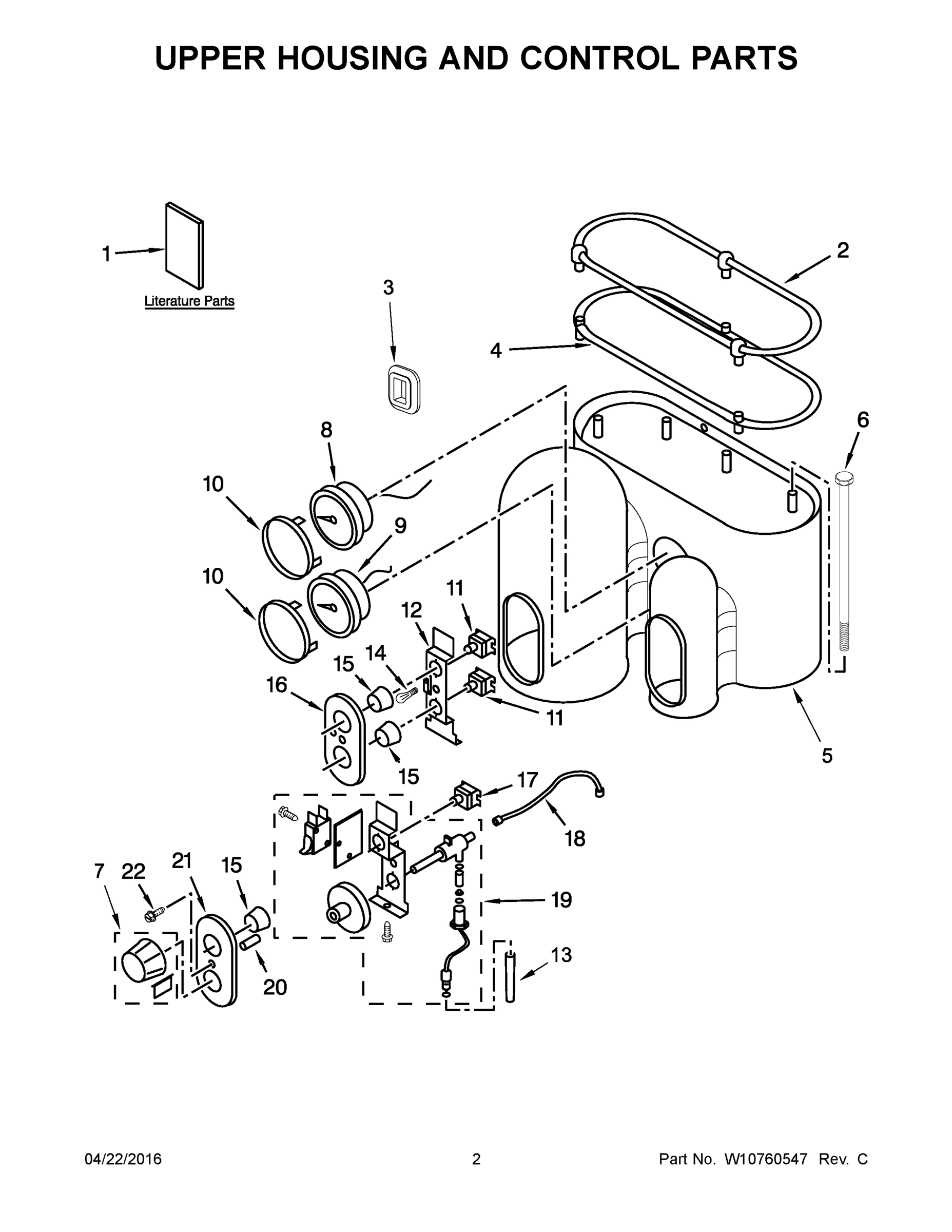

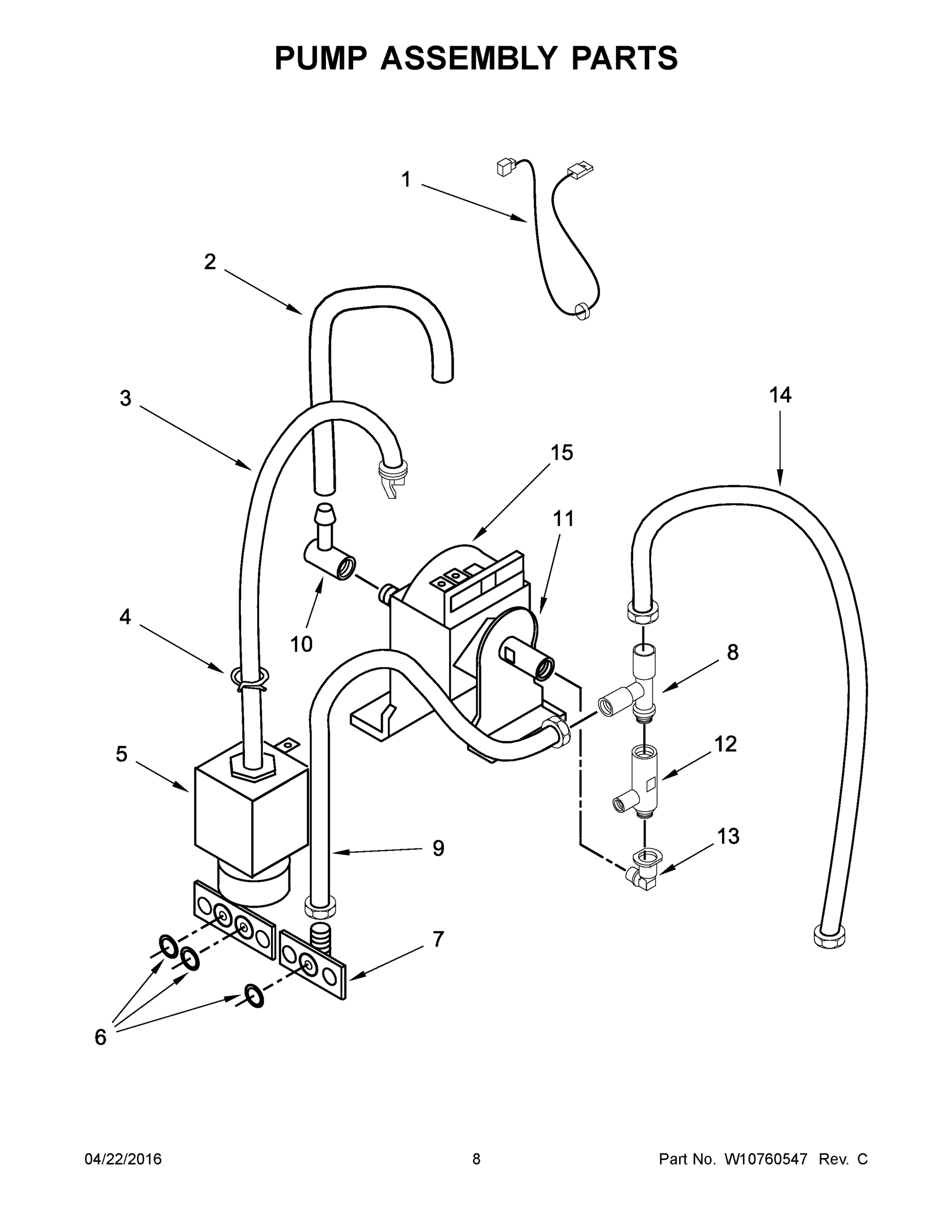

Model Whirlpool 5KES2102BMS0 SMALL APPLIANCE, COFFEE MAKER – Common Parts &amp; Diagrams

1

VALVE, 2 WAY SOLENOID (US) WPL W10756814 Contact Us For Availability

1

USE & CARE GUIDE (US) WPL W10623423 Contact Us For Availability

1

FITTING, PUMP THERMOSTAT WPL W10756878 Contact Us For Availability

1A

VALVE, 2 WAY SOLENOID (EUROPEAN/AUSTRALIAN) WPL W10756797 Contact Us For Availability

1A

USE & CARE GUIDE (AUSTRALIAN) WPL W10699685 Contact Us For Availability

2

W10756673 Whirlpool Gasket Backorder WPL W10756673 $18.35

2

W10756872 Whirlpool Guard Backorder WPL W10756872 $48.88

2

SCREW WPL W10756685 Contact Us For Availability

2

PIPE, SUCTION WPL W10756791 Contact Us For Availability

3

SUPPORT, GAUGE SENSOR (COFFEE) WPL W10756843 Contact Us For Availability

3

VALVE, OVERPRESSURE STEAM WPL W10756870 Contact Us For Availability

3

PROTECTOR, SOCKET WPL W10756858 Contact Us For Availability

3

TRIM, STEAM POD WPL W10756850 Contact Us For Availability

3

PIPE SL WPL W10756792 Contact Us For Availability

4

W10756833 Whirlpool Lid Assembly Backorder WPL W10756833 $51.31

4

FLANGE, STEAM BOILER WPL W10756841 Contact Us For Availability

4

PIPE ASSEMBLY, STEAM OVERPRESSURE TO S3 VALVE WPL W10756793 Contact Us For Availability

4

PLUG, STEAM GROUP WPL W10756801 Contact Us For Availability

4

CLAMP, HOSE WPL W10756755 Contact Us For Availability

5

CLAMP, THERMO FUSE WPL W10756702 Contact Us For Availability

5

PIPE ASSEMBLY WPL W10756790 Contact Us For Availability

5

CABINET - UPPER (ONYX BLACK) WPL W10756830 Contact Us For Availability

5

TRIM, COFFEE WPL W10756815 Contact Us For Availability

5

VALVE, 3 WAY SOLENOID (US) WPL W10756812 Contact Us For Availability

5A

CABINET - UPPER (MEDALLION SILVER) WPL W10756829 Contact Us For Availability

5A

VALVE, 3 WAY SOLENOID (EUROPEAN/AUSTRALIAN) WPL W10756754 Contact Us For Availability

5B

CABINET - UPPER (FROSTED PEARL) WPL W10756832 Contact Us For Availability

5C

CABINET - UPPER (EMPIRE RED) WPL W10756828 Contact Us For Availability

5D

CABINET - UPPER (CANDY APPLE) WPL W10756831 Contact Us For Availability

5E

CABINET - UPPER (ALMOND CREAM) WPL W10756827 Contact Us For Availability

6

W10756805 Whirlpool Relay Module Backorder WPL W10756805 $75.48

6

W10756840 Whirlpool Tank Backorder WPL W10756840 $57.21

6

W11033777 Whirlpool Gasket Assembly Backorder WPL W11033777 $2.91

6

GASKET WPL W10756704 Contact Us For Availability

6

ROD, CONNECTING WPL W10756681 Contact Us For Availability

6A

RELAY (EUROPEAN/AUSTRALIAN) WPL W10756751 Contact Us For Availability

7

W10756844 Whirlpool Knob Assembly Backorder WPL W10756844 $21.48

7

THERMOSTAT, COFFEE WPL W10756706 Contact Us For Availability

7

SCREW WPL W10756803 Contact Us For Availability

7

BODY, CABINET (ONYX BLACK) WPL W10756824 Contact Us For Availability

7

FITTING, INPUT WPL W10756857 Contact Us For Availability

7A

BODY, CABINET (MEDALLION SILVER) WPL W10756823 Contact Us For Availability

7B

BODY, CABINET (FROSTED PEARL) WPL W10756826 Contact Us For Availability

7C

BODY, CABINET (EMPIRE RED) WPL W10756821 Contact Us For Availability

7D

BODY, CABINET (CANDY APPLE) WPL W10756825 Contact Us For Availability

7E

BODY, CABINET (ALMOND CREAM) WPL W10756820 Contact Us For Availability

8

W10756862 Whirlpool Gauge Backorder WPL W10756862 $56.63

8

W10908061 Whirlpool Gasket Backorder WPL W10908061 $2.91

8

PLUG, SELF LOCKING WPL W10756798 Contact Us For Availability

8

NAMEPLATE (US/AUSTRALIAN) WPL W10756849 Contact Us For Availability

8

PLUG, DOUBLE NICKEL WPL W10756881 Contact Us For Availability

8A

GAUGE, COFFEE (EUROPEAN/AUSTRALIAN) WPL W10756859 Contact Us For Availability

8A

NAMEPLATE (EUROPEAN) WPL W10756848 Contact Us For Availability

9

W10756863 Whirlpool Gauge Backorder WPL W10756863 $54.70

9

PIPE, COPPER (COFFEE) WPL W10756675 Contact Us For Availability

9

CORD, POWER (US) WPL W10756808 Contact Us For Availability

9

SCREW WPL W10756686 Contact Us For Availability

9

PIPE ASSEMBLY WPL W10756672 Contact Us For Availability

9A

CORD, POWER (EUROPEAN) WPL W10756701 Contact Us For Availability

9A

GAUGE, STEAM (EUROPEAN/AUSTRALIAN) WPL W10756861 Contact Us For Availability

9B

CORD, POWER (AUSTRALIAN) WPL W10756807 Contact Us For Availability

9C

CORD, POWER (BRITAIN) WPL W10756804 Contact Us For Availability

W10756856 Whirlpool Trim Ring Backorder WPL W10756856 $25.03

FLANGE, COFFEE BOILER WPL W10756708 Contact Us For Availability

HOUSING, PCBA WPL W10756680 Contact Us For Availability

BASE ASSEMBLY (ONYX BLACK) WPL W10756837 Contact Us For Availability

CONNECTOR, SUCTION PUMP WPL W10756876 Contact Us For Availability

10A

BASE ASSEMBLY (MEDALLION SILVER) WPL W10756819 Contact Us For Availability

10B

BASE ASSEMBLY (FROSTED PEARL) WPL W10756839 Contact Us For Availability

10C

BASE ASSEMBLY (EMPIRE RED) WPL W10756818 Contact Us For Availability

10D

BASE ASSEMBLY (CANDY APPLE) WPL W10756838 Contact Us For Availability

10E

BASE ASSEMBLY (ALMOND CREAM) WPL W10756817 Contact Us For Availability

W11087413 Whirlpool Gasket Backorder WPL W11087413 $7.69

FITTING, STEAM BOILER FLANGE WPL W10756677 Contact Us For Availability

SWITCH, ON/OFF (MAIN) WPL W10756683 Contact Us For Availability

FOOT WPL W10756847 Contact Us For Availability

SUPPORT, PUMP WPL W10756795 Contact Us For Availability

11A

SWITCH, ON/OFF (COFFEE) WPL W10756800 Contact Us For Availability

W10756842 Whirlpool Body Backorder WPL W10756842 $58.05

HOLDER, SHOWER DISC WPL W10756747 Contact Us For Availability

BRACKET, SWITCH WPL W10756845 Contact Us For Availability

DRIP TRAY WPL W10756836 Contact Us For Availability

VALVE, S3 WPL W10756883 Contact Us For Availability

W10756802 Whirlpool Plug Backorder WPL W10756802 $19.27

THERMOSTAT, STEAM WPL W10756796 Contact Us For Availability

SCREW WPL W10756748 Contact Us For Availability

TIP, FROTHING WPL W10756816 Contact Us For Availability

FITTING, 90 DEGREE WPL W10756886 Contact Us For Availability

W10756835 Whirlpool Grid Assembly Backorder WPL W10756835 $42.53

DISC, SHOWER WPL W10756750 Contact Us For Availability

LIGHT & WIRE ASSEMBLY (US) WPL W10756874 Contact Us For Availability

PIPE ASSEMBLY, S3 VALVE TO STEAMER WPL W10756887 Contact Us For Availability

14A

W10756873 Whirlpool Light Assembly Backorder WPL W10756873 $31.07

W10756688 Whirlpool Scoop Backorder WPL W10756688 $27.19

W11246691 Whirlpool Button Backorder WPL W11246691 $2.43

BASE, PCBA WPL W10756678 Contact Us For Availability

PUMP ASSEMBLY (US) WPL W10756877 Contact Us For Availability

15A

PUMP ASSEMBLY (EUROPEAN/AUSTRALIAN) WPL W10756875 Contact Us For Availability

16

PCBA WPL W10756799 Contact Us For Availability

16

BEZEL, COFFEE (US) WPL W10756865 Contact Us For Availability

16

BRUSH, CLEANING WPL W10756691 Contact Us For Availability

16A

BEZEL, COFFEE (EUROPEAN/AUSTRALIAN) WPL W10756864 Contact Us For Availability

17

W11161896 Whirlpool Switch Assembly Backorder WPL W11161896 $13.19

17

HOLDER, FILTER WPL W10756670 Contact Us For Availability

18

W10756698 Whirlpool Filter Backorder WPL W10756698 $27.36

18

PIPE ASSEMBLY, STEAM GROUP TO STEAM BODY PIPE WPL W10756671 Contact Us For Availability

19

STEAM GROUP ASSEMBLY WPL W10756669 Contact Us For Availability

19

FILTER, 1-CUP WPL W10756694 Contact Us For Availability

20

W10756693 Whirlpool Tamper Backorder WPL W10756693 $34.46

20

SPACER, KNOB WPL W10756674 Contact Us For Availability

21

BEZEL, STEAM (US) WPL W10756869 Contact Us For Availability

21

HANDLE, BASE WPL W10756834 Contact Us For Availability

21A

BEZEL, STEAM (EUROPEAN/AUSTRALIAN) WPL W10756867 Contact Us For Availability

22

SCREW WPL W10760656 Contact Us For Availability

NI

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

NI

JUG, MILK WPL W10756699 Contact Us For Availability
