Model Whirlpool 5KES100SAC0 ARTISAN ESPRESSO MAKER – Common Parts & Diagrams
03 - BOILER ASSEMBLIES
01 - UPPER HOUSING AND CONTROLS

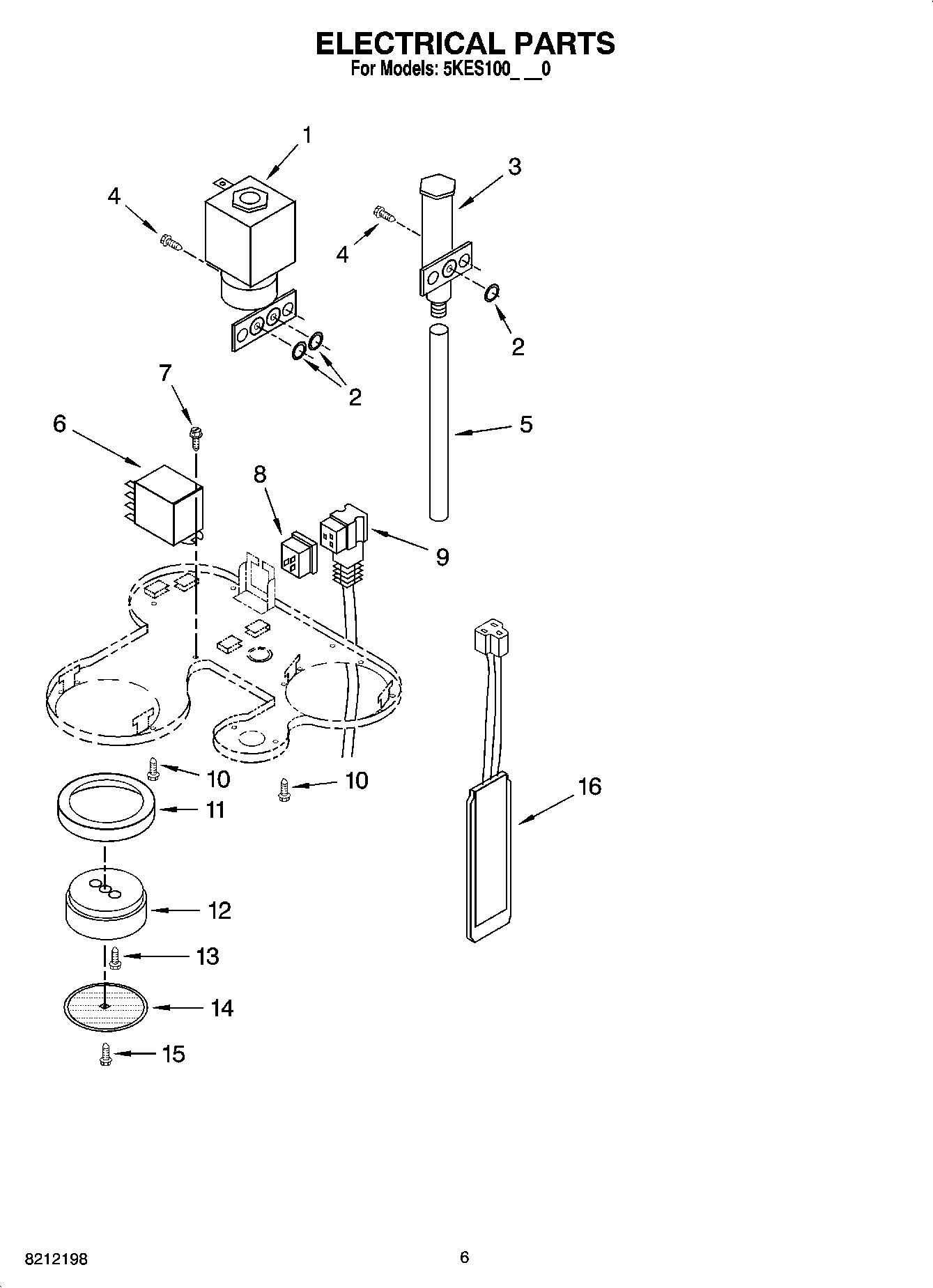

05 - ELECTRICAL PARTS

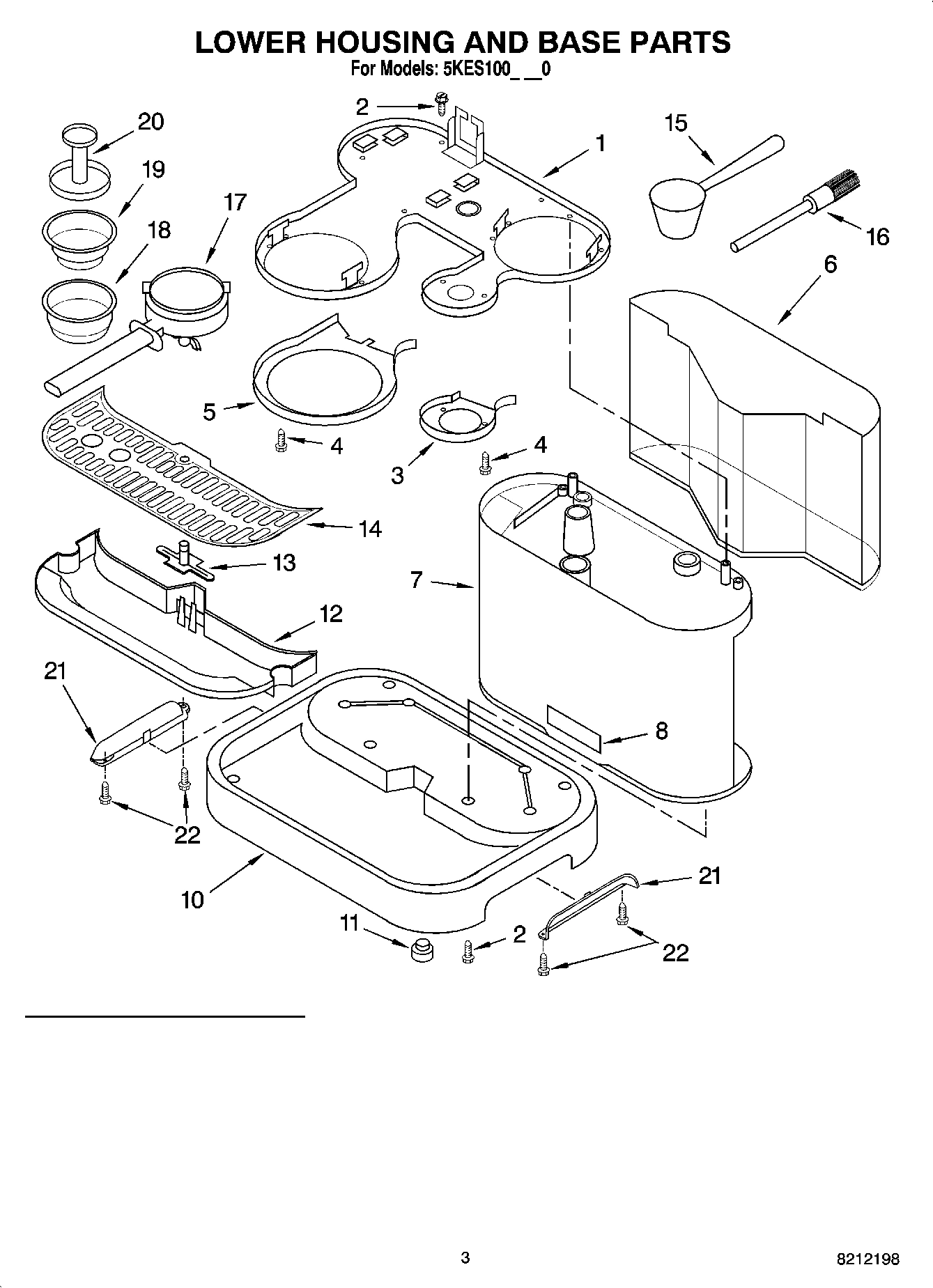

02 - LOWER HOUSING AND BASE PARTS

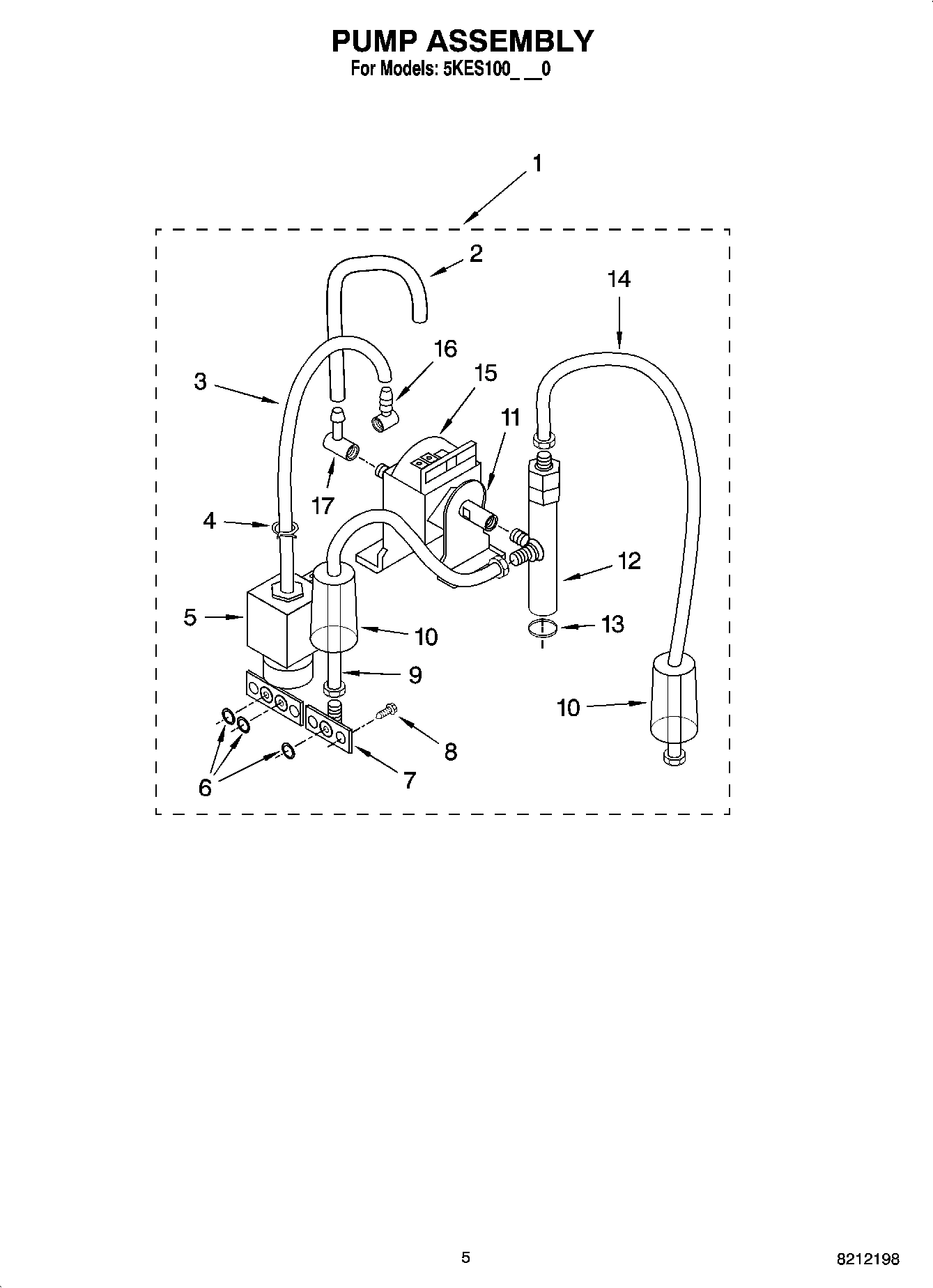

04 - PUMP ASSEMBLY
Common parts from model Whirlpool 5KES100SAC0 ARTISAN ESPRESSO MAKER
1
Boiler Coffee WPL 4176446 Contact Us For Availability
1
Wiring Diagram WPL 8204577 Contact Us For Availability
1
Repair Parts List WPL 8212198 Contact Us For Availability
1
Guide, Use & Care WPL 8212205 Contact Us For Availability
1
Valve, Solenoid (2-Way) Valve WPL 8212213 Contact Us For Availability
1
Plate, Cabinet WPL 4176426 Contact Us For Availability
1
Pump Assembly WPL 8211480 Contact Us For Availability
2
Screw WPL 8211631 Contact Us For Availability
2
Cup Guard Assembly WPL 4176403 Contact Us For Availability
2
Screw WPL 4176404 Contact Us For Availability
2
Pipe, Suction WPL 8211645 Contact Us For Availability
3
Support, Gauge Sensor WPL 8211632 Contact Us For Availability
3
Valve, Steam WPL 8211666 Contact Us For Availability
3
Trim, Steam Pod WPL 4176428 Contact Us For Availability
3
Pipe SL WPL 8211646 Contact Us For Availability
4
Screw WPL 8211633 Contact Us For Availability
4
Lid, Tank WPL 4176405 Contact Us For Availability
4
Screw WPL 4176427 Contact Us For Availability
4
Clamp, Hose WPL 8211647 Contact Us For Availability
5
Clamp, Thermo Fuse WPL 8211634 Contact Us For Availability
5
Cabinet - Upper (Pearl Metallic) WPL 4176406 Contact Us For Availability
5
Cabinet - Upper (Empire Red) WPL 4176407 Contact Us For Availability
5
Cabinet - Upper (Onyx Black) WPL 8212215 Contact Us For Availability
5
Cabinet - Upper (Almond Creme) WPL 8212216 Contact Us For Availability
5
Valve, Exhaust Pipe WPL 8211667 Contact Us For Availability
5
Trim, Coffee WPL 4176429 Contact Us For Availability
5
Valve, Solenoid (3-Way) WPL 8212221 Contact Us For Availability
6
Gasket WPL 8211635 Contact Us For Availability
6
Rod WPL 4176408 Contact Us For Availability
6
Gasket WPL 8211649 Contact Us For Availability
6
Relay, 230V WPL 8212210 Contact Us For Availability
6
Tank, Water WPL 4176430 Contact Us For Availability
7
Thermostat, Coffee WPL 8211636 Contact Us For Availability
7
Cabinet Body (Onyx Black) WPL 8212217 Contact Us For Availability
7
Cabinet Body (Almond Creme) WPL 8212218 Contact Us For Availability
7
Cabinet Body (Pearl Metallic) WPL 8212219 Contact Us For Availability
7
Cabinet Body (Empire Red) WPL 8212220 Contact Us For Availability
7
Fitting, Input WPL 8211650 Contact Us For Availability
8
Gasket WPL 8211637 Contact Us For Availability
8
Gauge, Coffee WPL 8212199 Contact Us For Availability
8
Screw, M 5 x 12 WPL 8211651 Contact Us For Availability
8
Plug WPL 8211483 Contact Us For Availability
8
Nameplate WPL 8212204 Contact Us For Availability
9
Pipe, Copper WPL 8211638 Contact Us For Availability
9
Gauge, Steam WPL 8212200 Contact Us For Availability
9
Cord, Power (European) WPL 8212206 Contact Us For Availability
9
Cord, Power (Britain) WPL 8212207 Contact Us For Availability
9
Cord, Power (Swiss) WPL 8212208 Contact Us For Availability
9
Cord, Power (Australian) WPL 8212209 Contact Us For Availability
9
Pipe Assembly WPL 8211652 Contact Us For Availability
10
Body, Unit WPL 8211639 Contact Us For Availability
10
Ring, Trim Gauge WPL 4176410 Contact Us For Availability
10
Base Assembly (Includes Feet) WPL 4176435 Contact Us For Availability
10
Protector, Pipe WPL 8211653 Contact Us For Availability
11
Boiler, Espresso WPL 4176448 Contact Us For Availability
11
Switch - On/Off WPL 4176411 Contact Us For Availability
11
Gasket WPL 4176454 Contact Us For Availability
11
Foot WPL 4176436 Contact Us For Availability
11
Support, Pump (Ulka) WPL 8212212 Contact Us For Availability
12
Body, Steam Pipe WPL 8211640 Contact Us For Availability
12
Bracket, Switch WPL 4176412 Contact Us For Availability
12
Shower Disc Assy. WPL 4176455 Contact Us For Availability
12
Tray, Drip WPL 4176437 Contact Us For Availability
12
Valve Assembly WPL 8211655 Contact Us For Availability
13
Thermostat, Steam WPL 8211641 Contact Us For Availability
13
Screw WPL 4176456 Contact Us For Availability
13
Floater, Red WPL 4176438 Contact Us For Availability
13
Gasket, Valve WPL 8211656 Contact Us For Availability
14
Fitting WPL 8211642 Contact Us For Availability
14
Light & Wire Assy WPL 8212201 Contact Us For Availability
14
Disc, Shower WPL 4176457 Contact Us For Availability
14
Grid WPL 4176439 Contact Us For Availability
14
Pipe Assembly WPL 8211657 Contact Us For Availability
15
Flange, Steam Boiler WPL 8211643 Contact Us For Availability
15
Button, Switch WPL 4176420 Contact Us For Availability
15
Screw WPL 4176458 Contact Us For Availability
15
Scoop, Coffee WPL 4176440 Contact Us For Availability
15
Pump w/Thermostat WPL 8212211 Contact Us For Availability
16
Gasket, Insulating WPL 8211644 Contact Us For Availability
16
Bezel, Coffee WPL 8212202 Contact Us For Availability
16
Milk Jug Stainless Steel WPL 4176459 Contact Us For Availability
16
MOV Board, 230V WPL 8212214 Contact Us For Availability
16
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI15274A6 Contact Us For Availability
16
Brush, Cleaning WPL 4176441 Contact Us For Availability
16
Fitting, ``T`` WPL 8211659 Contact Us For Availability
17
Switch WPL 4176415 Contact Us For Availability
17
Holder, Filter WPL 4176442 Contact Us For Availability
17
Connector, Pump Suction WPL 8211664 Contact Us For Availability
18
Pipe Assembly WPL 4176418 Contact Us For Availability
18
Filter, 2-Cup WPL 4176443 Contact Us For Availability
19
Steam Group Assy WPL 4176419 Contact Us For Availability
19
Filter, 1-Cup WPL 4176444 Contact Us For Availability
20
Spacer, Knob WPL 4176421 Contact Us For Availability
20
Tamper, Coffee WPL 4176445 Contact Us For Availability
21
Bezel, Steam WPL 8212203 Contact Us For Availability
21
Handle WPL 8212222 Contact Us For Availability
22
Screw WPL 4176423 Contact Us For Availability
22
Screw WPL 8212223 Contact Us For Availability
23
Knob & Clip Assy WPL 4176424 Contact Us For Availability
24
Tip, Frothing WPL 4176425 Contact Us For Availability
25
Washer WPL 4176434 Contact Us For Availability
× ![]()
