Model Whirlpool 5KCM0802EOB0 COFFEE MAKER – Common Parts & Diagrams

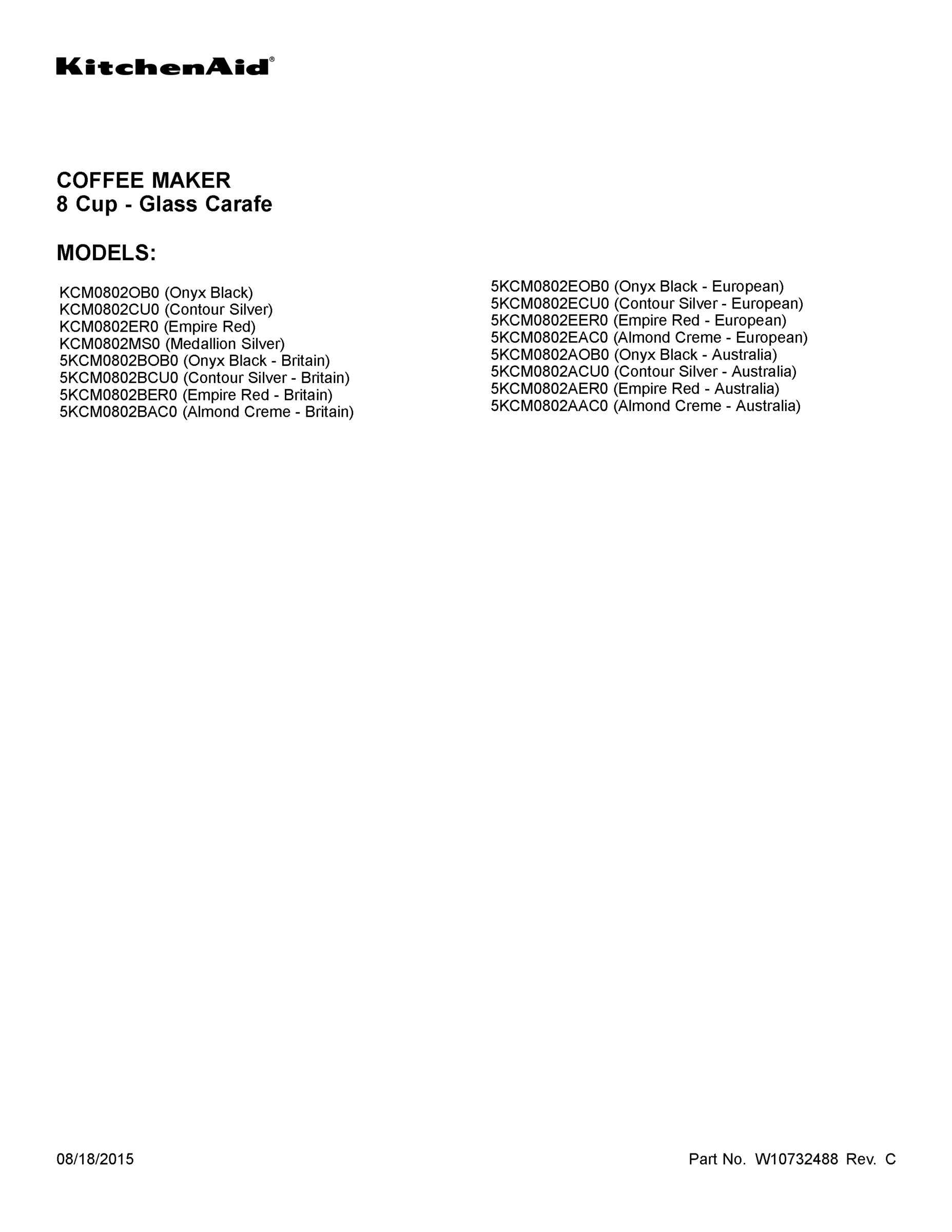

01 - COVER SHEET

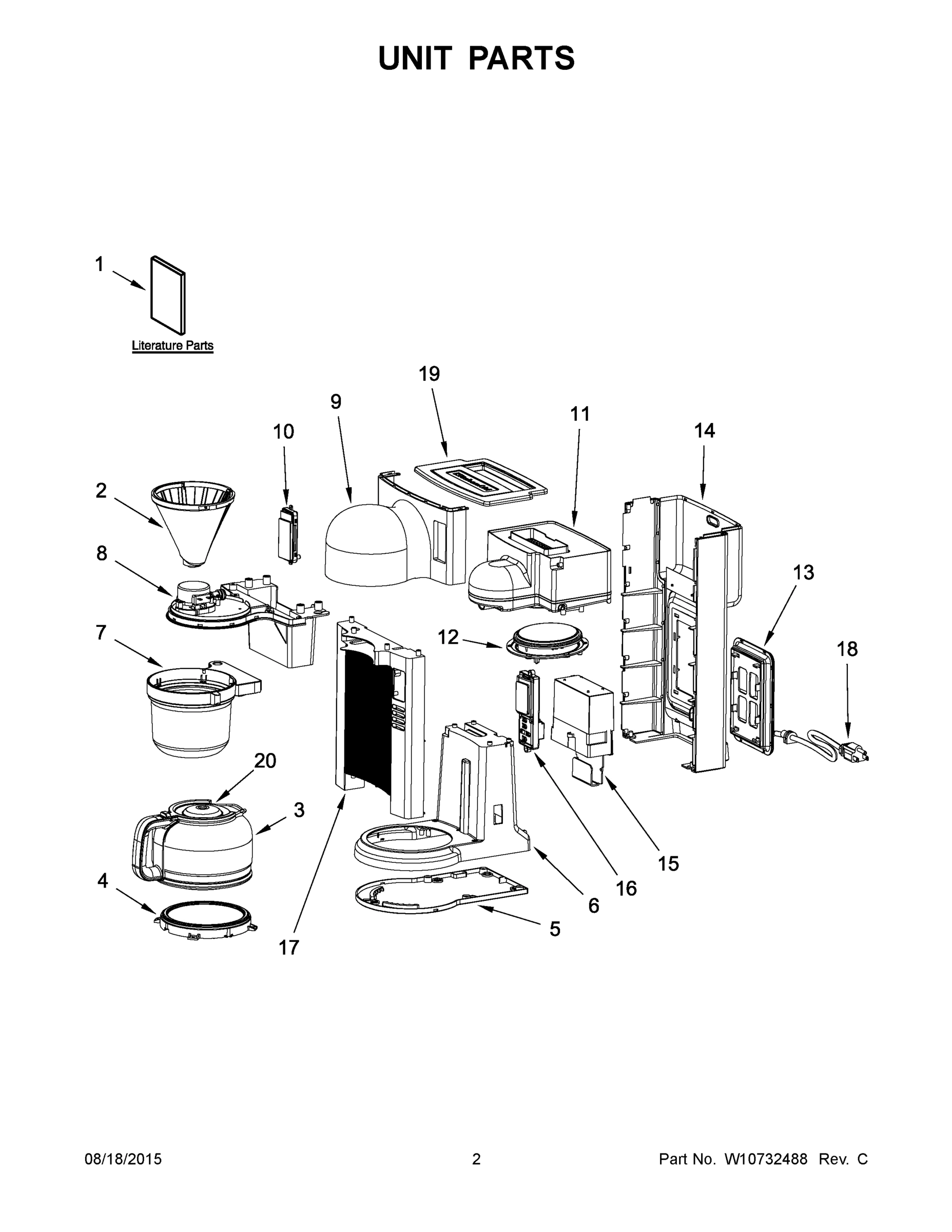

02 - UNIT PARTS
Common parts from model Whirlpool 5KCM0802EOB0 COFFEE MAKER
1
USE AND CARE GUIDE, US WPL W10661890 Contact Us For Availability
1A
USE AND CARE GUIDE, INTERNATIONAL WPL W10675728 Contact Us For Availability
3
CARAFE, GLASS WPL W10732612 Contact Us For Availability
4
PLATE, WARMING (US) WPL W10732613 Contact Us For Availability
4A
PLATE, WARMING (INTERNATIONAL) WPL W10760319 Contact Us For Availability
5
COVER, BASE WPL W10732614 Contact Us For Availability
6A
LOWER HOUSING (CONTOUR SILVER) WPL W10732616 Contact Us For Availability
6D
LOWER HOUSING (ALMOND CREME) WPL W10760323 Contact Us For Availability
8A
UMBRELLA, SHOWERHEAD (INTERNATIONAL) WPL W10760320 Contact Us For Availability
9D
TOP HOUSING (ALMOND CREME) WPL W10760324 Contact Us For Availability
10
GUIDE, WATER LEVEL WINDOW WPL W10732625 Contact Us For Availability
11
RESERVOIR, WATER TANK WPL W10732626 Contact Us For Availability
12A
ELEMENT, HEATER (INTERNATIONAL) WPL W10760321 Contact Us For Availability
14B
REAR HOUSING (EMPIRE RED) WPL W10732631 Contact Us For Availability
14C
REAR HOUSING (MEDALLION SILVER) WPL W10732632 Contact Us For Availability
15
CONTROL, POWER PCB WPL W10732633 Contact Us For Availability
16
CONTROL, PCB (US) WPL W10732634 Contact Us For Availability
16A
CONTROL, PCB (INTERNATIONAL) WPL W10760322 Contact Us For Availability
17D
FRONT HOUSING (ALMOND CREME) WPL W10760326 Contact Us For Availability
18
CORD, POWER WPL W10732639 Contact Us For Availability
18A
CORD, POWER (BRITAIN) WPL W10760317 Contact Us For Availability
18B
C WPL W10760318 Contact Us For Availability
19
WPL W10732640 WPL W10732640 Contact Us For Availability
19A
WPL W10732641 WPL W10732641 Contact Us For Availability
19D
WPL W10760327 WPL W10760327 Contact Us For Availability
20
WPL W10831612 WPL W10831612 Contact Us For Availability
× ![]()
