  • Whirlpool 5KCM0802AER0 Parts List

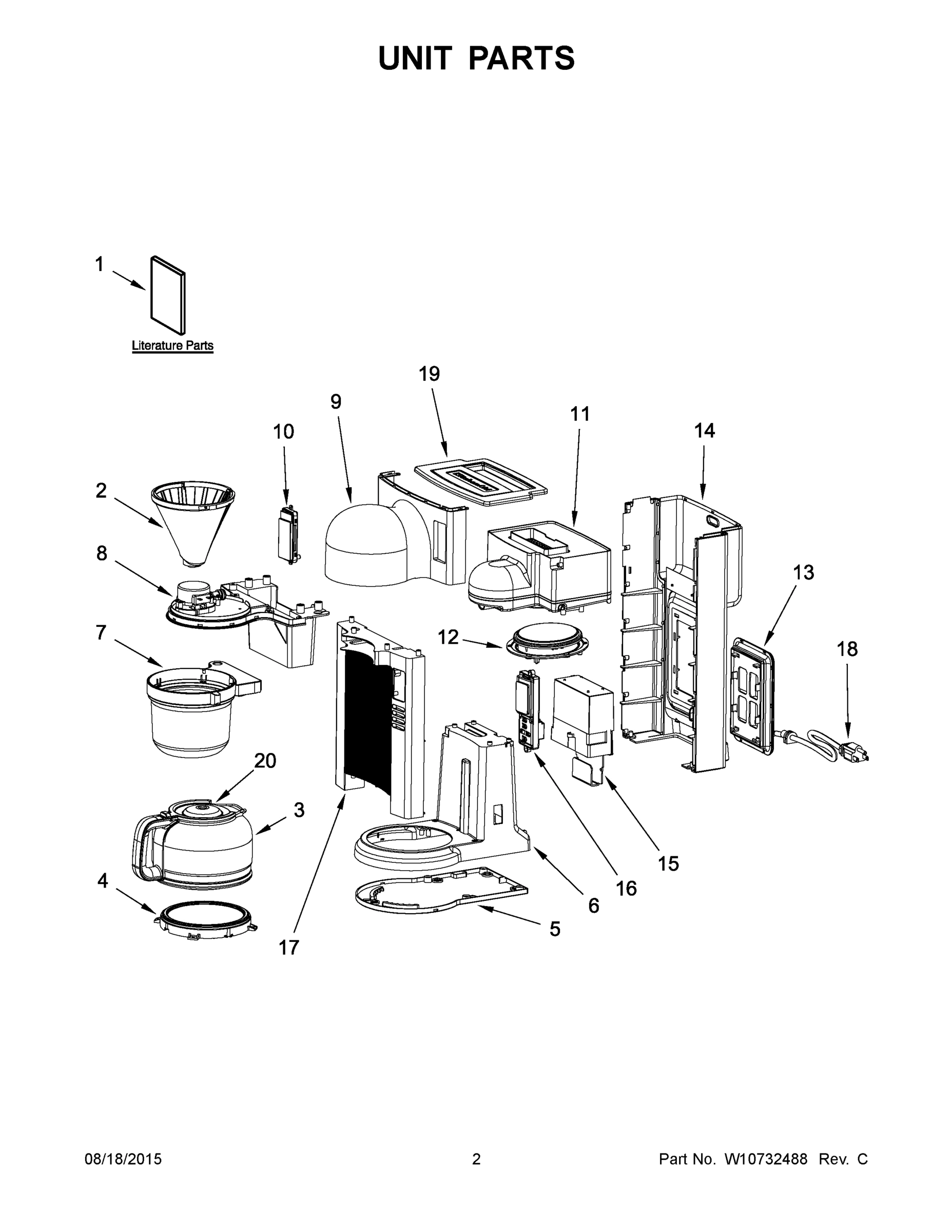

Model Whirlpool 5KCM0802AER0 COFFEE MAKER – Common Parts & Diagrams

1
USE AND CARE GUIDE, US
USE AND CARE GUIDE, US WPL W10661890 Contact Us For Availability
View on Model
1A
USE AND CARE GUIDE, INTERNATIONAL
USE AND CARE GUIDE, INTERNATIONAL WPL W10675728 Contact Us For Availability
View on Model
3
CARAFE, GLASS
CARAFE, GLASS WPL W10732612 Contact Us For Availability
View on Model
4
PLATE, WARMING (US)
PLATE, WARMING (US) WPL W10732613 Contact Us For Availability
View on Model
4A
PLATE, WARMING (INTERNATIONAL)
PLATE, WARMING (INTERNATIONAL) WPL W10760319 Contact Us For Availability
View on Model
5
COVER, BASE
COVER, BASE WPL W10732614 Contact Us For Availability
View on Model
6
LOWER HOUSING (ONYX BLACK)
LOWER HOUSING (ONYX BLACK) WPL W10732615 Contact Us For Availability
View on Model
6B
LOWER HOUSING (EMPIRE RED)
LOWER HOUSING (EMPIRE RED) WPL W10732617 Contact Us For Availability
View on Model
6D
LOWER HOUSING (ALMOND CREME)
LOWER HOUSING (ALMOND CREME) WPL W10760323 Contact Us For Availability
View on Model
8
UMBRELLA, SHOWERHEAD (US)
UMBRELLA, SHOWERHEAD (US) WPL W10732620 Contact Us For Availability
View on Model
8A
UMBRELLA, SHOWERHEAD (INTERNATIONAL)
UMBRELLA, SHOWERHEAD (INTERNATIONAL) WPL W10760320 Contact Us For Availability
View on Model
9D
TOP HOUSING (ALMOND CREME)
TOP HOUSING (ALMOND CREME) WPL W10760324 Contact Us For Availability
View on Model
10
GUIDE, WATER LEVEL WINDOW
GUIDE, WATER LEVEL WINDOW WPL W10732625 Contact Us For Availability
View on Model
11
RESERVOIR, WATER TANK
RESERVOIR, WATER TANK WPL W10732626 Contact Us For Availability
View on Model
12
ELEMENT, HEATER (US)
ELEMENT, HEATER (US) WPL W10732627 Contact Us For Availability
View on Model
12A
ELEMENT, HEATER (INTERNATIONAL)
ELEMENT, HEATER (INTERNATIONAL) WPL W10760321 Contact Us For Availability
View on Model
13
HOLDER, CORD WRAP PLATE
HOLDER, CORD WRAP PLATE WPL W10732628 Contact Us For Availability
View on Model
14B
REAR HOUSING (EMPIRE RED)
REAR HOUSING (EMPIRE RED) WPL W10732631 Contact Us For Availability
View on Model
15
CONTROL, POWER PCB
CONTROL, POWER PCB WPL W10732633 Contact Us For Availability
View on Model
16
CONTROL, PCB (US)
CONTROL, PCB (US) WPL W10732634 Contact Us For Availability
View on Model
16A
CONTROL, PCB (INTERNATIONAL)
CONTROL, PCB (INTERNATIONAL) WPL W10760322 Contact Us For Availability
View on Model
17
FRONT HOUSING (ONYX BLACK)
FRONT HOUSING (ONYX BLACK) WPL W10732635 Contact Us For Availability
View on Model
17D
FRONT HOUSING (ALMOND CREME)
FRONT HOUSING (ALMOND CREME) WPL W10760326 Contact Us For Availability
View on Model
18
CORD, POWER
CORD, POWER WPL W10732639 Contact Us For Availability
View on Model
18A
CORD, POWER (BRITAIN)
CORD, POWER (BRITAIN) WPL W10760317 Contact Us For Availability
View on Model
18B
C
C WPL W10760318 Contact Us For Availability
View on Model
19
WPL W10732640
WPL W10732640 WPL W10732640 Contact Us For Availability
View on Model
19A
WPL W10732641
WPL W10732641 WPL W10732641 Contact Us For Availability
View on Model
19B
WPL W10732642
WPL W10732642 WPL W10732642 Contact Us For Availability
View on Model
19D
WPL W10760327
WPL W10760327 WPL W10760327 Contact Us For Availability
View on Model
20
WPL W10831612
WPL W10831612 WPL W10831612 Contact Us For Availability
View on Model
