Model Whirlpool 5KCG100EOB0 ARTISAN COFFEE GRINDER – Common Parts & Diagrams
02 - MOTOR HOUSING AND BURR ASSEMBLY PARTS
03 - MOTOR AND CONTROL PARTS

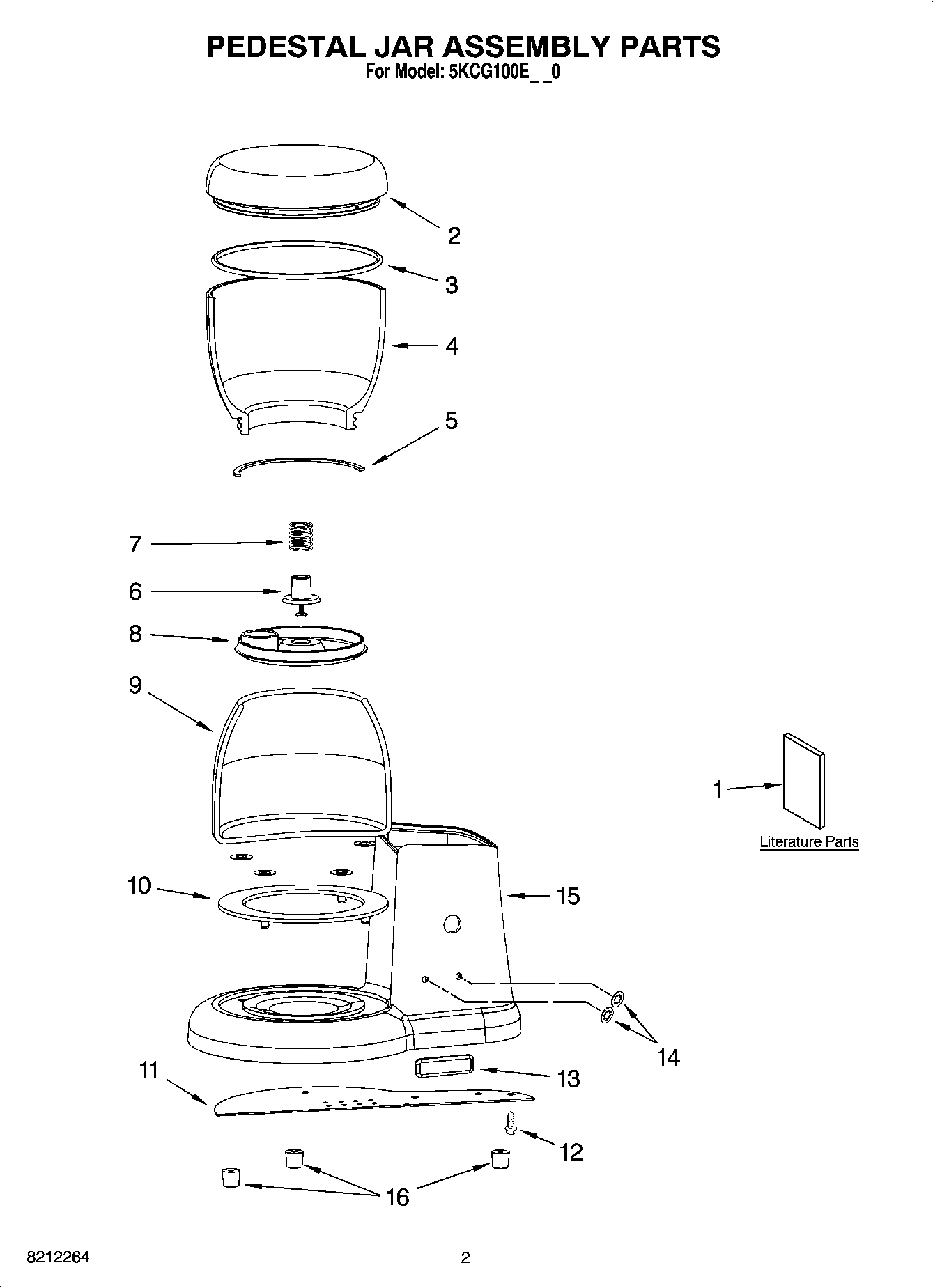

01 - PEDESTAL JAR ASSEMBLY PARTS
Common parts from model Whirlpool 5KCG100EOB0 ARTISAN COFFEE GRINDER
1
Guard, Finger WPL 4176695 Contact Us For Availability
1
Bushing, Copper WPL 4176707 Contact Us For Availability
1
Repair Parts List WPL 8212264 Contact Us For Availability
1
Use and Care Guide WPL 8212325 Contact Us For Availability
2
Motor, 220V-240V WPL 8212324 Contact Us For Availability
2
Lid, Bean Jar (Black) WPL 4176717 Contact Us For Availability
3
Seal, Vibration WPL 4176726 Contact Us For Availability
4
Cap, Motor (Pearl Metallic) WPL 4176699 Contact Us For Availability
4
Cap, Motor (Empire Red) WPL 8212321 Contact Us For Availability
4
Cap, Motor (Onyx Black) WPL 8212334 Contact Us For Availability
4
Cap, Motor (Almond Creme) WPL 8212337 Contact Us For Availability
4
Jar, Bean WPL 4176730 Contact Us For Availability
5
Screw, Motor Cap WPL 4176755 Contact Us For Availability
6
Nozzle, Holder WPL 4176723 Contact Us For Availability
6
Knob, Selector (Black) WPL 4176718 Contact Us For Availability
6
Tube, Housing WPL 4176734 Contact Us For Availability
7
Spring, Detent WPL 8212394 Contact Us For Availability
7
Nut, Switch WPL 4176710 Contact Us For Availability
7
Spring, Housing WPL 4176715 Contact Us For Availability
8
Screw, Adjustment WPL 4176716 Contact Us For Availability
9
Jar, Coffee Ground WPL 4176728 Contact Us For Availability
9
Cord, Power WPL 8212326 Contact Us For Availability
10
Bezel, Gearbox WPL 4176697 Contact Us For Availability
10
PCB Board, 220V WPL 8212323 Contact Us For Availability
11
Auger Assy WPL 4176694 Contact Us For Availability
11
Switch, Toggle WPL 8212330 Contact Us For Availability
11
Cover, Baseplate WPL 4176703 Contact Us For Availability
12
Screw, Socket WPL 4176712 Contact Us For Availability
12
SPACER WPL 4176724 Contact Us For Availability
12
Screw WPL 4176760 Contact Us For Availability
13
Plate, Motor WPL 4176720 Contact Us For Availability
13
Brush, Cleaning WPL 4176763 Contact Us For Availability
13
Scoop, Coffee WPL 4176764 Contact Us For Availability
13
Following Parts Not Illustrated WPL ARI15258A2 Contact Us For Availability
13
Nameplate WPL 4176701 Contact Us For Availability
14
Housing, Motor (Pearl Metallic) WPL 4176698 Contact Us For Availability
14
Housing, Motor (Empire Red) WPL 8212320 Contact Us For Availability
14
Housing, Motor (Onyx Black) WPL 8212333 Contact Us For Availability
14
Housing, Motor (Almond Creme) WPL 8212336 Contact Us For Availability
15
Pedestal Assy (Pearl Metallic) WPL 8212331 Contact Us For Availability
15
Pedestal Assy (Empire Red) WPL 8212332 Contact Us For Availability
15
Pedestal Assy (Onyx Black) WPL 8212335 Contact Us For Availability
15
Pedestal Assy (Almond Creme) WPL 8212338 Contact Us For Availability
16
Foot, Rubber WPL 4176725 Contact Us For Availability
× ![]()
