Model Whirlpool 5KCG0702BOB0 SMALL APPLIANCE, COFFEE GRINDER – Common Parts & Diagrams

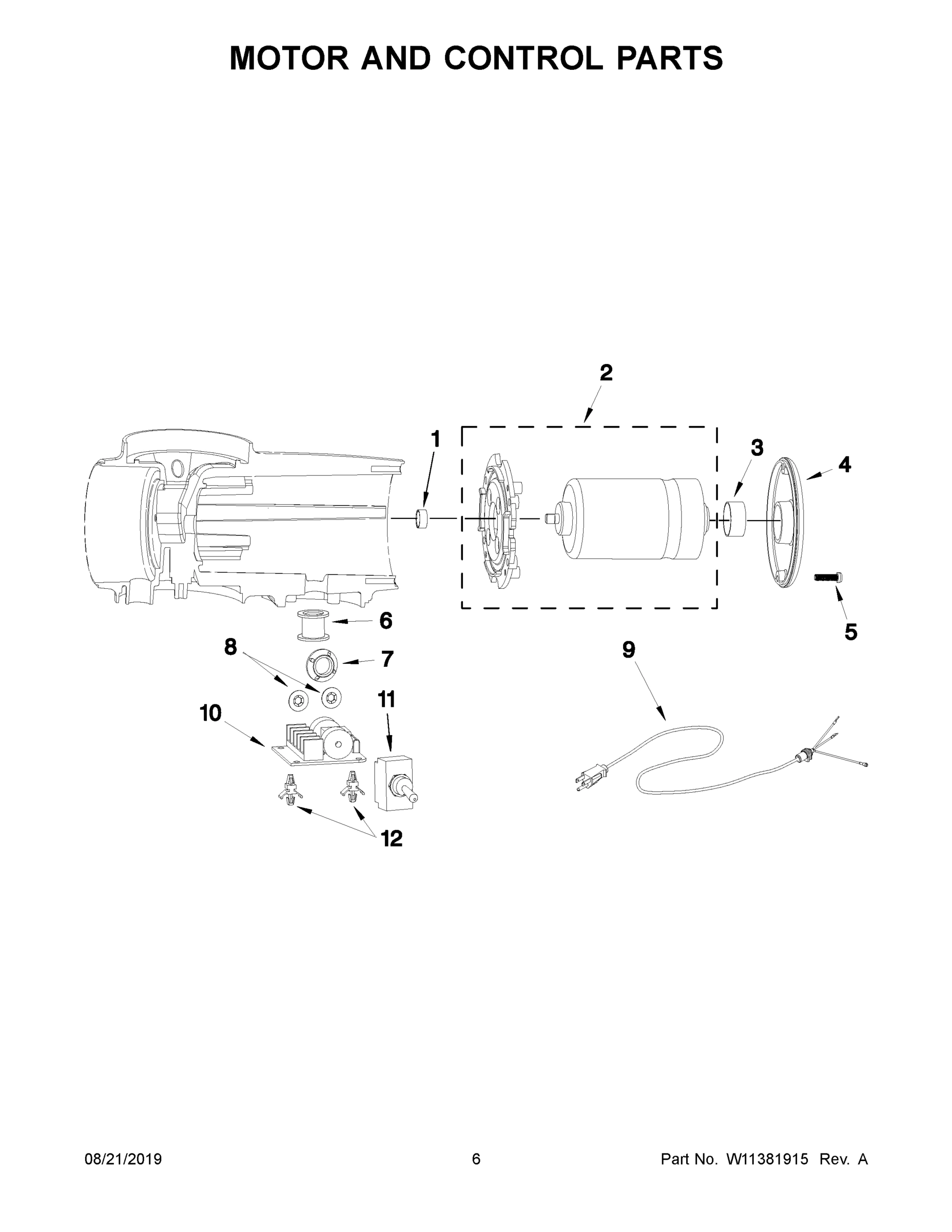

04 - MOTOR AND CONTROL PARTS

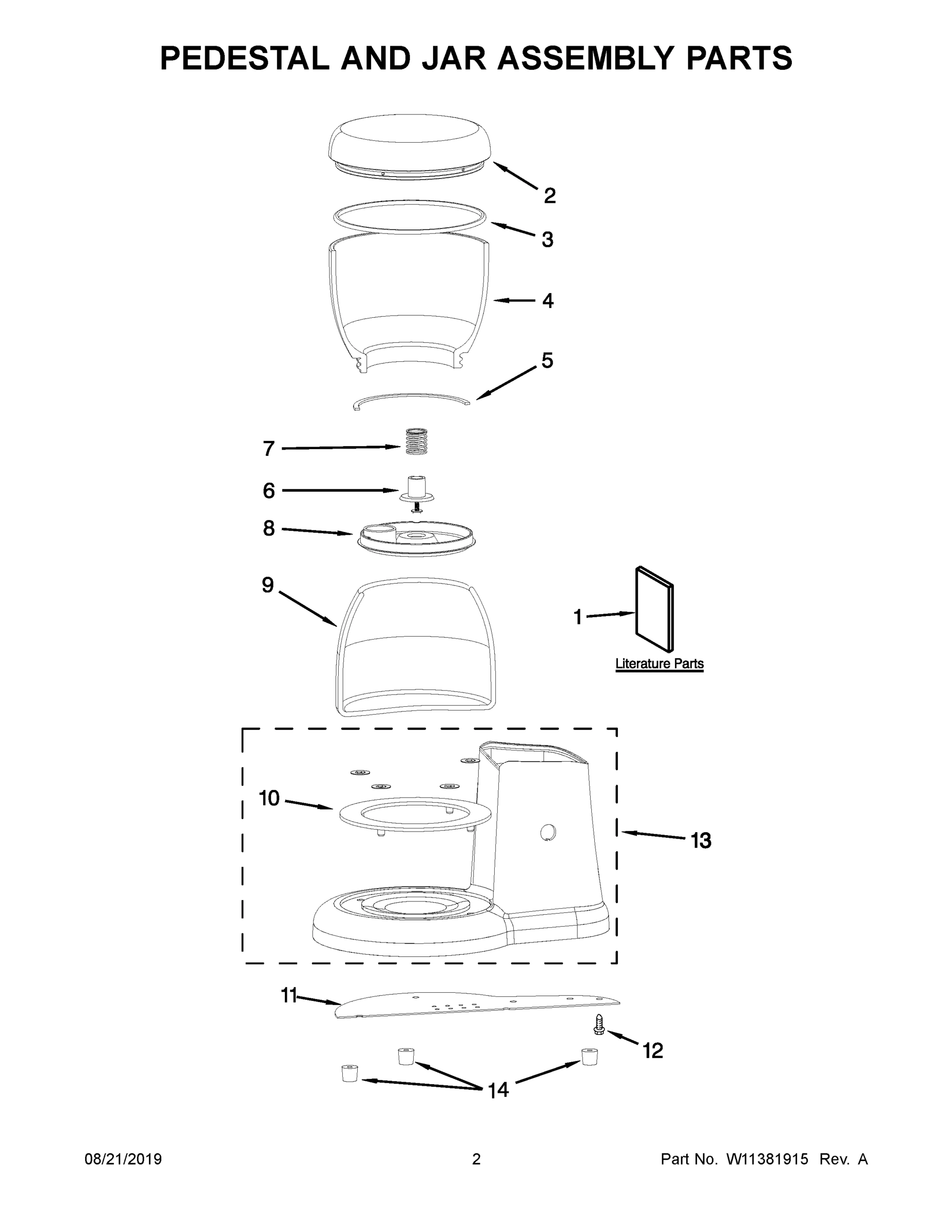

02 - PEDESTAL AND JAR ASSEMBLY PARTS

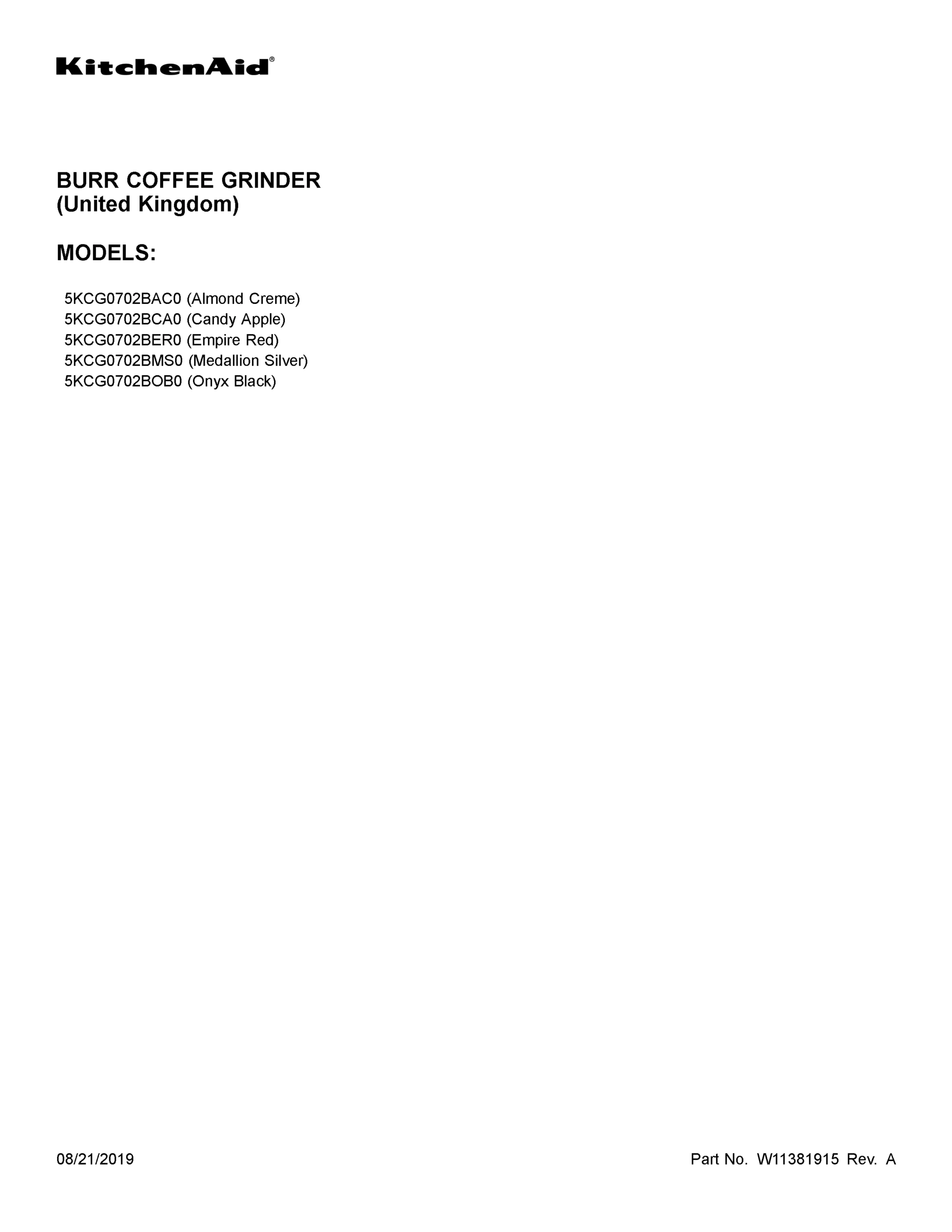

01 - COVER SHEET

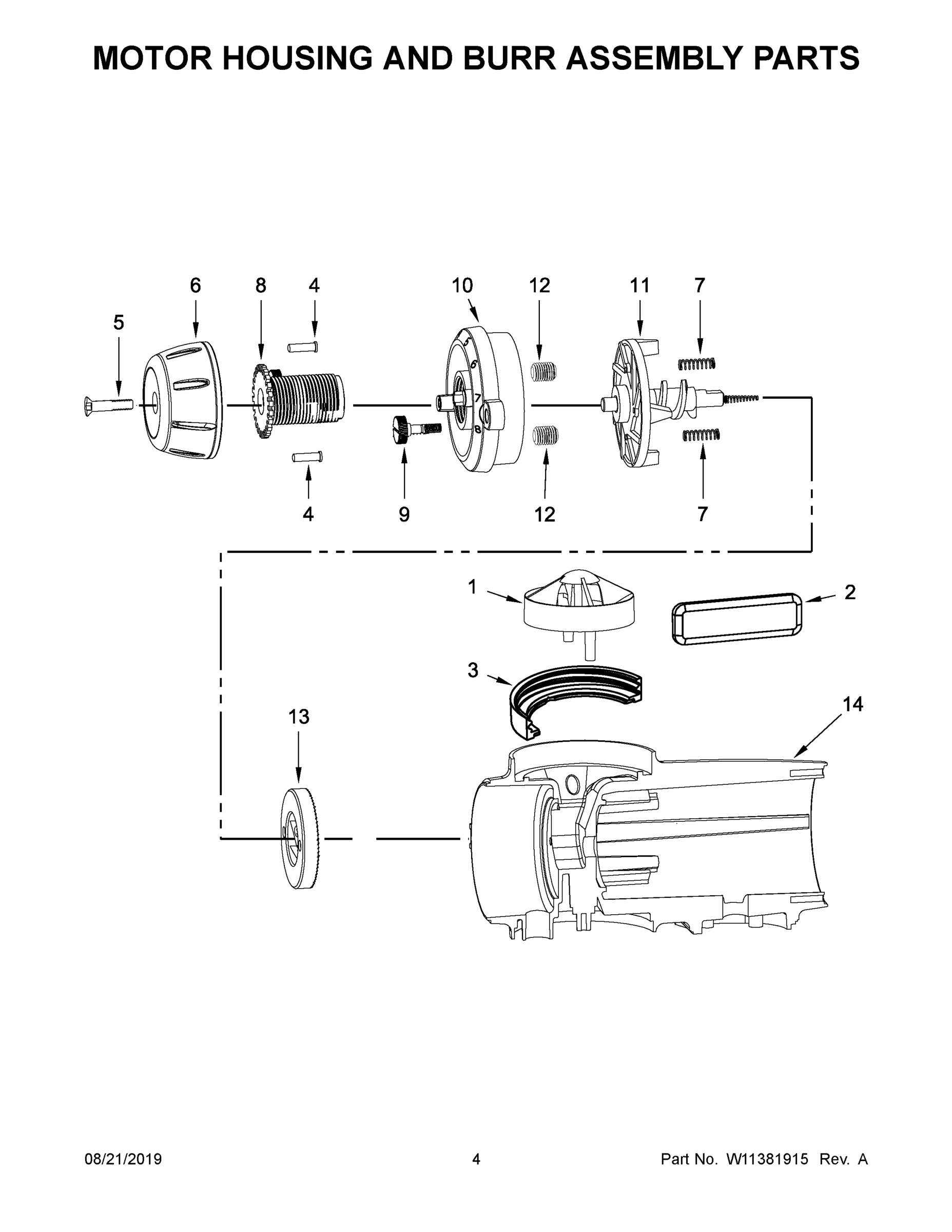

03 - MOTOR HOUSING AND BURR ASSEMBLY PARTS
Common parts from model Whirlpool 5KCG0702BOB0 SMALL APPLIANCE, COFFEE GRINDER
1
GUARD, FINGER WPL 4176695 Contact Us For Availability
1
USE & CARE GUIDE WPL W10779358 Contact Us For Availability
2
NAMEPLATE WPL W10845890 Contact Us For Availability
3
INSERT, THREAD LOCK WPL W10223450 Contact Us For Availability
4
JAR, BEAN (INCLUDES ITEM 5) WPL W10845861 Contact Us For Availability
4A
CAP, MOTOR (CANDY APPLE) WPL W10845887 Contact Us For Availability
4B
CAP, MOTOR (EMPIRE RED) WPL 8212321 Contact Us For Availability
4C
CAP, MOTOR (MEDALLION SILVER) WPL W10845884 Contact Us For Availability
4D
CAP, MOTOR (ONYX BLACK) WPL W10217609 Contact Us For Availability
5
SCREW, MOTOR CAP WPL 4176755 Contact Us For Availability
6
NOZZLE, HOLDER WPL 4176723 Contact Us For Availability
6
TUBE, HOUSING WPL 4176734 Contact Us For Availability
6
KNOB, SELECTOR WPL 4176718 Contact Us For Availability
7
NUT, SWITCH WPL 4176710 Contact Us For Availability
7
SPRING, HOUSING WPL 4176715 Contact Us For Availability
7
SPRING, DETENT WPL 8212394 Contact Us For Availability
8
SCREW, ADJUSTMENT (INCLUDES BUSHING) WPL W10845873 Contact Us For Availability
9
JAR, COFFEE GROUND WPL 4176728 Contact Us For Availability
9
POWER CORD WPL W11388430 Contact Us For Availability
10
CONTROL BOARD WPL W11390778 Contact Us For Availability
10
BEZEL, GEARBOX WPL 4176697 Contact Us For Availability
11
COVER, BASEPLATE WPL 4176703 Contact Us For Availability
11
AUGER ASSEMBLY WPL 4176694 Contact Us For Availability
12
SPACER WPL 4176724 Contact Us For Availability
12
SCREW WPL W10845864 Contact Us For Availability
12
SCREW, SOCKET WPL 4176712 Contact Us For Availability
13
BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (ALMON WPL W10845870 Contact Us For Availability
13A
BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (CANDY WPL W10845872 Contact Us For Availability
13B
BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (EMPIR WPL W10845866 Contact Us For Availability
13C
BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (MEDAL WPL W10845868 Contact Us For Availability
13D
BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (ONYX WPL W10845867 Contact Us For Availability
14
FOOT, BASE WPL W10845865 Contact Us For Availability
14
HOUSING, MOTOR (ALMOND CREME) WPL W10845879 Contact Us For Availability
14A
HOUSING, MOTOR (CANDY APPLE) WPL W10845880 Contact Us For Availability
14B
HOUSING, MOTOR (EMPIRE RED) WPL W10845874 Contact Us For Availability
14C
HOUSING, MOTOR (MEDALLION SILVER) WPL W10845876 Contact Us For Availability
14D
HOUSING, MOTOR (ONYX BLACK) WPL W10845875 Contact Us For Availability
NI
BRUSH, CLEANING WPL 4176763 Contact Us For Availability
NI
SCOOP, COFFEE WPL 4176764 Contact Us For Availability
NI
OPTIONAL PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
× ![]()
