Model Whirlpool 5KCF0201ECA0 SMALL APPLIANCE, FOOD PROCESSOR – Common Parts & Diagrams

Common parts from model Whirlpool 5KCF0201ECA0 SMALL APPLIANCE, FOOD PROCESSOR

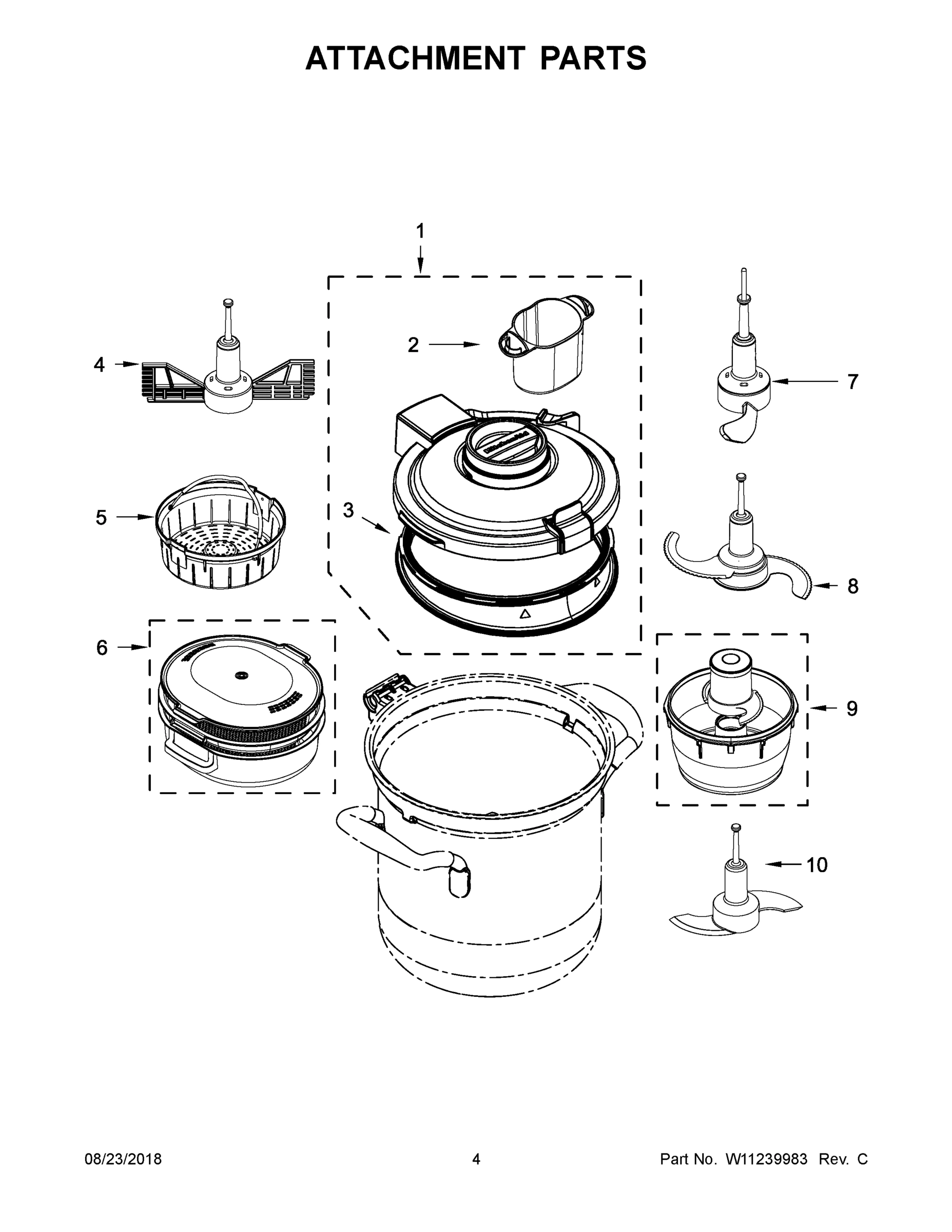

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

USE & CARE GUIDE (AUSTRAILIA) WPL W11241775 Contact Us For Availability

View on Model

1

LID ASSEMBLY WPL W10877418 Contact Us For Availability

View on Model

1A

USE & CARE GUIDE (EUROPE/UNITED KINGDOM) WPL W11048232 Contact Us For Availability

View on Model

2

W10877420 Whirlpool Bowl Cover Backorder WPL W10877420 View Details $55.08

View on Model

2

POT, COOKING WPL W10769029 Contact Us For Availability

View on Model

3

ADAPTER, BLADE DRIVE WPL W10803482 Contact Us For Availability

View on Model

3

SEAL, LID WPL W10877419 Contact Us For Availability

View on Model

4

W10769045 Whirlpool Egg Whisk Backorder WPL W10769045 View Details $38.69

View on Model

4

COUPLING, BLADE DRIVE LOCK WPL W10803483 Contact Us For Availability

View on Model

5

COUPLER, GEAR SHAFT WPL W10803182 Contact Us For Availability

View on Model

5

STEAMER BASKET, INNER WPL W10769038 Contact Us For Availability

View on Model

6

CAP ASSEMBLY, THERMAL FUSE WPL W11240482 Contact Us For Availability

View on Model

6

BASKET, STEAMING (INCLUDES LID, MIDDLE AND LO WPL W10769036 Contact Us For Availability

View on Model

7

W10909931 Whirlpool Wand Backorder WPL W10909931 View Details $75.26

View on Model

7

SWITCH ASSEMBLY, INTERLOCK WPL W10909930 Contact Us For Availability

View on Model

8

W10769040 Whirlpool Blade Backorder WPL W10769040 View Details $43.52

View on Model

8

GASKET, TERMINAL WPL W10803158 Contact Us For Availability

View on Model

9

PCBA, WEIGHT SCALE WPL W11240534 Contact Us For Availability

View on Model

9

BOWL ASSEMBLY (INCLUDES SMALL BLADE) WPL W10909932 Contact Us For Availability

View on Model

10

W10769042 Whirlpool Blade Backorder WPL W10769042 View Details $36.53

View on Model

10

PCBA, MAIN WPL W11240530 Contact Us For Availability

View on Model

11

PCBA, SPEED SENSOR WPL W11240527 Contact Us For Availability

View on Model

12

BELT WPL W10769048 Contact Us For Availability

View on Model

13

GEAR, DRIVE PULLEY WPL W10803183 Contact Us For Availability

View on Model

14

MOTOR WPL W11240480 Contact Us For Availability

View on Model

15

SCREW WPL W10803157 Contact Us For Availability

View on Model

16

W10803162 Whirlpool PCB Board Backorder WPL W10803162 View Details $67.10

View on Model

17

SWITCH, POWER WPL W10769057 Contact Us For Availability

View on Model

18

KNOB, BOWL LOCK WPL W10769055 Contact Us For Availability

View on Model

19

DISPLAY ASSEMBLY, CONTROL (CANDY APPLE) WPL W11240468 Contact Us For Availability

View on Model

19A

DISPLAY ASSEMBLY, CONTROL (IMPERIAL BLACK) WPL W11240474 Contact Us For Availability

View on Model

20

KNOB, DISPLAY WPL W11240479 Contact Us For Availability

View on Model

21

POWER CORD (AUSTRALIA) WPL W11240524 Contact Us For Availability

View on Model

21A

POWER CORD (EUROPE) WPL W11240520 Contact Us For Availability

View on Model

21B

POWER CORD (UNITED KINGDOM) WPL W11240526 Contact Us For Availability

View on Model

22

BASE WPL W10803160 Contact Us For Availability

View on Model

23

FOOT, BASE WPL W10803184 Contact Us For Availability

View on Model

24

PCBA, LOUDSPEAKER WPL W10803164 Contact Us For Availability

View on Model

25

SENSOR, WEIGHT SCALE (SET OF 3) WPL W11240536 Contact Us For Availability

View on Model

NI

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

View on Model

NI

STORAGE CASE WPL W10877421 Contact Us For Availability
