Model Whirlpool 59GN-5TVW ELECTRIC WALL OVEN – Common Parts & Diagrams
02 - CONTROL PANEL (WITH TV)
04 - INTERNAL CONTROLS
01 - BODY

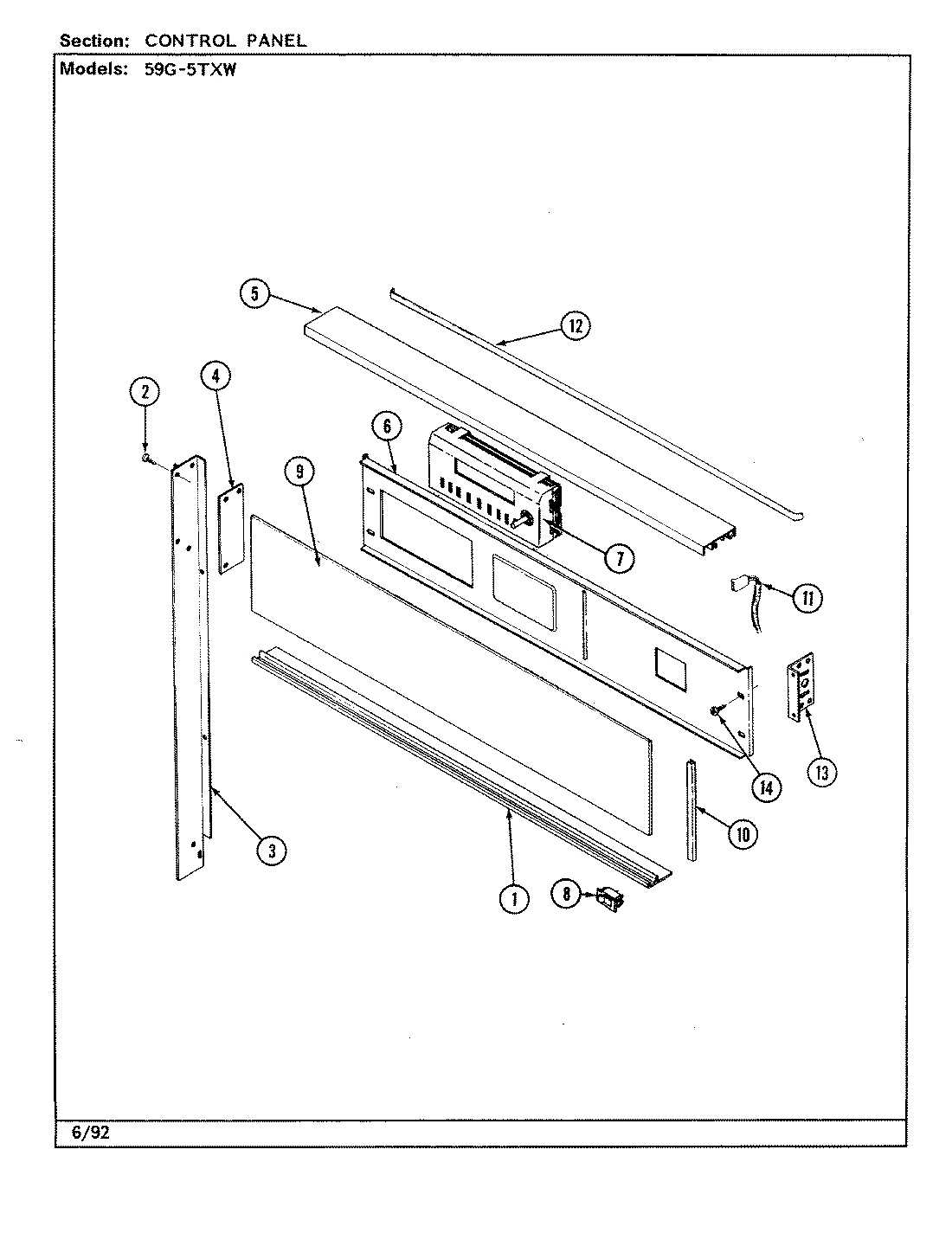

03 - CONTROL PANEL (WITH TX)

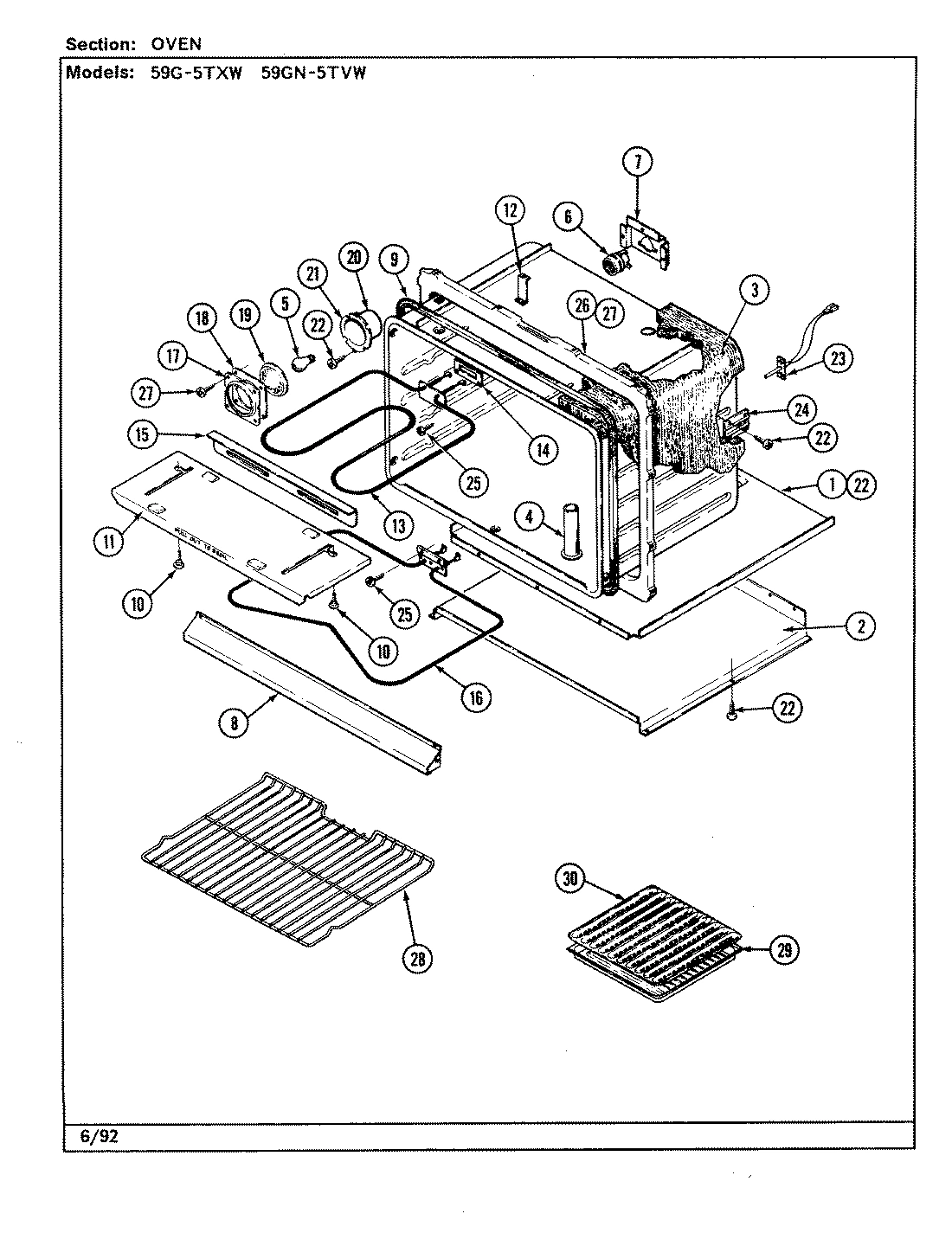

05 - OVEN
Common parts from model Whirlpool 59GN-5TVW ELECTRIC WALL OVEN
1
EXTRUSION WPL 7756P04260 Contact Us For Availability
1
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
1
LINING,INNER SIDE (L) WPL 4009W08580 Contact Us For Availability
1
SCREW WPL 7101P11260 Contact Us For Availability
1
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
1
NUT, SNAP WPL 7103P05160 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F19880 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
SHIELD BOTTOM WPL 3604F18480 Contact Us For Availability
3
EXTRUSION SIDE R. MATTE WPL 7750P07360 Contact Us For Availability
3
EXTRUSION SIDE L MATTE WPL 7750P07460 Contact Us For Availability
3
SHIELD, TERMINAL WPL 3604F14980 Contact Us For Availability
3
HINGE WPL 7106P04160 Contact Us For Availability
3
EXTRUSION SIDE R. BLACK WPL 7750P07160 Contact Us For Availability
3
EXTRUSION SIDE L. BLACK WPL 7750P07260 Contact Us For Availability
3
INSULATION - TOP WPL 4804F00860 Contact Us For Availability
3
INSULATION WPL 4804F02460 Contact Us For Availability
4
TRIM, END CAP WPL 7726P02860 Contact Us For Availability
4
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
4
SCREW WPL 7101P11560 Contact Us For Availability
4
TRIM, END CAP WPL 7726P02360 Contact Us For Availability
4
CATALYST BURNER WPL 7505P04160 Contact Us For Availability
4
TUBE, OVEN VENT WPL 8026A00960 Contact Us For Availability
5
EXTRUSION, TOP WPL 7752P00360 Contact Us For Availability
5
SWITCH, HI LIMIT WPL 7403P19960 Contact Us For Availability
5
BUSHING, SNAP WPL 8008P00260 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
6
PLATE MTG WPL 3605F17680 Contact Us For Availability
6
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
6
BACK, MAIN WPL 4002F17480 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
7
SHIELD, CLOCK INSULATION WPL 7003P03460 Contact Us For Availability
7
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
7
CLOCK NLA WPL 7601P20360 Contact Us For Availability
7
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
7
SPRING, MINI-STANLEY WPL 04000040 Contact Us For Availability
7
BRACKET WPL 3801F02451 Contact Us For Availability
8
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
8
SWITCH WPL 7403P27160 Contact Us For Availability
8
VENT BOX ASSY. WPL 4006W05245 Contact Us For Availability
8
PLATE CONDUIT WPL 3605F16380 Contact Us For Availability
8
SHIELD, LOWER VENT (WHITE) WPL 3604W15271 Contact Us For Availability
9
PANEL, CONTROL WPL 7721P00960 Contact Us For Availability
9
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
9
HOUSING MAIN WIRE WPL 4001F05180 Contact Us For Availability
9
PANEL, CONTROL WPL 7721P01060 Contact Us For Availability
9
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
10
TRIM (CHR) WPL 7720P15060 Contact Us For Availability
10
HOUSING, FAN WPL 4001F05951 Contact Us For Availability
10
COVER, WIRE HOUSING WPL 4005F15780 Contact Us For Availability
10
TRIM (BLK) WPL 7720P14960 Contact Us For Availability
11
WIRE HARNESS WPL 5170P09460 Contact Us For Availability
11
SWITCH, HI LIMIT WPL 7403P08960 Contact Us For Availability
11
COVER ACCESS WPL 4005F36151 Contact Us For Availability
11
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
12
EXTRUSION, FILLER TRIM WPL 7752P00460 Contact Us For Availability
12
CONNECTOR, PIN WPL 7417P00260 Contact Us For Availability
12
FAN ASSY. WPL 7427P01060 Contact Us For Availability
12
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
12
BAFFLE SIDE PANEL WPL 3601F21451 Contact Us For Availability
12
TRIM, FILLER STRIP WPL 7706P16760 Contact Us For Availability
12
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
13
BRACKET - SWITCH PLATE WPL 3801F17045 Contact Us For Availability
13
COVER, FAN WPL 4005F26251 Contact Us For Availability
13
COVER, SWITCH WPL 4005F36451 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
14
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
14
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
14
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
15
WIRES LOOSE WPL 5125A33260 Contact Us For Availability
15
HARNESS WIRE WPL 5170D14060 Contact Us For Availability
15
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
15
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
15
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
15
WIRES CONDUIT WPL 5140A02660 Contact Us For Availability
15
WASHER WPL 7109P00260 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P01660 Contact Us For Availability
16
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
17
FAN, RESISTOR ASY WPL 7413A00260 Contact Us For Availability
17
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
17
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
18
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
18
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
18
INSULATION - REAR WPL 4804F02060 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
19
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
19
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
19
SWITCH, OVN LOCK ASY----NA WPL 7403P09960 Contact Us For Availability
19
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
20
SUPPORT, LOCK SWITCH WPL 3807F43445 Contact Us For Availability
20
SCREW WPL 7101P03160 Contact Us For Availability
20
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
21
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
21
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
22
SCREW WPL 7101P06160 Contact Us For Availability
22
BOLT WPL 7116P00360 Contact Us For Availability
23
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
23
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
24
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
25
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
26
FRONT, OVEN UPPER WPL 2201F06119 Contact Us For Availability
27
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
29
PAN, BROIL WPL 3401F00419 Contact Us For Availability
29
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
30
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
30
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
× ![]()
