Model LG 58UF8300 – Common Parts & Diagrams

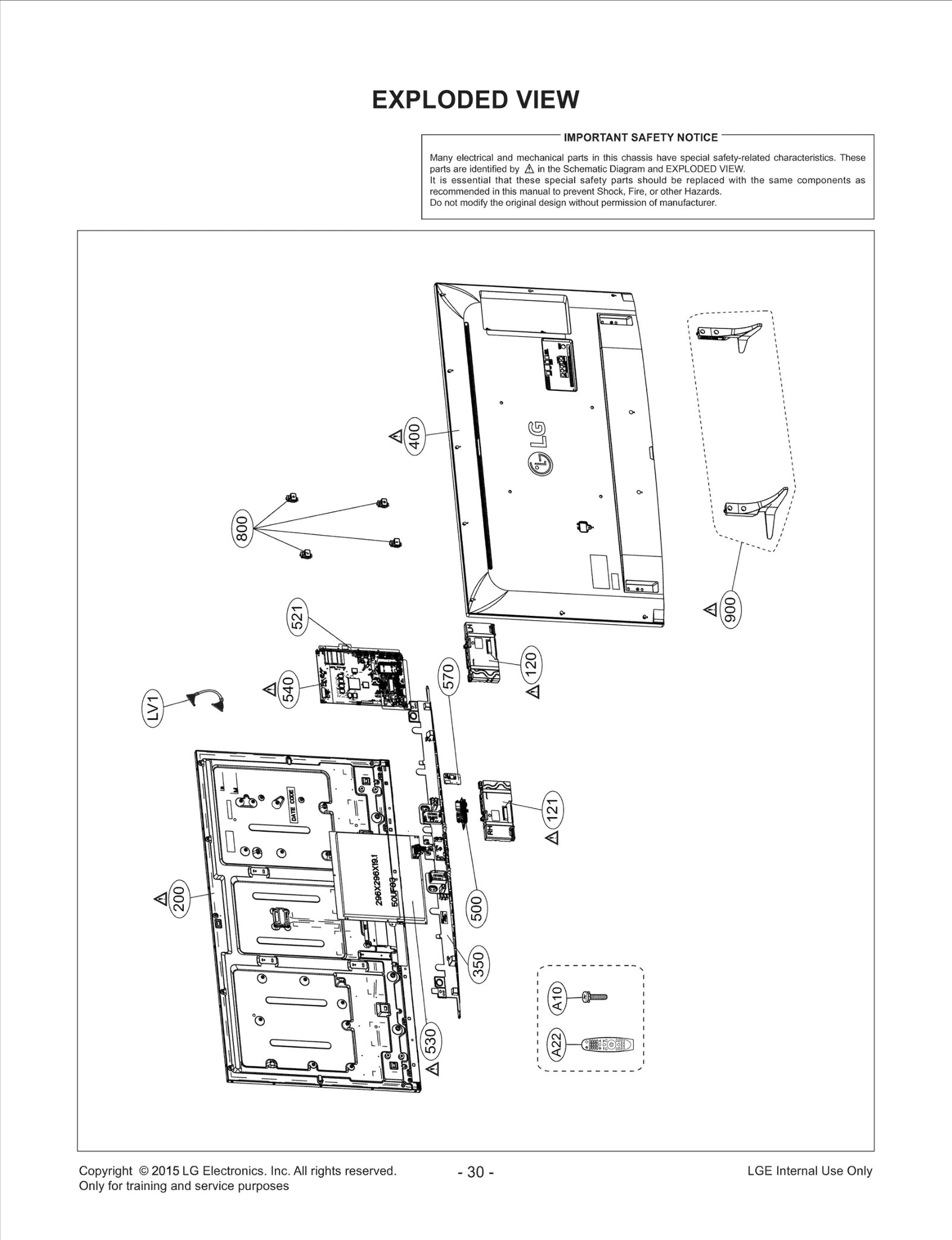

Diagram 0
Diagram 1
Common parts from model LG 58UF8300
200
LCD,Module-TFT LGE EAJ63527901 Contact Us For Availability
350
Bracket Assembly LGE ABA75549503 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88041304 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR79942901 Contact Us For Availability
521
Bracket LGE MAZ64584307 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
900
Base Assembly LGE AAN75488606 Contact Us For Availability
A22
Remocon kit,Package Assembly LGE AGF77840201 Contact Us For Availability
AM
Manual Assembly LGE AFN76832132 Contact Us For Availability
AM1
Manual,Owners LGE MFL68741502 Contact Us For Availability
AR408
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR3000
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR3307
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR4102
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR6500
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR8100
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
B1
Box LGE MAY67292601 Contact Us For Availability
C200
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C213
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C604
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C2301
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2313
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C2332
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2333
Capacitor,TA,Polymer LGE EAE62987401 Contact Us For Availability
C2346
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2352
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C2357
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2514
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3811
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3816
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C5804
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5814
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5819
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5823
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6106
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C6109
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C6707
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C13404
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C13409
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C13451
Tantal Capacitor,Polymer LGE 0CZZB00084B Contact Us For Availability
C14827
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C14830
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C14831
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
CA1
Harness,Multi LGE EAD62847621 Contact Us For Availability
CA2
Harness,Single LGE EAD63305407 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3309
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4302
Diode,TVS LGE EAH61515101 Contact Us For Availability
D4304
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN63027603 Contact Us For Availability
IC201
IC,Analog Switch LGE EAN62658501 Contact Us For Availability
IC401
IC,DDR3 SDRAM LGE EAN63391401 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN63492401 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC2305
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2307
IC,Voltage Detector LGE EAN61829902 Contact Us For Availability
IC2309
FET LGE EBK61313102 Contact Us For Availability
IC2501
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2502
IC,DC,DC Converter LGE EAN62788601 Contact Us For Availability
IC4100
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC4300
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC5800
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
IC6500
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC13200
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC13402
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
IC13403
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
JK3800
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK4301
Connector,USB LGE EAG63374203 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781015 Contact Us For Availability
L100
Filter,Bead LGE EAM61130602 Contact Us For Availability
L2308
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2313
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L2322
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L2503
Inductor,Wire Wound,Chip LGE EAP63025901 Contact Us For Availability
L5805
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L13403
Inductor,Wire Wound,Chip LGE EAP62506413 Contact Us For Availability
M4113
Gasket LGE MDS62110225 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
P600
Connector,Wafer LGE 6602T12004J Contact Us For Availability
P2301
Connector,Wafer LGE EAG63590903 Contact Us For Availability
P4100
Connector,Wafer LGE EAG63590901 Contact Us For Availability
Q5800
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q6502
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q13401
FET LGE EBK62072501 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R186
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R413
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R446
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R618
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R2302
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2307
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R2308
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2309
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R2315
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R2320
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2336
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2342
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2500
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2511
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2512
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R2516
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R2520
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R2521
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2522
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R3014
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R3029
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3033
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3300
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3303
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3335
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3801
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3808
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R4301
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R4306
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R5810
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5814
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6513
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R6516
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R13400
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R13403
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R13406
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R13407
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R13409
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R13410
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R13411
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R13412
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R13422
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
R13423
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
SW600
SWITCH,SLIDE LGE 6600Q000070 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6705
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA3305
Varistor LGE EAF61530301 Contact Us For Availability
VA3800
Varistor LGE EAF61530101 Contact Us For Availability
VA3804
Varistor LGE EAF61630101 Contact Us For Availability
VA5002
Varistor LGE EAF61530201 Contact Us For Availability
X600
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW30067102 Contact Us For Availability
ZD13400
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
