Model Whirlpool 5898XVB ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

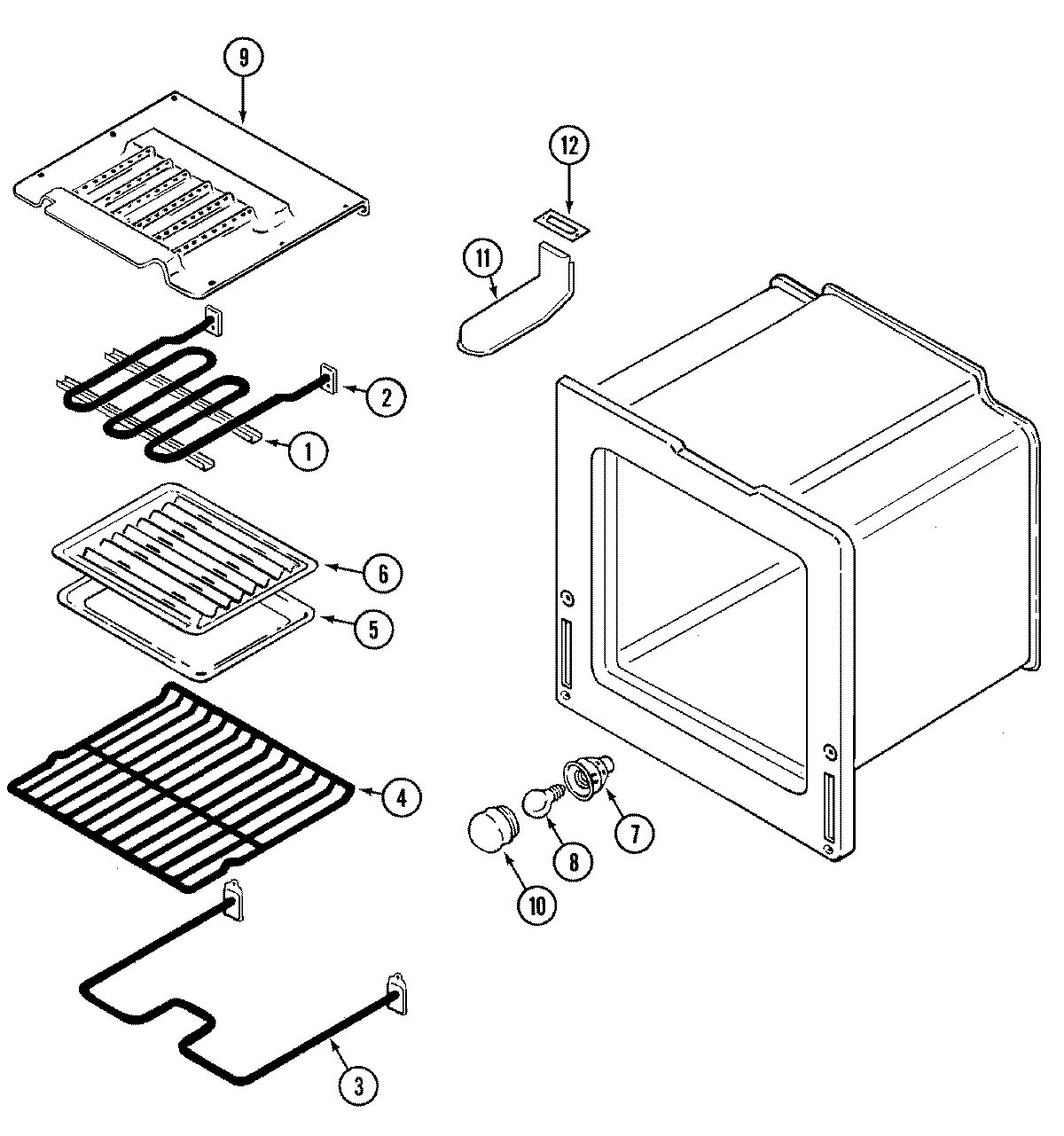

05 - OVEN

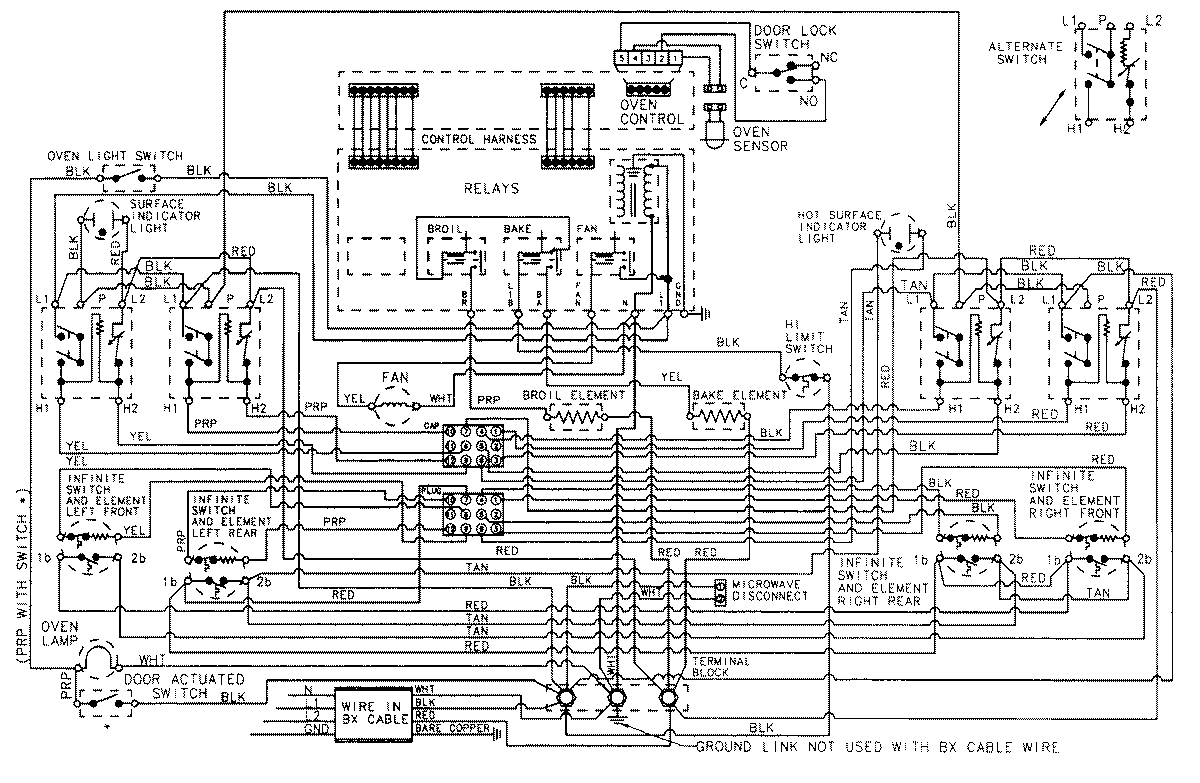

07 - WIRING INFORMATION
02 - DOOR

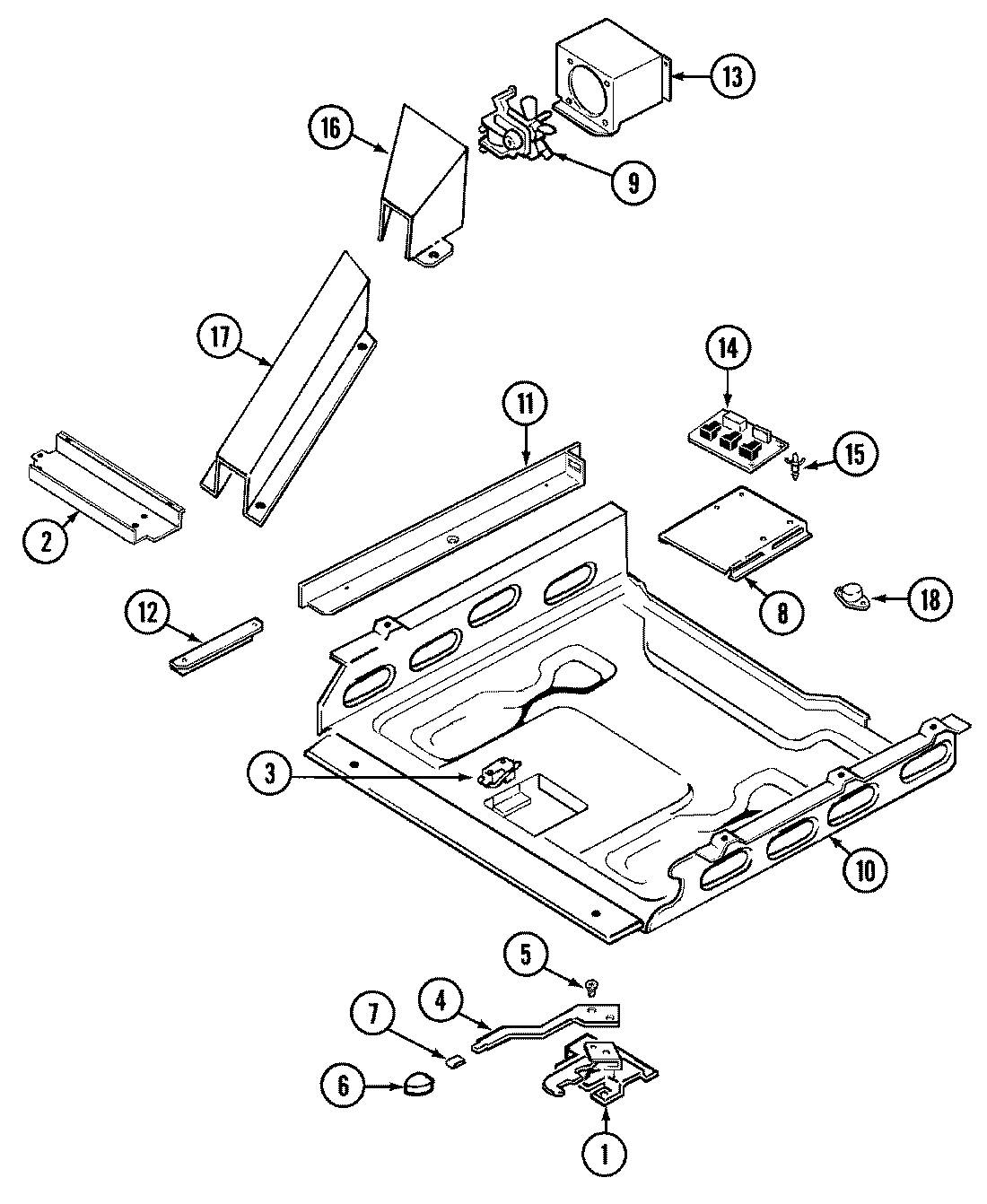

04 - INTERNAL CONTROLS

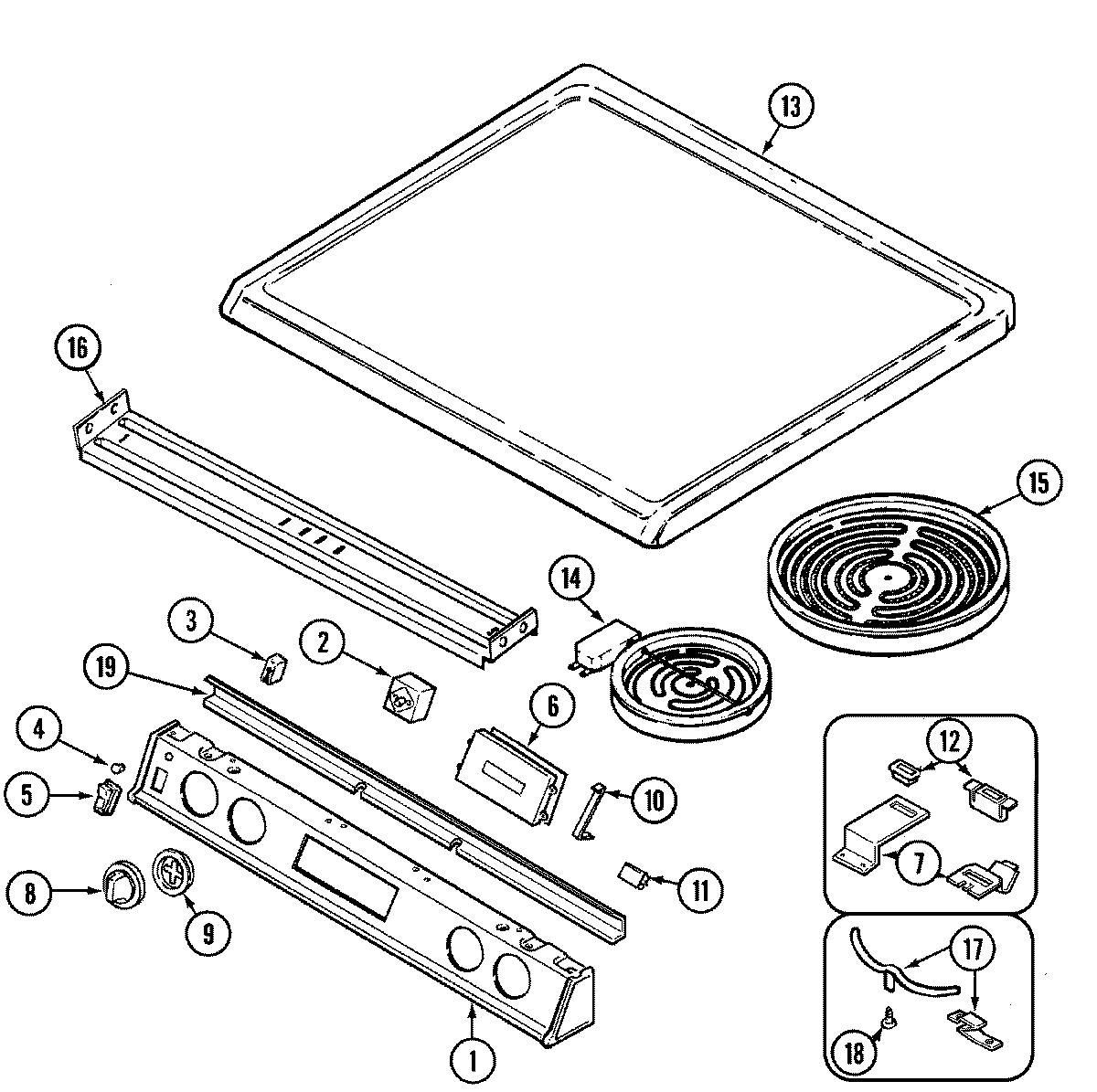

06 - TOP ASSEMBLY

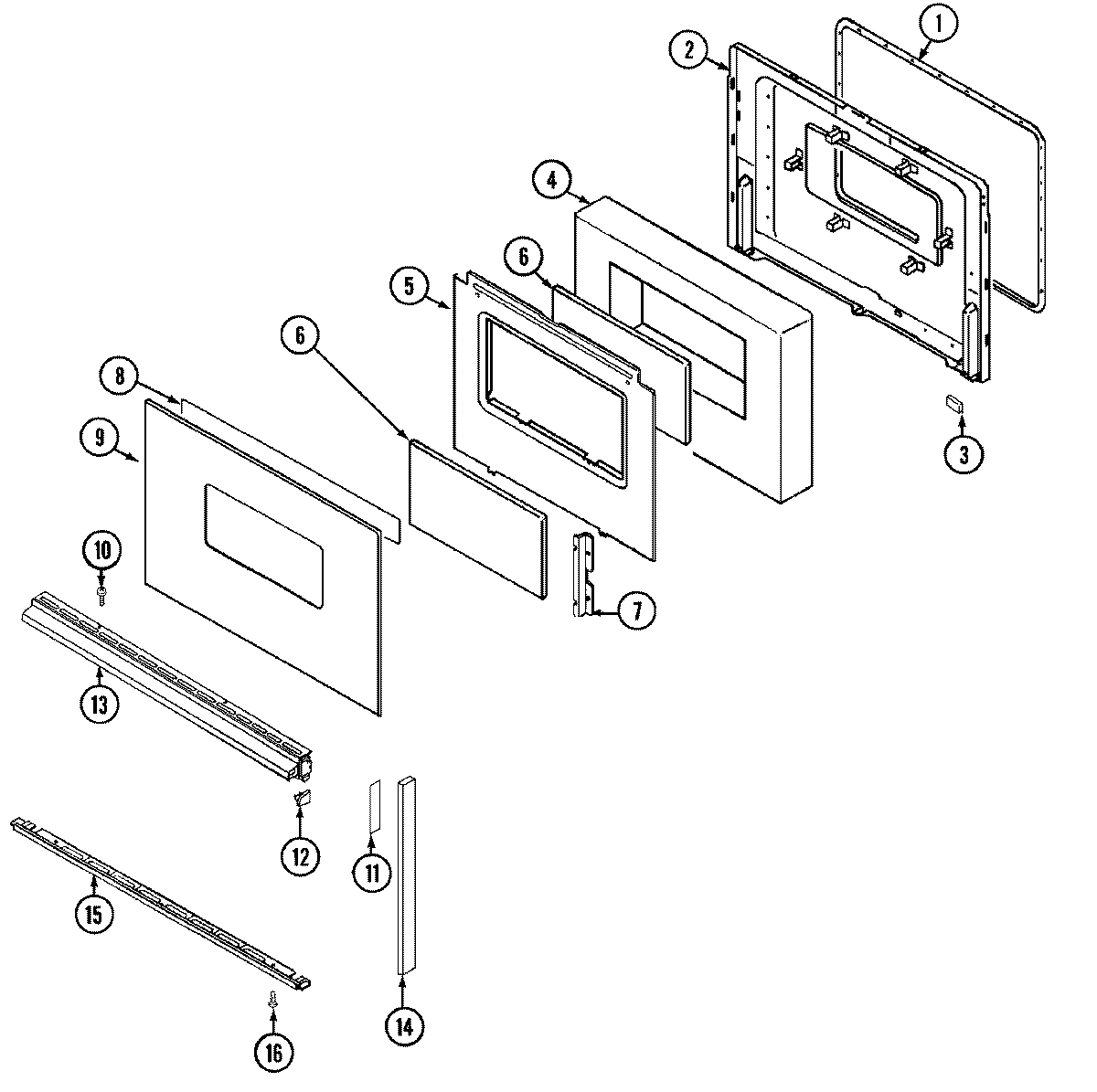

03 - DOOR (SER. PRE. 12)
Common parts from model Whirlpool 5898XVB ELECTRIC RANGE
1
BACK, MAIN WPL 74001582 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
1
LATCH ASSY. WPL 74003032 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 74003008 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 7722P13460 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F10870 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F10970 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 74002749 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 74002750 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
CHANNEL, AIR WPL 3818F05551 Contact Us For Availability
2
SCREW WPL 7101P06160 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SCREW WPL 7101P32960 Contact Us For Availability
3
SCREW WPL 7101P03160 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
LEG, LEVELING WPL 74001311 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
6
CLOCK (BLK) WPL 74002271 Contact Us For Availability
6
CLOCK (BLK) WPL 7601P27860 Contact Us For Availability
6
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
7
HINGE WPL 7106P05660 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
7
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
7
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
7
BRACKET, INDICATOR LIGHT WPL 74002978 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
COVER, DOOR LATCH WPL 4005F44351 Contact Us For Availability
8
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23745 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
9
BEZEL, KNOB (BLK) WPL 7740P02060 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
10
BRACKET, CLOCK WPL 74003191 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10751 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
11
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
11
CLIP, SPEED WPL 7112P10260 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
GASKET, VENT WPL 7201P06060 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
12
LIGHT, SURFACE INDICATOR WPL 74003043 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
12
END CAP, HANDLE (RT-BLK) WPL 74002539 Contact Us For Availability
12
END CAP, HANDLE (LT-BLK) WPL 74002540 Contact Us For Availability
13
COVER, ACCESS WPL 4005F41351 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08051 Contact Us For Availability
13
TOP ASSY. WPL 74001771 Contact Us For Availability
13
TOP ASSY. (BLK) WPL 74003027 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
14
COVER, WIRE WPL 4005F41151 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
BOARD, RELAY WPL 7428P02160 Contact Us For Availability
14
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
14
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
15
SHIELD, LOWER VENT (BLK) WPL 3604W15570 Contact Us For Availability
15
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
15
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
15
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
15
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
16
BOTTOM, MAIN WPL 4011F17651 Contact Us For Availability
16
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
16
SUPPORT, ELEMENT WPL 3807F39045 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 74002976 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
18
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
19
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
19
HARNESS, COOKTOP TO SWITCH WPL 5175D07660 Contact Us For Availability
19
HARNESS, PANEL WPL 5195D09760 Contact Us For Availability
19
HARNESS, CLOCK/RELAY WPL 74001583 Contact Us For Availability
19
TRIM, SHIELD MANIFOLD PANEL WPL 74002647 Contact Us For Availability
20
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
MANUAL, USE & CARE WPL 16007454 Contact Us For Availability
20
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001408 Contact Us For Availability
× ![]()
