Model Electrolux 58715413100A Dishwasher (Kenmore 58715413100A) – Common Parts & Diagrams

Common parts from model Electrolux 58715413100A Dishwasher (Kenmore 58715413100A)

FRAME

Print

• This Diagram
• All Diagrams

2

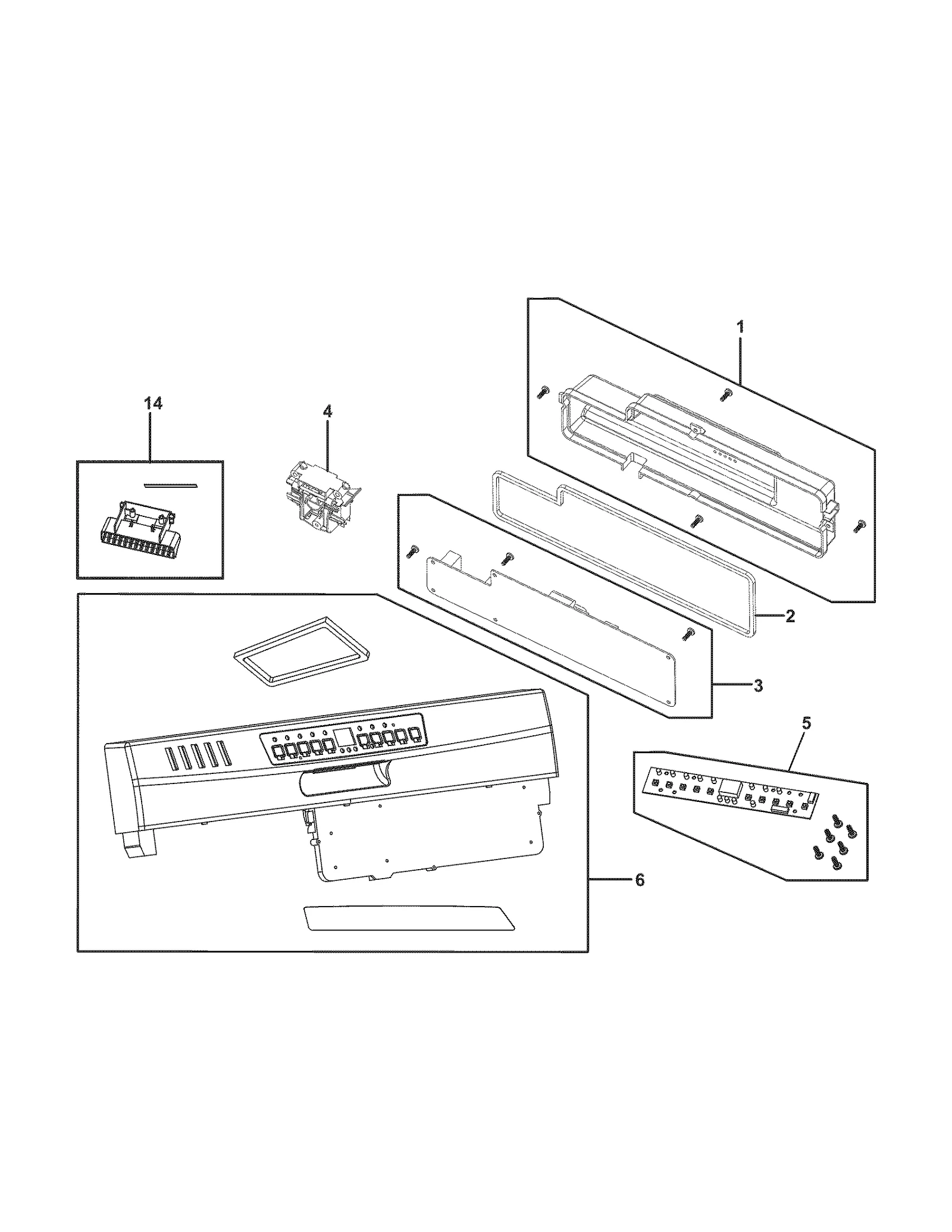

Dishwasher Control Panel Seal WCI 5304475568 Contact Us For Availability

View on Model

3

Dishwasher Power Control Board WCI 5304480721 Contact Us For Availability

View on Model

4

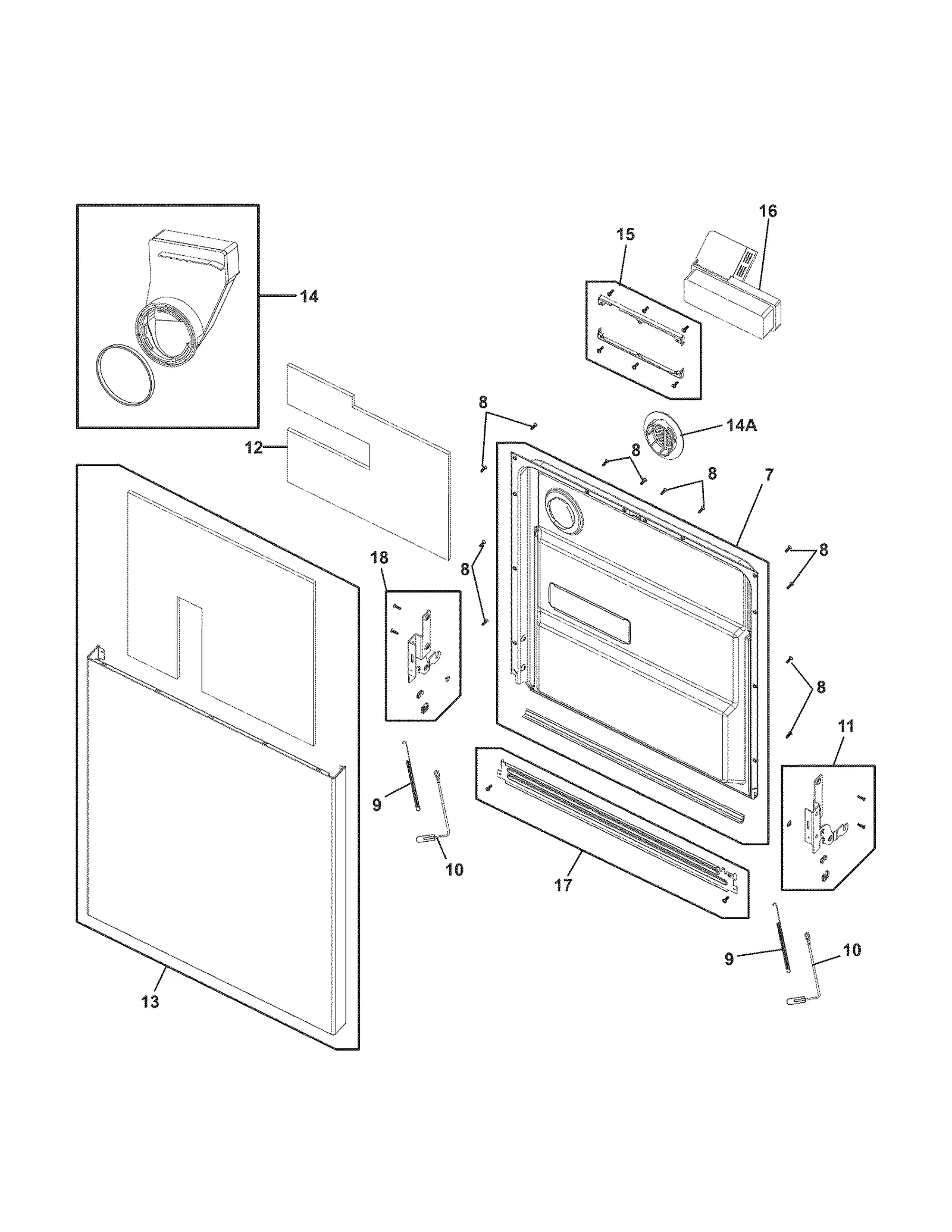

5304475570 Frigidaire Dishwasher Door Latch Backorder WCI 5304475570 View Details $52.18

View on Model

5

5304480722 Frigidaire Dishwasher PC Board Ass In Stock WCI 5304480722 View Details $82.00

View on Model

7

Liner Assembly WCI 5304480727 Contact Us For Availability

View on Model

9

5304530071 Frigidaire Dishwasher Door Spring In Stock WCI 5304530071 View Details $13.68

View on Model

11

Dishwasher Door Hinge Assembly, Right WCI 5304475583 Contact Us For Availability

View on Model

12

Insulation WCI 5304475584 Contact Us For Availability

View on Model

13

Dishwasher Door Outer Panel Assembly (Stainle WCI 5304480750 Contact Us For Availability

View on Model

14

Dishwasher Door Vent Assembly WCI 5304480726 Contact Us For Availability

View on Model

14A

Connector WCI 5304480723 Contact Us For Availability

View on Model

18

Hinge WCI 5304475590 Contact Us For Availability

View on Model

20

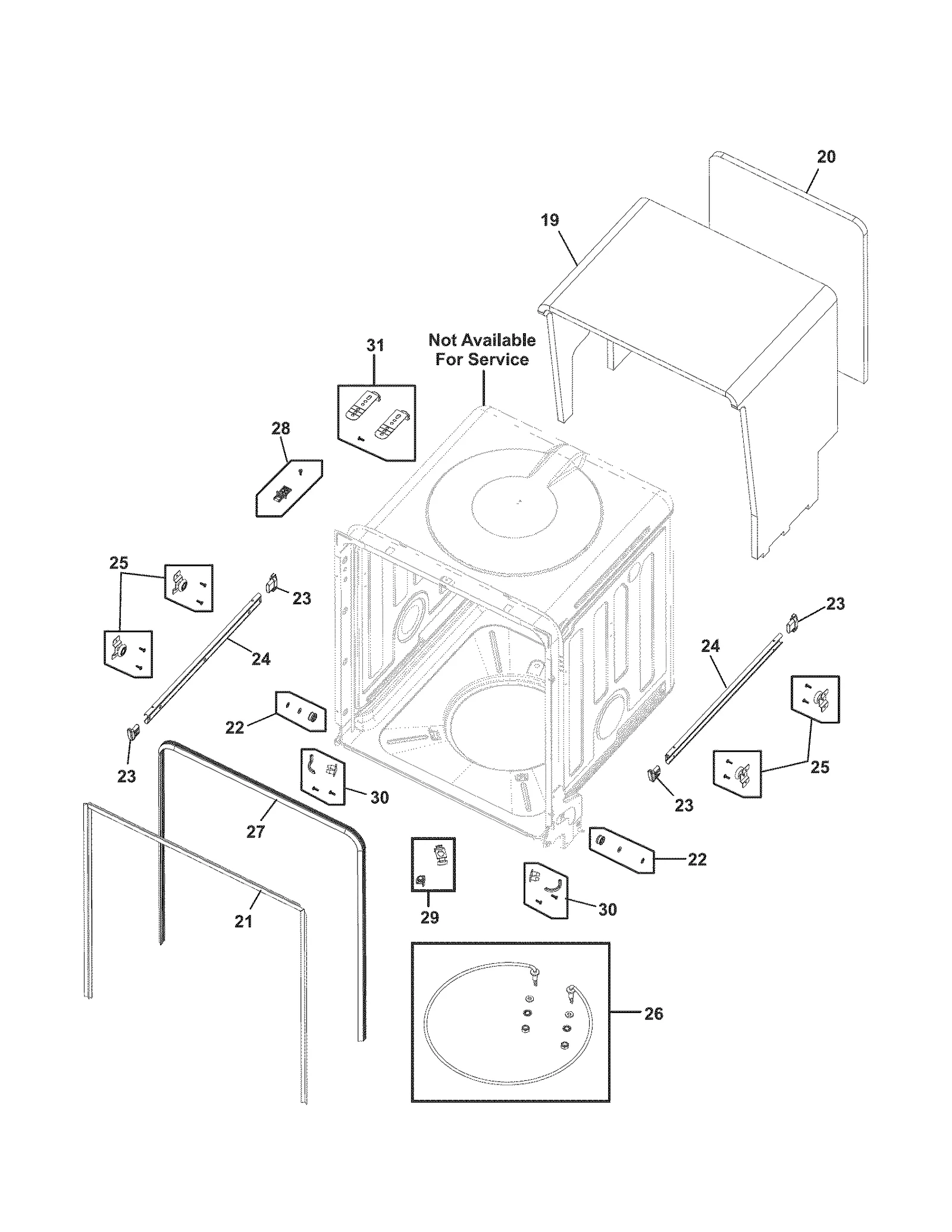

Dishwasher Insulation, Rear WCI 5304475592 Contact Us For Availability

View on Model

21

5304475593 Frigidaire Dishwasher Seal Kit In Stock WCI 5304475593 View Details $76.89

View on Model

23

Dishwasher Dishrack Slide Rail Stop WCI 5304475595 Contact Us For Availability

View on Model

24

Slide WCI 5304475596 Contact Us For Availability

View on Model

25

Dishwasher Dishrack Track Roller Assembly WCI 5304475597 Contact Us For Availability

View on Model

26

5304475598 Frigidaire Dishwasher Heater Assem Backorder WCI 5304475598 View Details $135.42

View on Model

27

5304475599 Frigidaire Tub Gasket Backorder WCI 5304475599 View Details $32.82

View on Model

28

Strike Assem WCI 5304475600 Contact Us For Availability

View on Model

29

Dishwasher High-Limit Thermostat WCI 5304475601 Contact Us For Availability

View on Model

30

Dishwasher Side Mounting Bracket Kit WCI 5304475602 Contact Us For Availability

View on Model

31

5304516698 Frigidaire Dishwasher Bracket Kit Backorder WCI 5304516698 View Details $15.14

View on Model

33

Dishwasher Water-Level Pressure Switch Hose WCI 5304475605 Contact Us For Availability

View on Model

34

Dishwasher Water-Level Pressure Switch WCI 5304475606 Contact Us For Availability

View on Model

35

Dishwasher Water Inlet Tubing WCI 5304475607 Contact Us For Availability

View on Model

36

Dishwasher Water Inlet Valve WCI 5304475608 Contact Us For Availability

View on Model

37

Dishwasher Toe Panel Support WCI 5304475609 Contact Us For Availability

View on Model

38

Dishwasher Toe Panel Support WCI 5304475610 Contact Us For Availability

View on Model

43

Cover WCI 5304475615 Contact Us For Availability

View on Model

45

Dishwasher Leveling Leg WCI 5304475617 Contact Us For Availability

View on Model

49

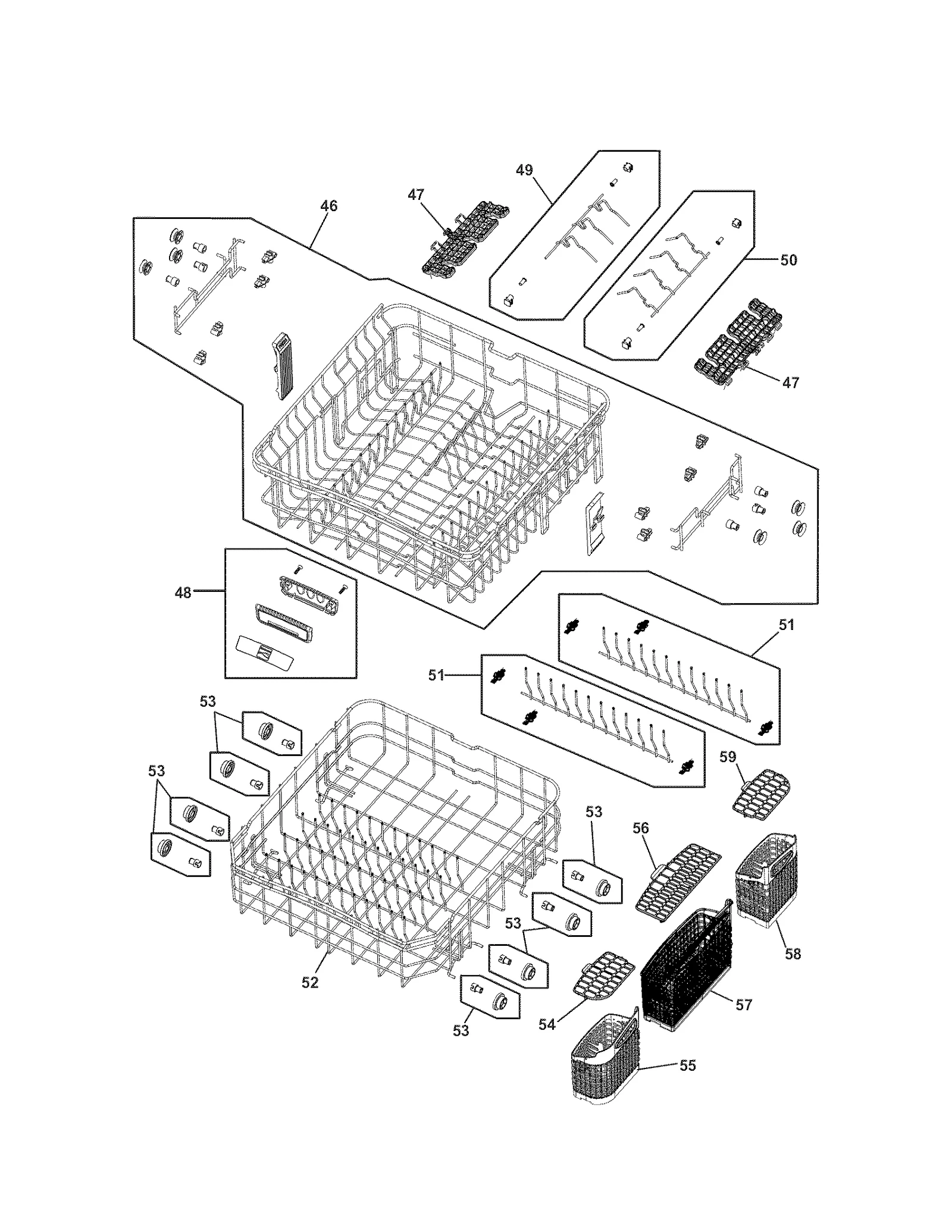

Fence Assembly WCI 5304480734 Contact Us For Availability

View on Model

50

Fence Assembly WCI 5304480735 Contact Us For Availability

View on Model

53

5304475625 Frigidaire Assembly Wheel In Stock WCI 5304475625 View Details $10.89

View on Model

56

Dishwasher Silverware Basket Lid, Center WCI 5304475629 Contact Us For Availability

View on Model

60

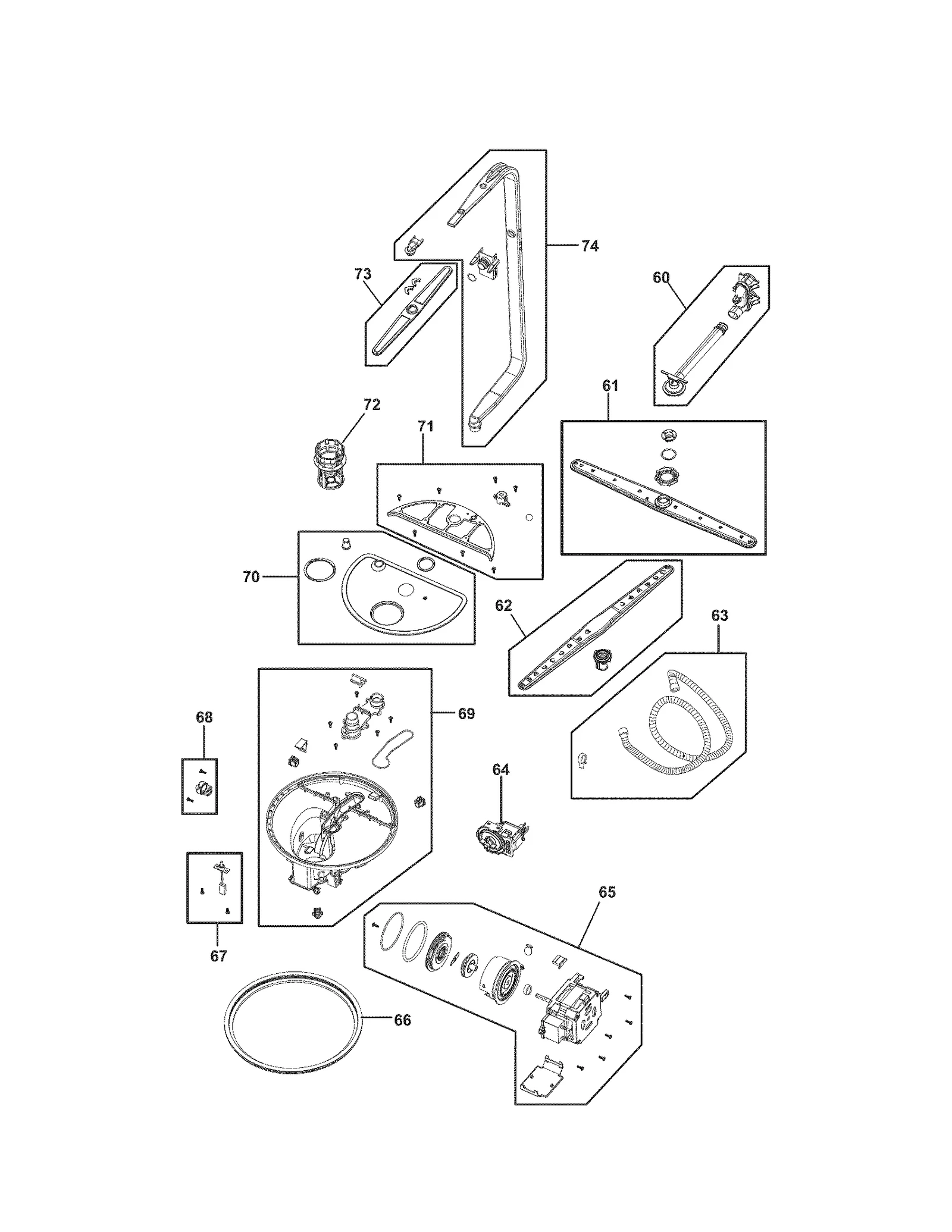

Duct Assembly WCI 5304480739 Contact Us For Availability

View on Model

61

Dishwasher Spray Arm Assembly, Center WCI 5304480740 Contact Us For Availability

View on Model

62

Dishwasher Spray Arm Assembly, Lower WCI 5304480741 Contact Us For Availability

View on Model

63

Hose WCI 5304475635 Contact Us For Availability

View on Model

64

5304524920 Frigidaire Dishwasher Water Pump In Stock WCI 5304524920 View Details $170.13

View on Model

65

Dishwasher Pump Motor WCI 5304475637 Contact Us For Availability

View on Model

66

Dishwasher Sump Gasket WCI 5304475638 Contact Us For Availability

View on Model

67

Dishwasher Thermistor WCI 5304475639 Contact Us For Availability

View on Model

68

5304475640 Frigidaire Dishwasher Assembly-Sen Backorder WCI 5304475640 View Details $94.18

View on Model

71

Dishwasher Fine Filter WCI 5304475643 Contact Us For Availability

View on Model

72

5304475644 Frigidaire Dishwasher Trap Backorder WCI 5304475644 View Details $37.76

View on Model

73

Dishwasher Spray Arm Assembly, Upper WCI 5304480744 Contact Us For Availability

View on Model

74

5304480745 Frigidaire Dishwasher Assembly-Tub Backorder WCI 5304480745 View Details $79.31

View on Model

×
