Model Kenmore 587.15423100A DISHWASHER – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - DOOR
07 - TUB

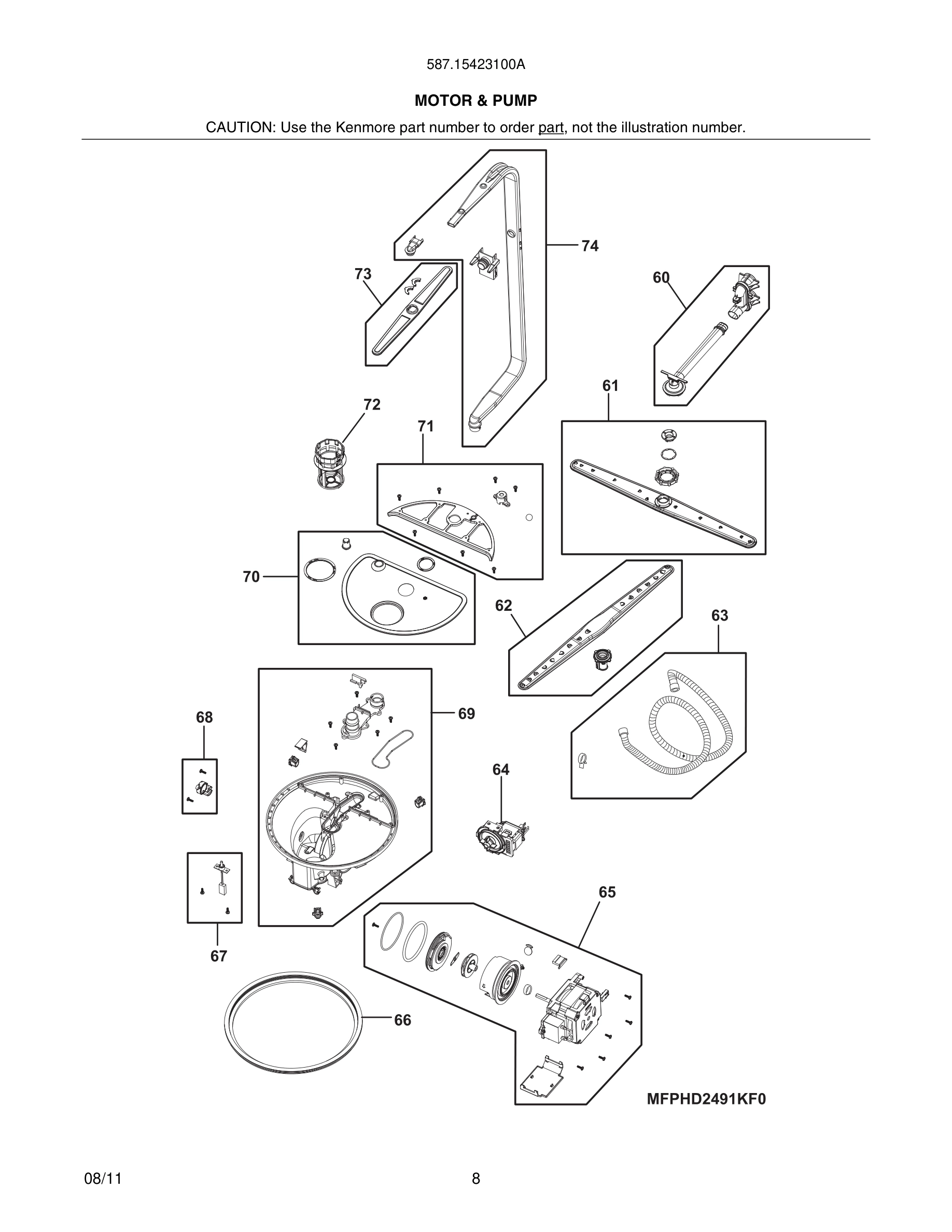

09 - MOTOR & PUMP

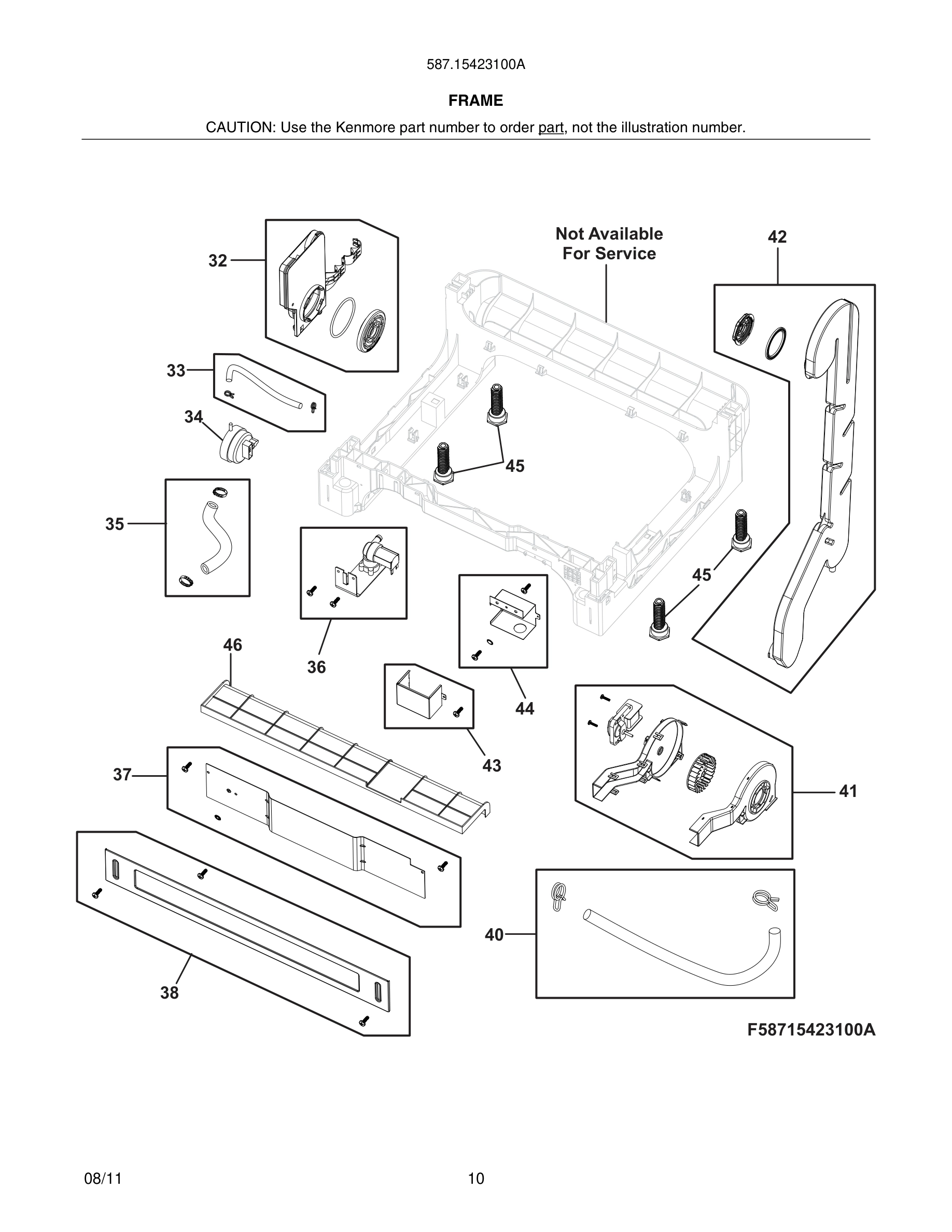

11 - FRAME

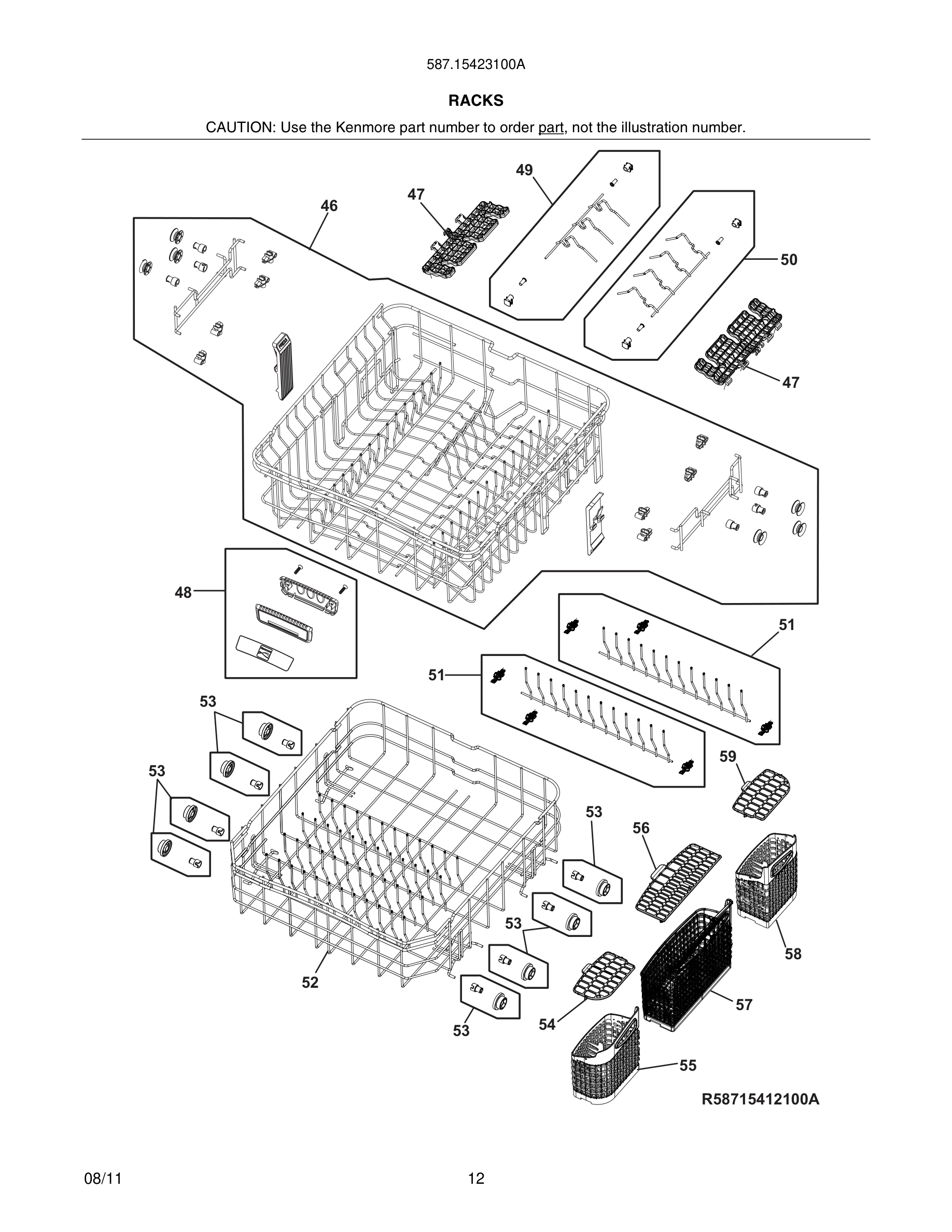

13 - RACKS
Common parts from model Kenmore 587.15423100A DISHWASHER
*#
Harness, wiring, main WCI 5304475611 Contact Us For Availability
2
Gasket, PCB cover WCI 5304475568 Contact Us For Availability
3#
PC Board Assembly, main, w/screws WCI 5304475569 Contact Us For Availability
5#
PC Board Assembly, display, w/screws WCI 5304475571 Contact Us For Availability
8
Screw, door liner, (12) WCI 5304475580 No Longer Available
11
Hinge Assembly, RH, w/screws-spacer WCI 5304475583 Contact Us For Availability
13
Door Assembly, outer, stainless, w/insulation WCI 5304475585 Contact Us For Availability
18
Hinge Assembly, LH, w/screws-spacer WCI 5304475590 Contact Us For Availability
19
Insulation, blanket, top & sides WCI 5304475591 Contact Us For Availability
20
Insulation, blanket, back WCI 5304475592 Contact Us For Availability
23
Cap, rack slide, (4) WCI 5304475595 Contact Us For Availability
24
Slide, upper rack, (2) WCI 5304475596 Contact Us For Availability
28
Strike Assembly, latch, w/screws WCI 5304475600 Contact Us For Availability
29#
Thermostat Assembly, hi limit, w/bracket WCI 5304475601 Contact Us For Availability
30
Mounting Kit, side, w/screws WCI 5304475602 Contact Us For Availability
33#
Hose Assembly, pressure switch, w/clamps WCI 5304475605 Contact Us For Availability
34#
Switch, pressure WCI 5304475606 Contact Us For Availability
35#
Hose Assembly, water valve, w/clamps WCI 5304475607 Contact Us For Availability
36#
Valve Assembly, water, w/screws WCI 5304475608 Contact Us For Availability
38
Kickplate Assembly, black, w/screws WCI 5304475610 Contact Us For Availability
41#
Fan Assembly, drying, w/screws WCI 5304475613 Contact Us For Availability
42
Duct Assembly, drying WCI 5304475614 Contact Us For Availability
43
Cover Assembly, junction box, w/screw WCI 5304475615 Contact Us For Availability
45
Leg, leveling, (4) WCI 5304475617 Contact Us For Availability
49
Fence Assembly, LH, w/bushings WCI 5304475621 Contact Us For Availability
50
Fence Assembly, RH, w/bushings WCI 5304475622 Contact Us For Availability
51
Fence Assembly, fold down, (2), w/brackets WCI 5304475623 Contact Us For Availability
56
Cover, middle basket WCI 5304475629 Contact Us For Availability
61#
Spray Arm Assembly, middle WCI 5304475633 Contact Us For Availability
62#
Spray Arm Assembly, lower WCI 5304475634 Contact Us For Availability
65#
Motor Assembly, wash, w/screws-seals WCI 5304475637 Contact Us For Availability
66
Gasket, sump WCI 5304475638 Contact Us For Availability
67#
Senser Assembly, thermistor, w/screws WCI 5304475639 Contact Us For Availability
69#
Sump Assembly, w/clips-screws WCI 5304475641 Contact Us For Availability
70
Filter Assembly, coarse WCI 5304475642 Contact Us For Availability
71
Filter Assembly, fine, w/screws WCI 5304475643 Contact Us For Availability
74#
Tube Assembly, delivery WCI 5304475646 Contact Us For Availability
× ![]()
