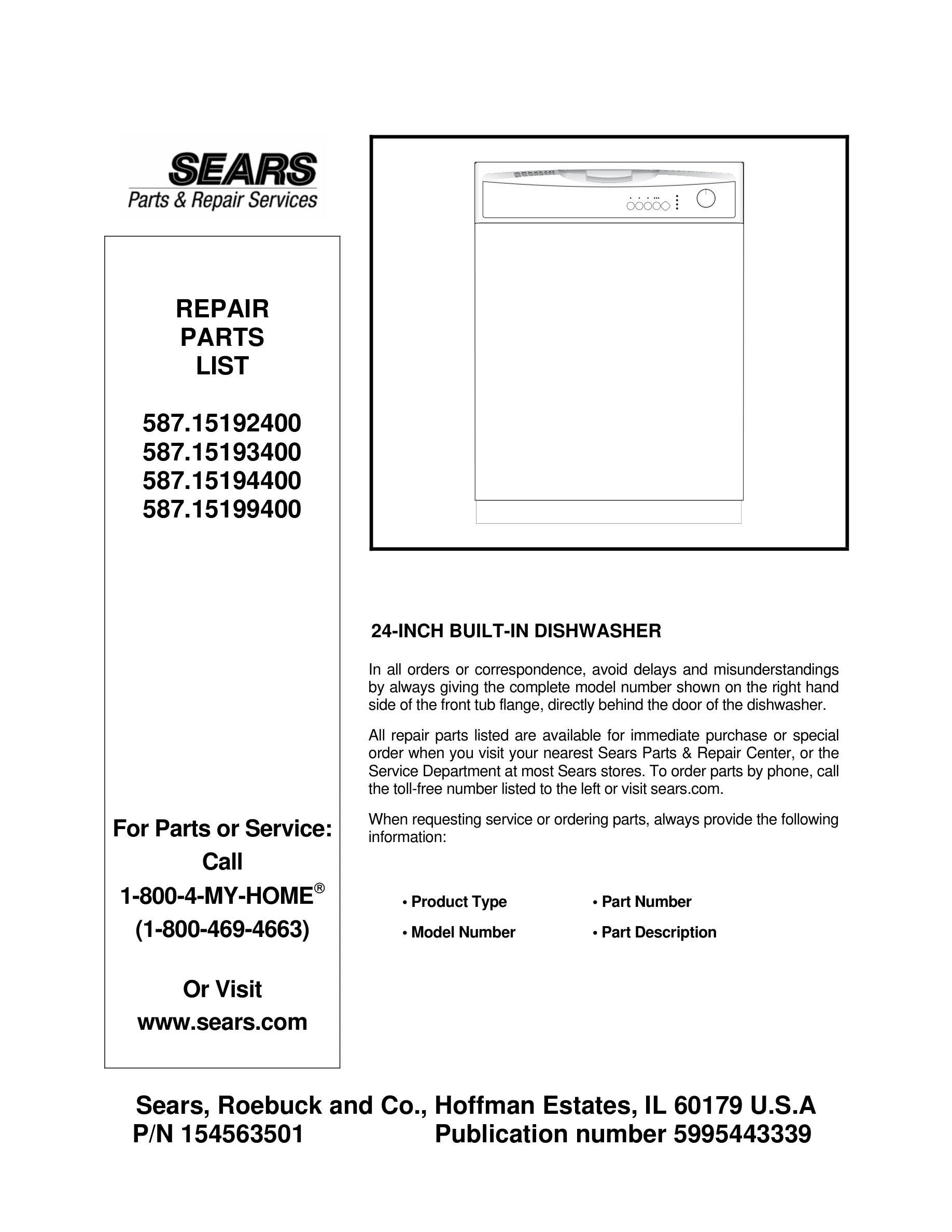

Model Kenmore 587.15192400 DISHWASHER – Common Parts & Diagrams
01 - COVER

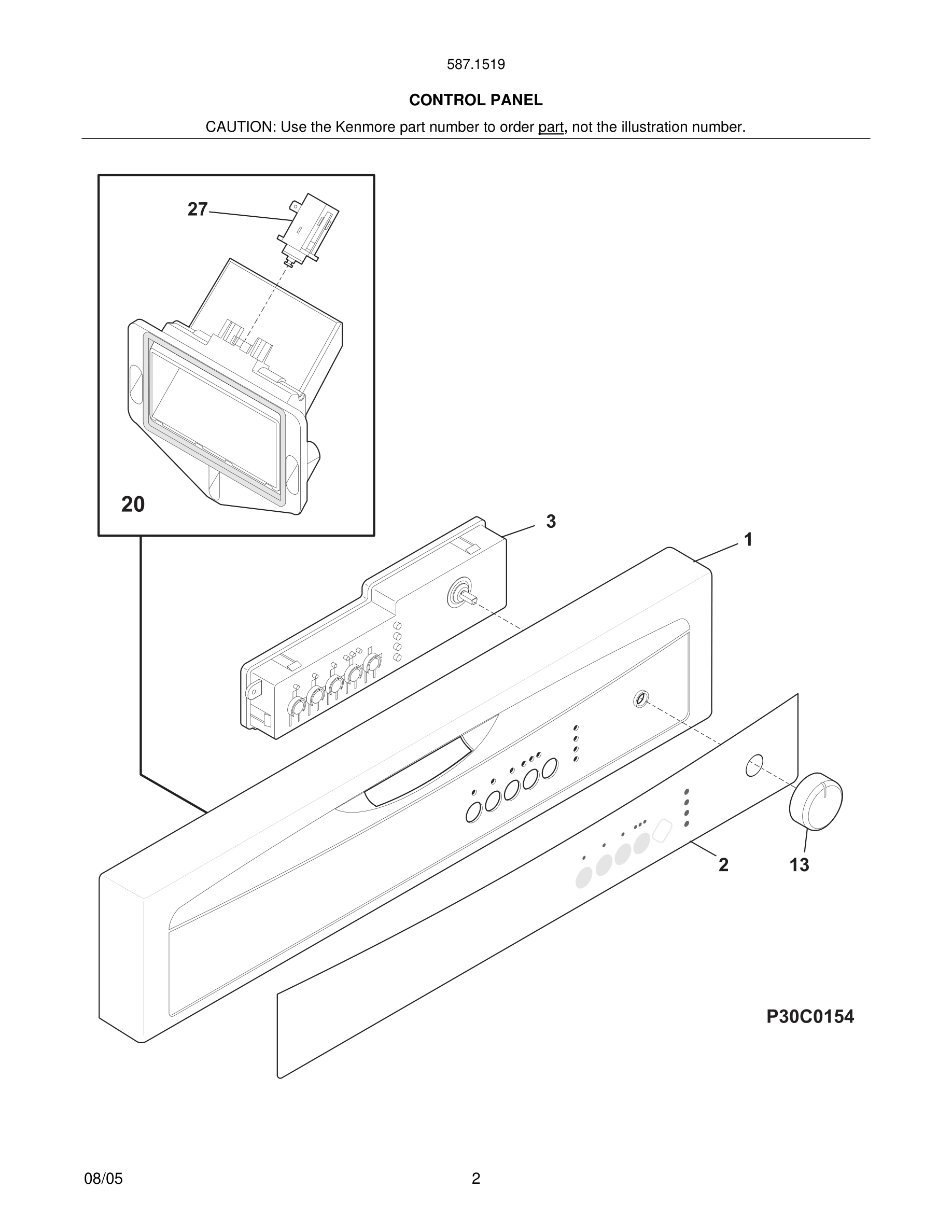

03 - CONTROL PANEL
05 - DOOR
07 - TUB
09 - MOTOR & PUMP
11 - FRAME
13 - RACKS
Common parts from model Kenmore 587.15192400 DISHWASHER
*
Screw, 10-16 x 3/8, hex WCI 154200602 Contact Us For Availability
*
Pin, arm assy WCI 154529101 Contact Us For Availability
1
Panel, control, black WCI 154551303 Contact Us For Availability
1#
Tub assy, w/frame parts WCI 154209301 Contact Us For Availability
2
Bracket, heater, (2) WCI 154479601 Contact Us For Availability
2
Insert, control panel, white WCI 154551601 Contact Us For Availability
2
Insert, control panel, black WCI 154551603 Contact Us For Availability
7
Door, inner assy WCI 154299004 Contact Us For Availability
8
Base, funnel WCI 154304001 Contact Us For Availability
9
Funnel WCI 154251801 Contact Us For Availability
10
Basket, utility, white WCI 154466901 Contact Us For Availability
11
Shelf, cup, half width, white WCI 154436101 Contact Us For Availability
11A
Screw, #10-16 x 3/8 WCI 154200601 Contact Us For Availability
13
Knob, timer, black WCI 154551903 Contact Us For Availability
13
Knob, timer, white WCI 154551901 Contact Us For Availability
14
Housing, sump WCI 154365902 Contact Us For Availability
15
Screw, leveling WCI 154419301 No Longer Available
16A
Cover, side basket, (2), silverware WCI 154424301 Contact Us For Availability
20
Vent assy, active dry, w/actuator WCI 154423601 Contact Us For Availability
20
Door, white WCI 154538301 Contact Us For Availability
20*
Screw, door mtg., (2) WCI 5304428306 Contact Us For Availability
24A*
Nut, spray arm, center WCI 154252001 Contact Us For Availability
32
Tube, delivery WCI 154406601 Contact Us For Availability
50
Support, door hinge WCI 154211401 Contact Us For Availability
51
Clamp, drip loop, wire WCI 154320301 Contact Us For Availability
55*
Screw, truss ss, 8 .625 WCI 5303316032 Contact Us For Availability
60*
Bracket, motor, drain WCI 154426201 Contact Us For Availability
× ![]()
