Model Kenmore 587.15163401 DISHWASHER – Common Parts & Diagrams

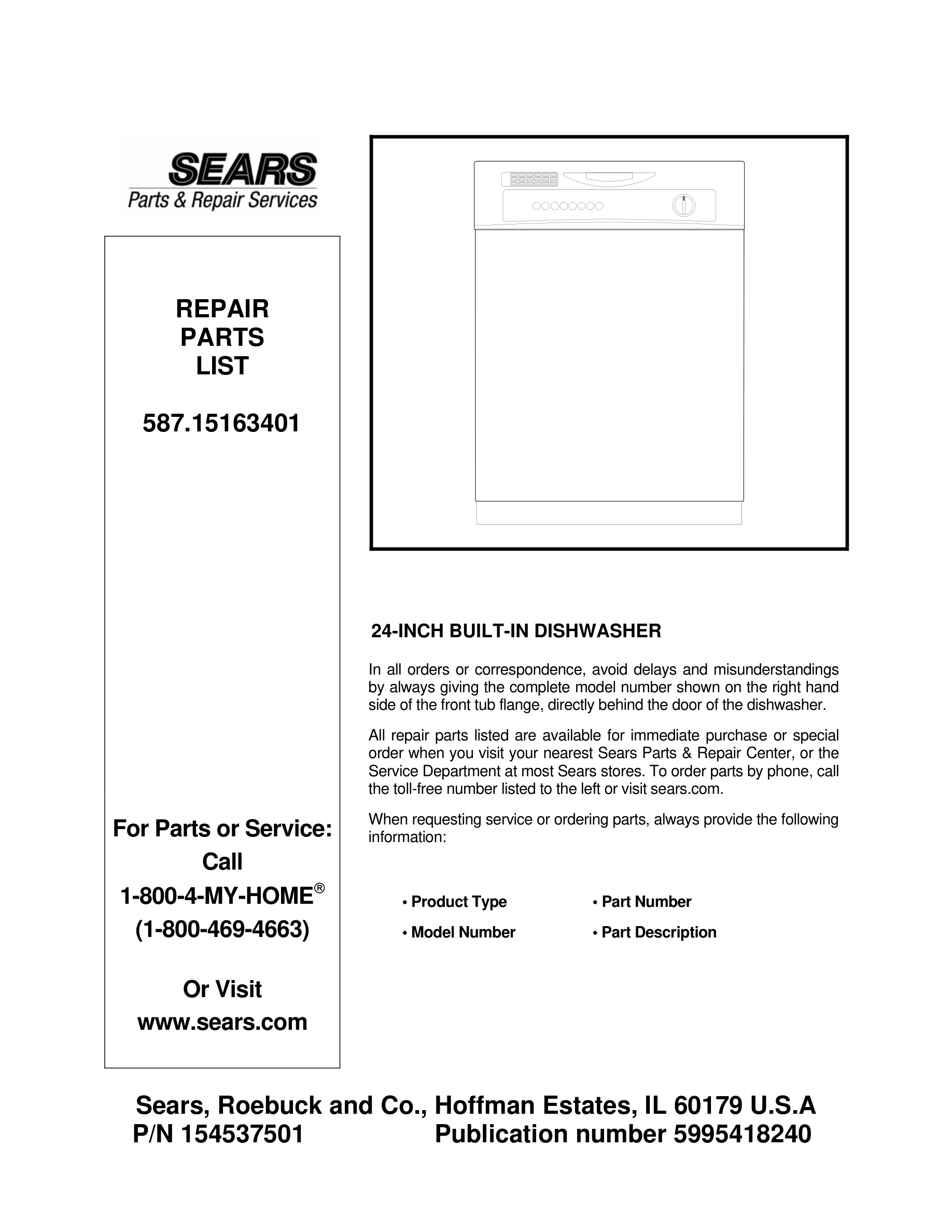

01 - COVER

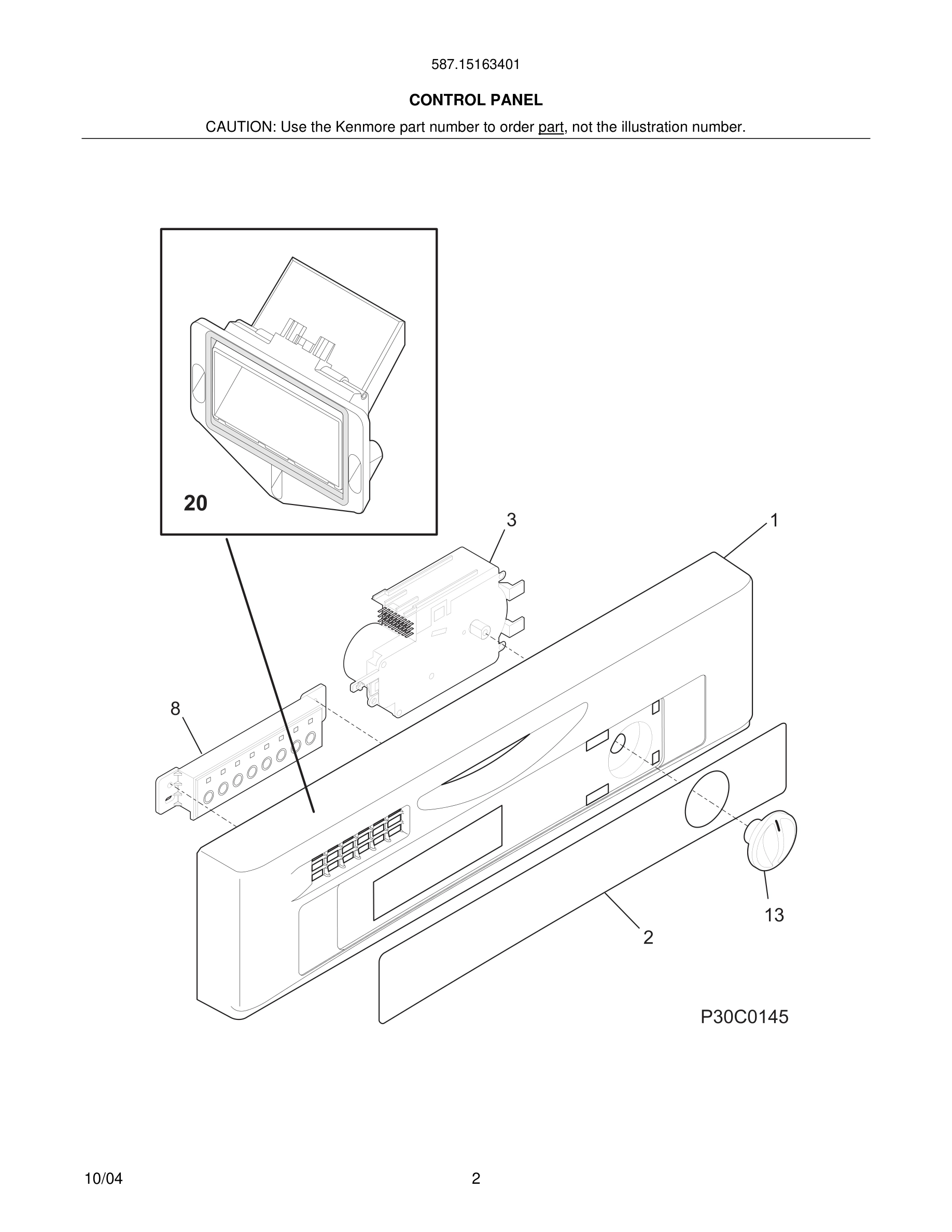

03 - CONTROL PANEL

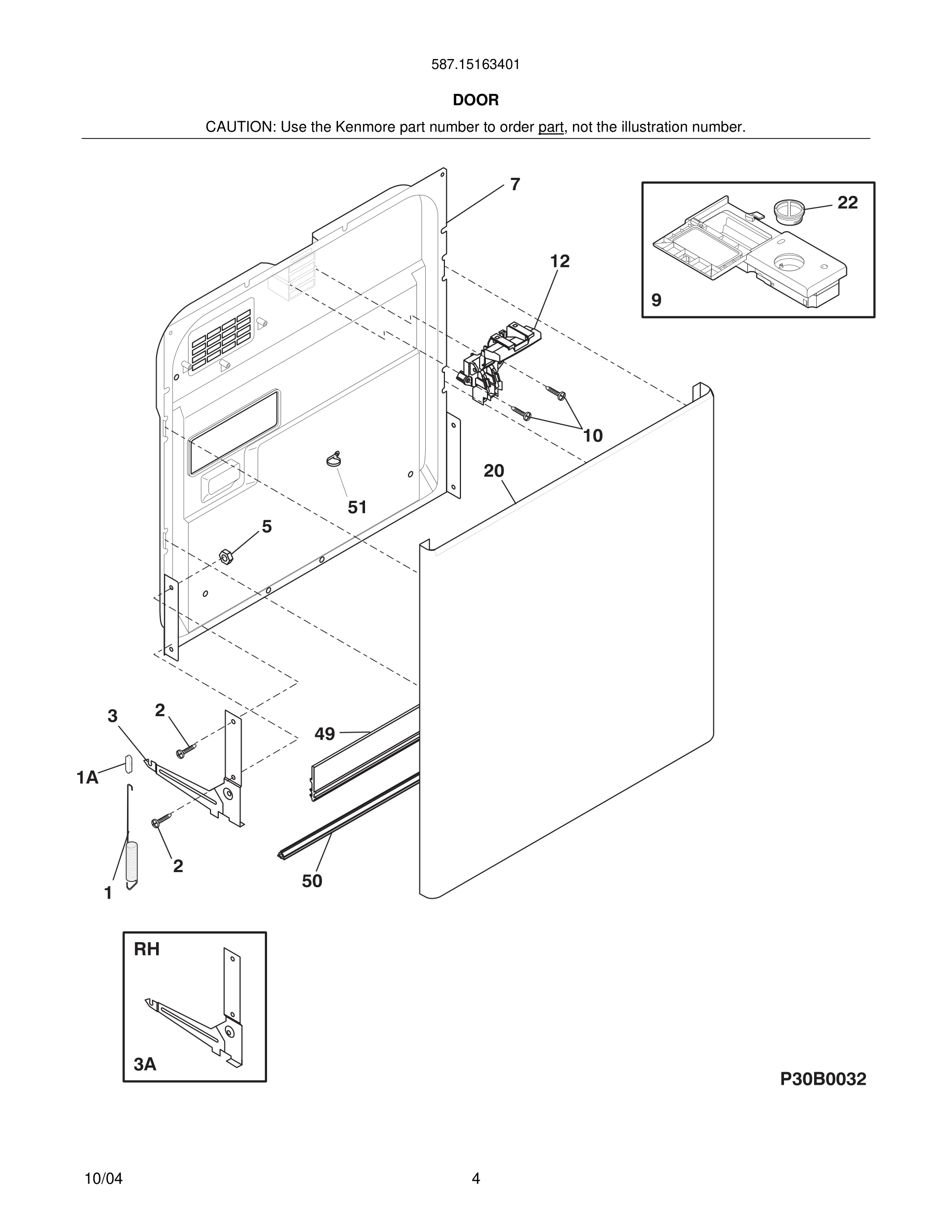

05 - DOOR

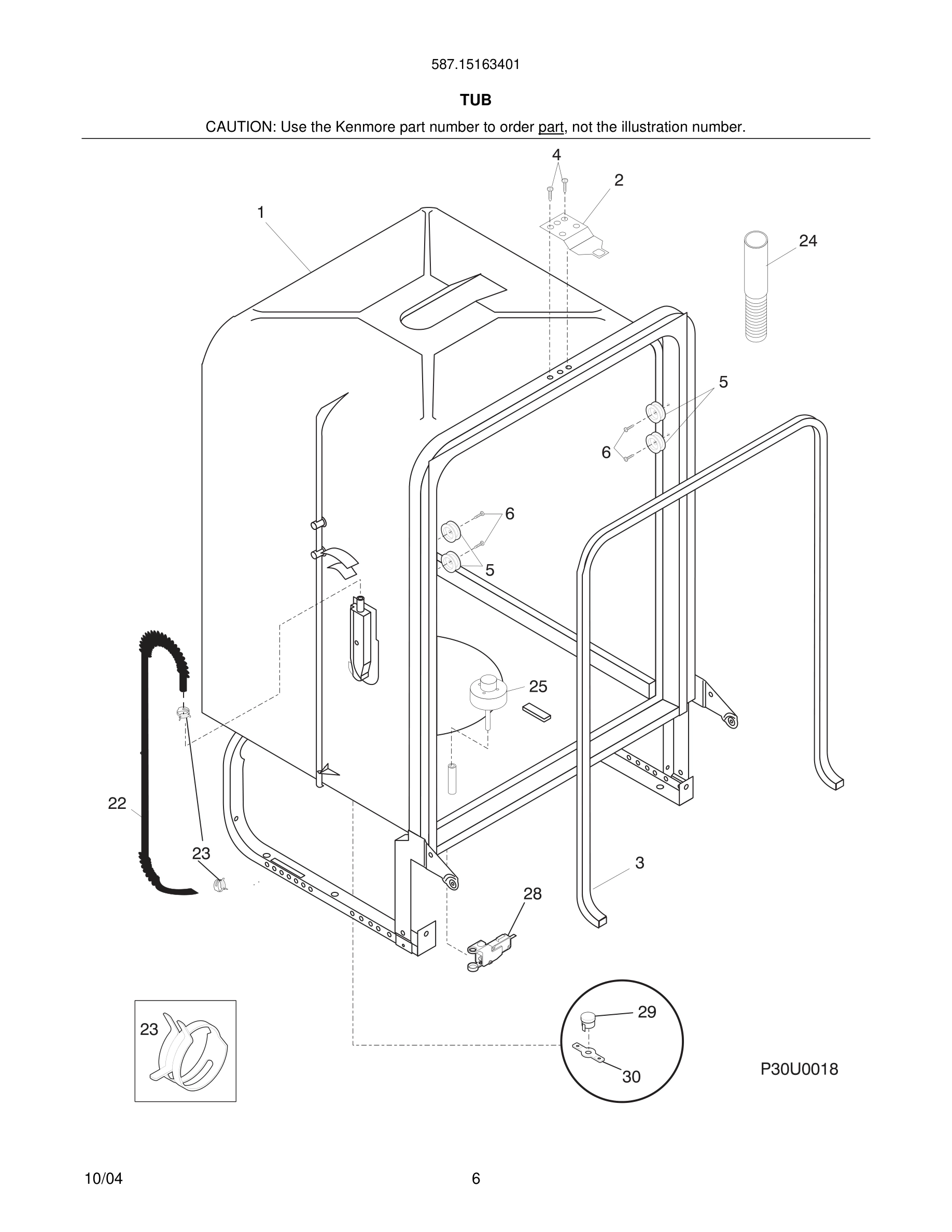

07 - TUB

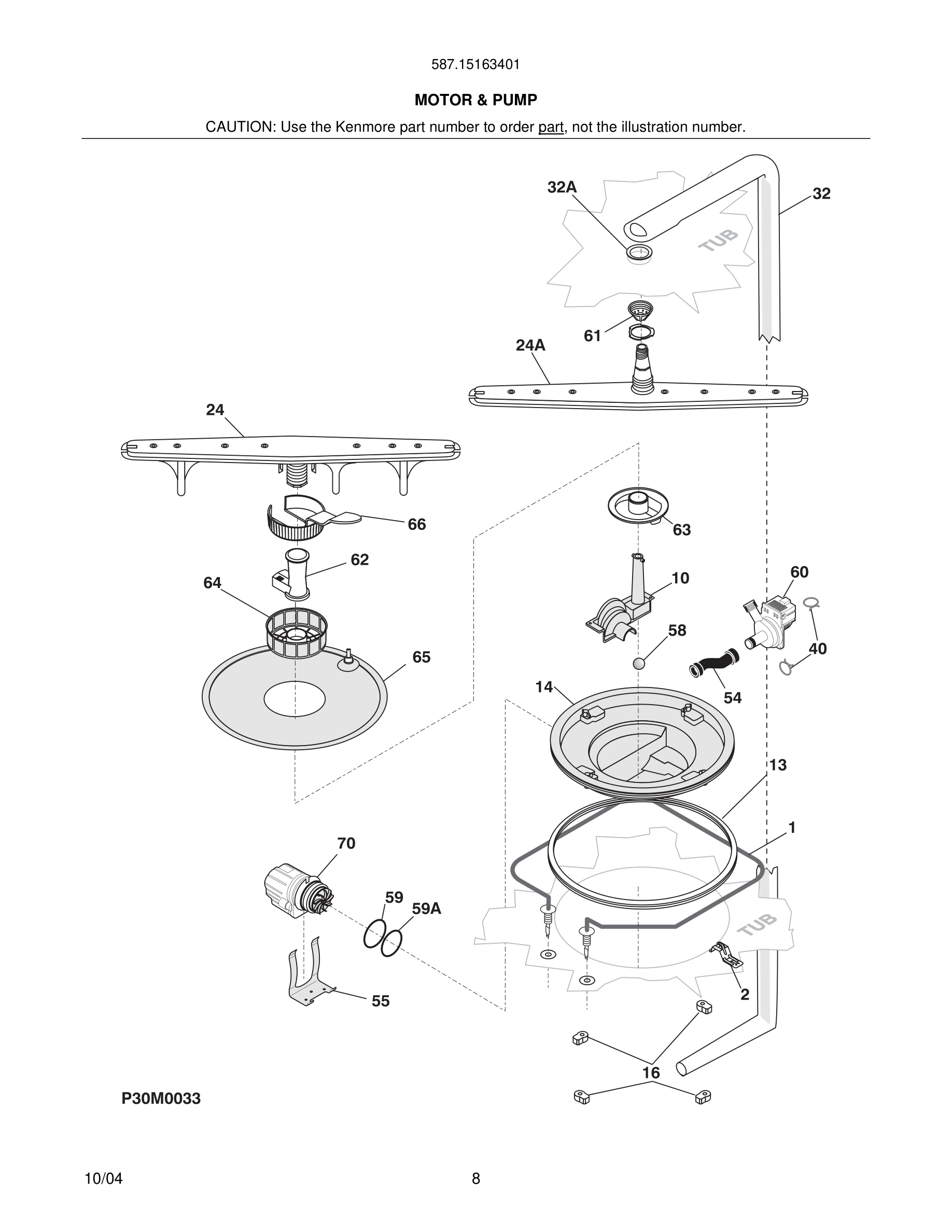

09 - MOTOR & PUMP

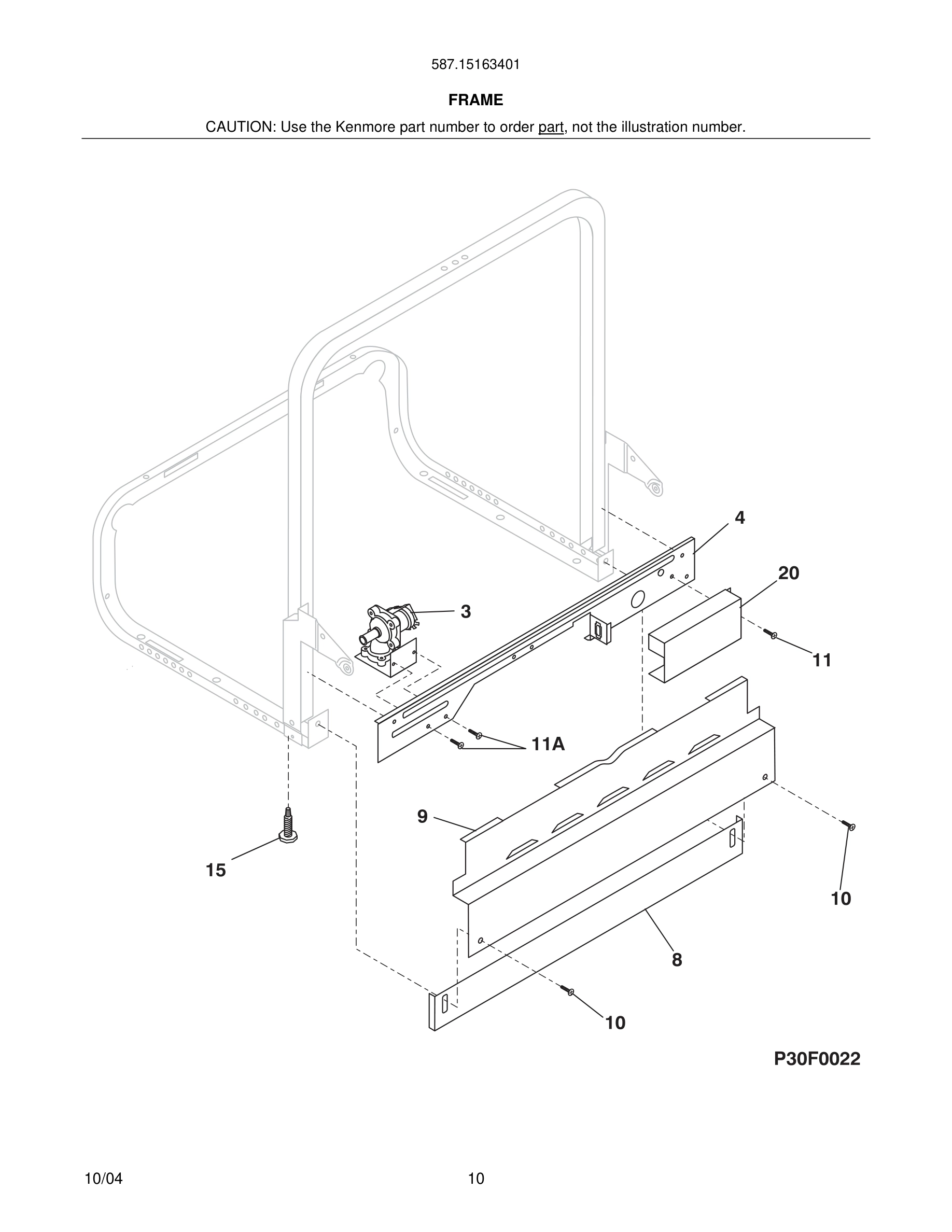

11 - FRAME

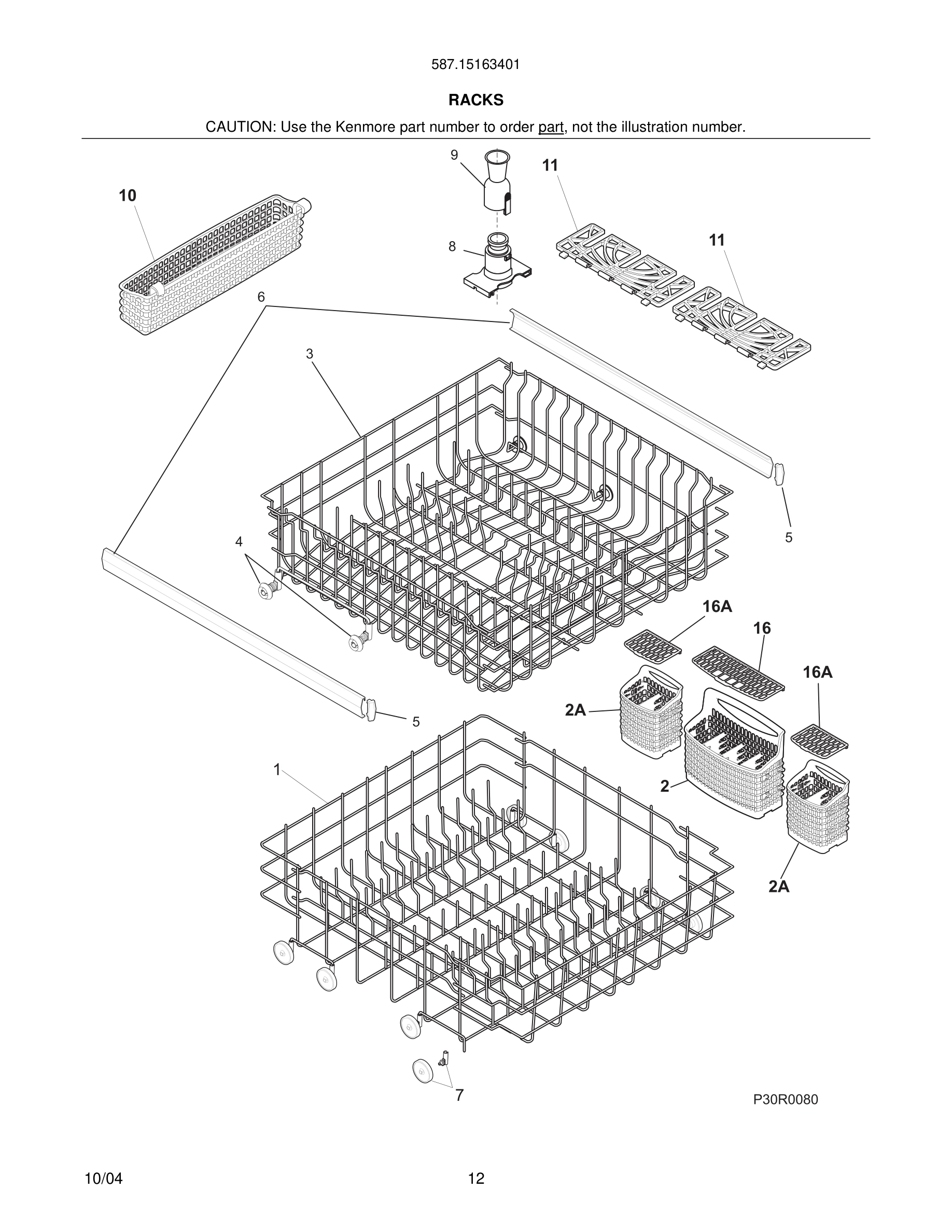

13 - RACKS
Common parts from model Kenmore 587.15163401 DISHWASHER
*
Screw, 10-16 x 3/8, hex WCI 154200602 Contact Us For Availability
*
Service Data Sheet WCI 154497601 Contact Us For Availability
*#
Thermostat, hi temp rinse WCI 154227809 No Longer Available
*#
Thermostat, temp boost, hi temp wash WCI 154227808 Contact Us For Availability
1#
Tub assy, w/frame parts WCI 154209301 Contact Us For Availability
2
Bracket, heater, (2) WCI 154479601 Contact Us For Availability
3#
Timer WCI 154409001 Contact Us For Availability
7
Door, inner assy WCI 154299004 Contact Us For Availability
9
Funnel WCI 154251801 Contact Us For Availability
11A
Screw, #10-16 x 3/8 WCI 154200601 Contact Us For Availability
13
Knob, timer, black WCI 154477803 Contact Us For Availability
14
Housing, sump WCI 154365902 Contact Us For Availability
15
Screw, leveling WCI 154419301 No Longer Available
20
Vent assy, static dry WCI 154433001 Contact Us For Availability
20
Door, stainless WCI 154533901 Contact Us For Availability
20*
Screw, door mtg., (2) WCI 5304428306 Contact Us For Availability
24A*
Nut, spray arm, center WCI 154252001 Contact Us For Availability
32
Tube, delivery WCI 154406601 Contact Us For Availability
50
Support, door hinge WCI 154211401 Contact Us For Availability
51
Clamp, drip loop, wire WCI 154320301 Contact Us For Availability
55*
Screw, truss ss, 8 .625 WCI 5303316032 Contact Us For Availability
60*
Bracket, motor, drain WCI 154426201 Contact Us For Availability
× ![]()
