Model Kenmore 587.14683200A DISHWASHER – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL/DOOR

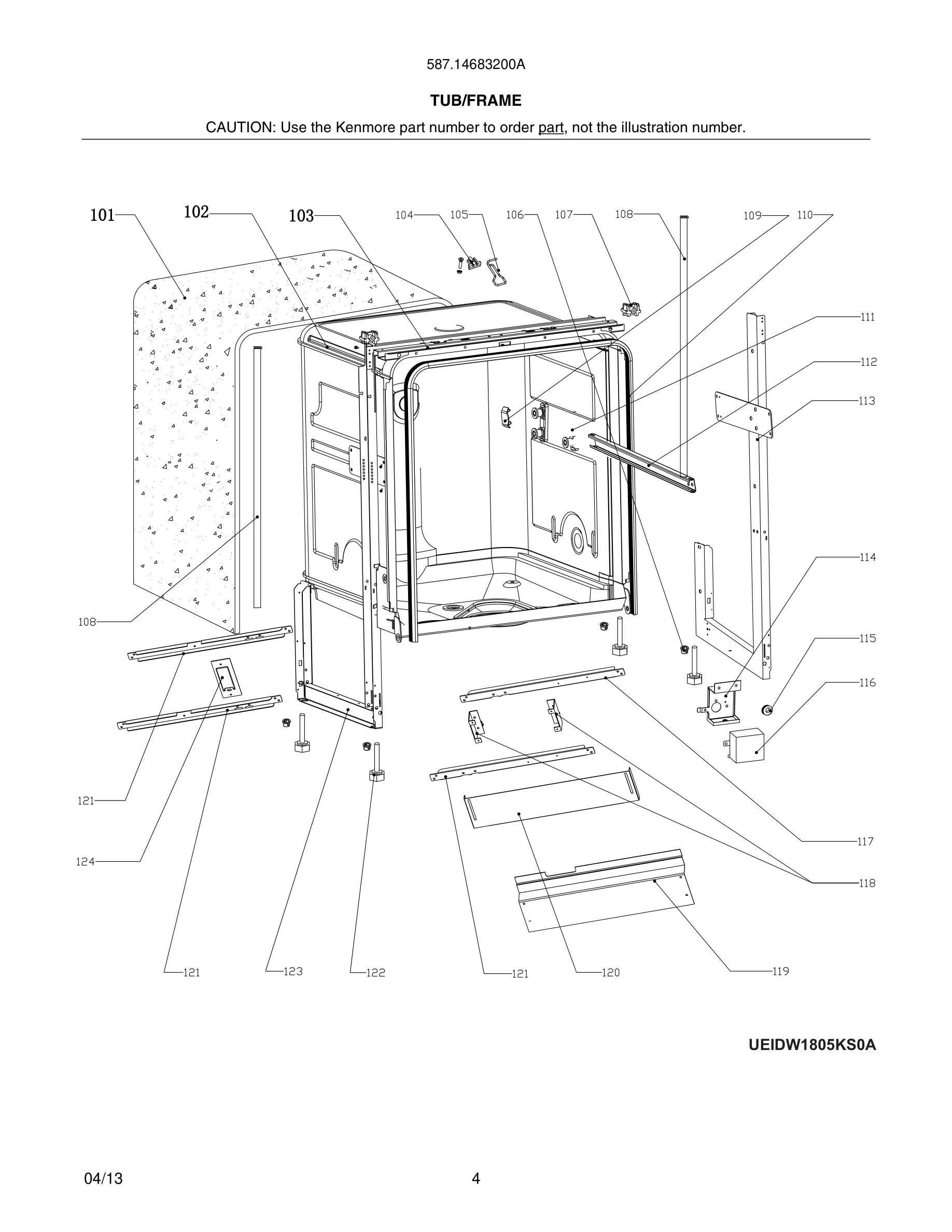

05 - TUB/FRAME

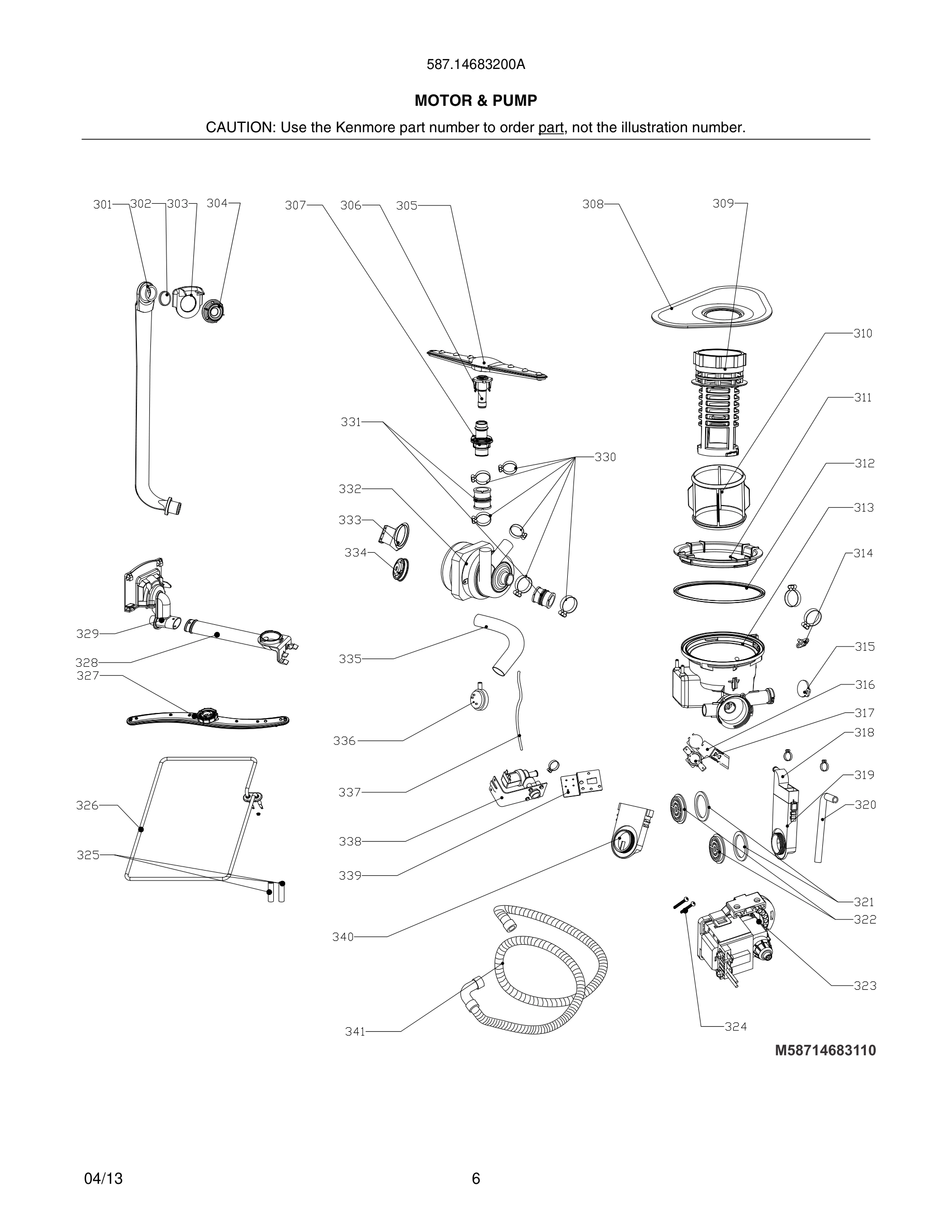

07 - MOTOR & PUMP

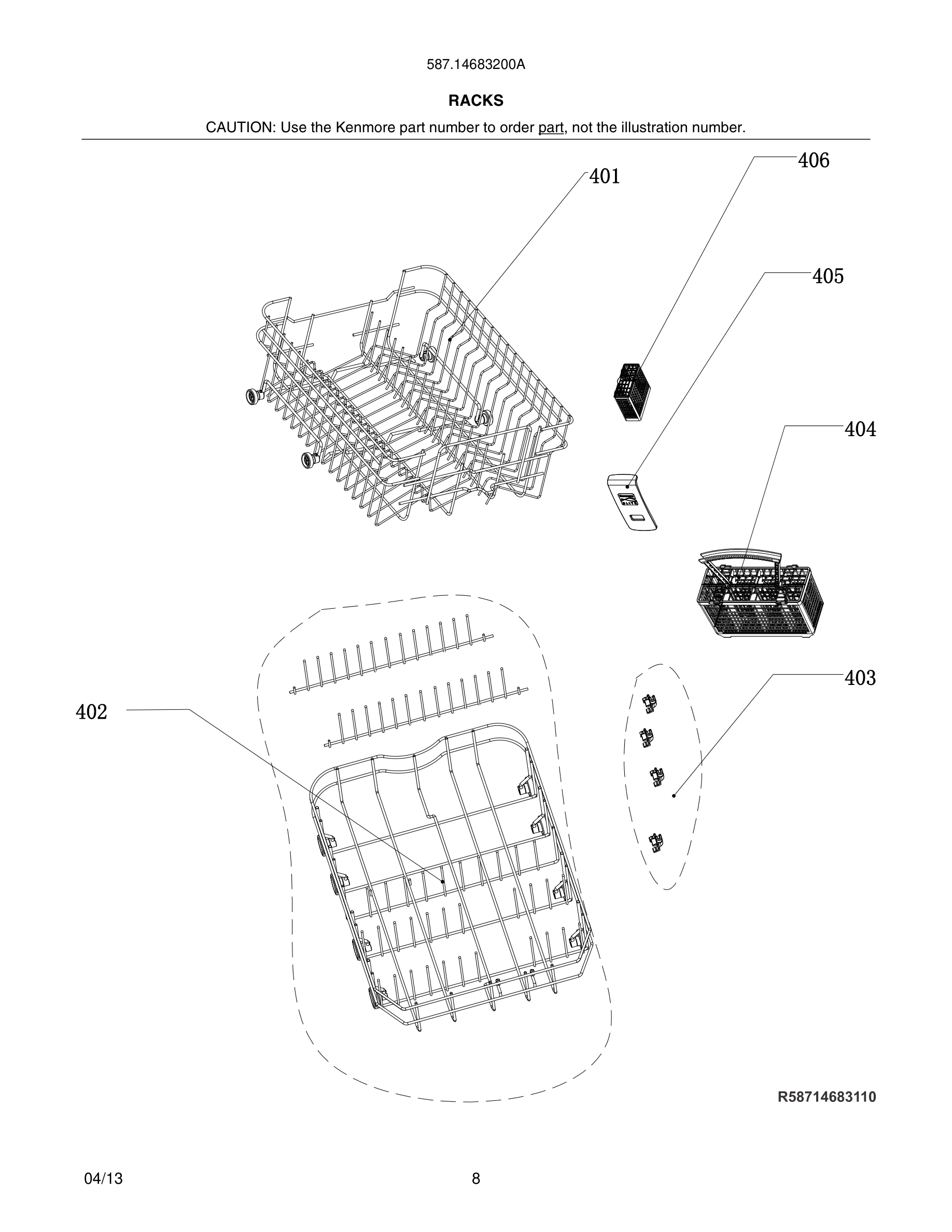

09 - RACKS
Common parts from model Kenmore 587.14683200A DISHWASHER
104
Block, coupling WCI 5304483484 Contact Us For Availability
105
Hook, door lock WCI 5304483485 Contact Us For Availability
106
Holder, leveling foot, (4) WCI 5304482409 Contact Us For Availability
108
Guard, tub band, (2) WCI 5304483631 Contact Us For Availability
109
Cap, guide rail, (4) WCI 5304483632 Contact Us For Availability
122
Foot, leveling, (4) WCI 5304482408 Contact Us For Availability
204
Bracket, dispenser mtg., (2) WCI 5304482449 Contact Us For Availability
207#
Board Assembly, control, main WCI 5304483640 Contact Us For Availability
209
Barrier, switch, LH WCI 5304483464 Contact Us For Availability
211
Barrier, switch, RH WCI 5304483465 Contact Us For Availability
215#
Membrane, touch control, assembly WCI 5304485740 Contact Us For Availability
220
Bolt, door spring, (2) WCI 5304482486 Contact Us For Availability
221
Spring, door hinge, (2) WCI 5304483475 Contact Us For Availability
223
Hinge, door, RH WCI 5304482484 Contact Us For Availability
224
Hinge, door, LH WCI 5304482483 Contact Us For Availability
301
Delivery Hose, assembly WCI 5304483437 Contact Us For Availability
302
O Ring, delivery tube, (2) WCI 5304482363 Contact Us For Availability
304
Nut, pipe, delivery tube WCI 5304483657 Contact Us For Availability
305#
Spray arm, assembly, lower WCI 5304483450 Contact Us For Availability
306
Axis Assembly, spray arm, lower WCI 5304483451 Contact Us For Availability
307
Connector Assembly, spray arm, lower WCI 5304483452 Contact Us For Availability
308
Filter Assembly, screen, stainless WCI 5304482464 Contact Us For Availability
309
Filter Assembly WCI 5304483438 Contact Us For Availability
310
Filter Assembly, micro WCI 5304483439 Contact Us For Availability
311
Nut, sump mtg. WCI 5304483440 Contact Us For Availability
312
Gasket, sump WCI 5304482467 Contact Us For Availability
313#
Sump Assembly WCI 5304483442 Contact Us For Availability
315
Flapper, check valve WCI 5304482469 Contact Us For Availability
316
Bracket, thermostat WCI 5304482470 Contact Us For Availability
317#
Thermostat, 90 WCI 5304482472 Contact Us For Availability
318
Cover, water tunnel WCI 5304482391 Contact Us For Availability
319
Tunnel, water WCI 5304482392 Contact Us For Availability
320
Hose, inlet, tunnel WCI 5304483658 Contact Us For Availability
321
Gasket, ring nut WCI 5304482394 Contact Us For Availability
322
Ring Nut WCI 5304483443 Contact Us For Availability
324
Screw, rec, ST4 x 15.5, (2) WCI 5304482501 Contact Us For Availability
325
Casing, haeting element, (2) WCI 5304482462 Contact Us For Availability
326#
Element Assembly, heating WCI 5304483447 Contact Us For Availability
327#
Spray Arm Assembly, upper WCI 5304483659 Contact Us For Availability
328
Fill Tube, spray arm, upper WCI 5304483660 Contact Us For Availability
329
Dispensing Assembly, spray arm, upper WCI 5304483661 Contact Us For Availability
331
Duct, connecting, (2) WCI 5304482455 Contact Us For Availability
332#
Pump Assembly, motor, w/capacitor WCI 5304483454 Contact Us For Availability
333
Support, motor WCI 5304485744 Contact Us For Availability
334
Cushion, motor assy. WCI 5304485745 Contact Us For Availability
335
Duct, connecting, external pipe WCI 5304482473 Contact Us For Availability
337
Hose, pressure switch WCI 5304483455 Contact Us For Availability
339
Support, pressure switch WCI 5304483457 Contact Us For Availability
340
Tunnel, water WCI 5304483663 Contact Us For Availability
401
Rack Assembly, upper WCI 5304485746 Contact Us For Availability
403
Bracket, fence, fold down, (4) WCI 5304483666 Contact Us For Availability
405
Handle, rack WCI 5304485747 Contact Us For Availability
406
Basket, small WCI 5304485748 Contact Us For Availability
× ![]()
