Model Electrolux 587.14662110 18-INCH BUILT-IN DISHWASHER – Common Parts & Diagrams
COVER
CONTROL PANEL/DOOR

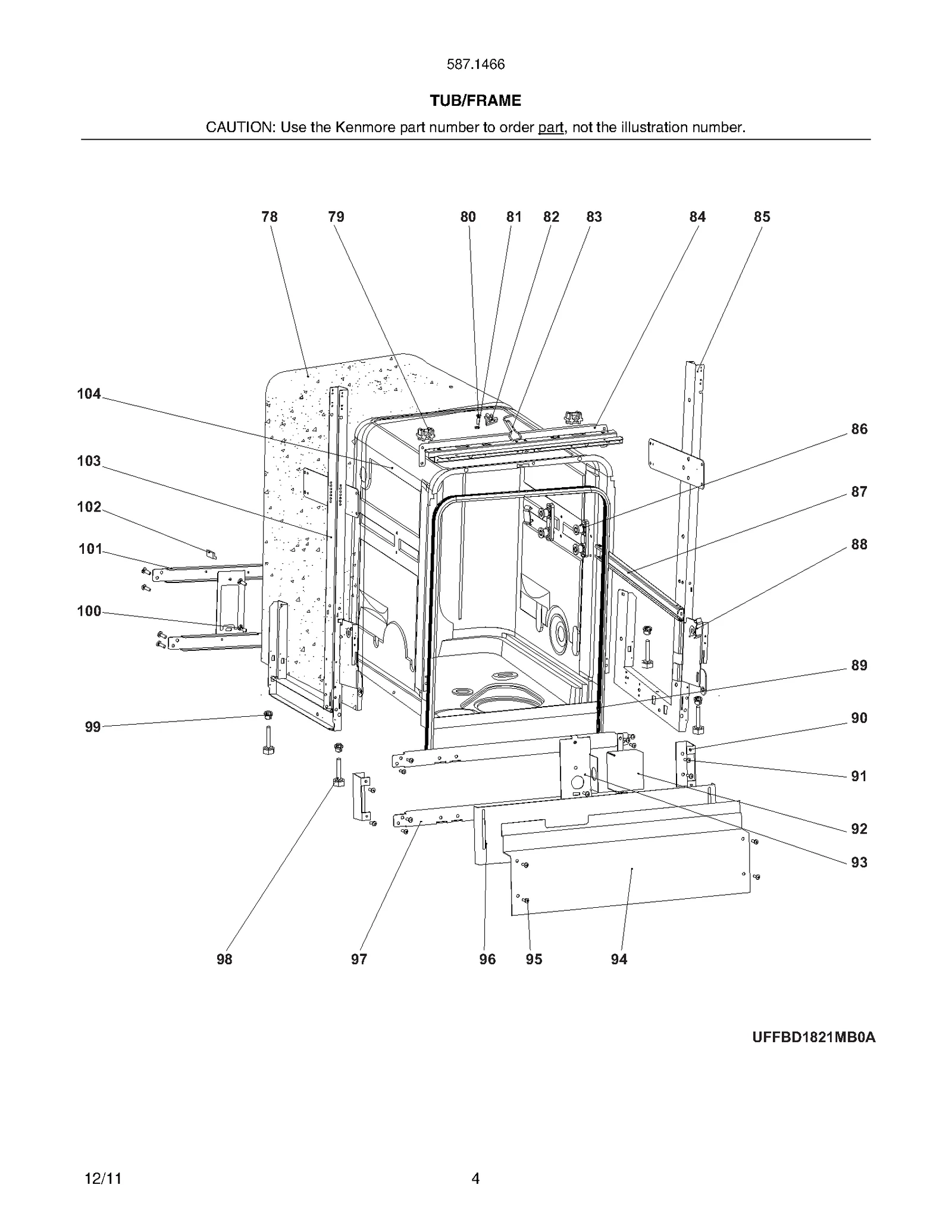

TUB/FRAME

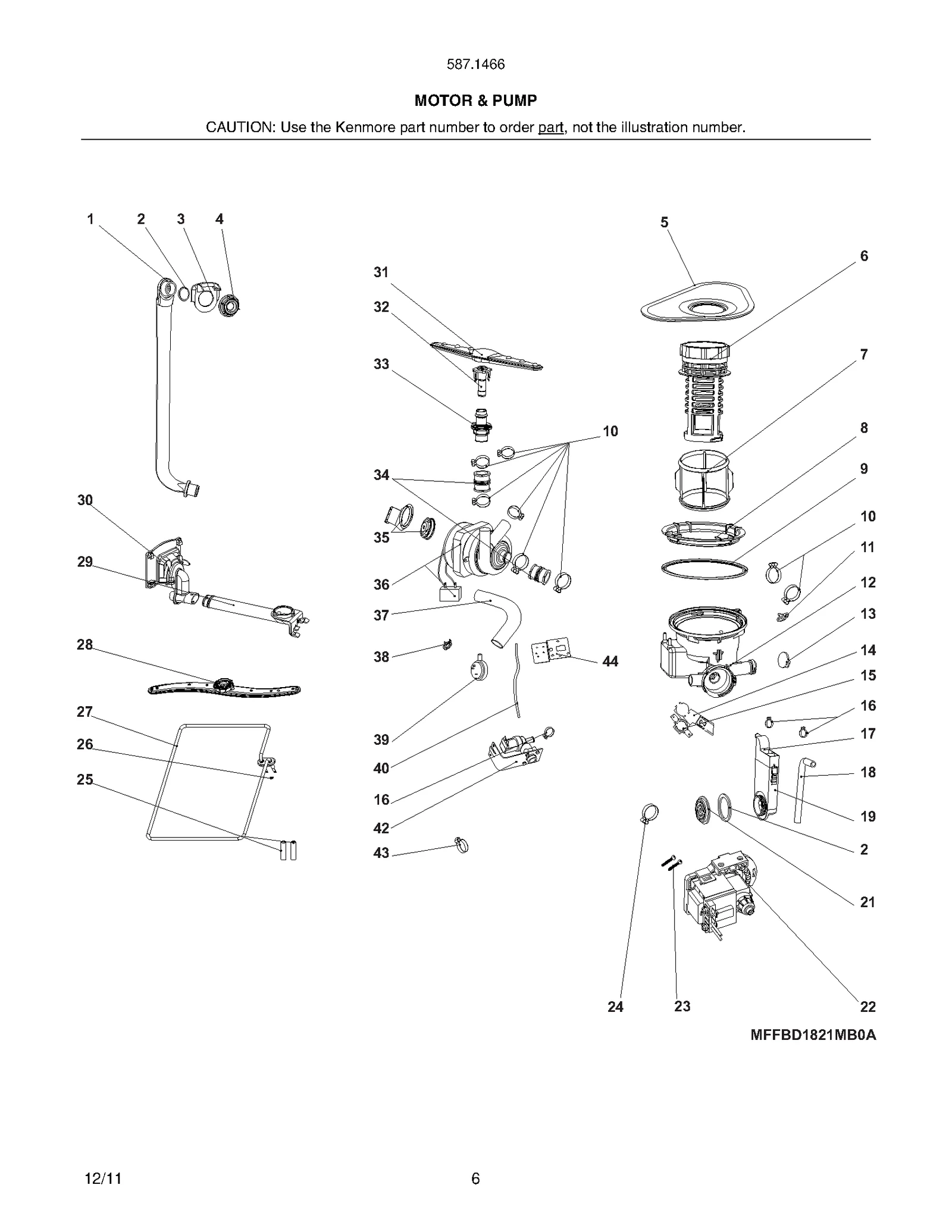

MOTOR & PUMP

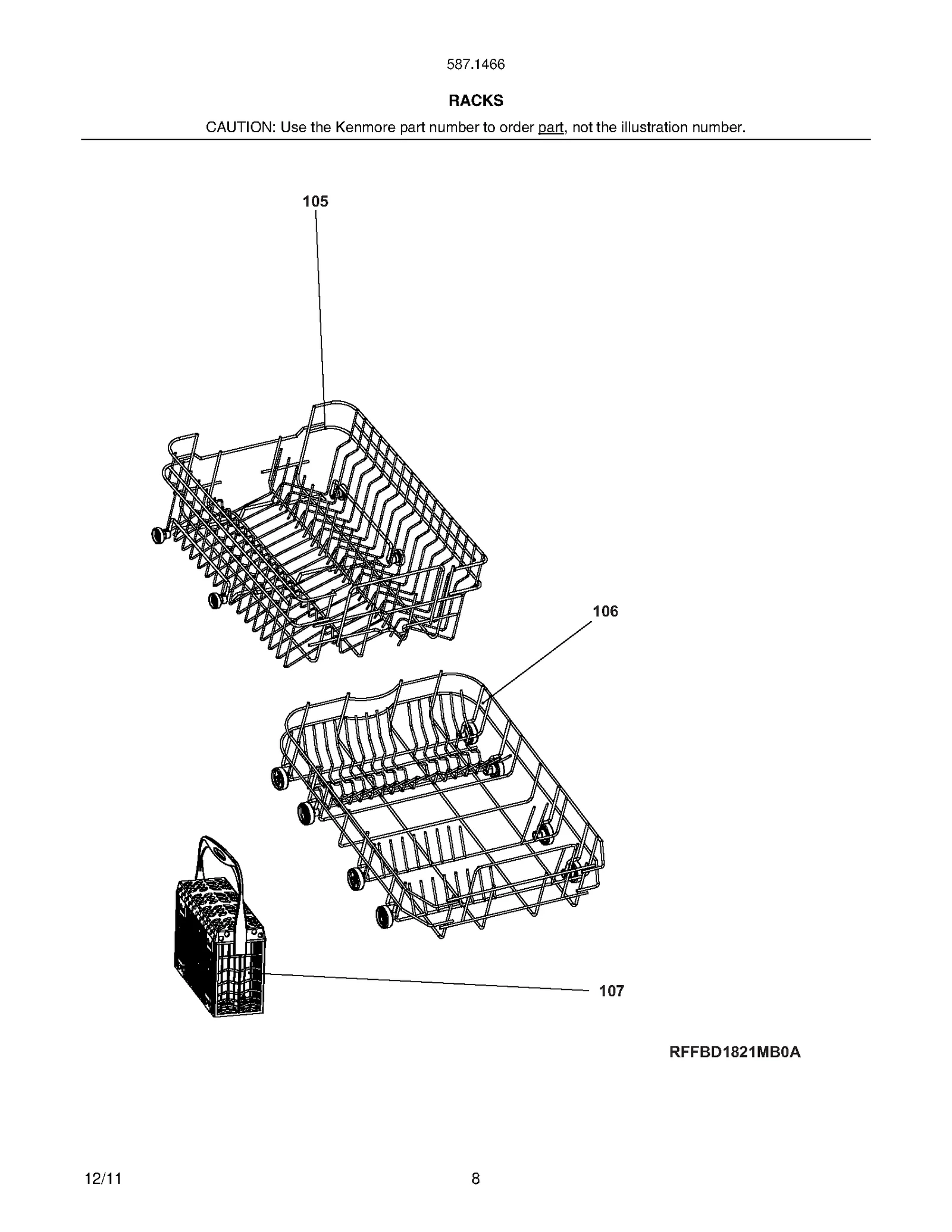

RACKS
Common parts from model Electrolux 587.14662110 18-INCH BUILT-IN DISHWASHER
1
Delivery Hose, assembly WCI 5304483437 Contact Us For Availability
2
Gasket, ring nut WCI 5304482394 Contact Us For Availability
3
Casing, delivery tube, inlet WCI 5304482377 Contact Us For Availability
4
Nut, delivery tube, inlet WCI 5304482382 Contact Us For Availability
5
Filter Assembly, screen, stainless WCI 5304482464 Contact Us For Availability
6
Filter Assembly WCI 5304483438 Contact Us For Availability
7
Filter Assembly, micro WCI 5304483439 Contact Us For Availability
8
Nut, sump mtg. WCI 5304483440 Contact Us For Availability
9
Gasket, sump WCI 5304482467 Contact Us For Availability
12
Sump Assembly WCI 5304483442 Contact Us For Availability
15
Thermostat, 90 WCI 5304482472 Contact Us For Availability
19
Tunnel, water WCI 5304482392 Contact Us For Availability
27
Element Assembly, heating WCI 5304483447 Contact Us For Availability
28
Spray arm, assembly, upper WCI 5304483448 Contact Us For Availability
29
Conduit, spray arm, upper WCI 5304483449 Contact Us For Availability
30
Delivery Assembly, spray arm, middle WCI 5304482489 Contact Us For Availability
31
Spray arm, assembly, lower WCI 5304483450 Contact Us For Availability
33
Connector Assembly, spray arm, lower WCI 5304483452 Contact Us For Availability
34
Duct, connecting, (2) WCI 5304482455 Contact Us For Availability
36
Pump Assembly, motor, w/capacitor WCI 5304483454 Contact Us For Availability
37
Duct, connecting, external pipe WCI 5304482473 Contact Us For Availability
38
Clamp, hose, 12.9 x 1.8 WCI 5304482419 Contact Us For Availability
40
Hose, pressure switch WCI 5304483455 Contact Us For Availability
49
Touch Pad, membrane, white WCI 5304485735 Contact Us For Availability
51
Barrier, switch, LH WCI 5304483464 Contact Us For Availability
52
Barrier, switch, RH WCI 5304483465 Contact Us For Availability
57
Door Assembly, outer, white WCI 5304483471 Contact Us For Availability
59
Bolt, door spring, (2) WCI 5304482486 Contact Us For Availability
61
Spring, door hinge, (2) WCI 5304483475 Contact Us For Availability
63
Hinge, door, RH WCI 5304482484 Contact Us For Availability
65
Hinge, door, LH WCI 5304482483 Contact Us For Availability
66
Pin, hinge joint, (2) WCI 5304482485 Contact Us For Availability
67
Harness, wiring, main WCI 5304483477 Contact Us For Availability
69
Bracket, dispenser mtg., (2) WCI 5304482449 Contact Us For Availability
73
Liner Assembly, door, inner WCI 5304483479 Contact Us For Availability
80
Screw, rec cntrsunk hd, m4 x 16 WCI 5304482376 Contact Us For Availability
82
Block, coupling WCI 5304483484 Contact Us For Availability
83
Hook, door lock WCI 5304483485 Contact Us For Availability
86
Roller Assembly, tub, (4) WCI 5304483488 Contact Us For Availability
88
Cap, rail guide, (4) WCI 5304483490 Contact Us For Availability
95
Screw, st3.9 x 13 WCI 5304483498 Contact Us For Availability
98
Foot, leveling, (4) WCI 5304482408 Contact Us For Availability
99
Holder, leveling foot, (4) WCI 5304482409 Contact Us For Availability
× ![]()
