Model Electrolux 587.14660834 Dishwasher (Kenmore 58714660834) – Common Parts & Diagrams
TUB DETAILS
CONSOLE PANEL DETAILS

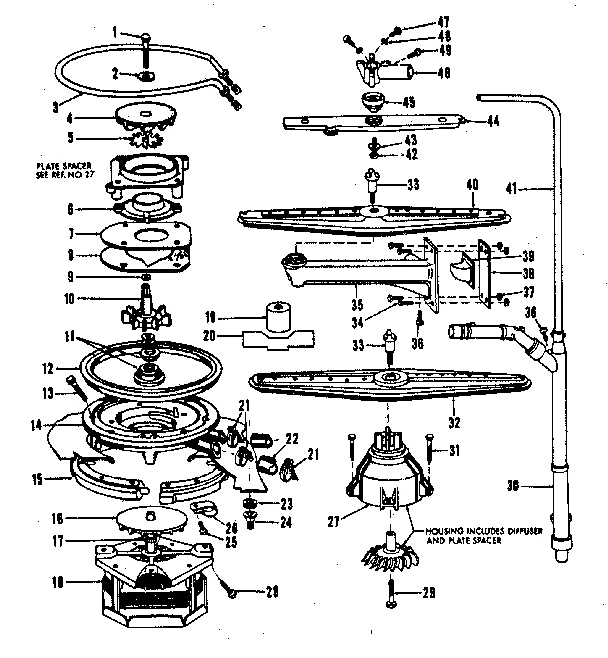

MOTOR, HEATER, AND SPRAY ARM DETAILS

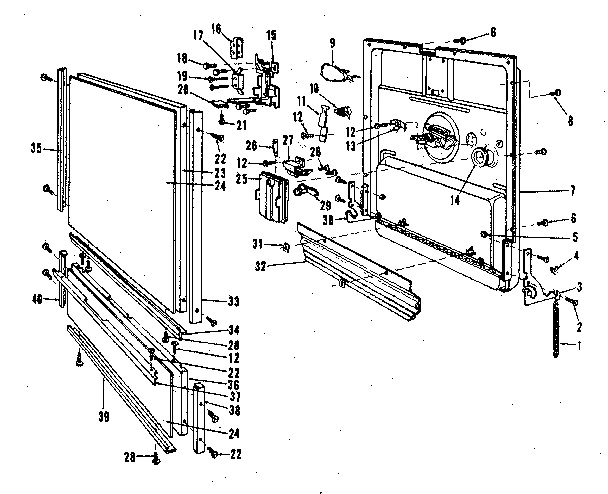

DOOR DETAILS

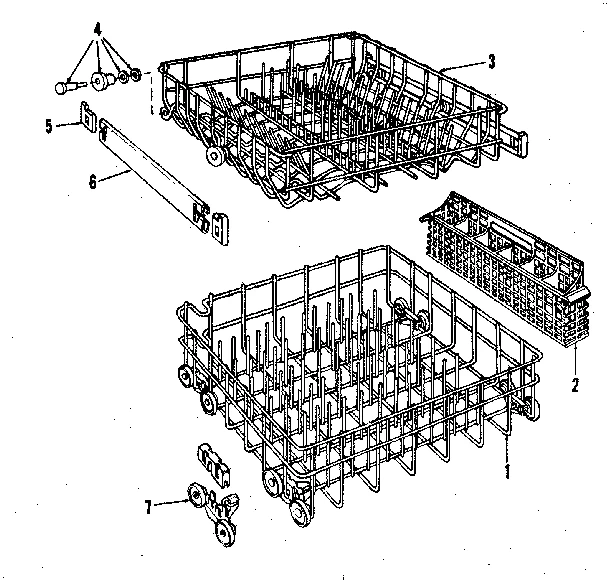

RACK DETAILS
All Parts

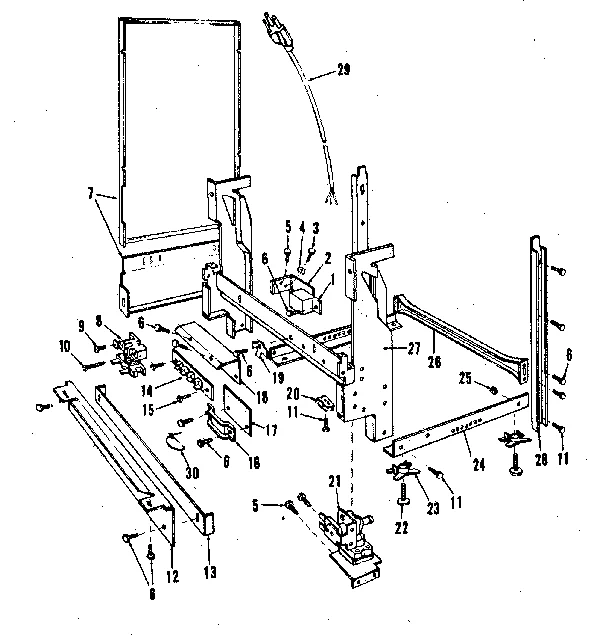

FRAME DETAILS

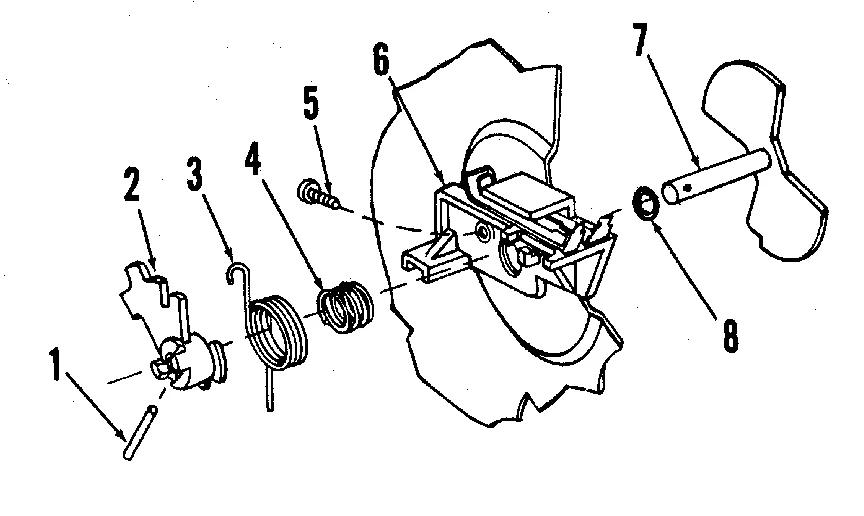

DETERGENT CUP DETAILS
Common parts from model Electrolux 587.14660834 Dishwasher (Kenmore 58714660834)
1
Latch Plate WCI 808868 Contact Us For Availability
1
Screw WCI 809175 Contact Us For Availability
1
Screw WCI 806353 Contact Us For Availability
1
Spring WCI 805683 Contact Us For Availability
1
Rack Assembly WCI 808995 Contact Us For Availability
1
Cover WCI 800222 Contact Us For Availability
1
Pin WCI 808827 Contact Us For Availability
2
Clip WCI 808289 Contact Us For Availability
2
End Cap WCI 808811 Contact Us For Availability
2
Washer WCI 303367 Contact Us For Availability
2
Screw WCI 803311 Contact Us For Availability
2
Basket WCI 808994 Contact Us For Availability
2
Bracket WCI 807019 Contact Us For Availability
2
Cam WCI 806566 Contact Us For Availability
3
Drain Hose WCI 809112 Contact Us For Availability
3
Push Button WCI 808981 Contact Us For Availability
3
Heat Element WCI 809060 Contact Us For Availability
3
Arm Assembly WCI 805681 Contact Us For Availability
3
Rack Assembly WCI 808996 Contact Us For Availability
3
Screw WCI 807951 Contact Us For Availability
3
Spring WCI 805227 Contact Us For Availability
4
Speed Nut WCI 808475 Contact Us For Availability
4
Impeller WCI 809005 Contact Us For Availability
4
Pad Spring WCI 805884 Contact Us For Availability
4
Wheel WCI 807957 Contact Us For Availability
4
Cam Spring WCI 806567 Contact Us For Availability
5
Shim WCI 809214 Contact Us For Availability
5
Dishwasher Vent WCI 808477 Contact Us For Availability
5
Blade WCI 808075 Contact Us For Availability
5
Lock Nut WCI 808470 Contact Us For Availability
5
Screw WCI 809029 Contact Us For Availability
5
End Cap WCI 807853 Contact Us For Availability
5
Screw WCI 807950 Contact Us For Availability
6
Strike WCI 807015 Contact Us For Availability
6
Light Lens WCI 809036 Contact Us For Availability
6
Shroud Impeller WCI 806267 Contact Us For Availability
6
Screw WCI 809055 Contact Us For Availability
6
Screw WCI 808658 Contact Us For Availability
6
Slide Rack WCI 807854 Contact Us For Availability
6
Bi-Metal WCI 809072 Contact Us For Availability
7
Timer Knob WCI 809451 Contact Us For Availability
7
Pump Plate WCI 807884 Contact Us For Availability
7
Door Assembly WCI 809054 Contact Us For Availability
7
587.14700, 587.24300 WCI N/P Contact Us For Availability
7
Capacitor Bracket WCI 807008 Contact Us For Availability
7
Lid Dispenser WCI 809028 Contact Us For Availability
7A
Panel (White) WCI 808880 Contact Us For Availability
7B
Panel WCI 808881 Contact Us For Availability
7C
Panel WCI 808882 Contact Us For Availability
7D
Panel Gold WCI 808883 Contact Us For Availability
7E
Panel (Almond) WCI 808884 Contact Us For Availability
8
Gasket WCI 805763 Contact Us For Availability
8
Control Panel WCI 809462 Contact Us For Availability
8
Screw WCI 808749 Contact Us For Availability
8
Relay WCI 805255 Contact Us For Availability
8
O-Ring WCI STD302011 Contact Us For Availability
9
Clip WCI 809199 Contact Us For Availability
9
End Cap WCI 808810 Contact Us For Availability
9
0 Ring WCI 806521 Contact Us For Availability
9
Wire Tie WCI 809075 Contact Us For Availability
9
Screw WCI STD510802 Contact Us For Availability
10
Light Assembly WCI 809332 Contact Us For Availability
10
Seal Kit WCI 809110 Contact Us For Availability
10
Thermostat WCI 808956 Contact Us For Availability
10
Screw WCI 804672 Contact Us For Availability
11
Roller WCI 807180 Contact Us For Availability
11
Light Assembly WCI 809317 Contact Us For Availability
11
Water Seal WCI 803903 Contact Us For Availability
11
Retainer WCI 809097 Contact Us For Availability
11
Screw WCI 807001 Contact Us For Availability
12
Kit Screw WCI 808564 Contact Us For Availability
12
Clamp WCI 805442 Contact Us For Availability
12
Gasket WCI 809008 Contact Us For Availability
12
Toe Plate WCI 809304 Contact Us For Availability
13
Guide WCI 807470 Contact Us For Availability
13
Screw WCI 807268 Contact Us For Availability
13
Clamp WCI 805584 Contact Us For Availability
13
Toe Plate WCI 809303 Contact Us For Availability
14
Safety Float WCI 804630 Contact Us For Availability
14
Terminal WCI 808333 Contact Us For Availability
14
Pump Housing WCI 809102 Contact Us For Availability
14
Mounting Grommet WCI 805631 Contact Us For Availability
14
Terminal Block WCI 807486 Contact Us For Availability
15
Harness WCI 809296 Contact Us For Availability
15
Rings Clamp WCI 807712 Contact Us For Availability
15
Latch WCI 807016 Contact Us For Availability
15
Screw WCI 807501 Contact Us For Availability
16
Tube WCI 808064 Contact Us For Availability
16
Timer WCI 809438 Contact Us For Availability
16
Water Shield WCI 808899 Contact Us For Availability
16
Cover WCI 807450 Contact Us For Availability
16
Wire Retainer WCI 806723 Contact Us For Availability
17
Gasket WCI 808063 Contact Us For Availability
17
Terminal Board WCI 808483 Contact Us For Availability
17
Torsion Ring WCI 808898 Contact Us For Availability
17
Safety Switch WCI 807043 Contact Us For Availability
17
Shield WCI 809144 Contact Us For Availability
18
Screw WCI 806539 Contact Us For Availability
18
Screw WCI 806894 Contact Us For Availability
18
Motor Assembly WCI 809100 Contact Us For Availability
18
Terminal Bracket WCI 807849 Contact Us For Availability
19
Gasket Assembly WCI 809035 Contact Us For Availability
19
Pan Splash WCI 807425 Contact Us For Availability
19
Tool WCI 803923 Contact Us For Availability
19
Terminal WCI 807213 Contact Us For Availability
19
Screw WCI 808618 Contact Us For Availability
20
Gasket Wire WCI 809320 Contact Us For Availability
20
Switch WCI 809463 Contact Us For Availability
20
Gauge WCI 807077 Contact Us For Availability
20
Latch Knob WCI 806893 Contact Us For Availability
20
Speed Unit WCI 808170 Contact Us For Availability
21
Clip WCI 808115 Contact Us For Availability
21
Switch WCI 809297 Contact Us For Availability
21
Hose Clamp WCI 808186 Contact Us For Availability
21
Screw WCI 809163 Contact Us For Availability
21
Water Valve WCI 809240 Contact Us For Availability
22
O-Ring WCI 807759 Contact Us For Availability
22
Shield WCI 808398 Contact Us For Availability
22
Hose F/spray WCI 805674 Contact Us For Availability
22
Screw WCI 807293 Contact Us For Availability
22
Leveler WCI 809422 Contact Us For Availability
23
Float WCI 807677 Contact Us For Availability
23
Bracket WCI 806594 Contact Us For Availability
23
Grommet WCI 806833 Contact Us For Availability
23
Panel (White) WCI 807262 Contact Us For Availability
23
Tee Nut WCI 807671 Contact Us For Availability
24
Switch WCI 807680 Contact Us For Availability
24
Screw WCI 807141 Contact Us For Availability
24
Channel WCI 807851 Contact Us For Availability
24A
Panel (Almond) WCI 808908 Contact Us For Availability
24B
Panel WCI 808909 Contact Us For Availability
24C
Panel (Platinum) WCI 808910 Contact Us For Availability
24D
Panel WCI 808911 Contact Us For Availability
24E
Panel WCI 808912 Contact Us For Availability
24F
Panel (Black) WCI 808913 Contact Us For Availability
24G
Panel (White) WCI 808914 Contact Us For Availability
24H
Panel WCI 808916 Contact Us For Availability
25
Screw WCI 804594 Contact Us For Availability
25
Screw WCI 807270 Contact Us For Availability
25
Wetting Agent WCI 806753 Contact Us For Availability
25
Nut WCI 804619 Contact Us For Availability
26
Cage Nut WCI 806291 Contact Us For Availability
26
Clamp WCI 808442 Contact Us For Availability
26
Plunger WCI 806757 Contact Us For Availability
26
Brace WCI 807852 Contact Us For Availability
27
Plate WCI 807038 Contact Us For Availability
27
Impeller Housing WCI 809119 Contact Us For Availability
27
Bi-Metal WCI 809109 Contact Us For Availability
27
Weld Hinge WCI 807848 Contact Us For Availability
28
Channel WCI 808670 Contact Us For Availability
29
Nozzle WCI 808707 Contact Us For Availability
29
Screw WCI 809121 Contact Us For Availability
29
Fill Plug WCI 806755 Contact Us For Availability
29
Cord Kit WCI 808395 Contact Us For Availability
30
Screw WCI 808818 Contact Us For Availability
30
Tube Kit WCI 808805 Contact Us For Availability
30
Arm Assembly WCI 805682 Contact Us For Availability
30
Wire Tie WCI 809418 Contact Us For Availability
31
Gasket WCI 806797 Contact Us For Availability
31
Screw WCI 807359 Contact Us For Availability
31
Speed Nut WCI 809026 Contact Us For Availability
32
Spray Arm WCI 809017 Contact Us For Availability
32
Baffle Seal WCI 809025 Contact Us For Availability
33
Tubing WCI 807891 Contact Us For Availability
33
Bolt WCI 809018 Contact Us For Availability
33
Door Trim WCI 808976 Contact Us For Availability
34
Clamp WCI 807813 Contact Us For Availability
34
Screw WCI 805106 Contact Us For Availability
34
Trim WCI 807347 Contact Us For Availability
35
Dishwasher Blower Motor WCI 807385 Contact Us For Availability
35
Delivery Arm WCI 809019 Contact Us For Availability
36
Screw WCI 804164 Contact Us For Availability
36
Screw WCI 806656 Contact Us For Availability
36
Access Panel (White) WCI 809108 Contact Us For Availability
37
Plate Motor WCI 806793 Contact Us For Availability
37
O-Ring WCI 808210 Contact Us For Availability
37
Trim Acc Top WCI 808346 Contact Us For Availability
38
Screw WCI 803003 Contact Us For Availability
38
Gasket WCI 805782 Contact Us For Availability
38
Trim WCI 808028 Contact Us For Availability
39
Dishwasher Blower Plate WCI 806794 Contact Us For Availability
39
Plug WCI 805781 Contact Us For Availability
39
Trim WCI 808027 Contact Us For Availability
40
Wheel WCI 806230 Contact Us For Availability
40
Spray Arm WCI 809021 Contact Us For Availability
40
Trim WCI 808029 Contact Us For Availability
41
Housing Assembly WCI 808765 Contact Us For Availability
41
Supply Tube WCI 807224 Contact Us For Availability
42
Dishwasher Blower Housing WCI 808738 Contact Us For Availability
42
Screw WCI 808466 Contact Us For Availability
43
Guide WCI 807471 Contact Us For Availability
43
Washer WCI 808465 Contact Us For Availability
44
Nut WCI STD541008 Contact Us For Availability
44
Spray Arm WCI 808463 Contact Us For Availability
45
Screw WCI 803319 Contact Us For Availability
45
Bushing WCI 808462 Contact Us For Availability
46
Tub Assembly WCI 809031 Contact Us For Availability
46
Distributor WCI 808464 Contact Us For Availability
47
Screw WCI 806901 Contact Us For Availability
48
Washer WCI 809044 Contact Us For Availability
49
Screw WCI 806976 Contact Us For Availability
NI
Scalant WCI 807509 Contact Us For Availability
NI
Service Manual WCI 808353 Contact Us For Availability
NI
Black Dr Kit WCI 808926 Contact Us For Availability
NI
Utens Basket WCI 809105 Contact Us For Availability
NI
Insulation WCI 809113 Contact Us For Availability
NI
Touch Rack WCI 809114 Contact Us For Availability
NI
Owner's Manual WCI 809229 Contact Us For Availability
NI
Use Chart WCI 809272 Contact Us For Availability
NI
Parts List WCI 809455 Contact Us For Availability
× ![]()
Login and Registration Form
