Model Electrolux 587.14659110 Dishwasher (Kenmore 58714659110) – Common Parts & Diagrams
MOTOR & PUMP

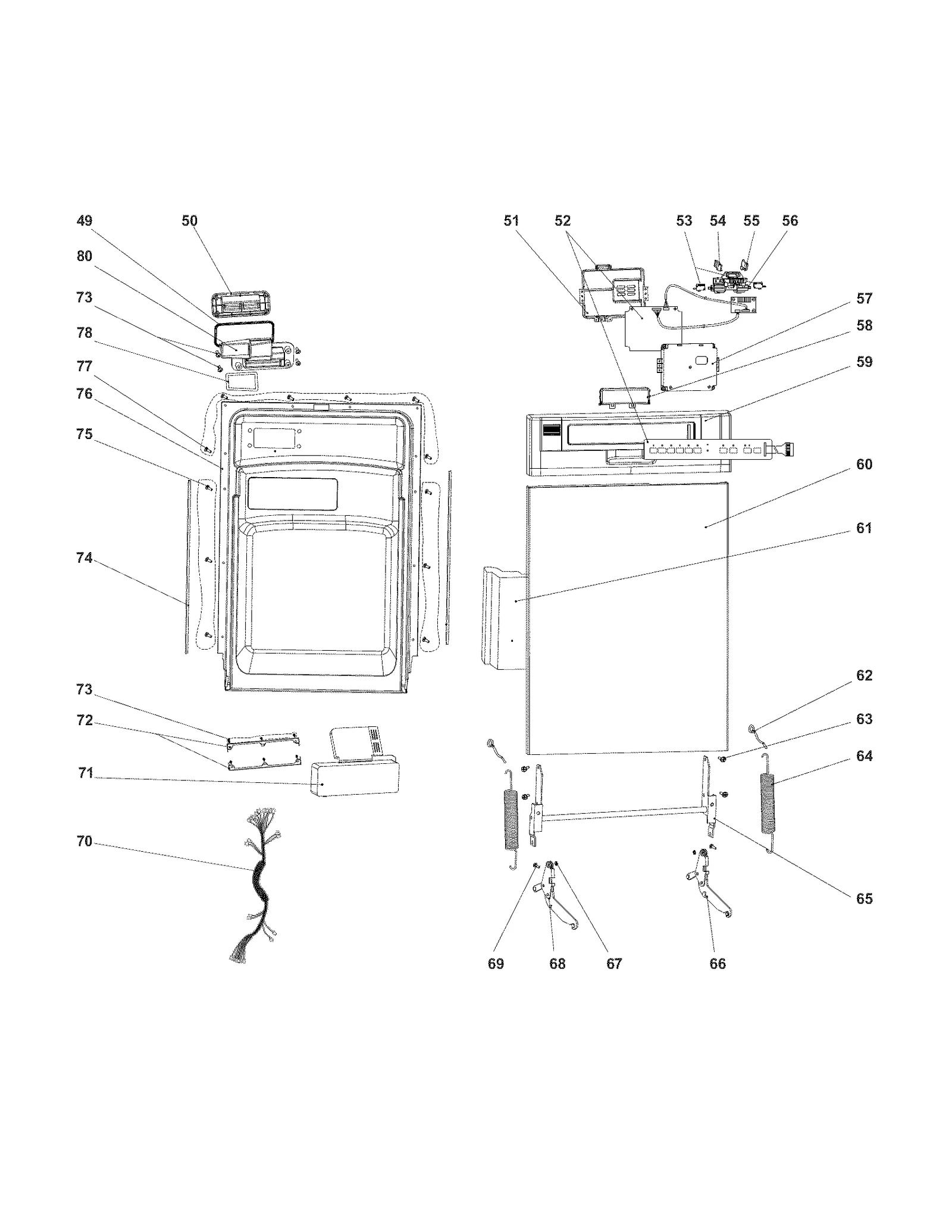

CONTROL PANEL/DOOR
CONTROL PANEL/DOOR

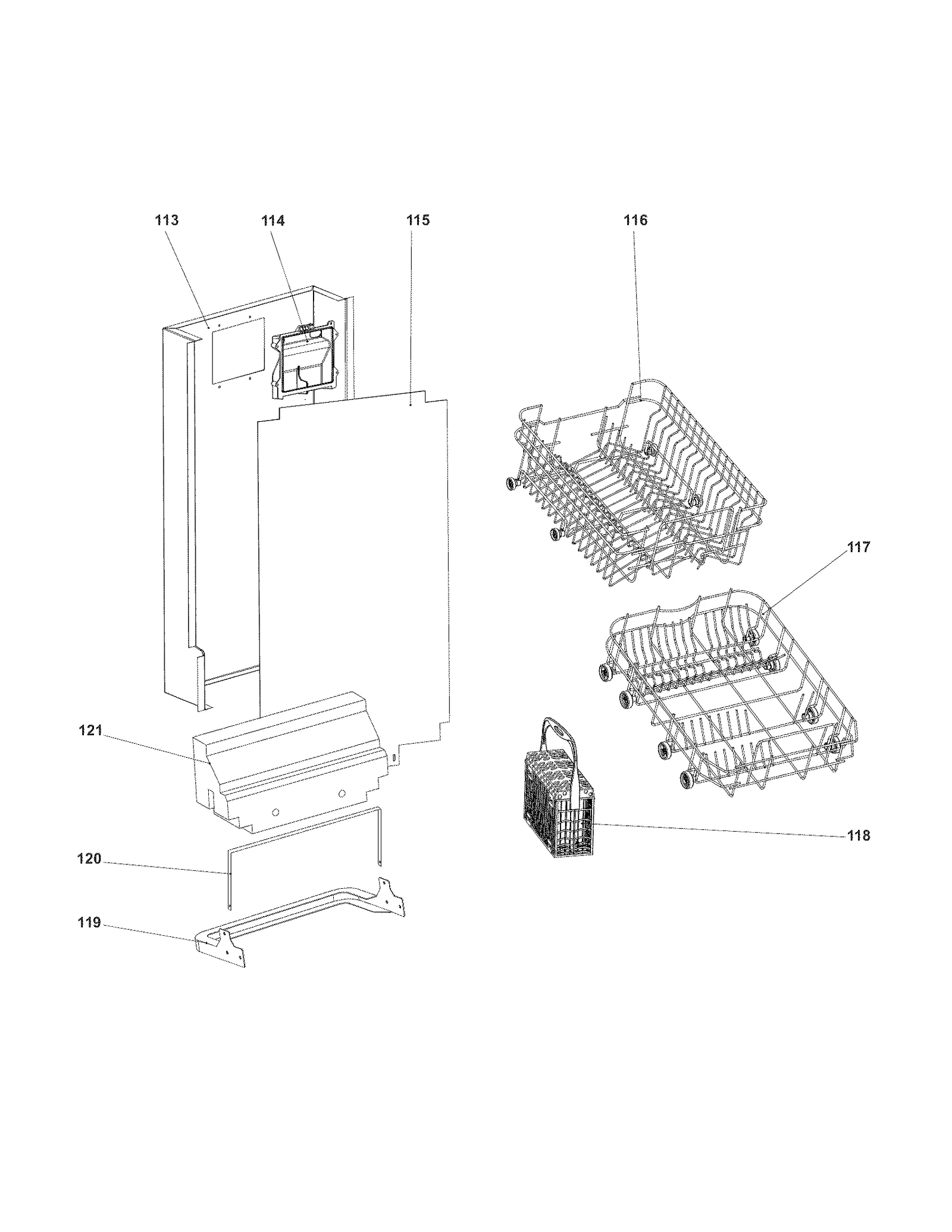

RACKS

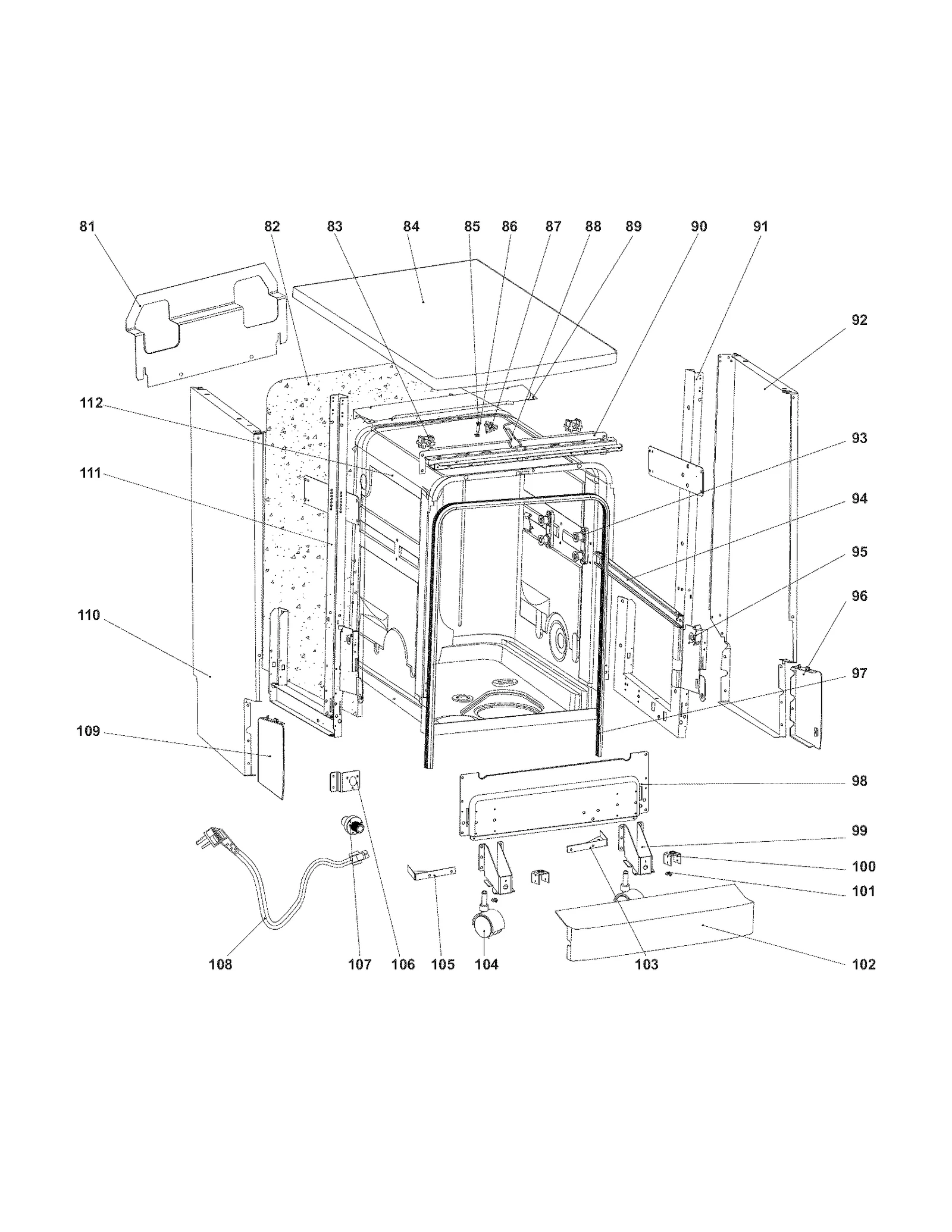

TUB/FRAME
Common parts from model Electrolux 587.14659110 Dishwasher (Kenmore 58714659110)
1
Dishwasher Spray Arm Manifold WCI 5304483437 Contact Us For Availability
2
Dishwasher Fill Funnel Gasket WCI 5304482394 Contact Us For Availability
3
Casing WCI 5304482377 Contact Us For Availability
4
Dishwasher Water Feed Tube Nut WCI 5304482382 Contact Us For Availability
5
Dishwasher Filter WCI 5304482464 Contact Us For Availability
6
Dishwasher Filter WCI 5304483438 Contact Us For Availability
7
Dishwasher Filter WCI 5304483439 Contact Us For Availability
8
Dishwasher Sump Lock Ring WCI 5304483440 Contact Us For Availability
9
Dishwasher Sump Gasket WCI 5304482467 Contact Us For Availability
12
Dishwasher Sump WCI 5304483442 Contact Us For Availability
15
Dishwasher High-Limit Thermostat, 90-degree WCI 5304482472 Contact Us For Availability
19
Tunnel WCI 5304482392 Contact Us For Availability
26
Dishwasher External Drain Hose WCI 5304483508 Contact Us For Availability
28
Dishwasher Drain Hose WCI 5304483510 Contact Us For Availability
31
Dishwasher Heating Element WCI 5304483447 Contact Us For Availability
32
Dishwasher Spray Arm Assembly, Upper WCI 5304483448 Contact Us For Availability
33
Dishwasher Upper Spray Arm Manifold WCI 5304483449 Contact Us For Availability
34
Delivery Assembly WCI 5304482489 Contact Us For Availability
35
Electrolux Dishwasher Spray Arm WCI 5304483450 Contact Us For Availability
37
Dishwasher Spray Arm Connector, Lower WCI 5304483452 Contact Us For Availability
38
Dishwasher Circulation Pump Inlet Connector WCI 5304482455 Contact Us For Availability
40
Electrolux Dishwasher Pump Motor WCI 5304483454 Contact Us For Availability
41
Dishwasher Circulation Pump Drain Hose WCI 5304482473 Contact Us For Availability
42
Clamp WCI 5304482419 Contact Us For Availability
44
Dishwasher Water-Level Pressure Switch Hose WCI 5304483455 Contact Us For Availability
52
Dishwasher Membrane Switch WCI 5304485736 Contact Us For Availability
52
Dishwasher Membrane Switch WCI 5304485735 Contact Us For Availability
54
Dishwasher Door Latch Switch Cover, Left WCI 5304483464 Contact Us For Availability
55
Dishwasher Door Latch Switch Cover, Right WCI 5304483465 Contact Us For Availability
58
Cover WCI 5304483467 Contact Us For Availability
60
Dishwasher Door Outer Panel (White) WCI 5304483512 Contact Us For Availability
62
Bolt WCI 5304482486 Contact Us For Availability
64
Dishwasher Door Spring WCI 5304483475 Contact Us For Availability
66
Hinge WCI 5304482484 Contact Us For Availability
68
Hinge WCI 5304482483 Contact Us For Availability
69
Pin WCI 5304482485 Contact Us For Availability
70
Dishwasher Wire Harness WCI 5304483477 Contact Us For Availability
72
Bracket WCI 5304482449 Contact Us For Availability
76
Dishwasher Door Inner Panel WCI 5304483479 Contact Us For Availability
85
Dishwasher Tub Brace Screw WCI 5304482376 Contact Us For Availability
87
Electrolux Dishwasher Tub Brace Block WCI 5304483484 Contact Us For Availability
88
Dishwasher Door Lock Hook WCI 5304483485 Contact Us For Availability
90
Brace Assembly WCI 5304483486 Contact Us For Availability
90
Brace Assembly WCI 5304483517 Contact Us For Availability
91
Frame Assembly WCI 5304483518 Contact Us For Availability
92
Dishwasher Side Panel, Right (Black) WCI 5304483519 Contact Us For Availability
92
Panel WCI 5304483520 Contact Us For Availability
93
Dishwasher Dishrack Track Roller WCI 5304483488 Contact Us For Availability
94
Rail WCI 5304483489 Contact Us For Availability
95
Cap WCI 5304483490 Contact Us For Availability
96
Toe Plate WCI 5304483521 Contact Us For Availability
96
Toe Plate WCI 5304483522 Contact Us For Availability
98
Dishwasher Brace WCI 5304483523 Contact Us For Availability
99
Bracket WCI 5304483524 Contact Us For Availability
100
Support WCI 5304483525 Contact Us For Availability
101
Dishwasher Washer WCI 5304483526 Contact Us For Availability
102
Toe Plate WCI 5304483527 Contact Us For Availability
102
Toe Plate WCI 5304483528 Contact Us For Availability
103
Dishwasher Frame Support Angle Bracket, Right WCI 5304483529 Contact Us For Availability
104
Dishwasher Caster Wheel WCI 5304483530 Contact Us For Availability
105
Dishwasher Frame Support Angle Bracket, Left WCI 5304483531 Contact Us For Availability
106
Bracket WCI 5304483532 Contact Us For Availability
107
Dishwasher Drain Hose Connector WCI 5304483533 Contact Us For Availability
108
Dishwasher Power Cord WCI 5304483534 Contact Us For Availability
109
Toe Plate WCI 5304483535 Contact Us For Availability
109
Toe Plate WCI 5304483536 Contact Us For Availability
110
Dishwasher Side Panel, Left (Black) WCI 5304483537 Contact Us For Availability
110
Panel WCI 5304483538 Contact Us For Availability
111
Frame Assembly WCI 5304485739 Contact Us For Availability
112
Tub Assembly WCI 5304483540 Contact Us For Availability
× ![]()
