Model Electrolux 587.14538401 Dishwasher (Kenmore 58714538401) – Common Parts & Diagrams
TUB
RACKS

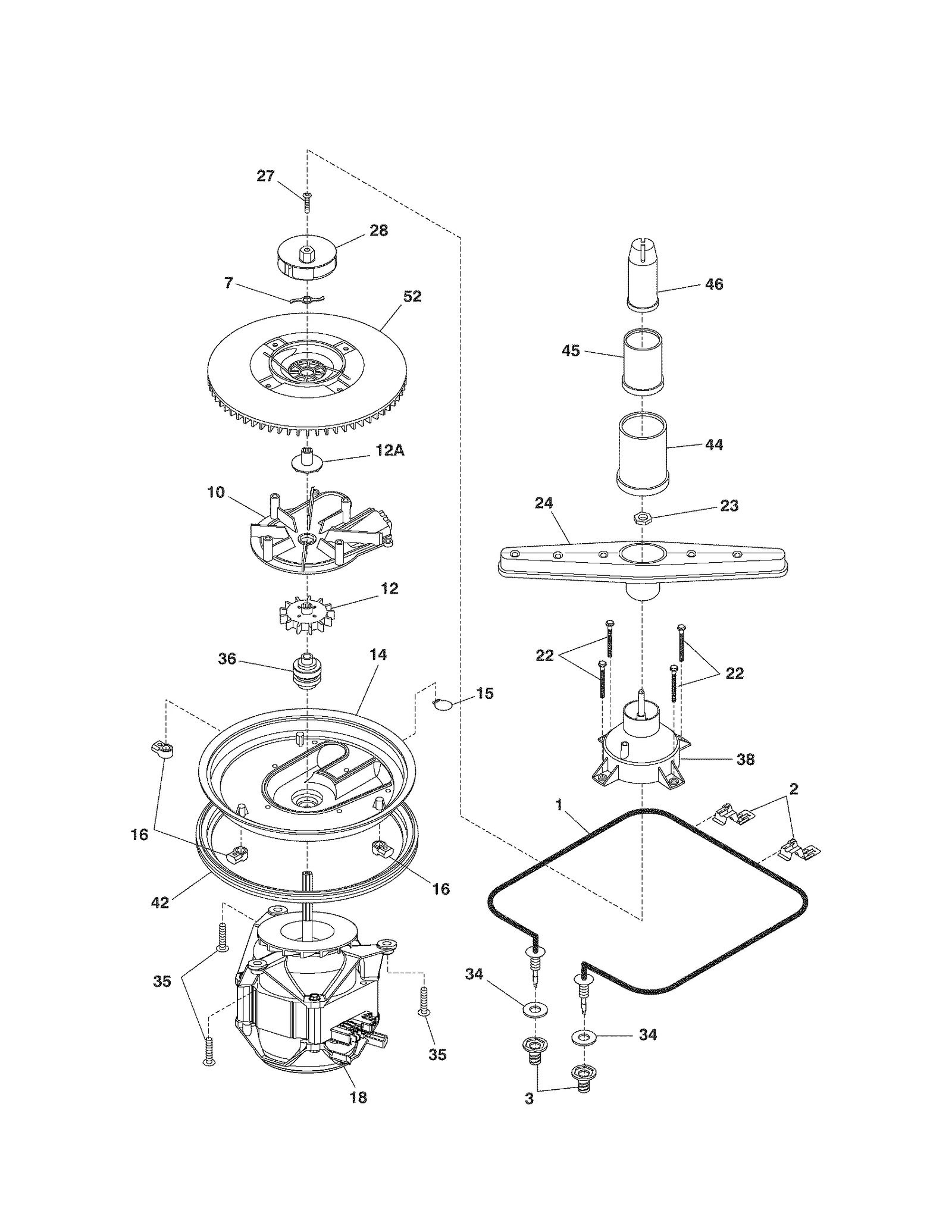

MOTOR & PUMP

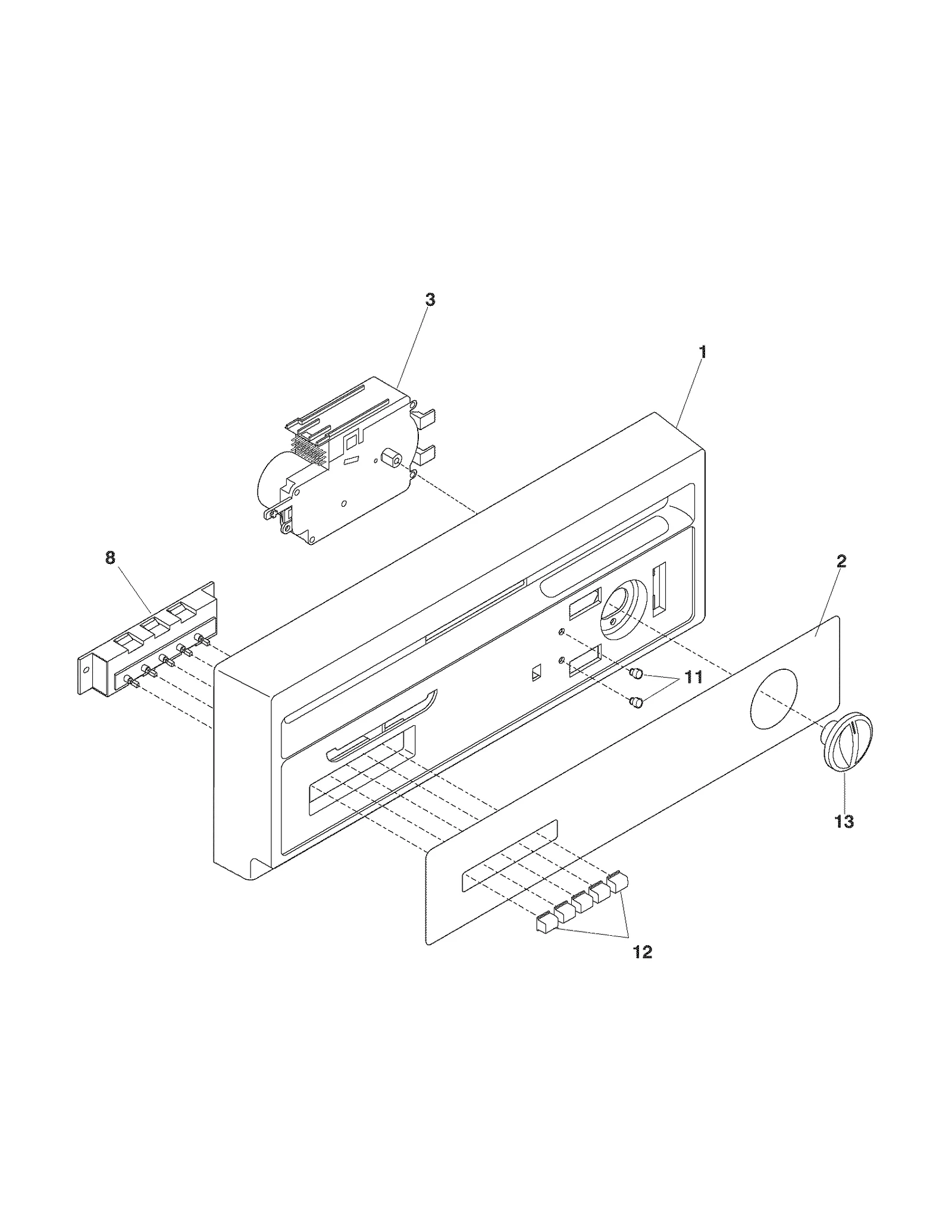

CONTROL PANEL

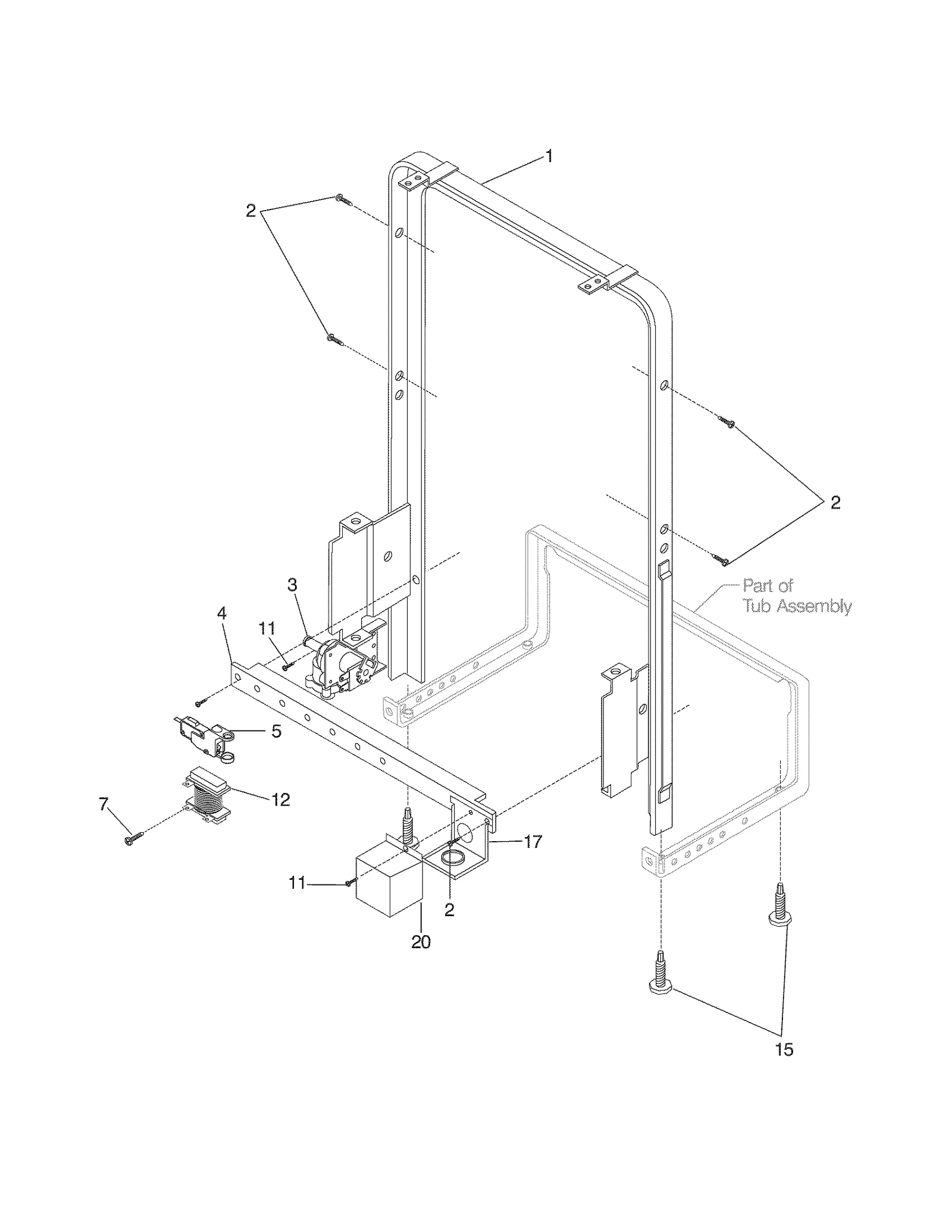

FRAME

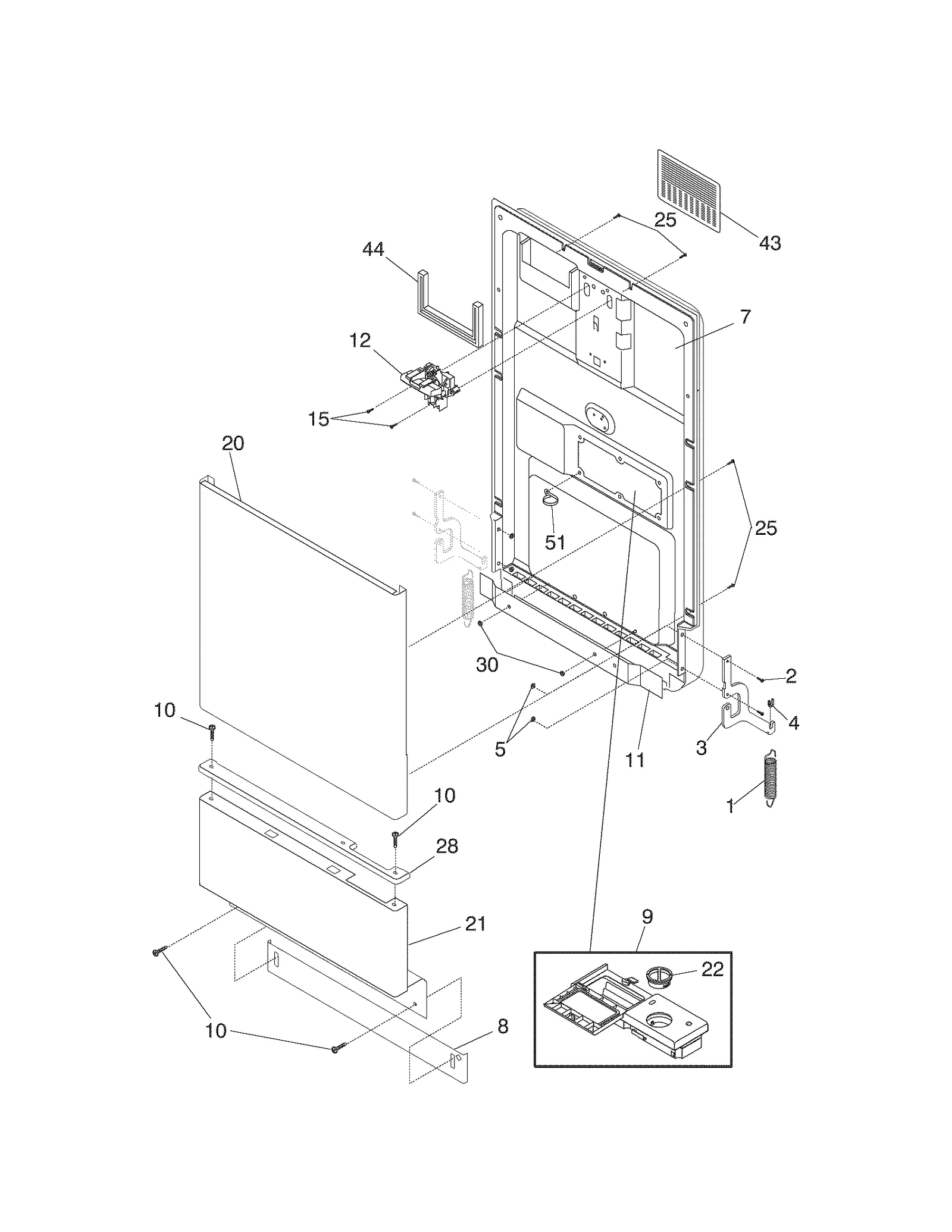

DOOR
Common parts from model Electrolux 587.14538401 Dishwasher (Kenmore 58714538401)
1
Dishwasher Heating Element WCI 154220901 Contact Us For Availability
2
Dishwasher Screw WCI 154200601 Contact Us For Availability
2
Dishwasher Heating Element Support Bracket WCI 154479601 Contact Us For Availability
3
Dishwasher Door Hinge WCI 5303270031 Contact Us For Availability
3
Dishwasher Timer WCI 154432301 Contact Us For Availability
7
Dishwasher Chopper Blade WCI 154365101 Contact Us For Availability
7
Dishwasher Door Inner Panel Assembly WCI 154352201 Contact Us For Availability
8
Switch WCI 154470101 Contact Us For Availability
10
Dishwasher Circulation Pump Volute Cover WCI 154365302 Contact Us For Availability
11
Dishwasher Door Baffle WCI 154221101 Contact Us For Availability
11
Baffle Sea WCI 154221103 Contact Us For Availability
12
Button-switc WCI 154236501 Contact Us For Availability
12A
Dishwasher Circulation Pump Motor Water Sling WCI 154365501 Contact Us For Availability
13
Dishwasher Timer Knob WCI 154236401 Contact Us For Availability
13
Dishwasher Timer Knob WCI 154239504 Contact Us For Availability
14
Dishwasher Pump Base WCI 154364802 Contact Us For Availability
15
Dishwasher Leveling Leg WCI 154419301 Contact Us For Availability
15
Dishwasher Check Valve WCI 154367701 Contact Us For Availability
20
Dishwasher Door Outer Panel WCI 154416103 Contact Us For Availability
20
Dishwasher Panel WCI 154416101 Contact Us For Availability
20
Dishwasher Panel WCI 154416106 Contact Us For Availability
21
Dishwasher Panel WCI 154399501 Contact Us For Availability
21
Dishwasher Access Panel WCI 154399503 Contact Us For Availability
21
Dishwasher Panel WCI 154399506 Contact Us For Availability
23
Dishwasher Spray Arm Nut WCI 154234301 Contact Us For Availability
24
Dishwasher Spray Arm WCI 154219201 Contact Us For Availability
28
Dishwasher Circulation Impeller WCI 154370601 Contact Us For Availability
28
Trim WCI 154400301 Contact Us For Availability
28
Trim WCI 154400303 Contact Us For Availability
30
Dishwasher Door Baffle Nut WCI 154026601 Contact Us For Availability
34
Dishwasher Heating Element Washer WCI 154064901 Contact Us For Availability
36
Dishwasher Pump Impeller Seal WCI 154387601 No Longer Available
42
Dishwasher Drain Pump Seal WCI 154365601 Contact Us For Availability
43
Vent Cover WCI 154229301 Contact Us For Availability
44
Dishwasher Spray Tower, Lower WCI 154122502 Contact Us For Availability
44
Dishwasher Door Vent Gasket WCI 154221001 Contact Us For Availability
45
Dishwasher Spray Tower, Center WCI 154122601 Contact Us For Availability
51
Dishwasher Wire Clamp WCI 154320301 Contact Us For Availability
52
Pump Cover WCI 154365201 Contact Us For Availability
NI
Dishwasher Thermostat WCI 154227808 Contact Us For Availability
NI
Dishwasher Screw WCI 5304428306 Contact Us For Availability
NI
White-Westinghouse Dishwasher Door Hinge WCI 5303298513 Contact Us For Availability
NI
White-Westinghouse Sleeve WCI 154221401 Contact Us For Availability
NI
Screw-vent C WCI 154229401 Contact Us For Availability
NI
Retainer WCI 154395501 Contact Us For Availability
NI
Insulation WCI 154454001 Contact Us For Availability
× ![]()
