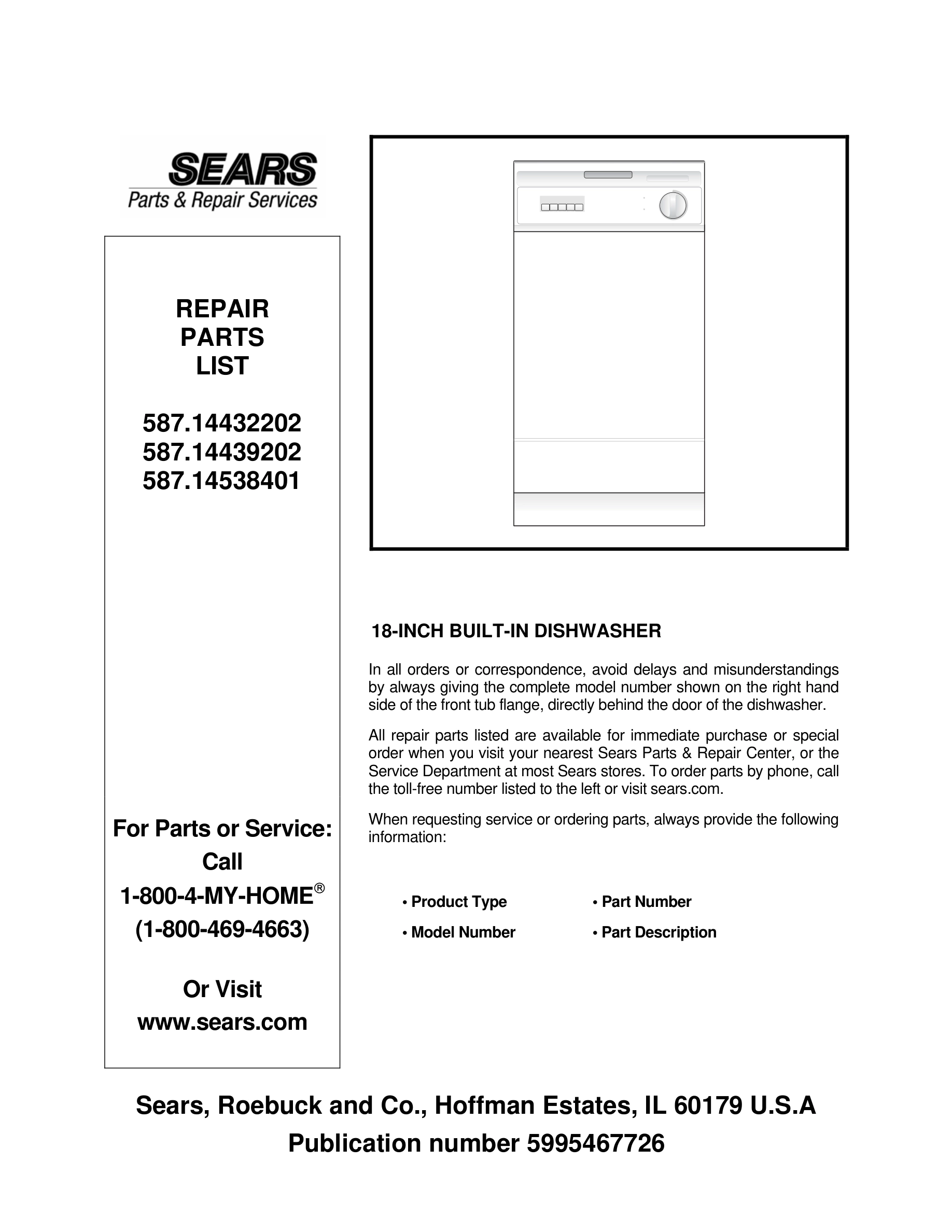

Model Kenmore 587.14432202 DISHWASHER – Common Parts & Diagrams

*
Screw, (2), countertop mtg.
Screw, (2), countertop mtg. WCI 5300807270 Contact Us For Availability
View on Model
*#
Thermostat, temp boost, hi temp wash
Thermostat, temp boost, hi temp wash WCI 154227808 Contact Us For Availability
View on Model
1

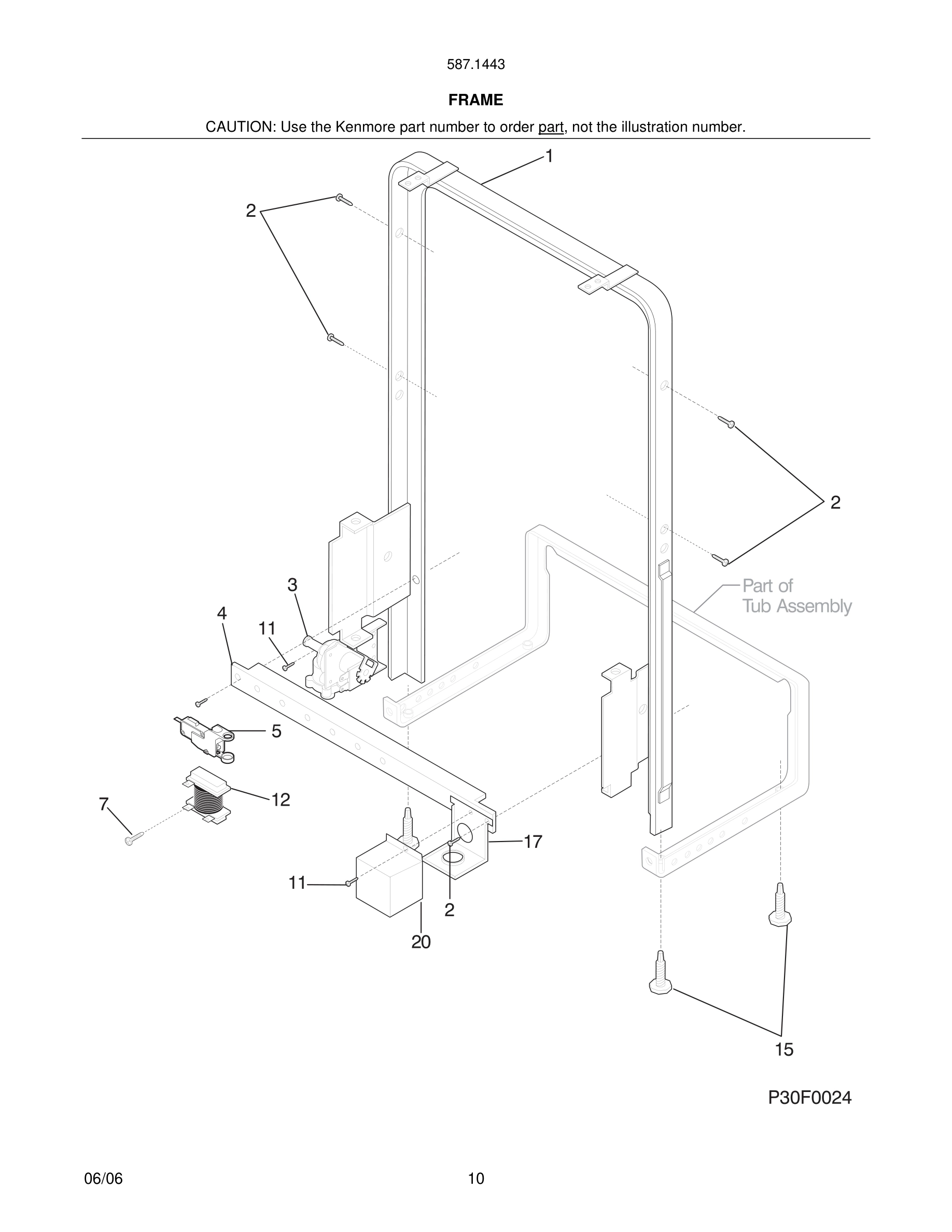

Front frame assy
Front frame assy WCI 154218801 Contact Us For Availability
View on Model
1

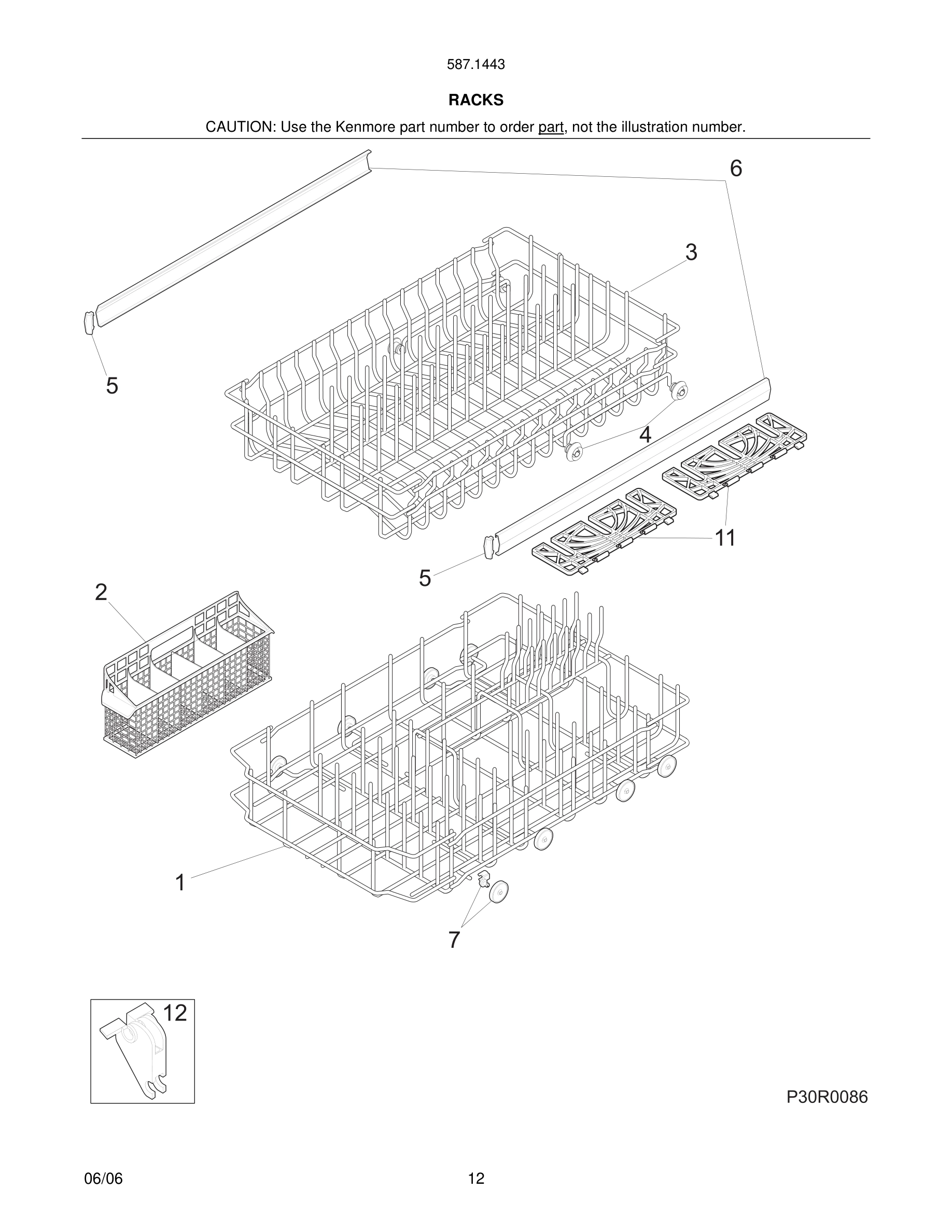

Rack assy, lower
Rack assy, lower WCI 154239102 Contact Us For Availability
View on Model
1#

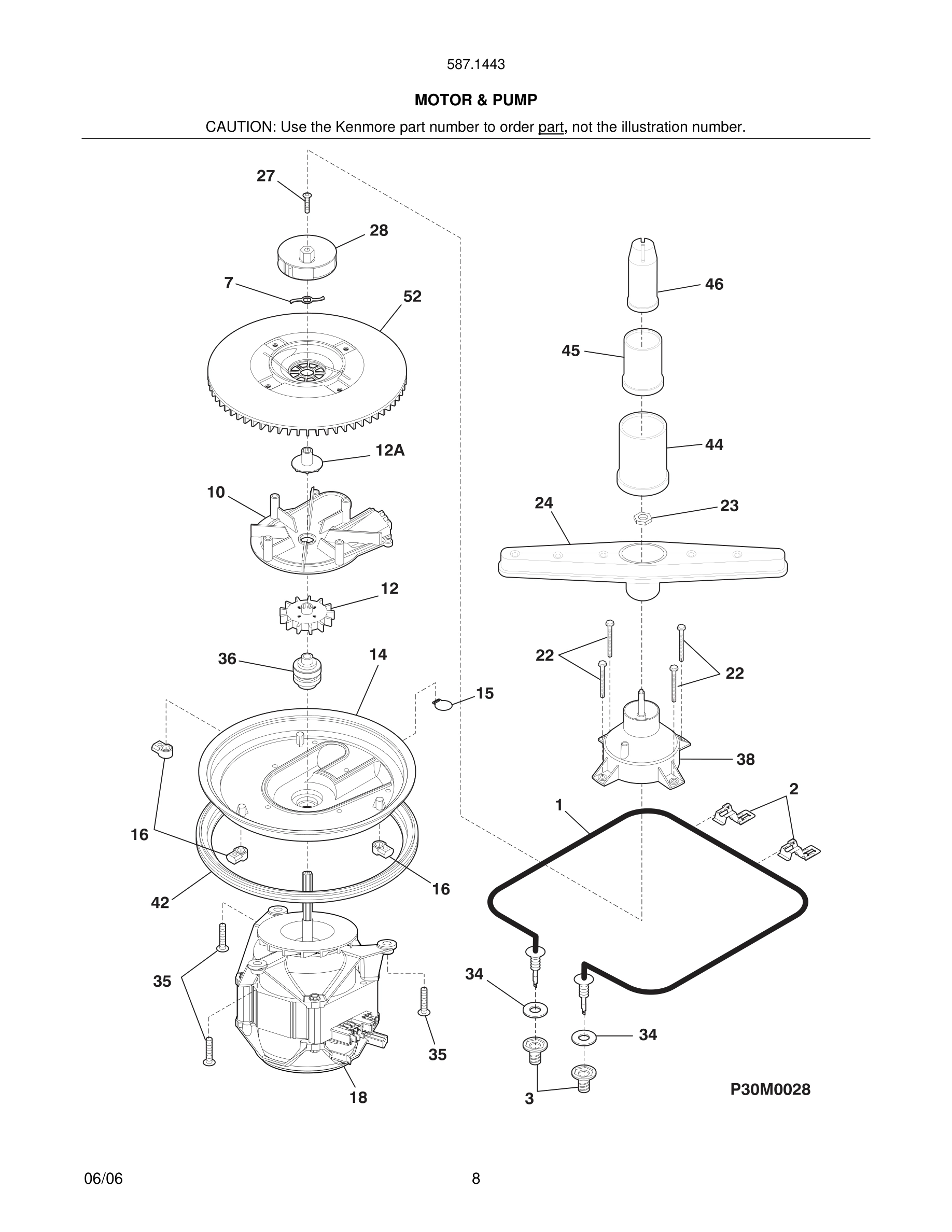

Heater
Heater WCI 154220901 Contact Us For Availability
View on Model
2

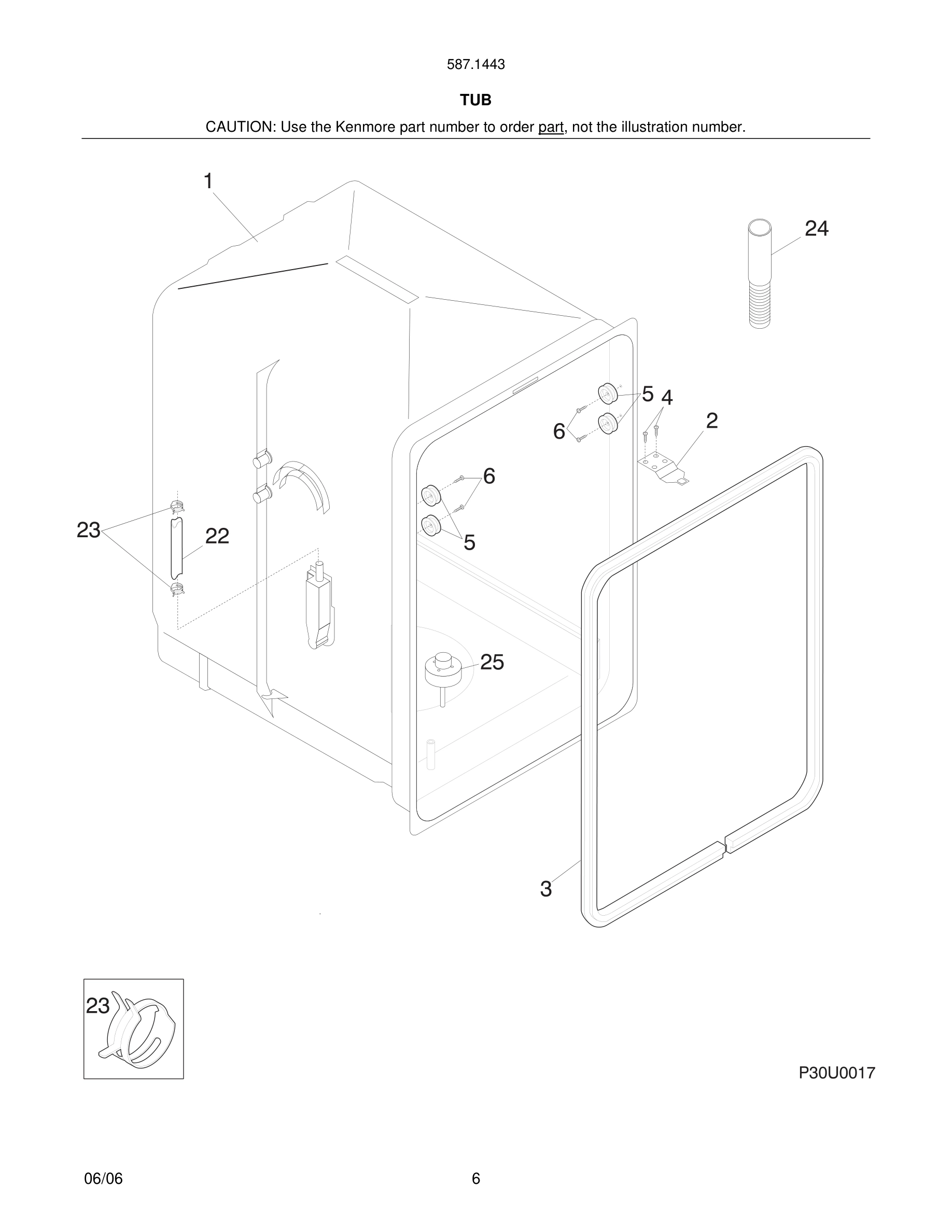

Bracket, heater, (2)
Bracket, heater, (2) WCI 154479601 Contact Us For Availability
View on Model
3
Arm Assy, RH & LH
Arm Assy, RH & LH WCI 5303270031 No Longer Available
View on Model
3
Rack assy, upper
Rack assy, upper WCI 154237502 Contact Us For Availability
View on Model
3#

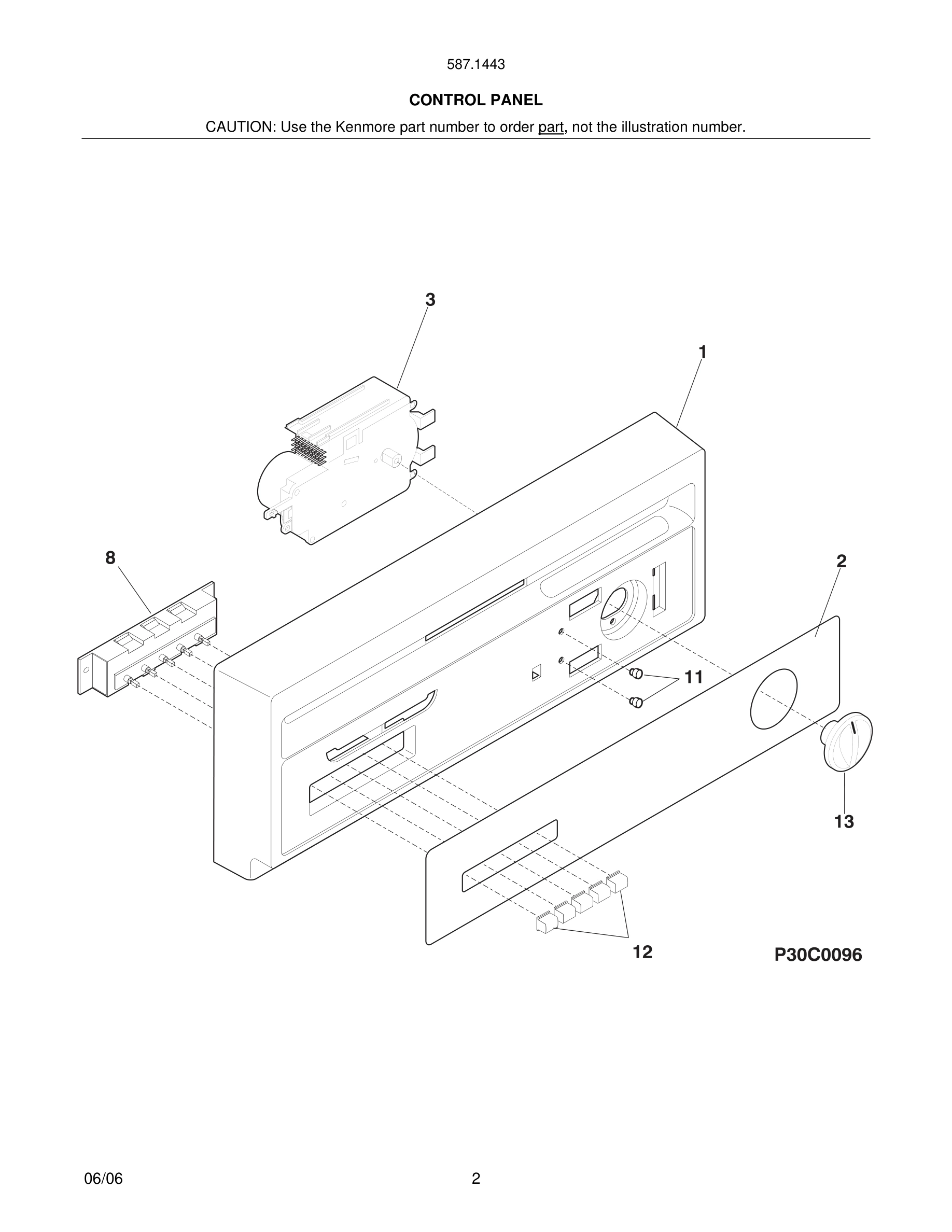

Timer
Timer WCI 154432301 Contact Us For Availability
View on Model
4
Screw, #10-16 x 3/8
Screw, #10-16 x 3/8 WCI 154200601 Contact Us For Availability
View on Model
4
Brace, front frame
Brace, front frame WCI 154219101 Contact Us For Availability
View on Model
7
Macerator
Macerator WCI 154365101 Contact Us For Availability
View on Model
7

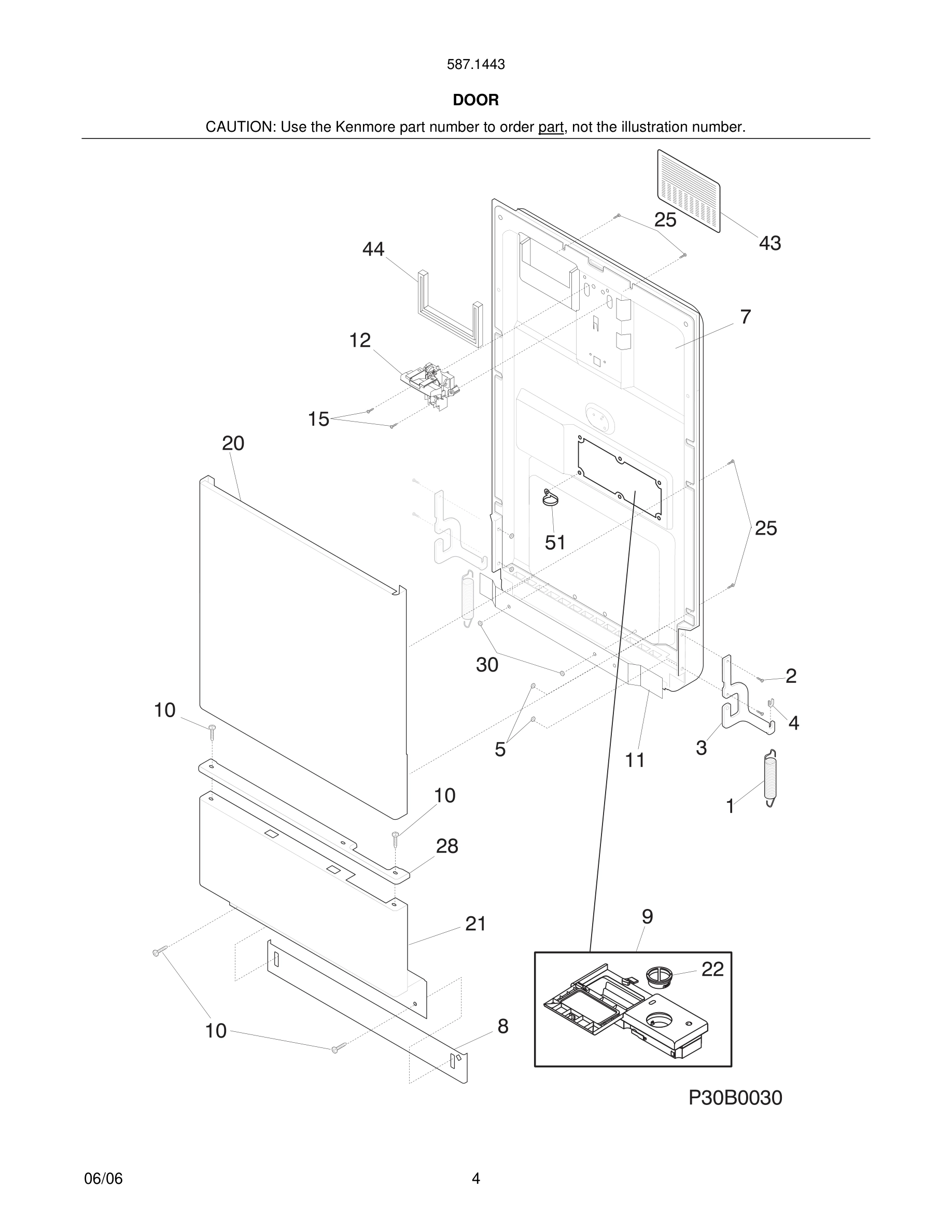

Door, inner assy
Door, inner assy WCI 154352201 Contact Us For Availability
View on Model
7
Screw, start relay
Screw, start relay WCI 5300804672 Contact Us For Availability
View on Model
8#
Switch, selector, 5 button
Switch, selector, 5 button WCI 154470101 Contact Us For Availability
View on Model
10
Cover, volute
Cover, volute WCI 154365302 Contact Us For Availability
View on Model
11
Shelf, cup, half width, white
Shelf, cup, half width, white WCI 154436101 Contact Us For Availability
View on Model
11#
Baffle, door, white
Baffle, door, white WCI 154221101 Contact Us For Availability
View on Model
12
Push Button, black
Push Button, black WCI 154236501 Contact Us For Availability
View on Model
12#
Relay, motor start
Relay, motor start WCI 154380001 Contact Us For Availability
View on Model
12A
Slinger, pump
Slinger, pump WCI 154365501 Contact Us For Availability
View on Model
13
Knob, timer, black
Knob, timer, black WCI 154236401 Contact Us For Availability
View on Model
13
Knob, timer, white
Knob, timer, white WCI 154239504 Contact Us For Availability
View on Model
14
Housing, pump
Housing, pump WCI 154364802 Contact Us For Availability
View on Model
15
Screw, leveling
Screw, leveling WCI 154419301 No Longer Available
View on Model
15#
Check valve
Check valve WCI 154367701 Contact Us For Availability
View on Model
17
Bracket, junction box
Bracket, junction box WCI 154112901 Contact Us For Availability
View on Model
20
Panel, outer door assy, black
Panel, outer door assy, black WCI 154416103 Contact Us For Availability
View on Model
20
Cover, junction box
Cover, junction box WCI 154128304 Contact Us For Availability
View on Model
20*
Screw, door mtg., (2)
Screw, door mtg., (2) WCI 5304428306 Contact Us For Availability
View on Model
23
Nut, spray arm
Nut, spray arm WCI 154234301 Contact Us For Availability
View on Model
24
Spray arm, lower
Spray arm, lower WCI 154219201 Contact Us For Availability
View on Model
28
Impeller, upper
Impeller, upper WCI 154370601 No Longer Available
View on Model
34
Washer, insulating
Washer, insulating WCI 154064901 Contact Us For Availability
View on Model
36
Sleeve & seal assy.
Sleeve & seal assy. WCI 154387601 No Longer Available
View on Model
42
Gasket, pump
Gasket, pump WCI 154365601 Contact Us For Availability
View on Model
44
Base, tower
Base, tower WCI 154122502 Contact Us For Availability
View on Model
44
Gasket, vent cover
Gasket, vent cover WCI 154221001 Contact Us For Availability
View on Model
45
Middle, tower
Middle, tower WCI 154122601 Contact Us For Availability
View on Model
46
Tip, tower
Tip, tower WCI 154122701 Contact Us For Availability
View on Model
51
Clamp, drip loop, wire
Clamp, drip loop, wire WCI 154320301 Contact Us For Availability
View on Model
52
Cover, pump housing
Cover, pump housing WCI 154365201 Contact Us For Availability
View on Model
