Model Electrolux 587.14403400 Dishwasher (Kenmore 58714403400) – Common Parts & Diagrams

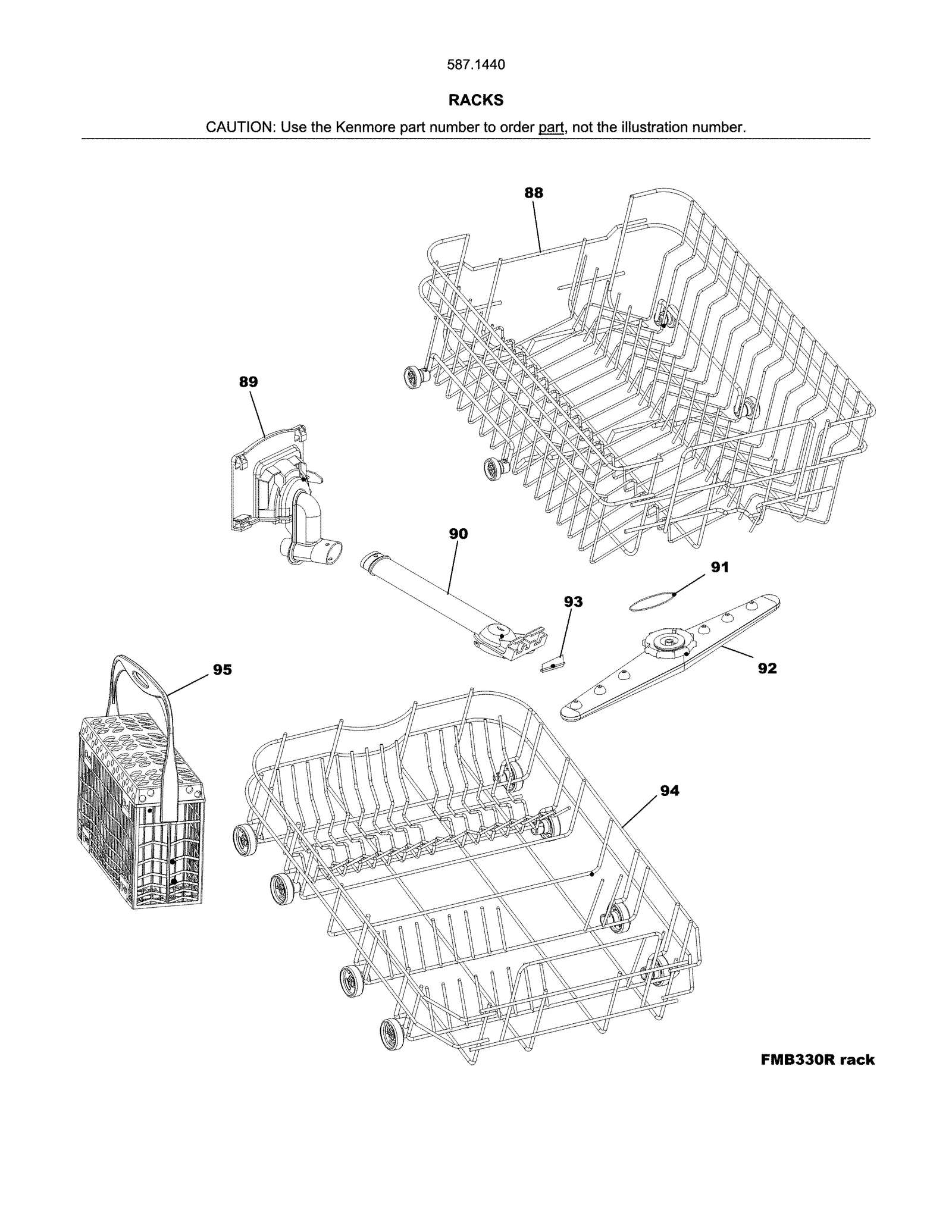

RACKS

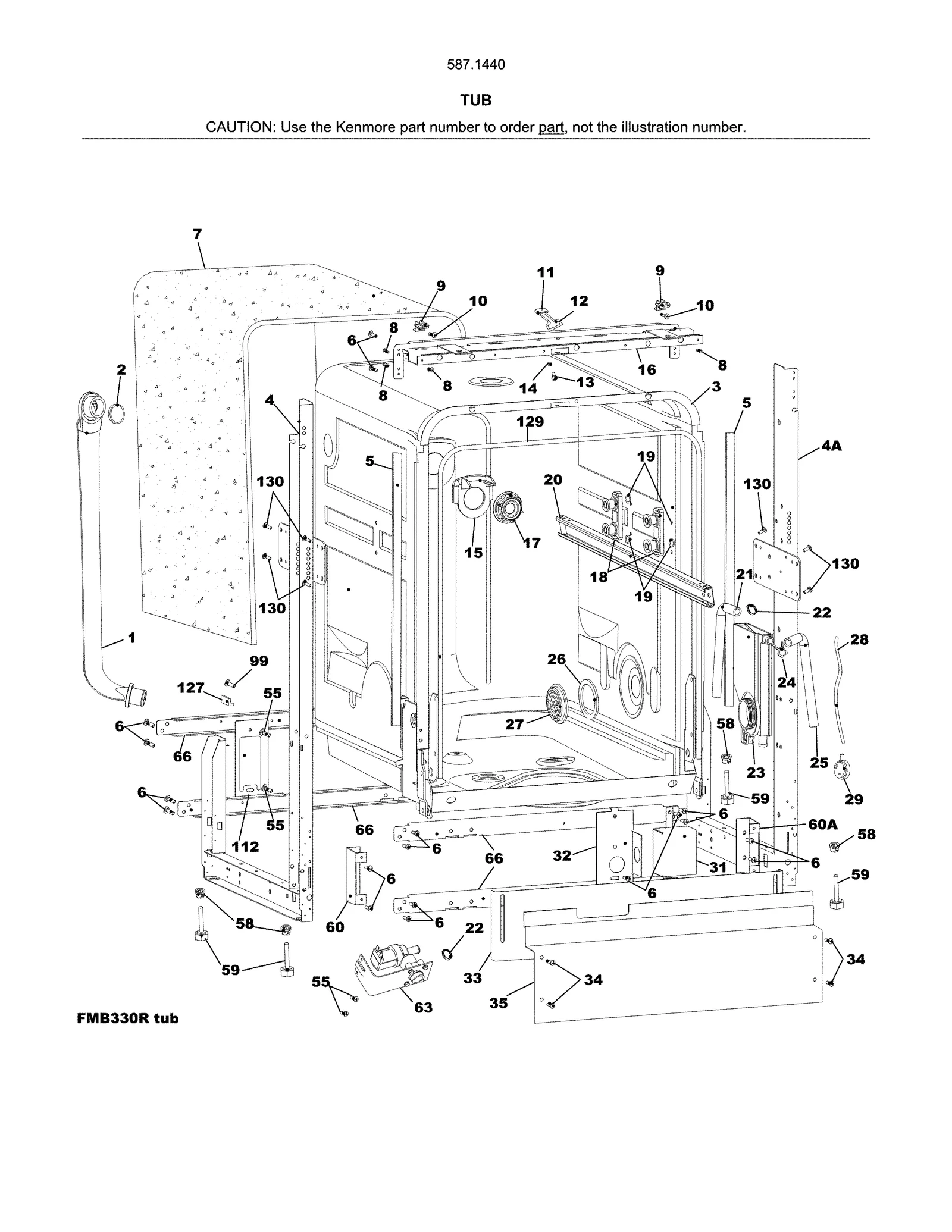

TUB
DOOR / CONTROL PANEL
MOTOR & PUMP
Common parts from model Electrolux 587.14403400 Dishwasher (Kenmore 58714403400)
2
Dishwasher O-Ring WCI 5304460950 Contact Us For Availability
5
Dishwasher Tub Seal WCI 5304460954 Contact Us For Availability
11
Dishwasher Door Strike Bracket WCI 5304460960 Contact Us For Availability
12
Hook WCI 5304460961 Contact Us For Availability
13
Dishwasher Screw WCI 5304460962 Contact Us For Availability
14
Nut WCI 5304460963 Contact Us For Availability
17
Dishwasher Water Inlet Port Nut WCI 5304460965 Contact Us For Availability
18
Dishwasher Dishrack Track Roller Assembly WCI 5304460966 Contact Us For Availability
20
Dishwasher Dishrack Slide Rail WCI 5304460968 Contact Us For Availability
22
Dishwasher Hose Clamp WCI 5304460970 Contact Us For Availability
26
Gasket WCI 5304460974 Contact Us For Availability
27
Nut WCI 5304460975 Contact Us For Availability
28
Dishwasher Water-Level Pressure Switch Hose WCI 5304460976 Contact Us For Availability
29
Dishwasher Water-Level Pressure Switch WCI 5304460977 Contact Us For Availability
33
Dishwasher Toe Panel WCI 5304461718 Contact Us For Availability
35
Kick Plate WCI 5304461722 Contact Us For Availability
44
Gasket WCI 5304460917 Contact Us For Availability
48
Dishwasher Door Switch WCI 5304460920 Contact Us For Availability
49
Dishwasher Door Outer Panel (Stainless) WCI 5304461713 Contact Us For Availability
53
Dishwasher Timer WCI 5304460927 Contact Us For Availability
56
Dishwasher Control Panel Insert (Black) WCI 5304460932 Contact Us For Availability
57
Dishwasher Timer Knob (Black) WCI 5304460934 Contact Us For Availability
63
Dishwasher Water Inlet Valve WCI 5304460982 Contact Us For Availability
72
Screw WCI 5304460941 Contact Us For Availability
73
Spring WCI 5304460942 Contact Us For Availability
75
Hinge WCI 5304460943 Contact Us For Availability
76
Dishwasher Door Spring Retainer WCI 5304460944 Contact Us For Availability
77
Dishwasher Hinge WCI 5304460945 Contact Us For Availability
78
Dishwasher Nut, 5-mm WCI 5304460946 Contact Us For Availability
79
Pin WCI 5304460947 Contact Us For Availability
80
Screw WCI 5304460948 Contact Us For Availability
81
Dishwasher Filter, Upper WCI 5304460990 Contact Us For Availability
82
Dishwasher Filter WCI 5304460991 Contact Us For Availability
83
Dishwasher Lower Filter WCI 5304460992 Contact Us For Availability
84
Dishwasher Circulation Pump Micro Filter WCI 5304460993 Contact Us For Availability
85
Dishwasher Sump Retainer WCI 5304460994 Contact Us For Availability
86
Dishwasher Sump Gasket WCI 5304460995 Contact Us For Availability
87
Dishwasher Sump WCI 5304460996 Contact Us For Availability
88
Dishwasher Dishrack, Upper WCI 5304461016 Contact Us For Availability
89
Dishwasher Dishrack Spray Arm Mount WCI 5304461017 Contact Us For Availability
90
Dishwasher Spray Arm Manifold WCI 5304461018 Contact Us For Availability
92
Dishwasher Spray Arm, Upper WCI 5304461020 Contact Us For Availability
93
Block WCI 5304461021 Contact Us For Availability
94
Dishwasher Dishrack, Lower WCI 5304461022 Contact Us For Availability
96
Dishwasher Hose Clamp WCI 5304460997 Contact Us For Availability
97
Dishwasher Drain Pump WCI 5304461725 No Longer Available
98
Nut WCI 5304460998 Contact Us For Availability
99
Screw WCI 5304460984 Contact Us For Availability
100
Dishwasher Hose Clamp WCI 5304460999 Contact Us For Availability
102
Dishwasher Circulation Pump Inlet Connector WCI 5304461000 Contact Us For Availability
103
Dishwasher Sump-to-Drain-Pump Hose WCI 5304461001 Contact Us For Availability
104
Bracket WCI 5304461726 Contact Us For Availability
105
Clamp WCI 5304461002 Contact Us For Availability
107
Dishwasher Thermostat WCI 5304461727 Contact Us For Availability
108
Dishwasher Circulation Pump Drain Hose WCI 5304461004 Contact Us For Availability
109
Dishwasher High-Limit Thermostat, 90-degree WCI 5304461728 Contact Us For Availability
110
Dishwasher Circulation Pump WCI 5304461005 Contact Us For Availability
111
Dishwasher Pump Motor Vibration Pad WCI 5304461006 Contact Us For Availability
112
Bracket WCI 5304460985 Contact Us For Availability
116
Support WCI 5304461007 Contact Us For Availability
117
Dishwasher Pump O-Ring WCI 5304461008 Contact Us For Availability
118
Connector WCI 5304461009 Contact Us For Availability
119
Connector WCI 5304461010 Contact Us For Availability
120
Nut WCI 5304461011 Contact Us For Availability
121
Dishwasher Spray Arm WCI 5304461012 Contact Us For Availability
122
Bracket WCI 5304461013 Contact Us For Availability
123
Dishwasher Heater WCI 5304461014 Contact Us For Availability
NI
Service Data Sheet WCI 5304461811 Contact Us For Availability
NI
Dishwasher Installation WCI 5304461812 Contact Us For Availability
NI
Energy Guide WCI 5304461813 Contact Us For Availability
NI
Repair Parts WCI 5995695839 Contact Us For Availability
NI
Dishwasher Wire Harness WCI 5304461015 Contact Us For Availability
× ![]()
