Model Kenmore 587.14402400 DISHWASHER – Common Parts & Diagrams

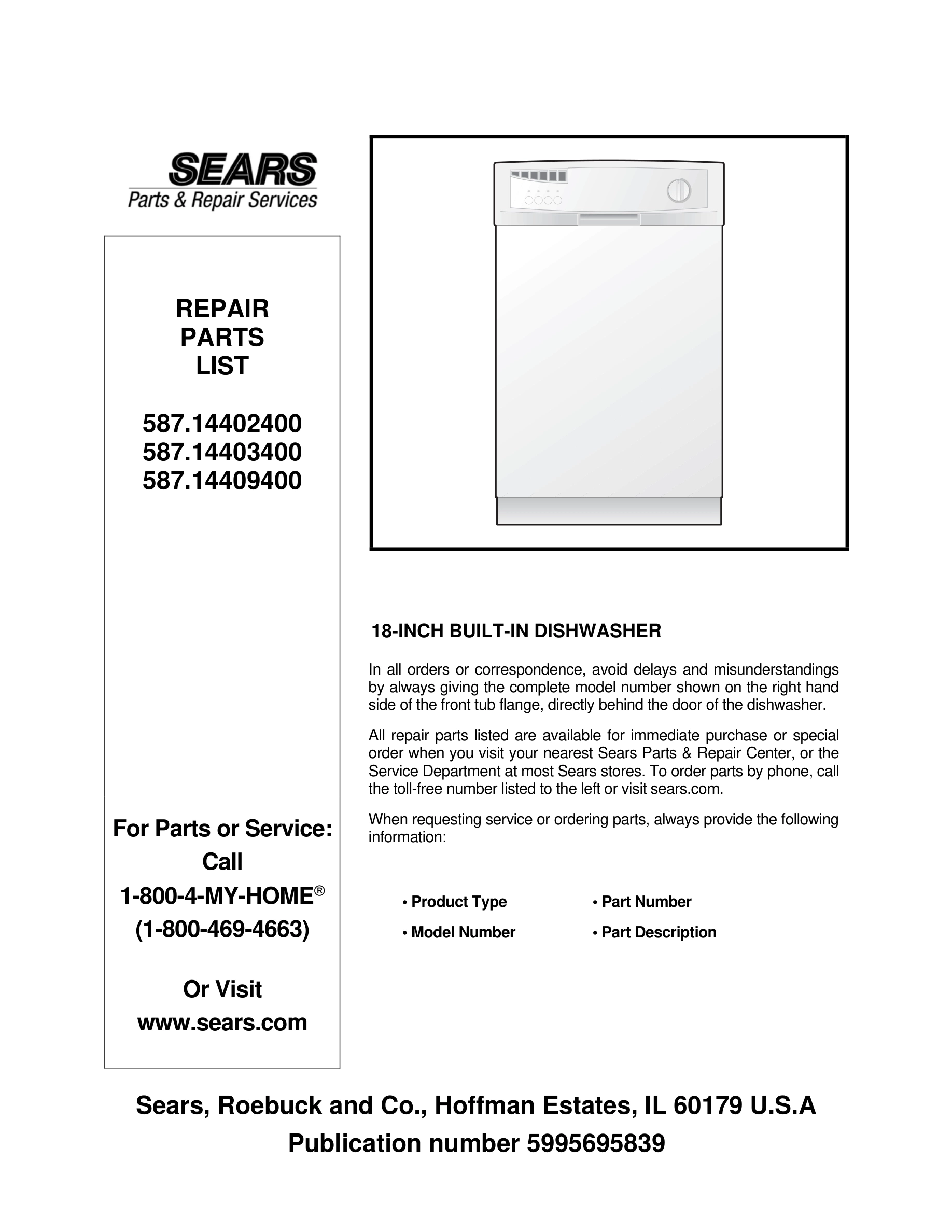

01 - COVER

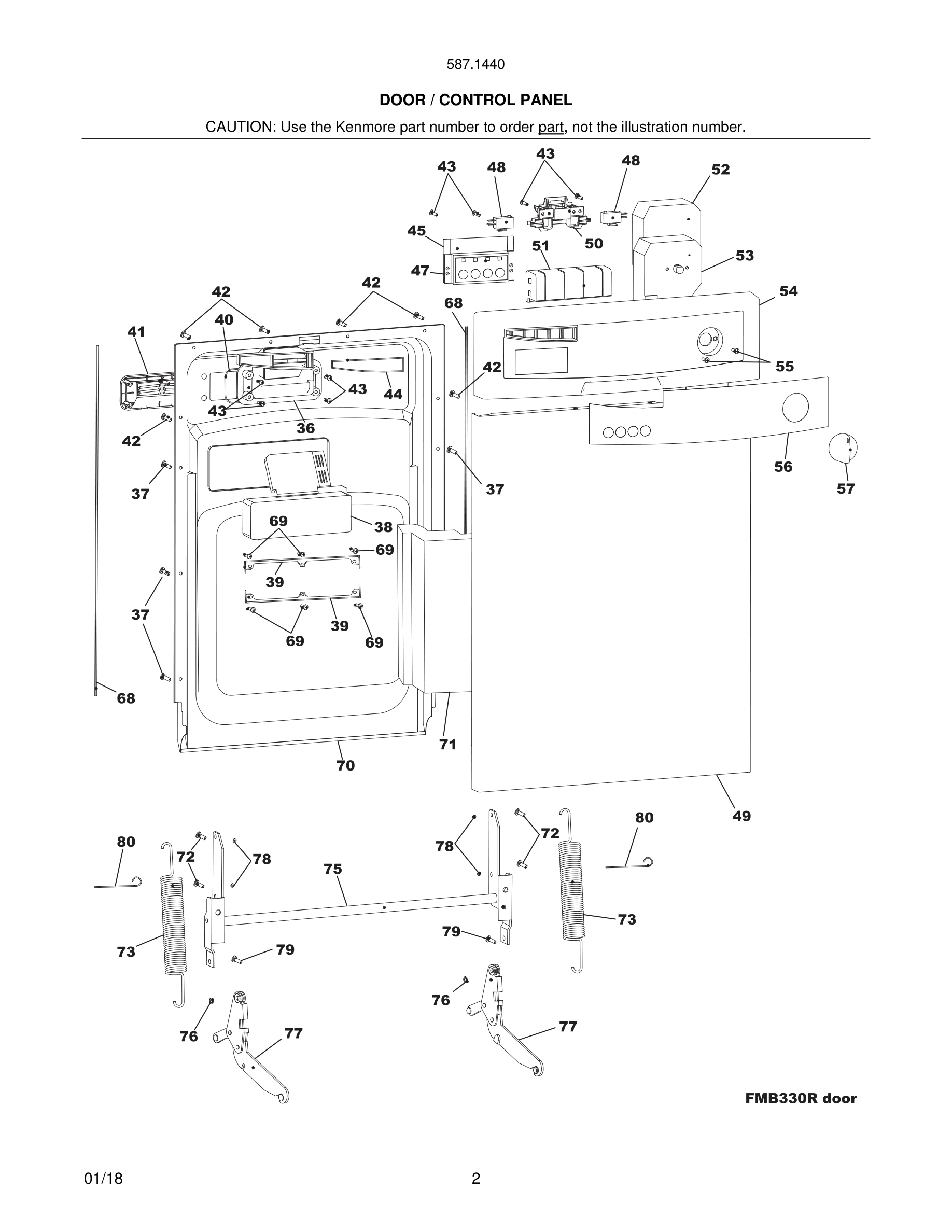

03 - DOOR / CONTROL PANEL

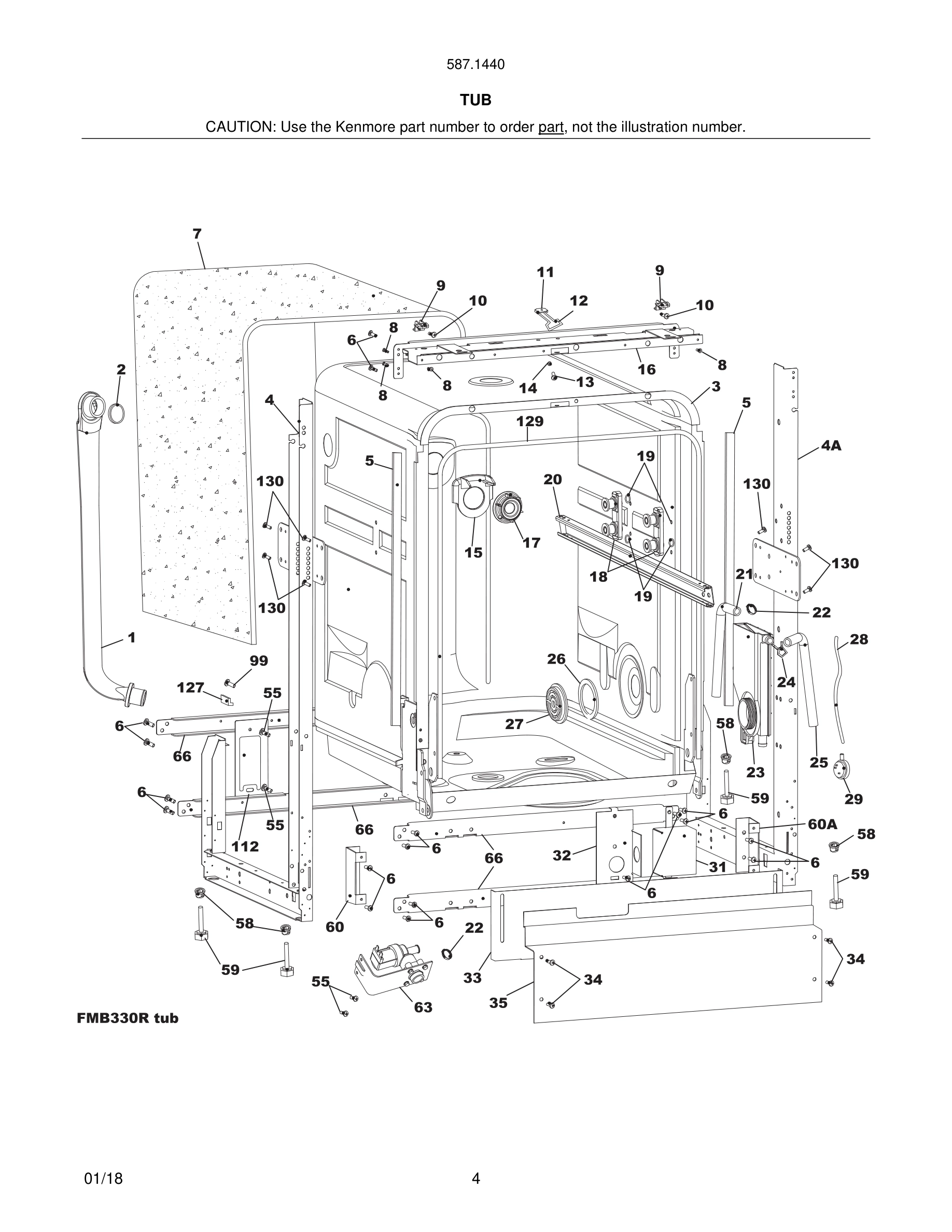

05 - TUB

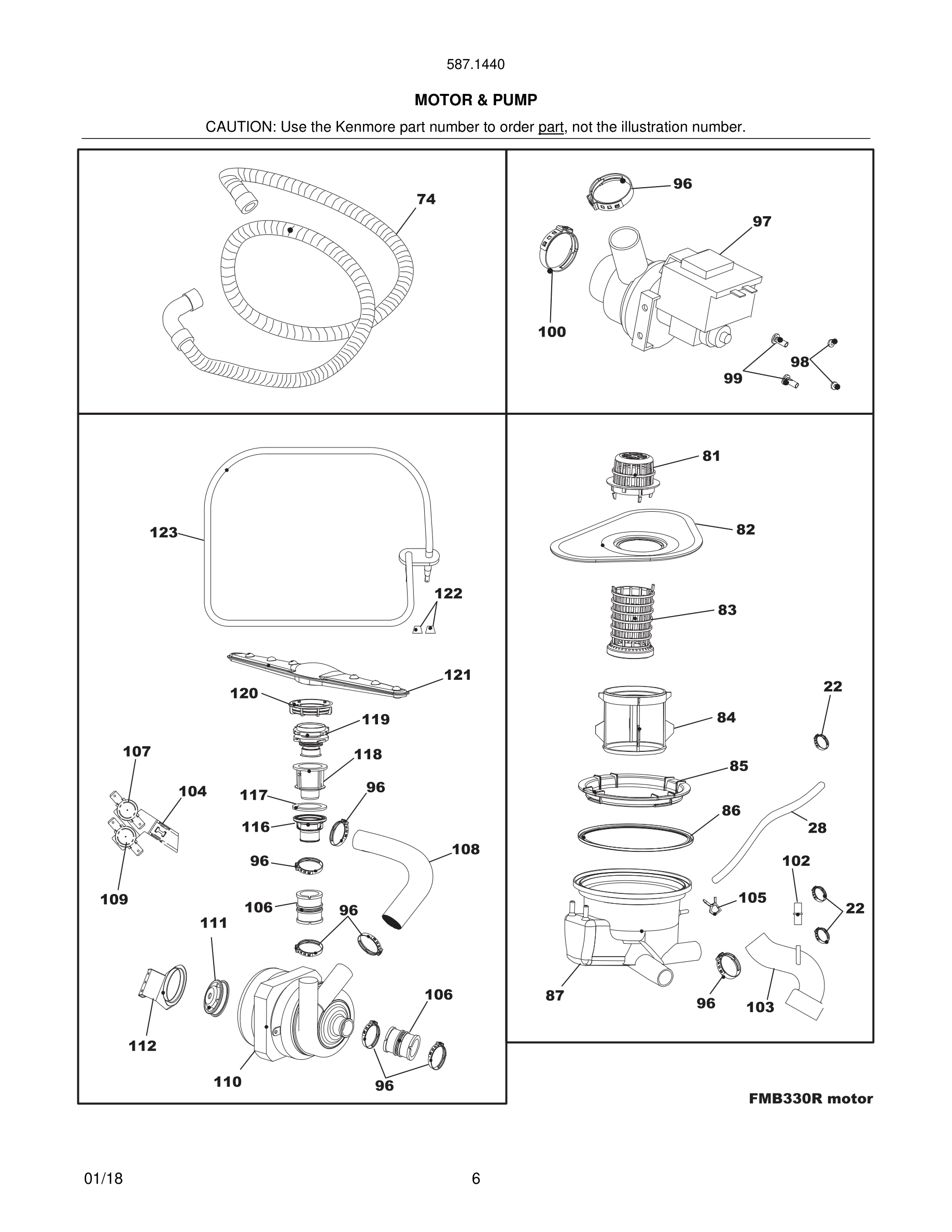

07 - MOTOR & PUMP

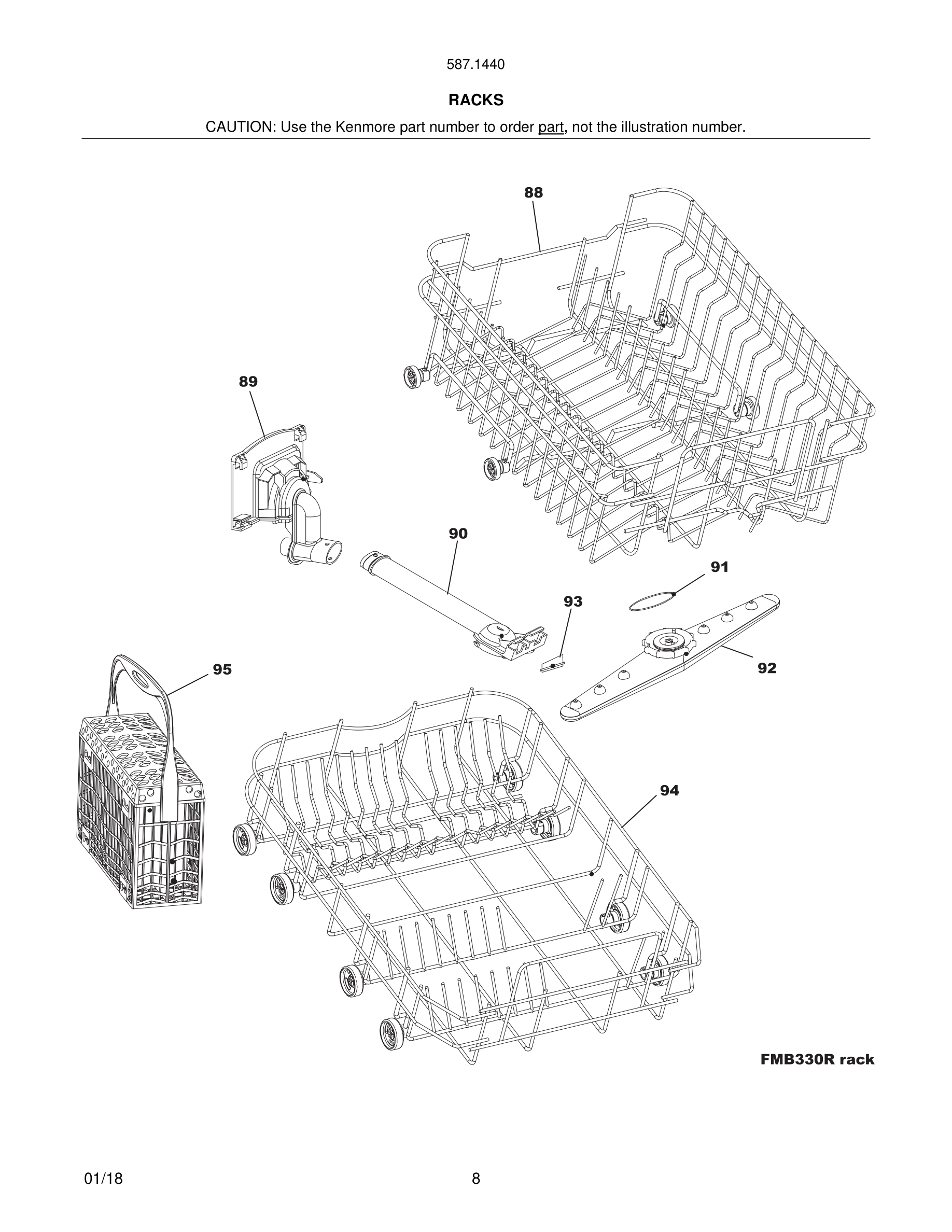

09 - RACKS
Common parts from model Kenmore 587.14402400 DISHWASHER
*#
Harness, wiring, main WCI 5304461015 Contact Us For Availability
2
O-ring, delivery hose WCI 5304460950 Contact Us For Availability
5
Guard, tub gasket, black, (2) WCI 5304460954 Contact Us For Availability
11
Bracket, door hook mtg WCI 5304460960 Contact Us For Availability
12
Hook, door lock WCI 5304460961 Contact Us For Availability
13
Screw, hook mtg, m4 x 16 WCI 5304460962 Contact Us For Availability
14
Nut, hook mtg, M4, lock WCI 5304460963 Contact Us For Availability
17
Nut, delivery hose, inner WCI 5304460965 Contact Us For Availability
18
Roller Assembly, tub, (4) WCI 5304460966 No Longer Available
20
Rail, guide, upper rack, (2) WCI 5304460968 Contact Us For Availability
26
Gasket, ring nut WCI 5304460974 Contact Us For Availability
27
Nut, ring WCI 5304460975 Contact Us For Availability
28
Tubing, pressure switch WCI 5304460976 Contact Us For Availability
29#
Switch, pressure WCI 5304460977 Contact Us For Availability
33
Toe Grille, adjustable, white WCI 5304461718 Contact Us For Availability
35
Kickplate, white WCI 5304461722 Contact Us For Availability
44
Gasket, door vent, outer door WCI 5304460917 Contact Us For Availability
48#
Switch, door latch, (2) WCI 5304460920 Contact Us For Availability
49
Door Panel, outer, stainless WCI 5304461713 Contact Us For Availability
53#
Timer Assembly WCI 5304460927 Contact Us For Availability
55
Screw, hex hd, tapping, st5 x 12, (6) WCI 5304460930 Contact Us For Availability
56
Overlay, console, black WCI 5304460932 Contact Us For Availability
57
Knob, timer, black WCI 5304460934 Contact Us For Availability
58
Nut, leveling leg, (4) WCI 5304460980 Contact Us For Availability
59
Leg, leveling, (4) WCI 5304460981 Contact Us For Availability
60
Bracket, kickplate mtg, LH WCI 5304461723 Contact Us For Availability
60A
Bracket, kickplate mtg, RH WCI 5304461724 Contact Us For Availability
63#
Valve, water inlet WCI 5304460982 Contact Us For Availability
66
Crosspiece, lower, (4) WCI 5304460983 Contact Us For Availability
73
Spring, door, (2) WCI 5304460942 Contact Us For Availability
77
Hinge, arm, (2) WCI 5304460945 Contact Us For Availability
80
Bolt, door spring, (2) WCI 5304460948 Contact Us For Availability
81
Filter, upper WCI 5304460990 Contact Us For Availability
82
Filter, screen, stainless WCI 5304460991 Contact Us For Availability
83
Filter, lower WCI 5304460992 Contact Us For Availability
84
Filter, micro screen WCI 5304460993 Contact Us For Availability
85
Nut, sump mtg WCI 5304460994 Contact Us For Availability
86
Gasket, sump WCI 5304460995 Contact Us For Availability
87
Sump WCI 5304460996 Contact Us For Availability
88
Rack Assembly, upper WCI 5304461016 Contact Us For Availability
90
Pipe, sprayarm, upper WCI 5304461018 Contact Us For Availability
92
Sprayarm, upper WCI 5304461020 Contact Us For Availability
93
Block, sprayarm, upper WCI 5304461021 Contact Us For Availability
94
Rack Assembly, lower WCI 5304461022 Contact Us For Availability
96
Clamp, hose, OTK310, (8) WCI 5304460997 Contact Us For Availability
97#
Pump, drain WCI 5304461725 No Longer Available
98
Nut, M4, (2) WCI 5304460998 Contact Us For Availability
99
Screw, m6 x 12, (3) WCI 5304460984 Contact Us For Availability
100
Clamp, hose, OTK440 WCI 5304460999 Contact Us For Availability
102
Hose, pump, inlet WCI 5304461000 Contact Us For Availability
103
Hose, duct to pump WCI 5304461001 Contact Us For Availability
104
Bracket, thermostat WCI 5304461726 Contact Us For Availability
105
Clamp, hose, 12.9 x 1.8 WCI 5304461002 Contact Us For Availability
107#
Thermostat, 50 WCI 5304461727 Contact Us For Availability
108
Duct, connecting, delivery hose WCI 5304461004 Contact Us For Availability
109#
Thermostat, 90 WCI 5304461728 Contact Us For Availability
110#
Motor, pump assembly WCI 5304461005 Contact Us For Availability
111
Pad, motor vibration WCI 5304461006 Contact Us For Availability
112
Bracket, motor support WCI 5304460985 Contact Us For Availability
116
Support, manifold, lower WCI 5304461007 Contact Us For Availability
117
O-ring, 38 x 2.4 WCI 5304461008 Contact Us For Availability
118
Tie-in, inner WCI 5304461009 Contact Us For Availability
120
Nut, sprayarm, lower WCI 5304461011 Contact Us For Availability
121
Sprayarm Assembly, lower WCI 5304461012 Contact Us For Availability
122
Bracket, element, (2) WCI 5304461013 Contact Us For Availability
123#
Element Assembly, heating WCI 5304461014 Contact Us For Availability
127
Block, tub gasket, (2) WCI 5304460986 Contact Us For Availability
130
Screw, hex hd, tapping, st5 x 20, (8) WCI 5304460988 Contact Us For Availability
× ![]()
