Model Kenmore 587.14202200 DISHWASHER – Common Parts & Diagrams

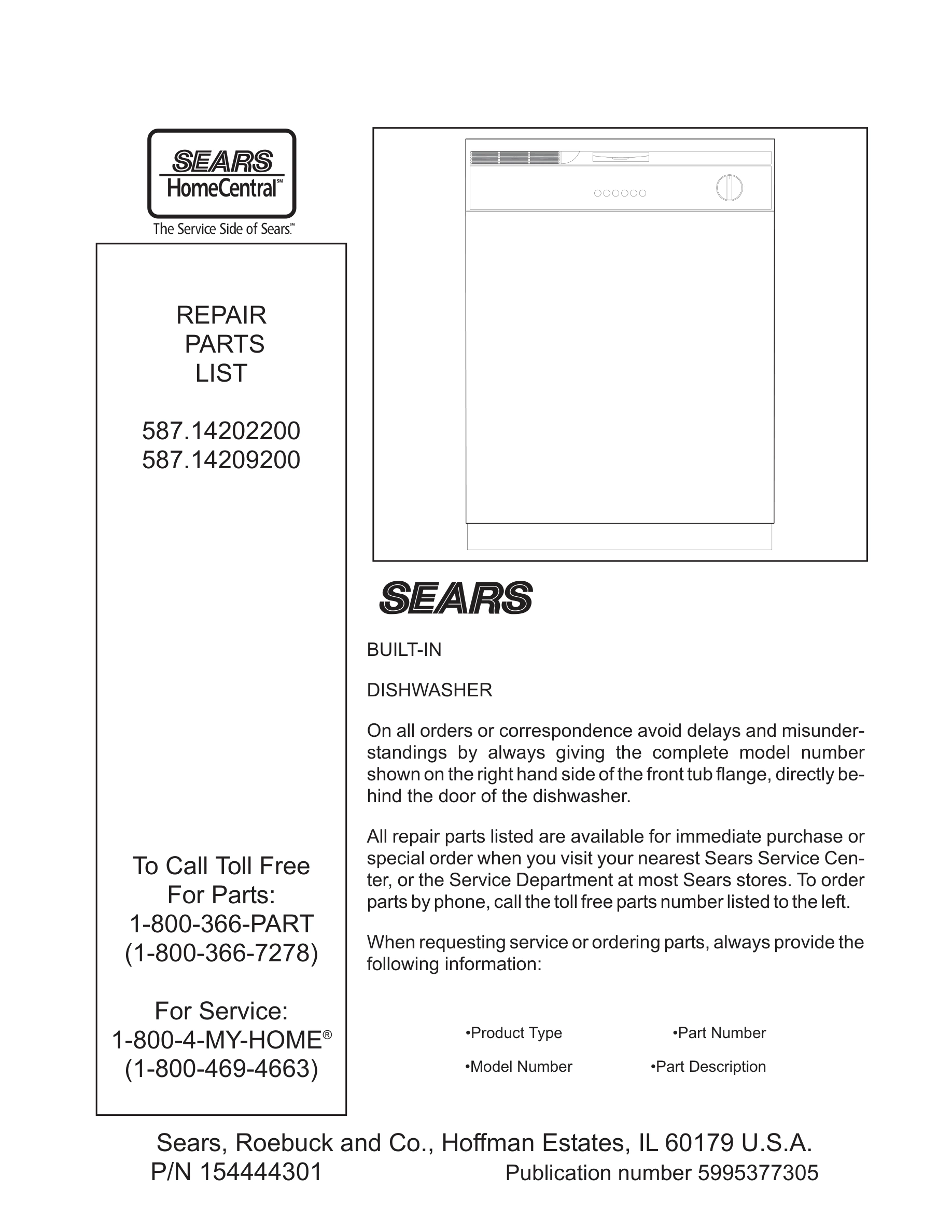

01 - COVER

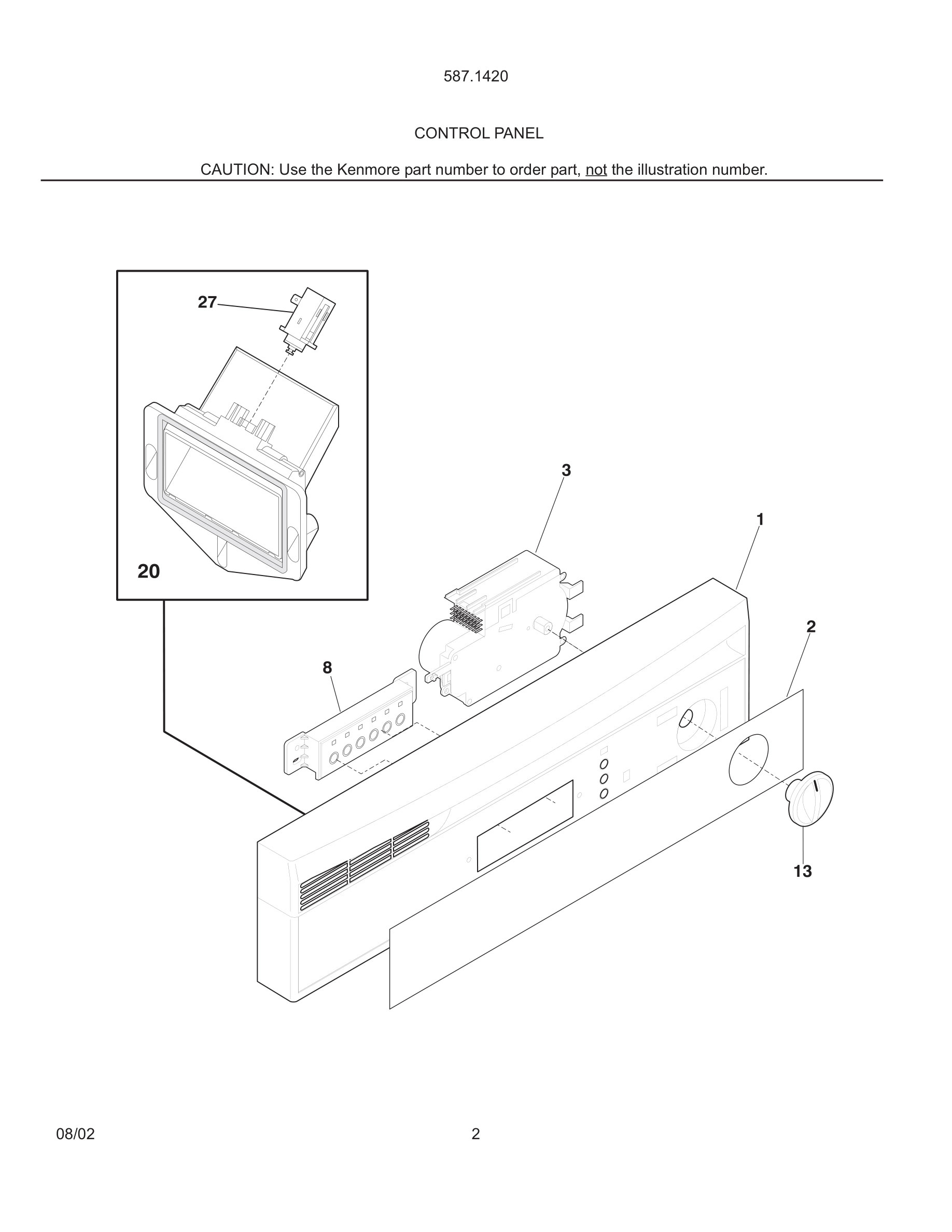

03 - CONTROL PANEL

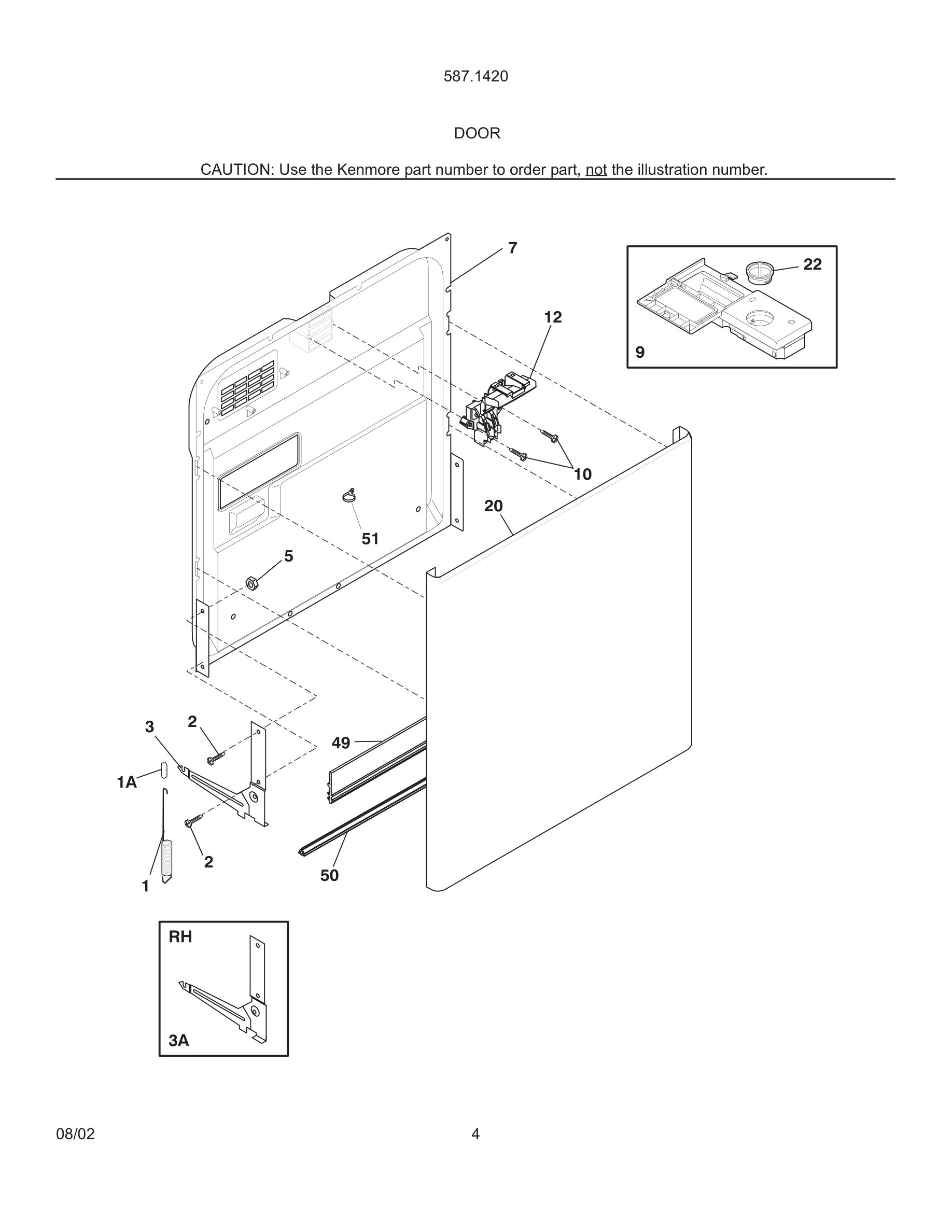

05 - DOOR

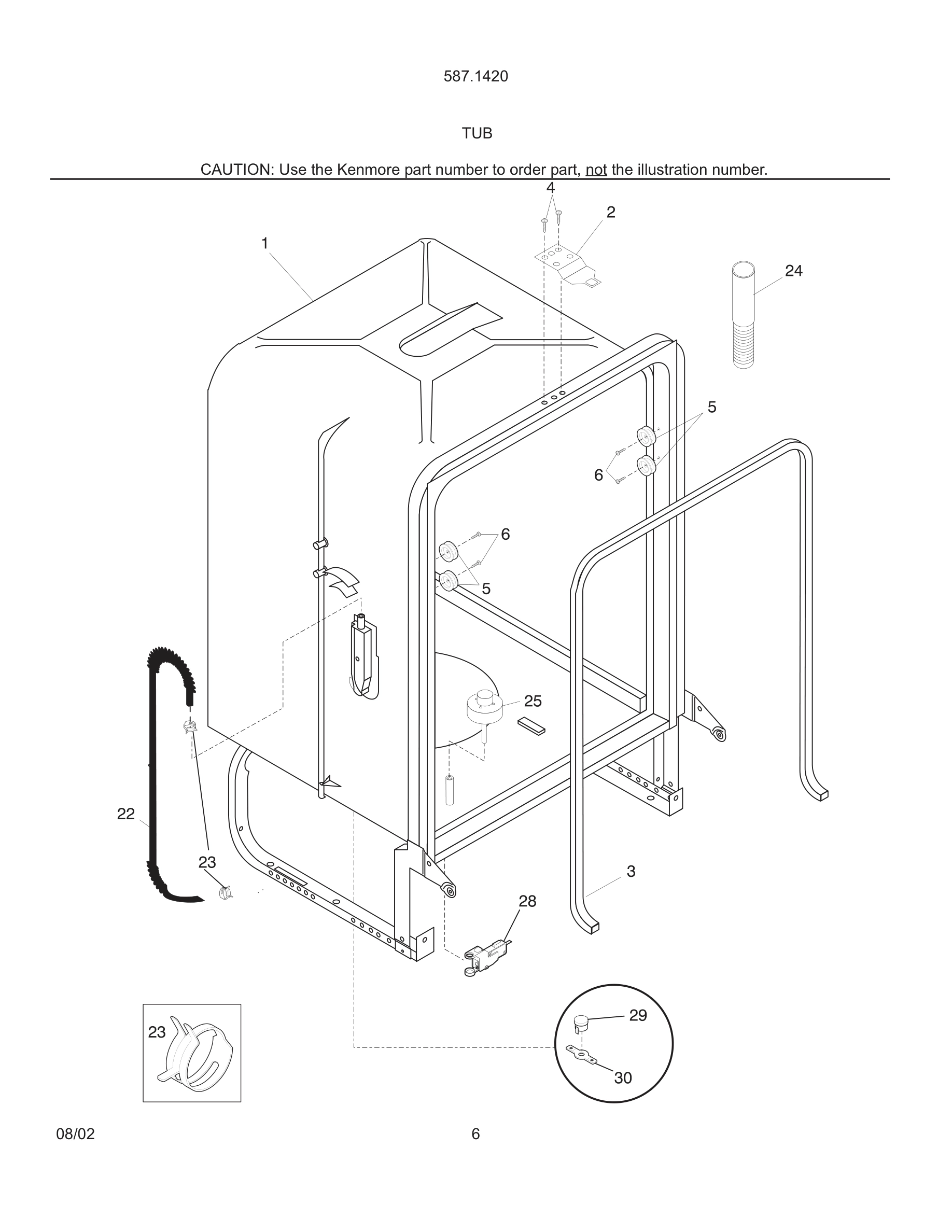

07 - TUB

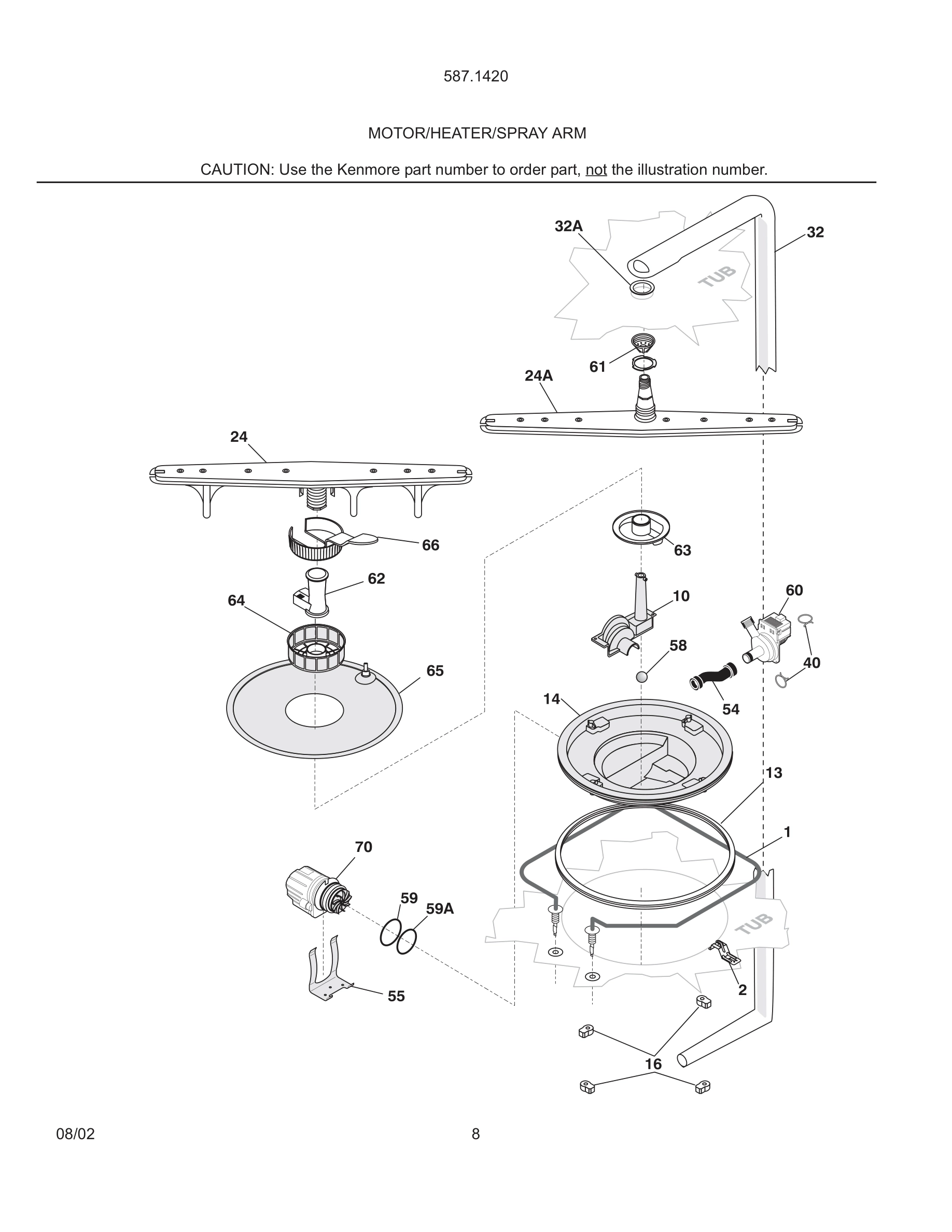

09 - MOTOR/HEATER/SPRAY ARM

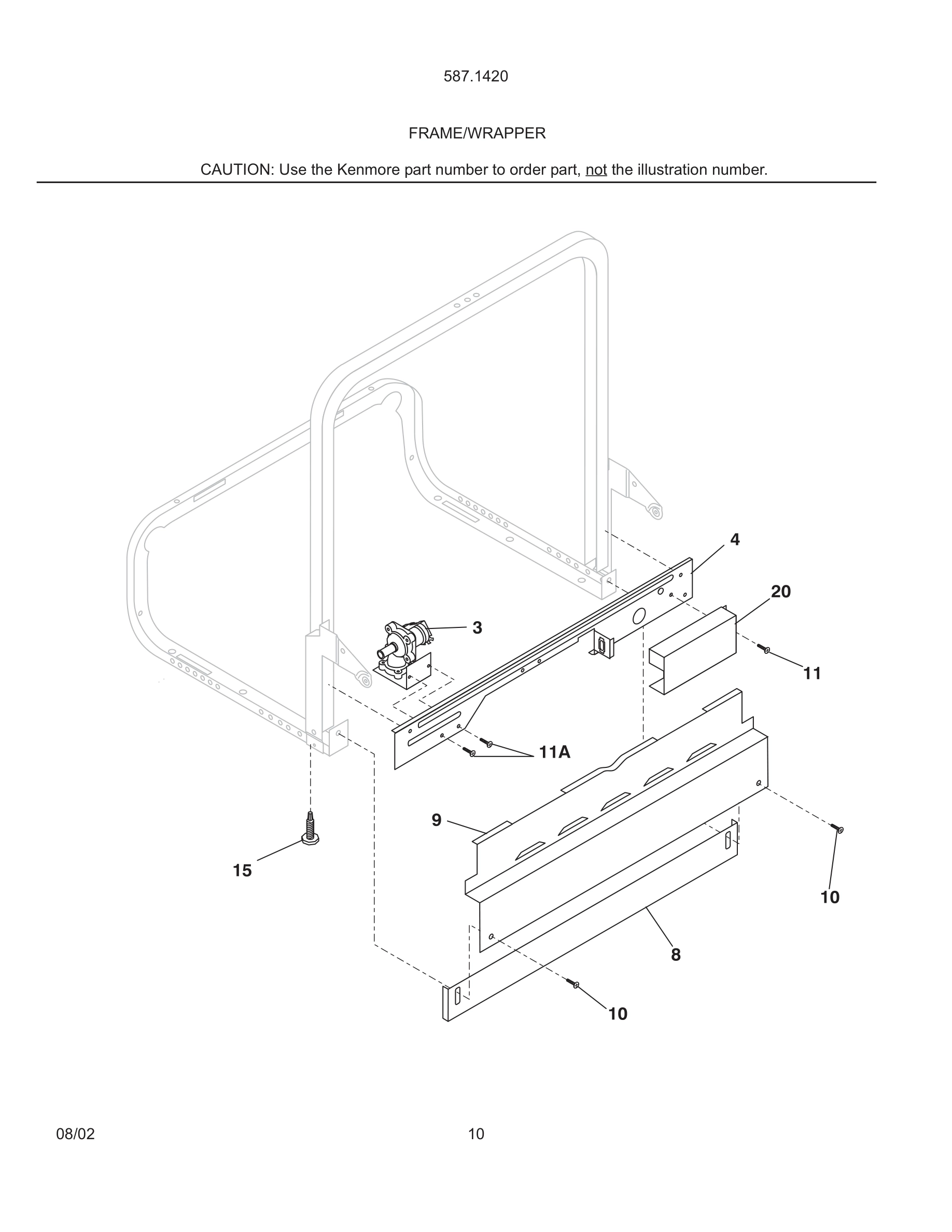

11 - FRAME/WRAPPER

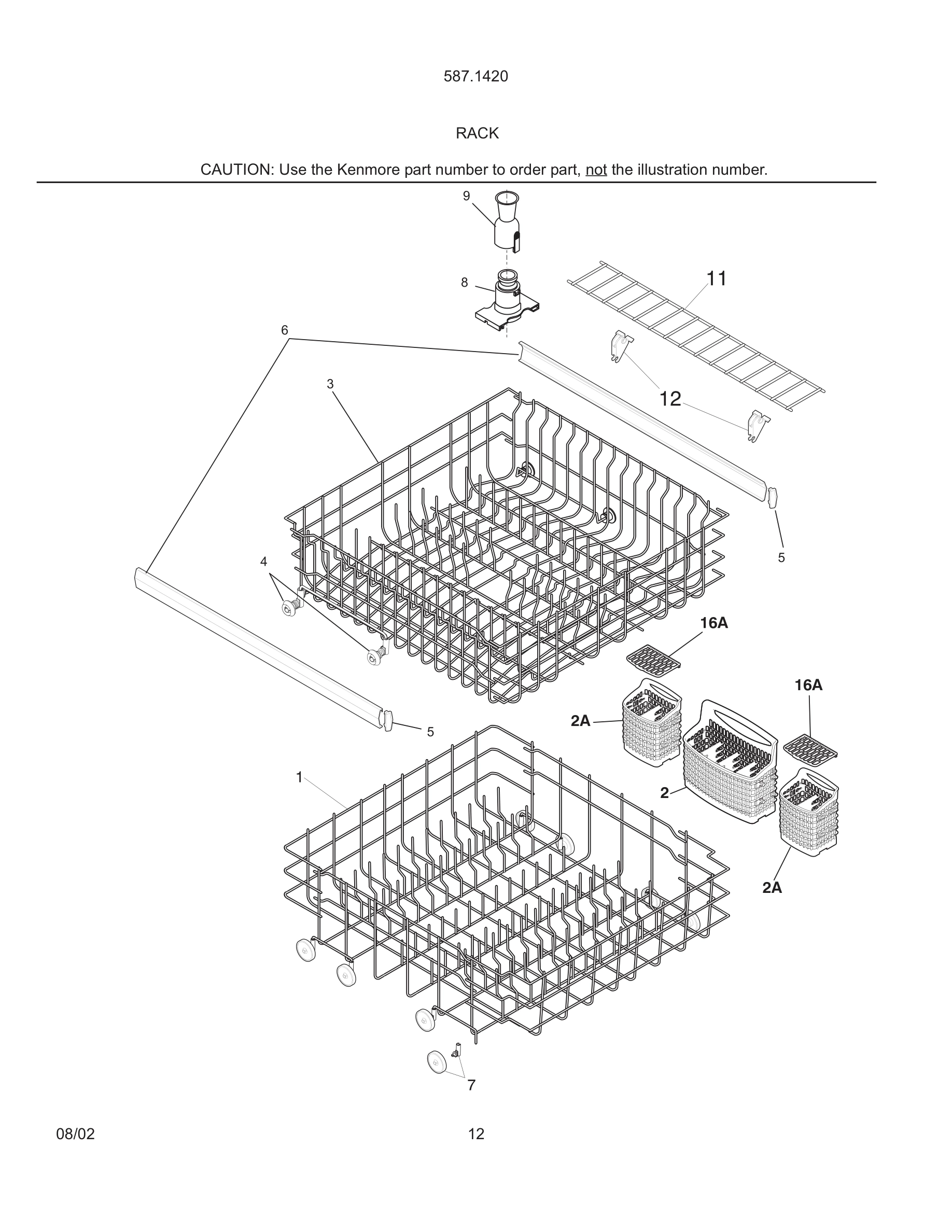

13 - RACK
Common parts from model Kenmore 587.14202200 DISHWASHER
*#
Thermostat,temp boost WCI 154227806 Contact Us For Availability
*#
Thermostat,temp assure WCI 154227805 Contact Us For Availability
1#
Tub assy,w/frame parts WCI 154209301 Contact Us For Availability
4
Screw,10-16 x 3/8 ,hex WCI 154200602 Contact Us For Availability
7
Door,inner assy WCI 154299004 Contact Us For Availability
8
Base,funnel WCI 154304001 Contact Us For Availability
8#
Switch,selector ,6 button WCI 154368601 Contact Us For Availability
9
Funnel WCI 154251801 Contact Us For Availability
11
Shelf,cup WCI 154225203 Contact Us For Availability
11A
Screw,#10-16 x 3/8 WCI 154200601 Contact Us For Availability
12
Bracket,cup shelf ,(4) WCI 154352401 Contact Us For Availability
13
Knob,timer ,black WCI 154239509 Contact Us For Availability
13
Knob,timer ,white WCI 154239504 Contact Us For Availability
14
Housing,sump WCI 154365902 Contact Us For Availability
15
Screw,leveling WCI 154419301 No Longer Available
16
Retainer,sump WCI 154246502 Contact Us For Availability
16A
Cover,side basket ,(2) ,silverware WCI 154424301 Contact Us For Availability
20
Vent assy,active dry ,w/actuator WCI 154423601 Contact Us For Availability
20
Door,white WCI 154359105 Contact Us For Availability
20
Door,black WCI 154359107 Contact Us For Availability
20
Cover,junction box WCI 154209601 Contact Us For Availability
20*
Screw,door mtg. ,(2) WCI 5304428306 Contact Us For Availability
24A*
Nut,spray arm ,center WCI 154252001 Contact Us For Availability
32
Tube,delivery WCI 154406601 Contact Us For Availability
50
Support,door hinge WCI 154211401 Contact Us For Availability
51
Clamp,drip loop ,wire WCI 154320301 Contact Us For Availability
55*
Screw,truss ss ,8 .625 WCI 5303316032 Contact Us For Availability
60*
Bracket,motor ,drain WCI 154426201 Contact Us For Availability
× ![]()
