Model Kenmore 587.14183404 DISHWASHER – Common Parts & Diagrams

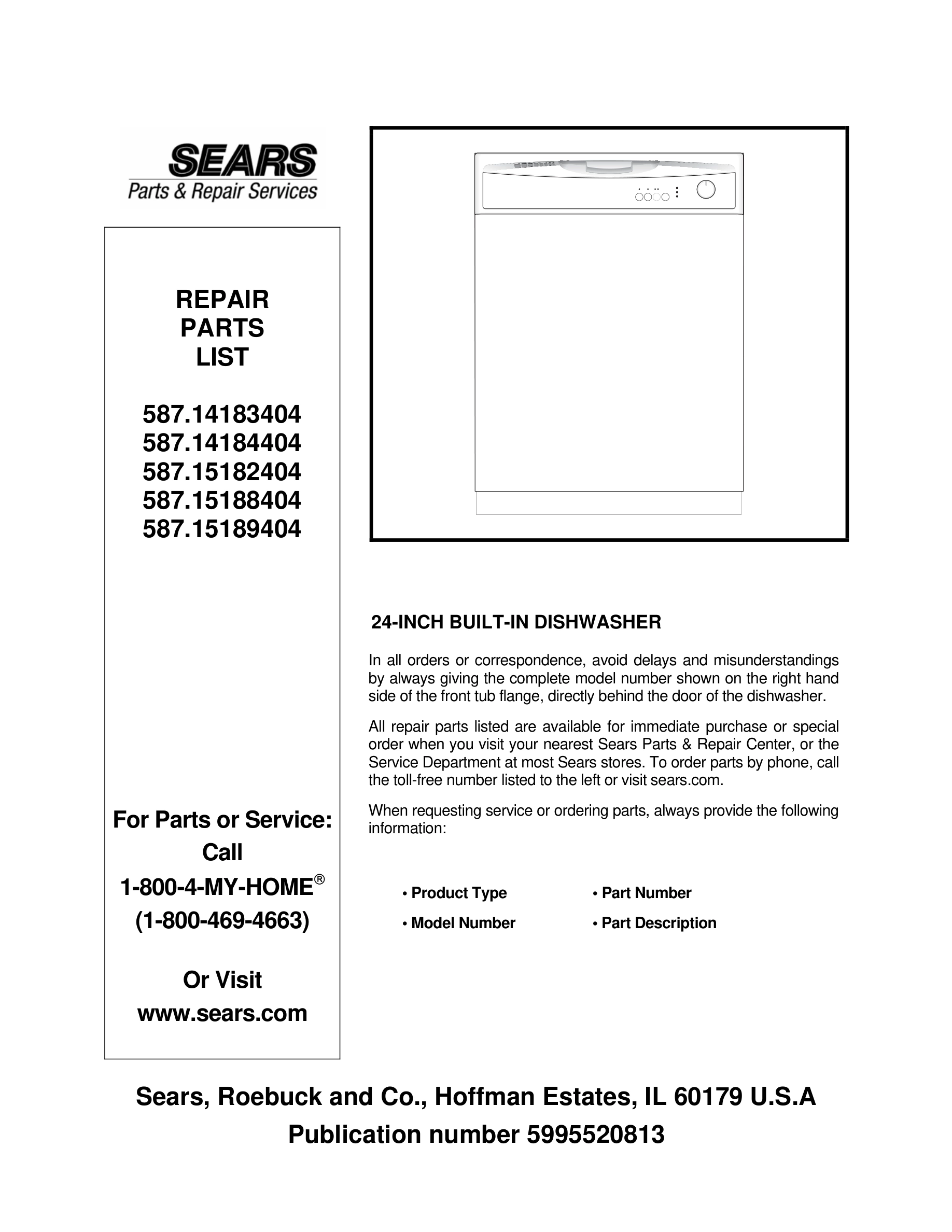

01 - COVER

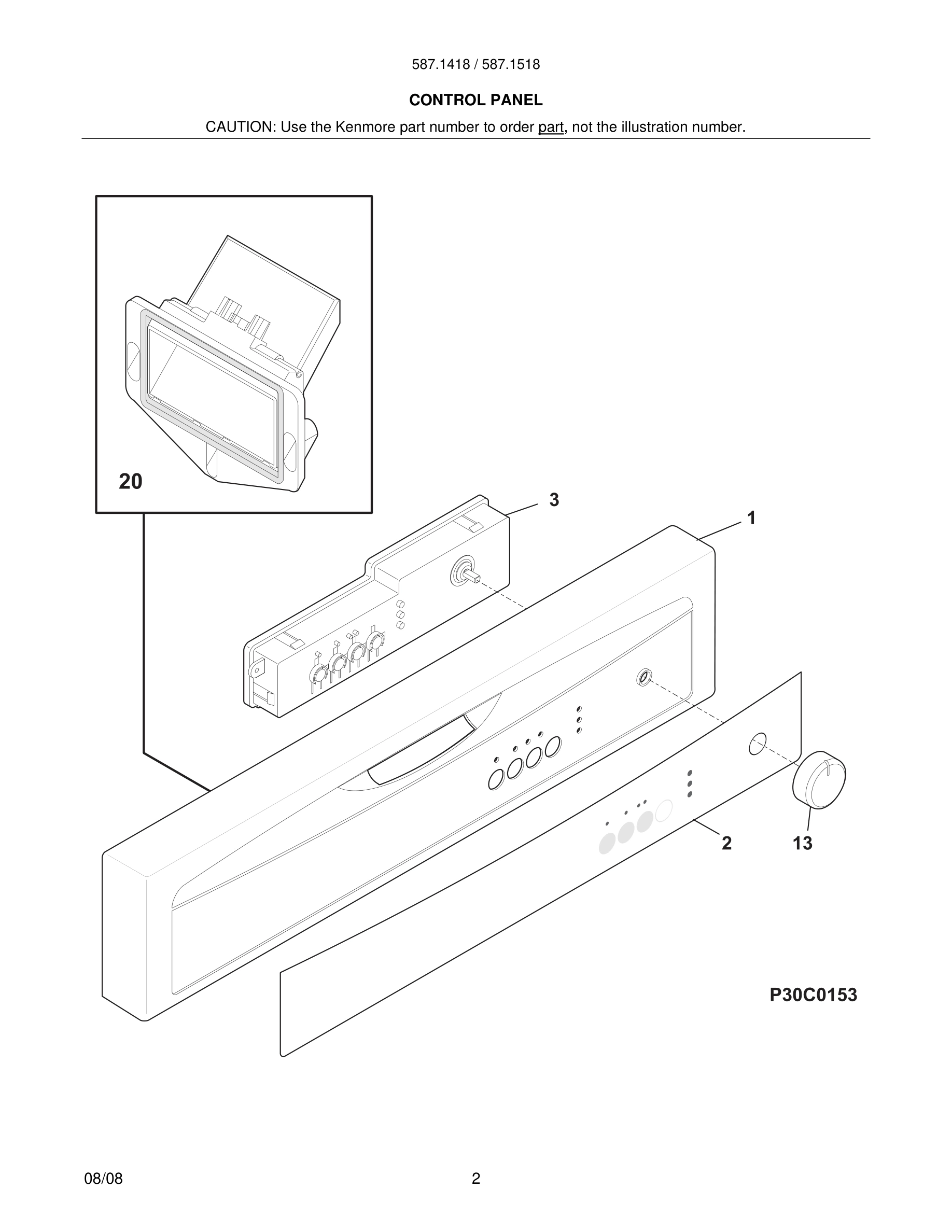

03 - CONTROL PANEL

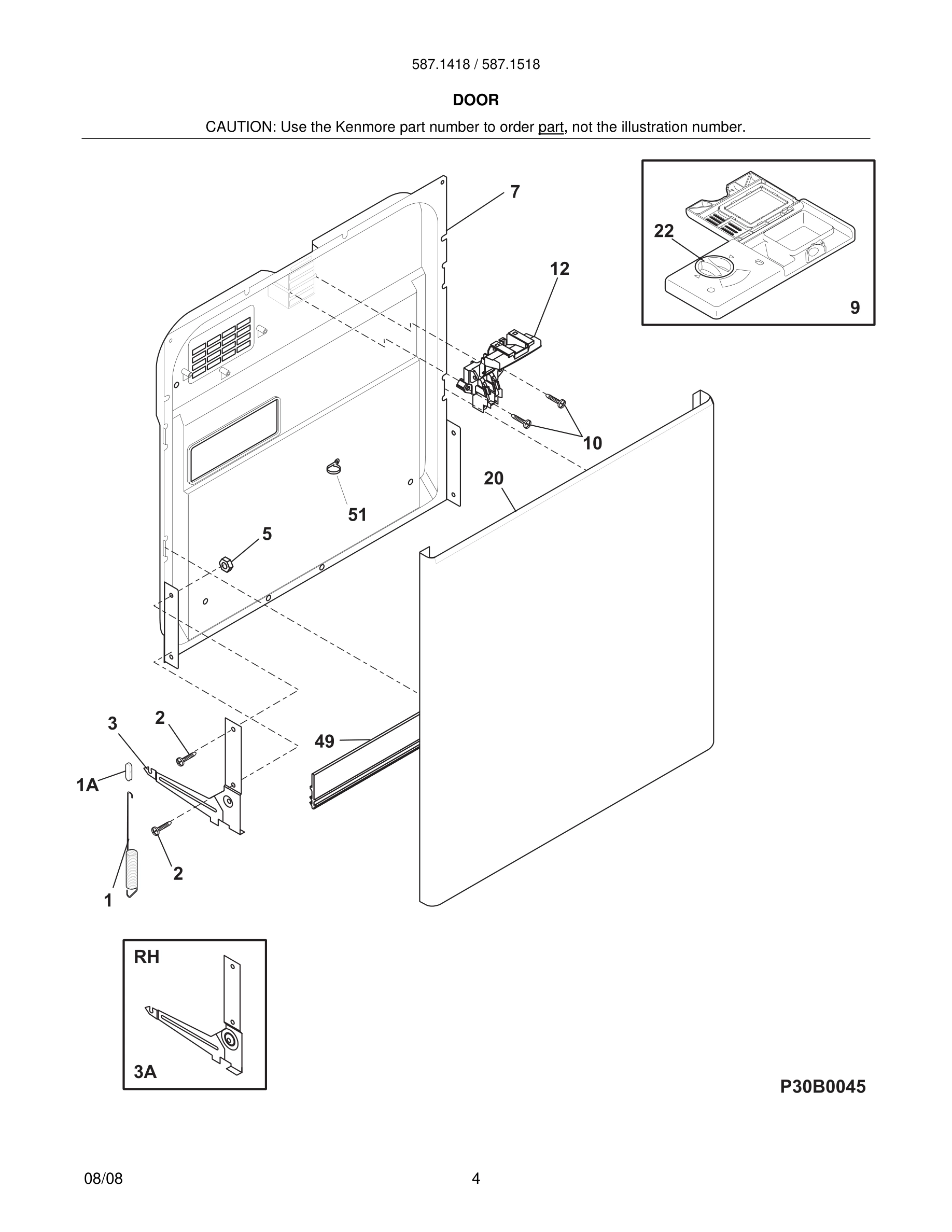

05 - DOOR

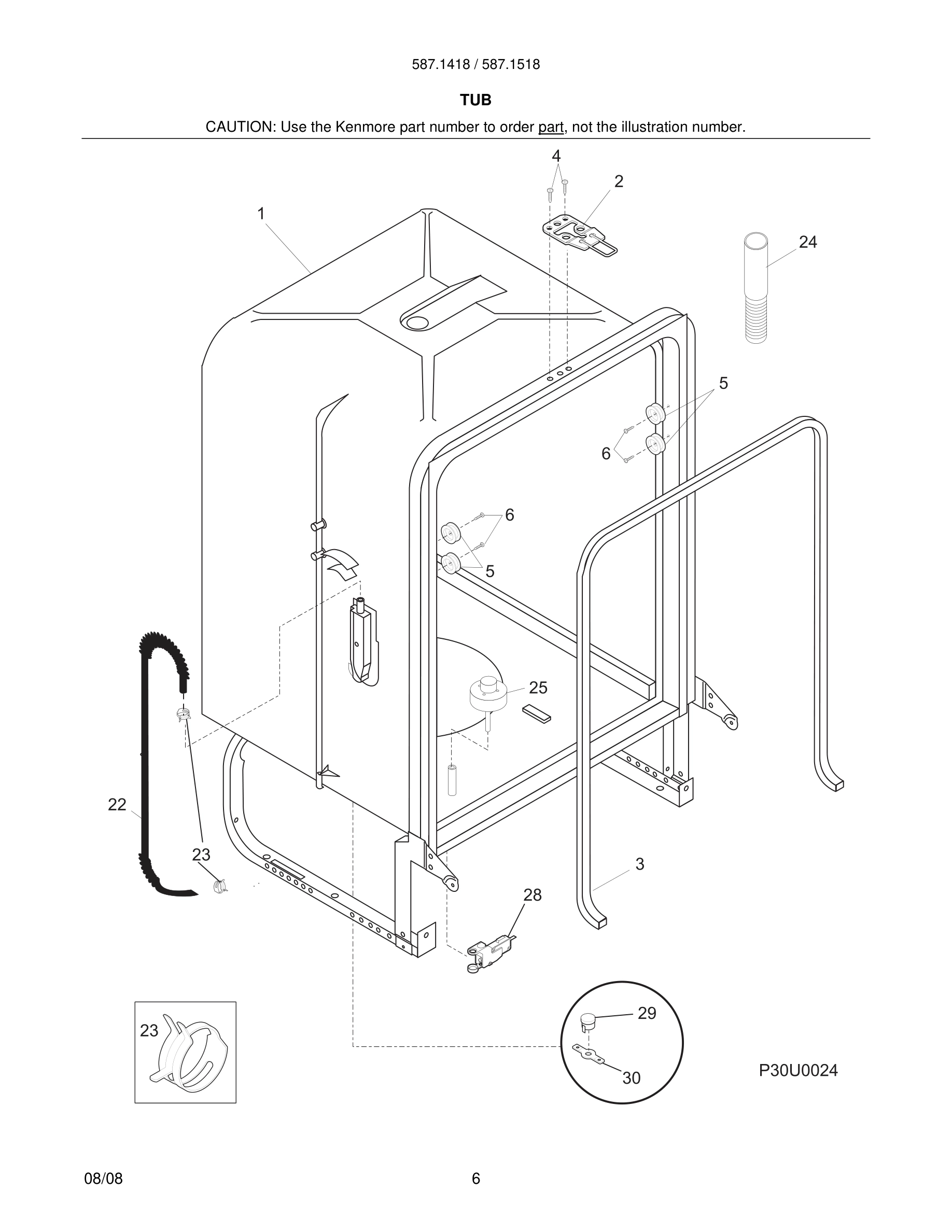

07 - TUB

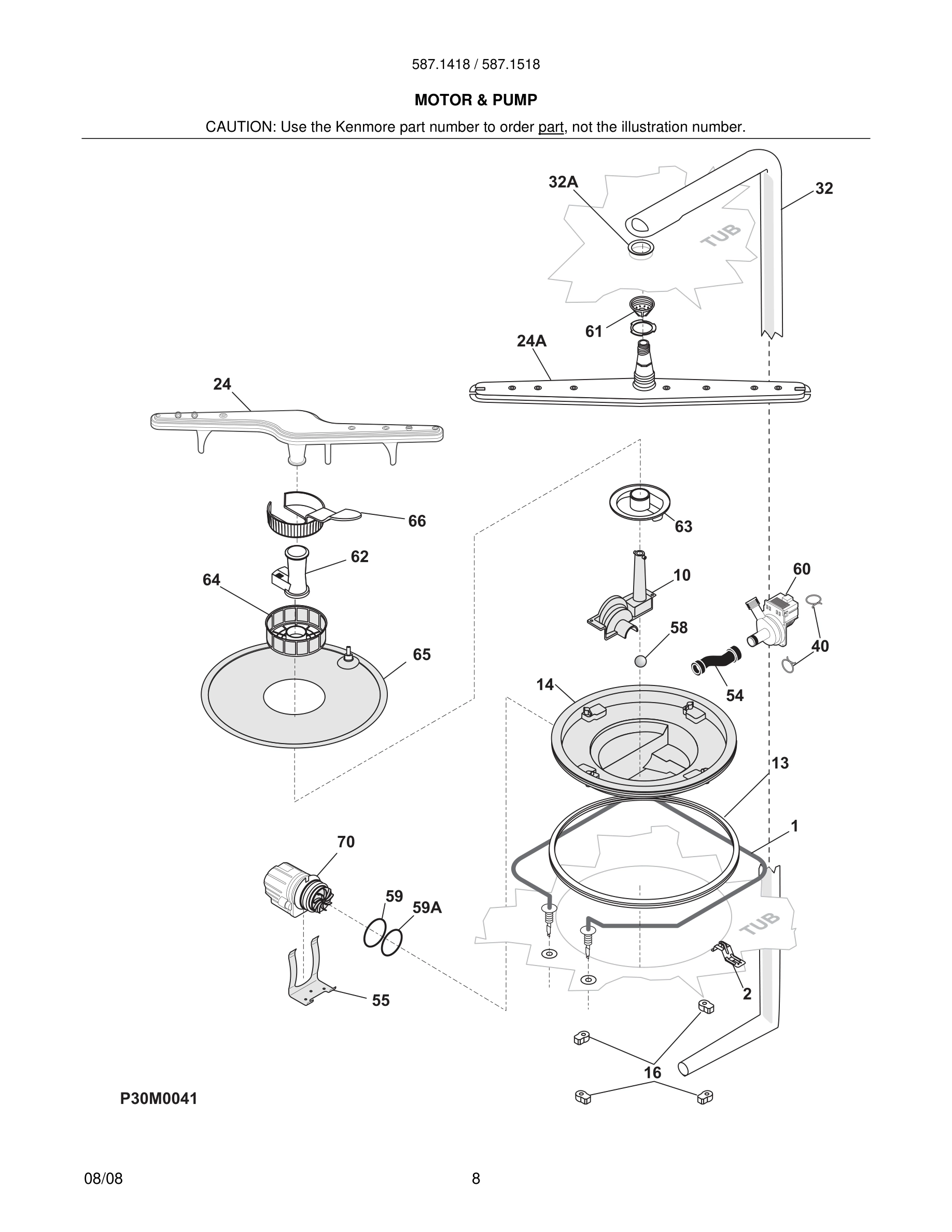

09 - MOTOR & PUMP

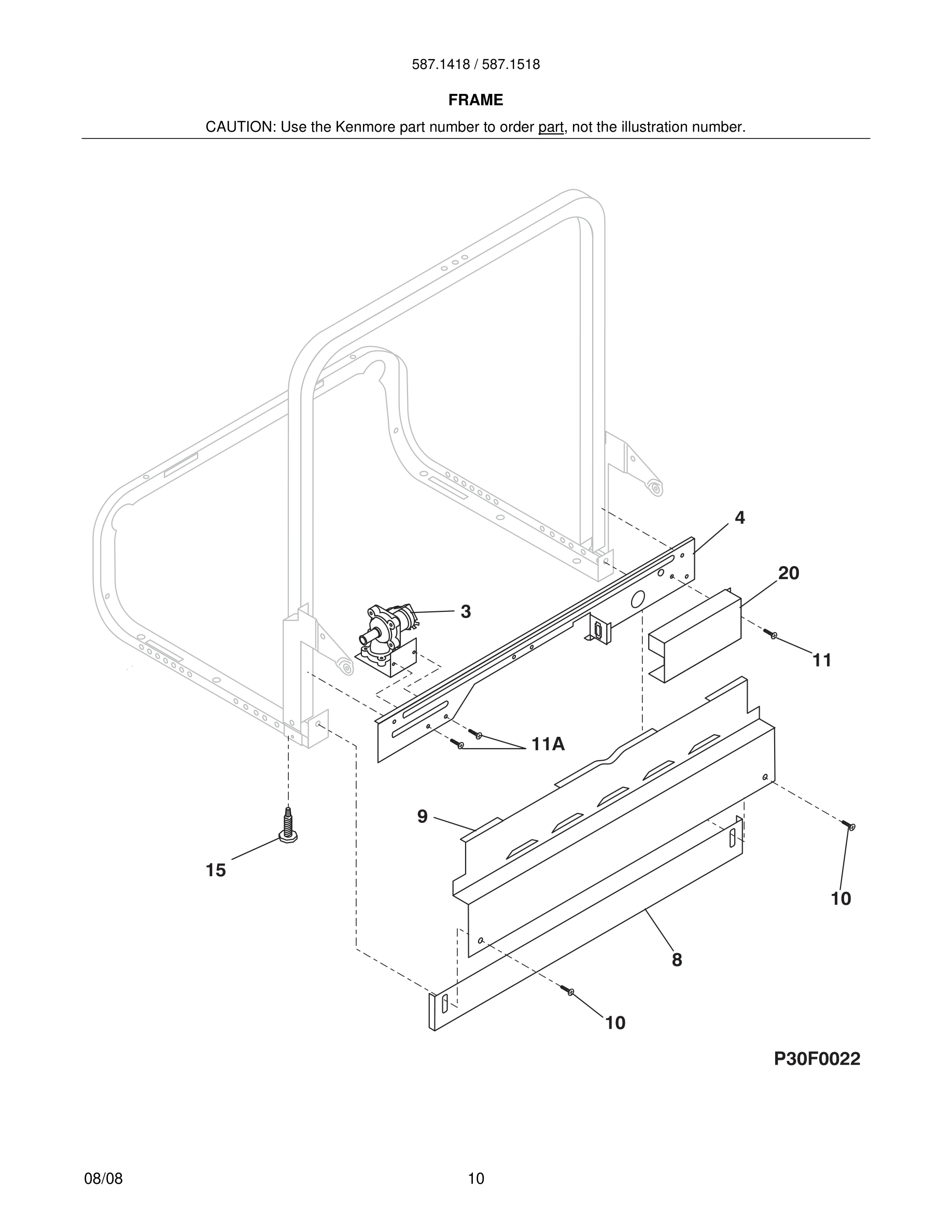

11 - FRAME

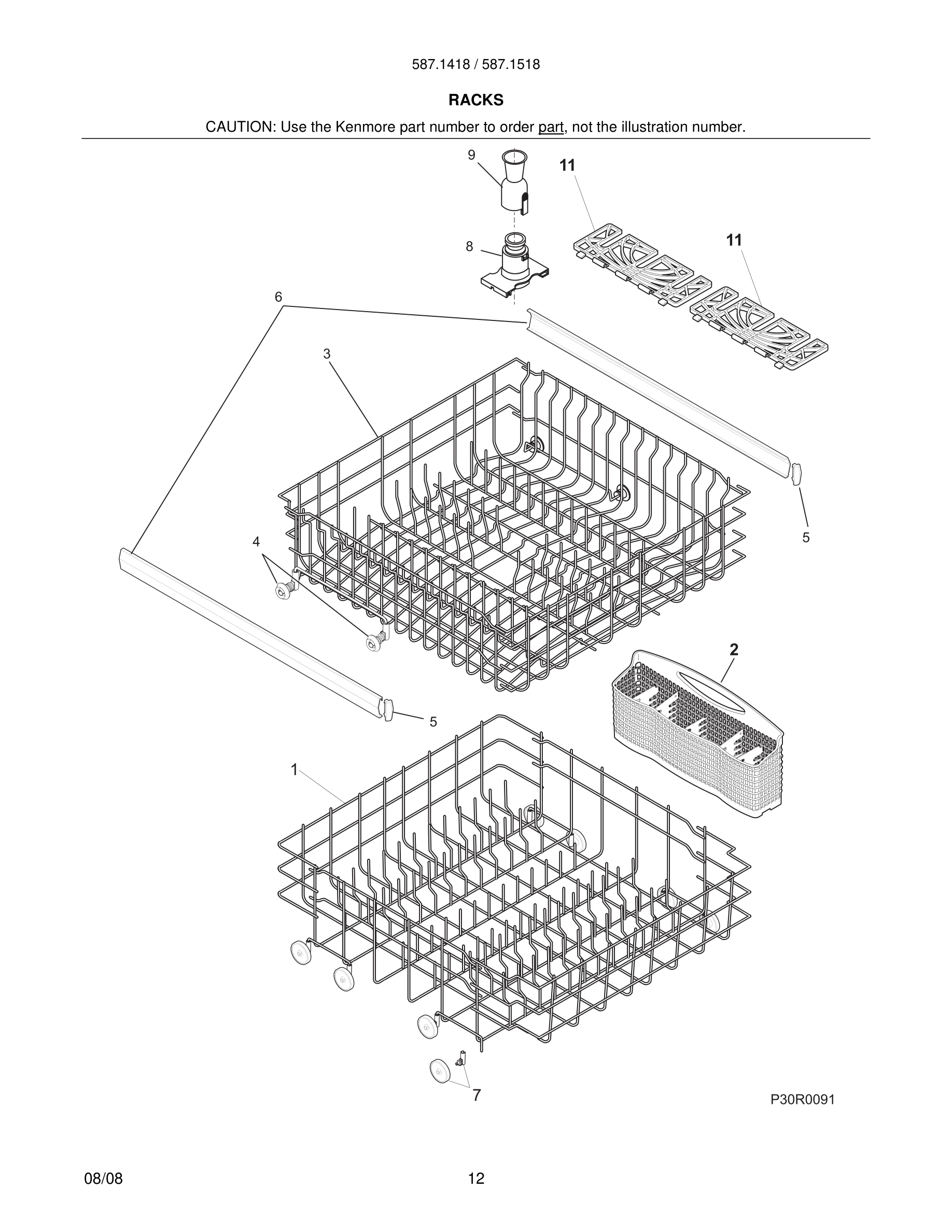

13 - RACKS
Common parts from model Kenmore 587.14183404 DISHWASHER
*
Screw, #10-16 x 3/8 WCI 154200601 Contact Us For Availability
*#
Harness, wiring, main WCI 154646301 Contact Us For Availability
1
Panel, control, black WCI 154644403 Contact Us For Availability
1#
Tub assy, w/frame parts, white, PW WCI 154729301 Contact Us For Availability
2
Bracket, heater, (2) WCI 154479601 Contact Us For Availability
4
Screw, 10-16 x 3/8, hex WCI 154200602 Contact Us For Availability
4
Brace, front frame WCI 154669301 Contact Us For Availability
7
Liner, door assy. WCI 154494601 Contact Us For Availability
9
Funnel WCI 154251801 Contact Us For Availability
13
Knob, timer, black WCI 154551903 Contact Us For Availability
13
Knob, timer, white WCI 154551901 Contact Us For Availability
14
Housing, sump WCI 154365902 Contact Us For Availability
20
Vent assy, static dry WCI 154433001 Contact Us For Availability
20
Door, white WCI 154538301 Contact Us For Availability
20*
Screw, door mtg., (2) WCI 5304428306 Contact Us For Availability
24A*
Nut, spray arm, center WCI 154252001 Contact Us For Availability
32
Tube, delivery WCI 154406601 Contact Us For Availability
51
Clamp, drip loop, wire WCI 154320301 Contact Us For Availability
55*
Screw, truss ss, 8 .625, (7) WCI 5303316032 Contact Us For Availability
60*
Bracket, motor, drain WCI 154426201 Contact Us For Availability
61
Nozzle, 3rd level, spray arm WCI 154606801 No Longer Available
× ![]()
