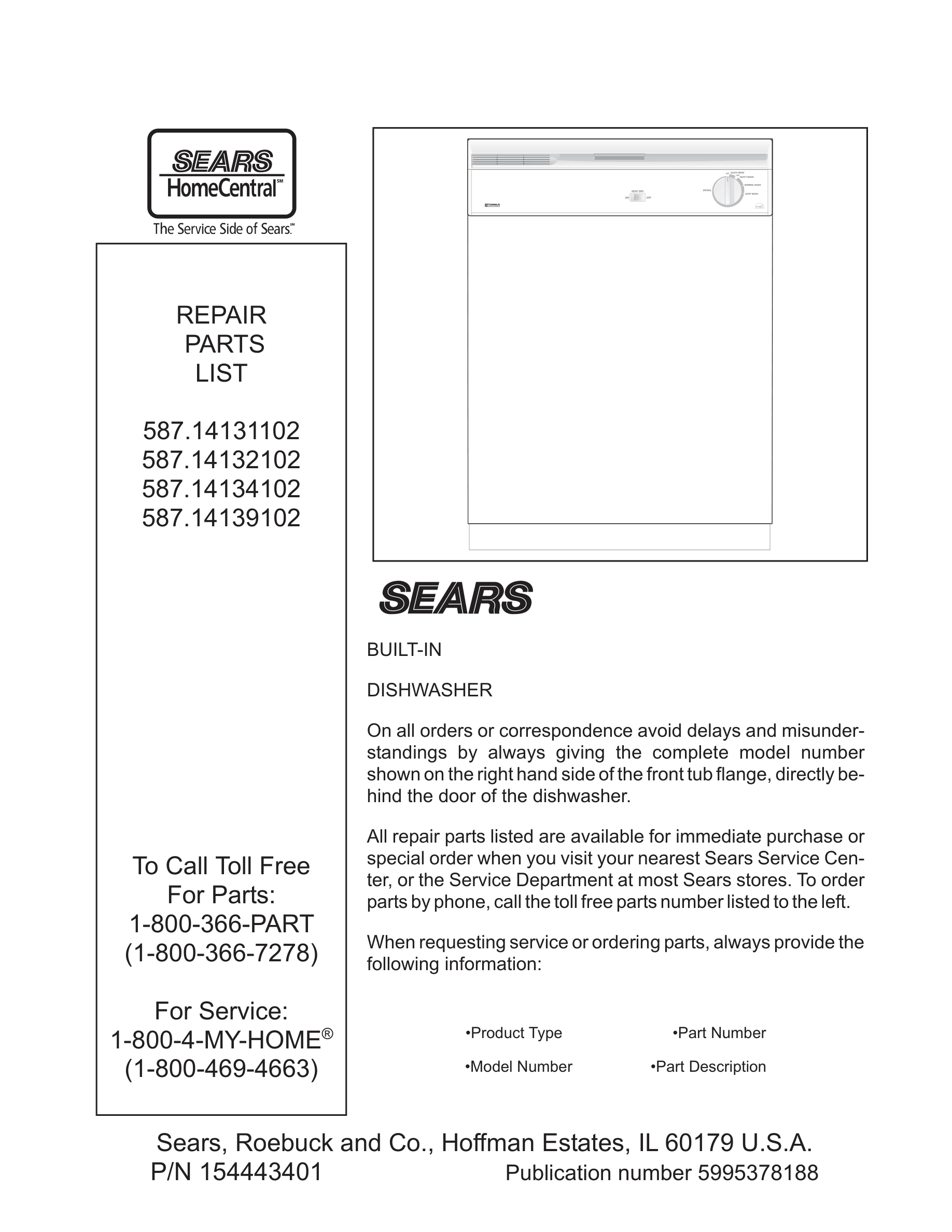

Model Kenmore 587.14131102 DISHWASHER – Common Parts &amp; Diagrams

*

Screw,10-16 x 3/8 ,hex WCI 154200602 Contact Us For Availability

1

5304535768 Frigidaire Grey Lower Rack Assembl In Stock WCI 5304535768 $91.90

1

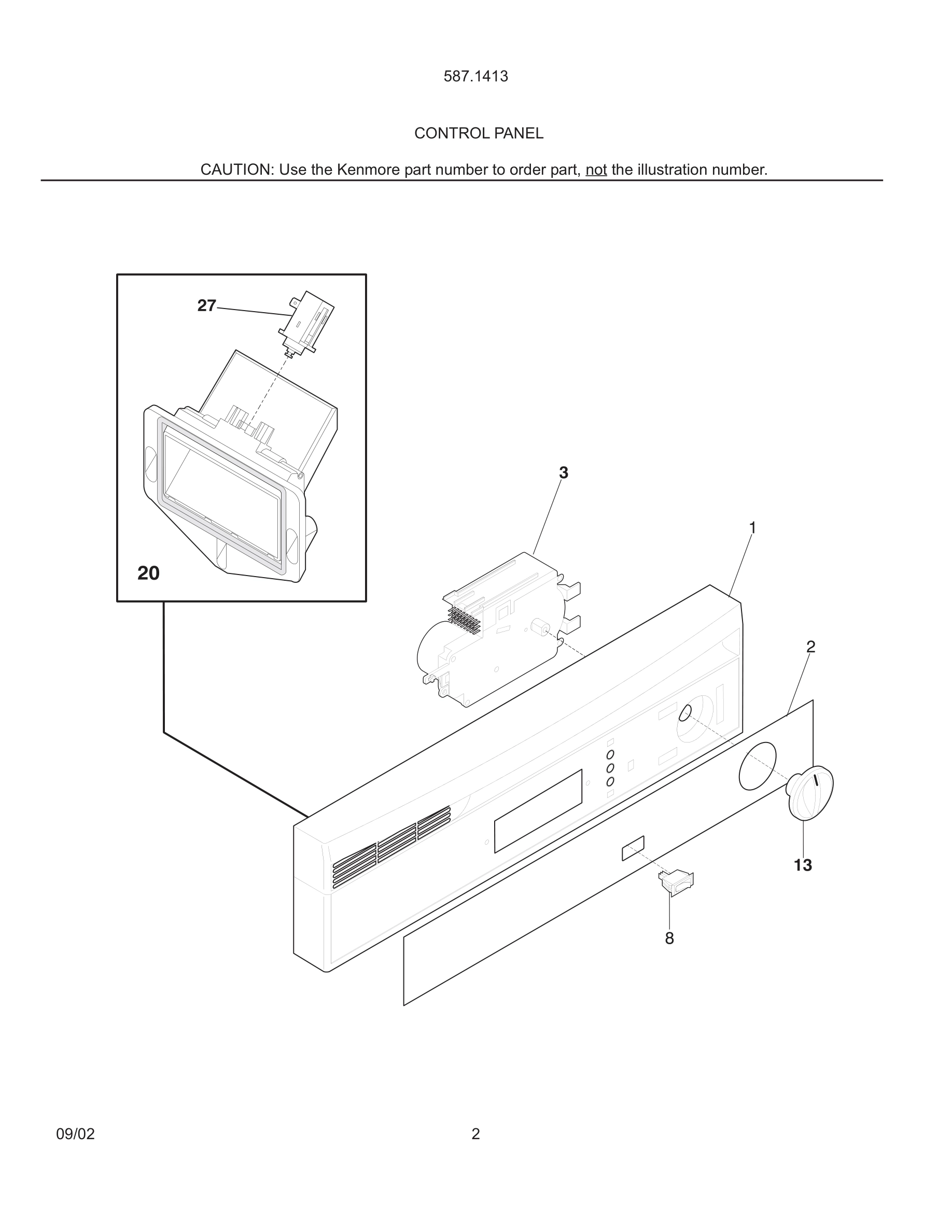

Panel,control ,black WCI 154368303 Contact Us For Availability

1#

Tub assy,w/frame parts WCI 154209301 Contact Us For Availability

1*

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $25.37

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

5304509753 Frigidaire Silverware Basket In Stock WCI 5304509753 $23.11

2

Insert,control panel ,black WCI 154398603 Contact Us For Availability

3

140229954072 Frigidaire Upper Rack Assembly In Stock WCI 140229954072 $82.04

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $18.58

5

5300809927 Frigidaire End Cap In Stock WCI 5300809927 $2.26

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $5.68

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki Backorder WCI 5303943103 $11.32

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $3.18

7

Door,inner assy WCI 154299004 Contact Us For Availability

8

Base,funnel WCI 154304001 Contact Us For Availability

8#

154240403 Frigidaire Dishwasher Selector Swit Backorder WCI 154240403 $47.95

9

Funnel WCI 154251801 Contact Us For Availability

9*

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $8.14

807145201 Frigidaire Dishwasher Cover-Volute In Stock WCI 807145201 $10.85

Screw,phillips head ,bisque WCI 154371303 Contact Us For Availability

11

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $1.79

11A

Screw,#10-16 x 3/8 WCI 154200601 Contact Us For Availability

13

154246801 Frigidaire Dishwasher Primary Gaske In Stock WCI 154246801 $31.71

13

Knob,timer ,black WCI 154239503 Contact Us For Availability

14

Housing,sump WCI 154365902 Contact Us For Availability

15

Screw,leveling WCI 154419301 No Longer Available

15

5304535382 Frigidaire Basket Assembly In Stock WCI 5304535382 $12.89

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

Vent assy,active dry ,w/actuator WCI 154423601 Contact Us For Availability

Door,white WCI 154359105 Contact Us For Availability

Door,black WCI 154359107 Contact Us For Availability

Cover,junction box WCI 154209601 Contact Us For Availability

20*

Screw,door mtg. ,(2) WCI 5304428306 Contact Us For Availability

22

154388801 Frigidaire Dishwasher Rinse Aid Dis In Stock WCI 154388801 $15.85

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $0.92

24A

154313601 Frigidaire Dishwasher Control Arm P In Stock WCI 154313601 $28.53

24A*

Nut,spray arm ,center WCI 154252001 Contact Us For Availability

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29#

154290204 Frigidaire Dishwasher Thermostat In Stock WCI 154290204 $40.78

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

30*

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

32

Tube,delivery WCI 154406601 Contact Us For Availability

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $6.99

40*

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $46.60

50

Support,door hinge WCI 154211401 Contact Us For Availability

51

Clamp,drip loop ,wire WCI 154320301 Contact Us For Availability

54

154234401 Frigidaire Dishwasher Hose P-1 Backorder WCI 154234401 $42.57

55*

Screw,truss ss ,8 .625 WCI 5303316032 Contact Us For Availability

58

154246402 Frigidaire Dishwasher P-1 Ball Asse In Stock WCI 154246402 $35.78

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $36.24

60*

Bracket,motor ,drain WCI 154426201 Contact Us For Availability

62

5304518968 Frigidaire Lower Spray Arm Support In Stock WCI 5304518968 $7.25

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $17.21

66

154252701 Frigidaire Dishwasher Filter Trap In Stock WCI 154252701 $38.09
