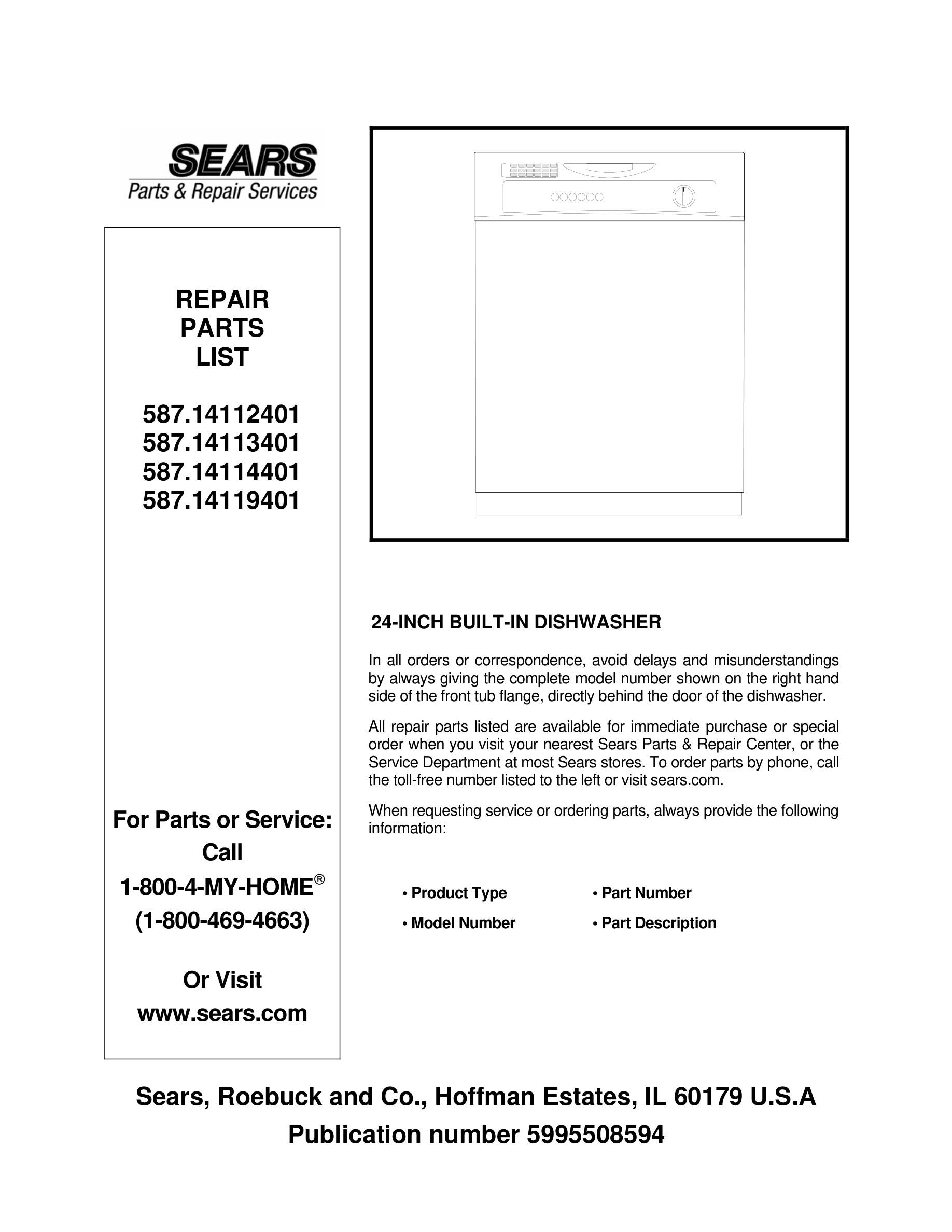

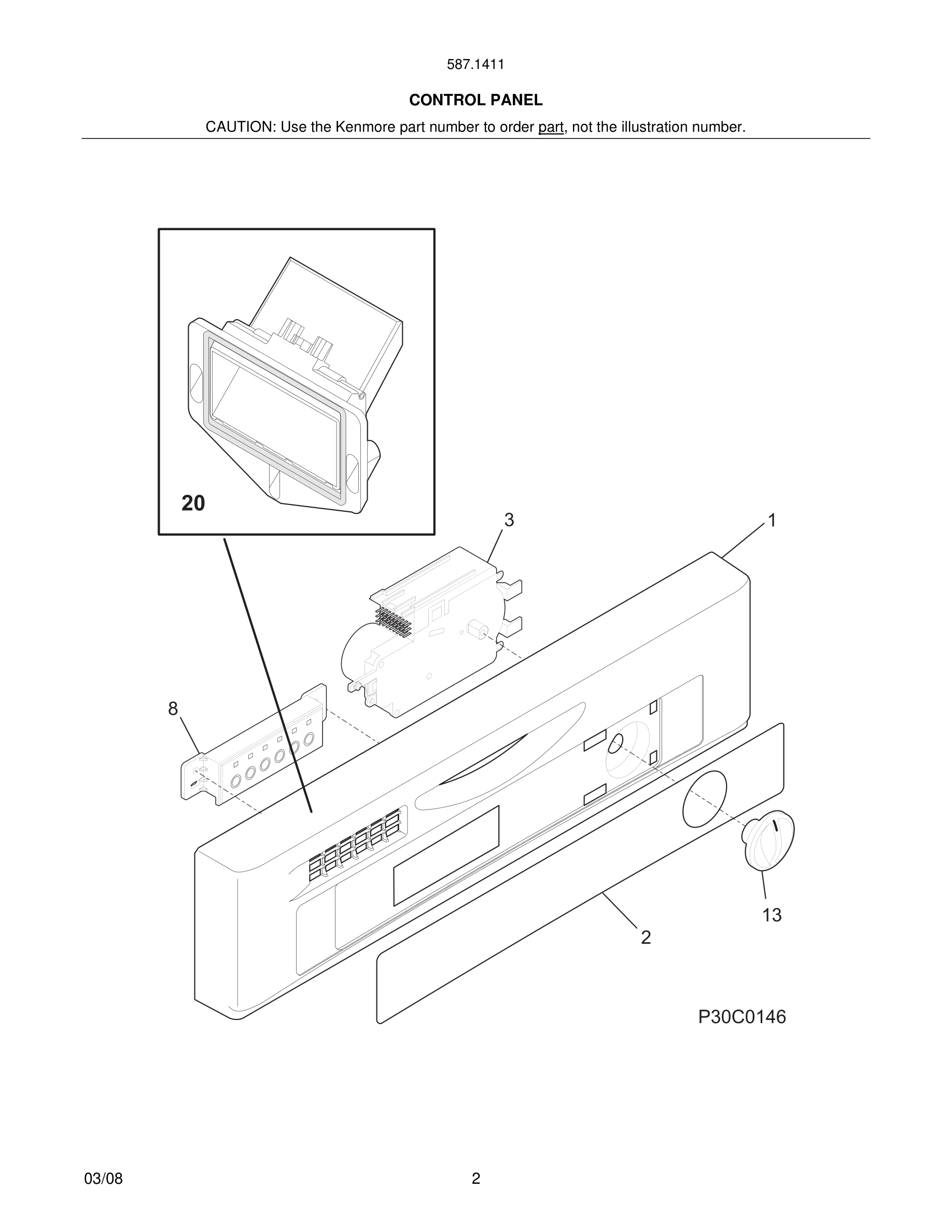

Model Kenmore 587.14112401 DISHWASHER – Common Parts &amp; Diagrams

*

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.26

*

Screw, 10-16 x 3/8, hex WCI 154200602 Contact Us For Availability

*

Pin, arm assy WCI 154529101 Contact Us For Availability

*#

Thermostat, temp boost, hi temp wash WCI 154227808 Contact Us For Availability

*#

Thermostat, temp assure WCI 154227805 Contact Us For Availability

1

154430501 Frigidaire Dishwasher Door Spring In Stock WCI 154430501 $25.37

1#

Tub assy, w/frame parts WCI 154209301 Contact Us For Availability

1*

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.88

1*

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $25.37

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

154662601 Frigidaire Door Strike Latch In Stock WCI 154662601 $25.37

2

Bracket, heater, (2) WCI 154479601 Contact Us For Availability

3#

154637401 Frigidaire Dishwasher Fill Valve Wa In Stock WCI 154637401 $22.19

3#

Timer WCI 154491701 Contact Us For Availability

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $18.58

5

5300809927 Frigidaire End Cap In Stock WCI 5300809927 $2.26

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $5.68

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki Backorder WCI 5303943103 $11.32

7

Liner, door assy. WCI 154494601 Contact Us For Availability

8

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $10.41

8#

Switch, 6 button WCI 154492101 Contact Us For Availability

9

154574401 Frigidaire Dishwasher Dispenser In Stock WCI 154574401 $48.35

9

5304501482 Frigidaire Dishwasher Kick Plate A In Stock WCI 5304501482 $32.62

9

5304501484 Frigidaire Dishwasher Assembly Toe In Stock WCI 5304501484 $32.62

9

Funnel WCI 154251801 Contact Us For Availability

9*

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

10

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

10

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $8.14

10

807145201 Frigidaire Dishwasher Cover-Volute In Stock WCI 807145201 $10.85

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.60

11A

Screw, #10-16 x 3/8 WCI 154200601 Contact Us For Availability

154246801 Frigidaire Dishwasher Primary Gaske In Stock WCI 154246801 $31.71

Knob, timer, white WCI 154477801 Contact Us For Availability

Knob, timer, black WCI 154477803 Contact Us For Availability

Knob, timer, bisque WCI 154477804 Contact Us For Availability

14

Housing, sump WCI 154365902 Contact Us For Availability

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.79

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

Vent assy, static dry WCI 154433001 Contact Us For Availability

Door, white WCI 154359105 Contact Us For Availability

Door, black WCI 154359107 Contact Us For Availability

Door, stainless WCI 154533901 Contact Us For Availability

20*

Screw, door mtg., (2) WCI 5304428306 Contact Us For Availability

22

154388801 Frigidaire Dishwasher Rinse Aid Dis In Stock WCI 154388801 $15.85

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.15

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $0.92

24

5304517203 Frigidaire Dishwasher Lower Wash A In Stock WCI 5304517203 $22.11

24A

154313601 Frigidaire Dishwasher Control Arm P In Stock WCI 154313601 $28.53

24A*

Nut, spray arm, center WCI 154252001 Contact Us For Availability

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29#

154290204 Frigidaire Dishwasher Thermostat In Stock WCI 154290204 $40.78

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

30*

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

32

Tube, delivery WCI 154406601 Contact Us For Availability

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $6.99

40

154348502 Frigidaire Dishwasher Clamp Backorder WCI 154348502 $5.88

40*

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $46.60

50

Support, door hinge WCI 154211401 Contact Us For Availability

51

Clamp, drip loop, wire WCI 154320301 Contact Us For Availability

54

154234401 Frigidaire Dishwasher Hose P-1 Backorder WCI 154234401 $42.57

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.46

55*

Screw, truss ss, 8 .625, (7) WCI 5303316032 Contact Us For Availability

58

154246402 Frigidaire Dishwasher P-1 Ball Asse In Stock WCI 154246402 $35.78

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $36.24

60*

154581501 Frigidaire Dishwasher Screw Backorder WCI 154581501 $8.60

60*

Bracket, motor, drain WCI 154426201 Contact Us For Availability

61

Nozzle, 3rd level, spray arm WCI 154606801 No Longer Available

62

5304518968 Frigidaire Lower Spray Arm Support In Stock WCI 5304518968 $7.25

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $17.21

66

154252701 Frigidaire Dishwasher Filter Trap In Stock WCI 154252701 $38.09
