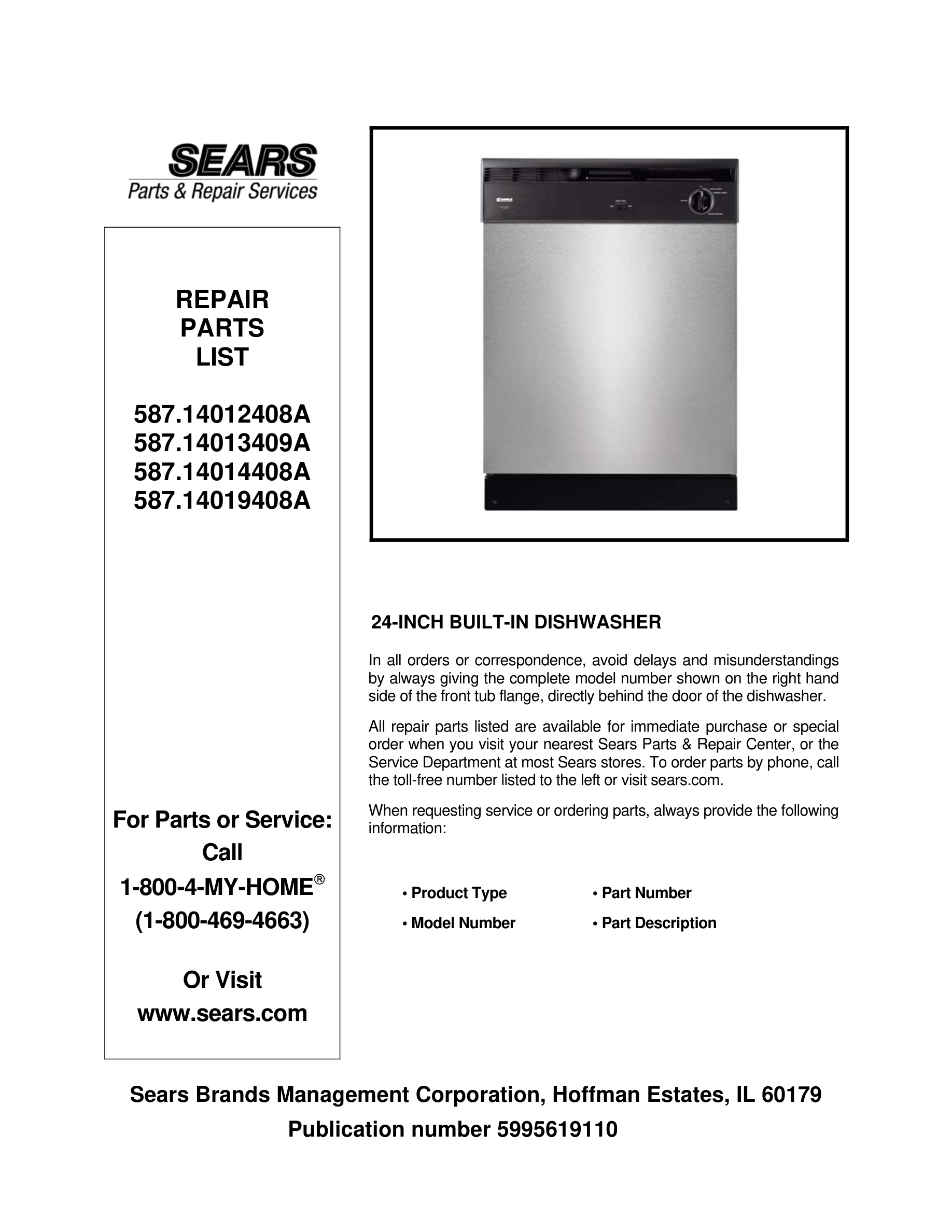

Model Kenmore 587.14012408A DISHWASHER – Common Parts &amp; Diagrams

*

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $9.06

*

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $6.79

*

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $0.87

*

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $4.51

*

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.26

1

154331607 Frigidaire Dishrack Assembly Lower In Stock WCI 154331607 $94.62

1

154430501 Frigidaire Dishwasher Door Spring In Stock WCI 154430501 $25.37

1#

154825001 Frigidaire Dishwasher Round Heater In Stock WCI 154825001 $58.69

1#

Tub assy, w/frame parts, white, heater & tubi WCI 5304488410 Contact Us For Availability

1*

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.88

1*

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $25.37

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $7.25

2

154662601 Frigidaire Door Strike Latch In Stock WCI 154662601 $25.37

3#

154637401 Frigidaire Dishwasher Fill Valve Wa In Stock WCI 154637401 $22.19

3#

Timer WCI 154858101 Contact Us For Availability

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $43.03

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $18.58

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $18.12

4

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $1.79

5

5300809927 Frigidaire End Cap In Stock WCI 5300809927 $2.26

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $5.68

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki In Stock WCI 5303943103 $11.32

7

Liner, door assy. WCI 154494601 Contact Us For Availability

8

154745501 Frigidaire Dishwasher Toekick Plate In Stock WCI 154745501 $13.59

8

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $10.41

8#

154240403 Frigidaire Dishwasher Selector Swit Backorder WCI 154240403 $47.95

8#

Switch, rocker/selector, white WCI 154240401 Contact Us For Availability

9

154574401 Frigidaire Dishwasher Dispenser In Stock WCI 154574401 $48.35

9

5304501482 Frigidaire Dishwasher Kick Plate A In Stock WCI 5304501482 $32.62

9

5304501484 Frigidaire Dishwasher Assembly Toe In Stock WCI 5304501484 $32.62

9*

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $8.14

154754801 Frigidaire Dishwasher Screw Backorder WCI 154754801 $1.35

Cover, volute WCI 154335301 Contact Us For Availability

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.60

13

154246801 Frigidaire Dishwasher Primary Gaske In Stock WCI 154246801 $31.71

13

154338303 Frigidaire Dishwasher Knob Backorder WCI 154338303 $33.52

13

Knob, timer, white WCI 154338301 Contact Us For Availability

14

Housing, sump WCI 154462003 Contact Us For Availability

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.79

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

16*

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $2.70

154758501 Frigidaire Power Cord Cover Backorder WCI 154758501 $12.67

Door, white, w/moisture barr WCI 154828801 No Longer Available

Door, black, w/moisture barr WCI 154828803 No Longer Available

Vent assy, static dry WCI 154433001 Contact Us For Availability

Door, stainless, w/moisture barr WCI 154828805 Contact Us For Availability

20*

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.26

20*

Screw, dry duct, (3) WCI 154793401 Contact Us For Availability

22

154388801 Frigidaire Dishwasher Rinse Aid Dis In Stock WCI 154388801 $15.85

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.15

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $0.92

24A

154335201 Frigidaire Dishwasher Lower Spray A In Stock WCI 154335201 $27.64

25#

5304506520 Frigidaire Dishwasher Float Assemb In Stock WCI 5304506520 $4.31

28#

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29#

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $10.39

29#

Thermostat WCI 154227810 Contact Us For Availability

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

30*

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

40

154348502 Frigidaire Dishwasher Clamp Backorder WCI 154348502 $5.88

40*

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $46.60

49

809006501 Frigidaire Bottom Seal/Gasket Door In Stock WCI 809006501 $15.31

51

Clamp, drip loop, wire WCI 154320301 Contact Us For Availability

54

154234401 Frigidaire Dishwasher Hose P-1 Backorder WCI 154234401 $42.57

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.46

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S Backorder WCI 154247001 $36.24

60*

154581501 Frigidaire Dishwasher Screw Backorder WCI 154581501 $8.60

60*

Bracket, motor, drain WCI 154426201 Contact Us For Availability

63

5304506533 Frigidaire Dishwasher Filter Base In Stock WCI 5304506533 $14.03

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $17.21

70#

154844001 Frigidaire Dishwasher Motor and Pum Backorder WCI 154844001 $190.70
