Model Kenmore 587.14012406A DISHWASHER – Common Parts &amp; Diagrams

*

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $9.06

*

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $6.79

*

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.26

*

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.26

*

Screw, 10-16 x 3/8, hex WCI 154200602 Contact Us For Availability

*#

Thermostat, temp boost, hi temp wash WCI 154227808 Contact Us For Availability

1

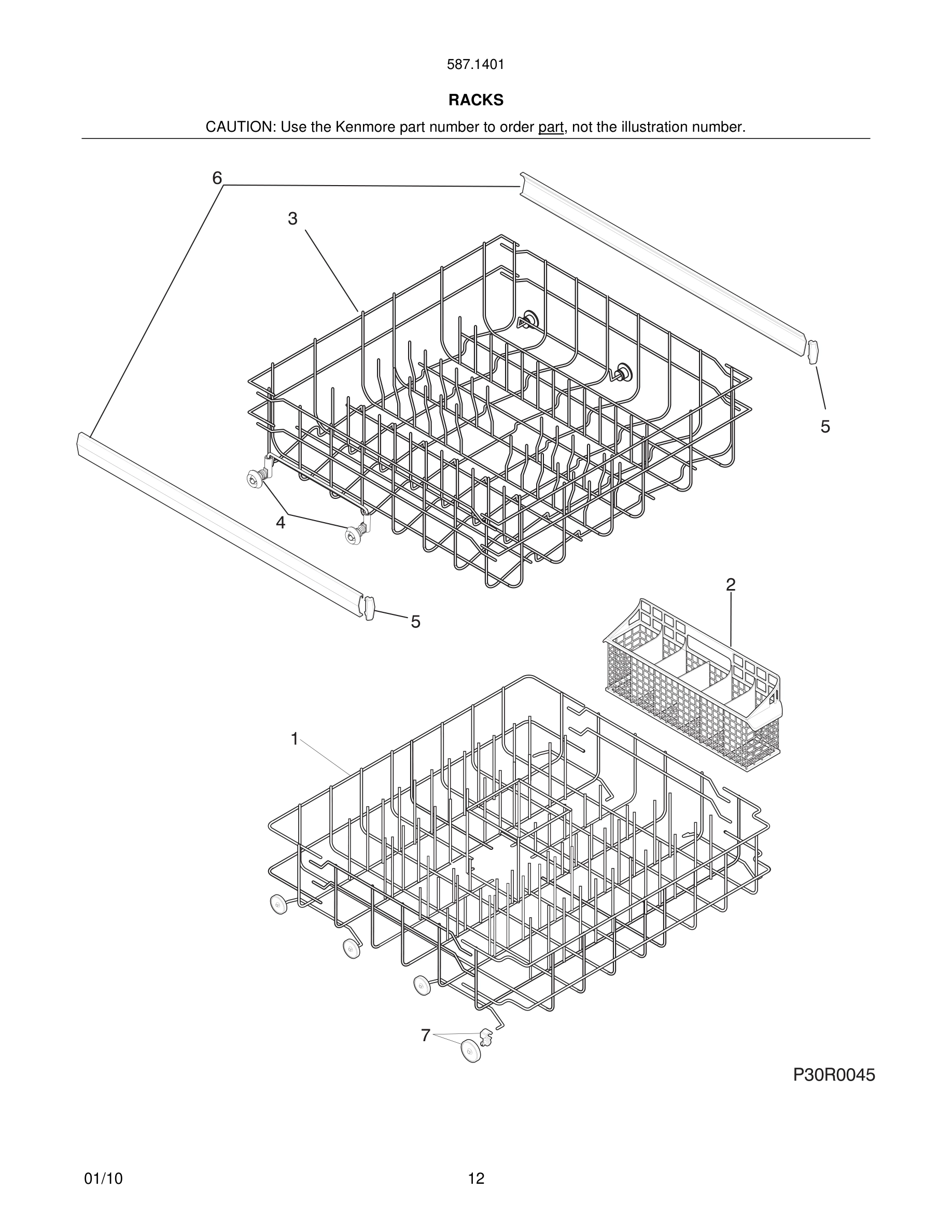

154331607 Frigidaire Dishrack Assembly Lower In Stock WCI 154331607 $94.62

1

154430501 Frigidaire Dishwasher Door Spring In Stock WCI 154430501 $25.37

1#

154665201 Frigidaire Dishwasher Heater In Stock WCI 154665201 $48.24

1*

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.88

1*

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $25.37

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

154662601 Frigidaire Door Strike Latch In Stock WCI 154662601 $25.37

2

Bracket, heater, (2) WCI 154479601 Contact Us For Availability

3#

154637401 Frigidaire Dishwasher Fill Valve Wa In Stock WCI 154637401 $22.19

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $43.03

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $18.58

4

Brace, front frame WCI 154669301 Contact Us For Availability

5

5300809927 Frigidaire End Cap In Stock WCI 5300809927 $2.26

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $5.68

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki In Stock WCI 5303943103 $11.32

7

Liner, door assy. WCI 154494601 Contact Us For Availability

8

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $10.41

8#

154240403 Frigidaire Dishwasher Selector Swit Backorder WCI 154240403 $47.95

8#

Switch, rocker/selector, white WCI 154240401 Contact Us For Availability

9

154574401 Frigidaire Dishwasher Dispenser In Stock WCI 154574401 $48.35

9

5304501482 Frigidaire Dishwasher Kick Plate A In Stock WCI 5304501482 $32.62

9

5304501484 Frigidaire Dishwasher Assembly Toe In Stock WCI 5304501484 $32.62

9*

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $8.14

154754801 Frigidaire Dishwasher Screw Backorder WCI 154754801 $1.35

Cover, volute WCI 154335301 Contact Us For Availability

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.60

11A

Screw, #10-16 x 3/8 WCI 154200601 Contact Us For Availability

13

154246801 Frigidaire Dishwasher Primary Gaske In Stock WCI 154246801 $31.71

13

154338303 Frigidaire Dishwasher Knob Backorder WCI 154338303 $33.52

13

Knob, timer, white WCI 154338301 Contact Us For Availability

14

Housing, sump WCI 154365903 Contact Us For Availability

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.79

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

16*

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $2.70

154758501 Frigidaire Power Cord Cover Backorder WCI 154758501 $12.67

Vent assy, static dry WCI 154433001 Contact Us For Availability

Door, white WCI 154359105 Contact Us For Availability

Door, black WCI 154359107 Contact Us For Availability

Door, stainless WCI 154533901 Contact Us For Availability

22

154388801 Frigidaire Dishwasher Rinse Aid Dis In Stock WCI 154388801 $15.85

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.15

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $0.92

24A

154335201 Frigidaire Dishwasher Lower Spray A In Stock WCI 154335201 $27.64

25#

5304506520 Frigidaire Dishwasher Float Assemb In Stock WCI 5304506520 $4.31

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29#

154290204 Frigidaire Dishwasher Thermostat In Stock WCI 154290204 $40.78

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

30*

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

40

154348502 Frigidaire Dishwasher Clamp Backorder WCI 154348502 $5.88

40*

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $46.60

51

Clamp, drip loop, wire WCI 154320301 Contact Us For Availability

54

154234401 Frigidaire Dishwasher Hose P-1 Backorder WCI 154234401 $42.57

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.46

55*

Screw, truss ss, 8 .625, (7) WCI 5303316032 Contact Us For Availability

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S Backorder WCI 154247001 $36.24

60*

154581501 Frigidaire Dishwasher Screw Backorder WCI 154581501 $8.60

60*

Bracket, motor, drain WCI 154426201 Contact Us For Availability

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $17.21
