Model LG 580.75135700 – Common Parts & Diagrams
Diagram 0
Diagram 1

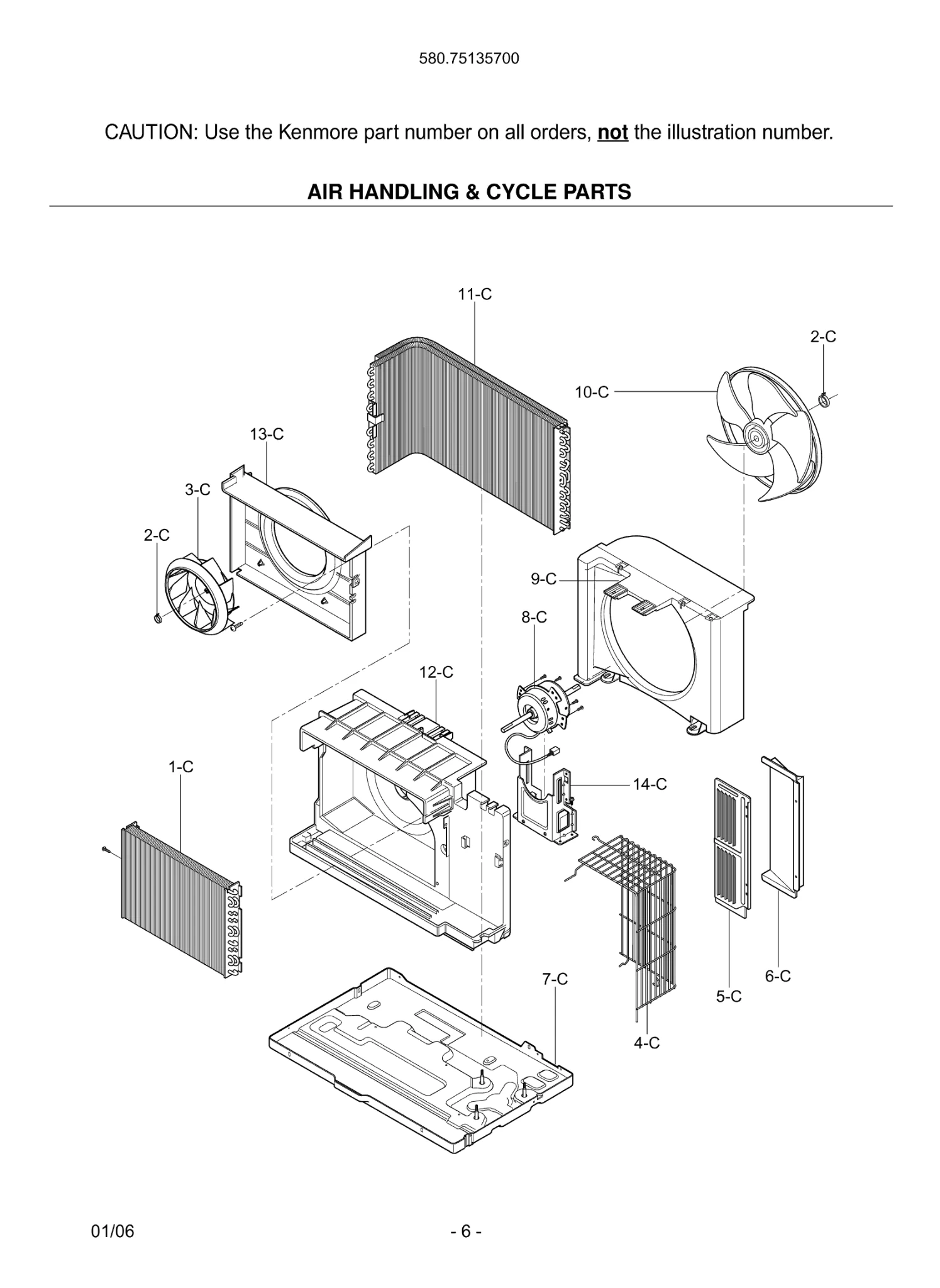

Diagram 2

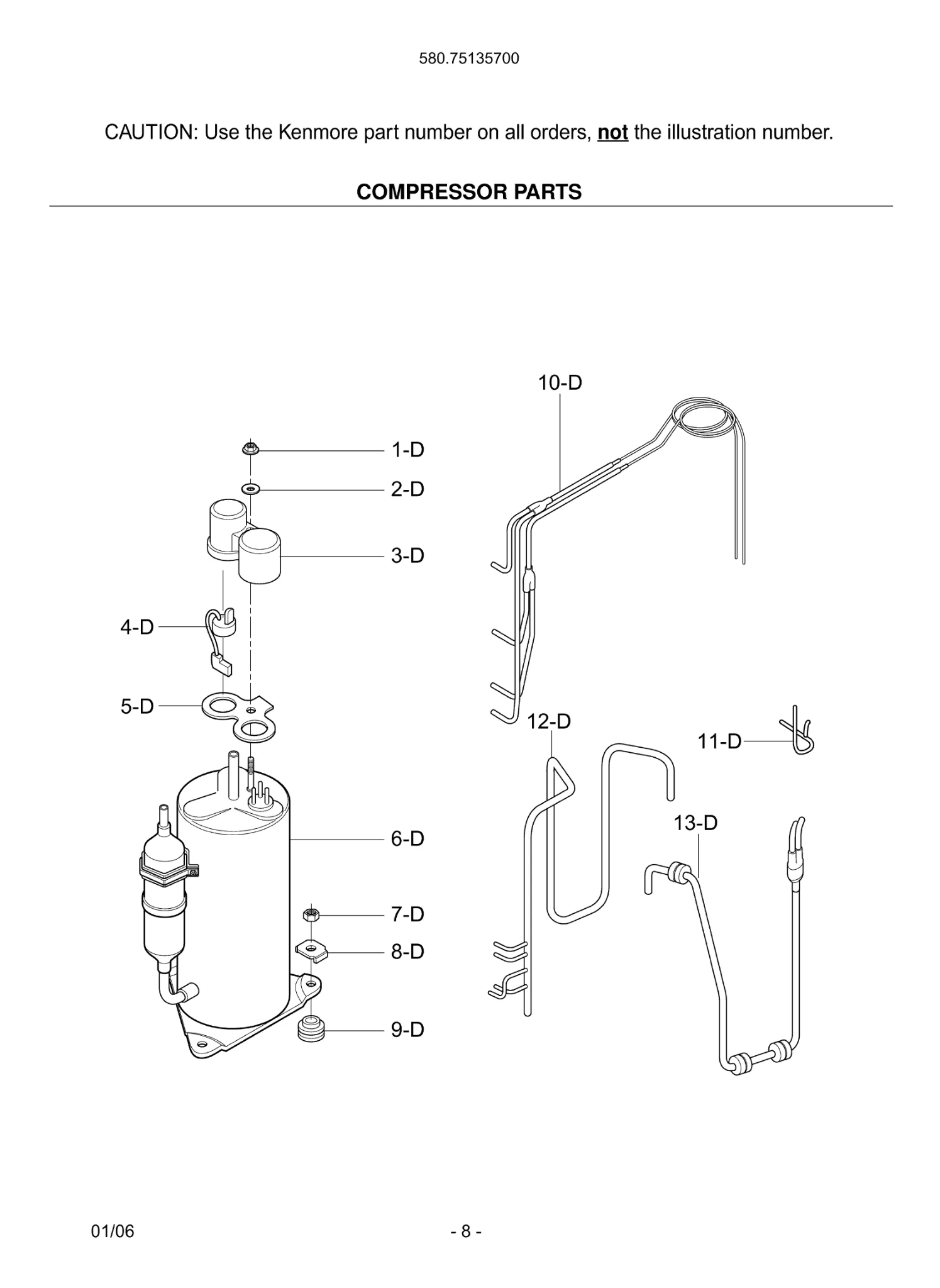

Diagram 3

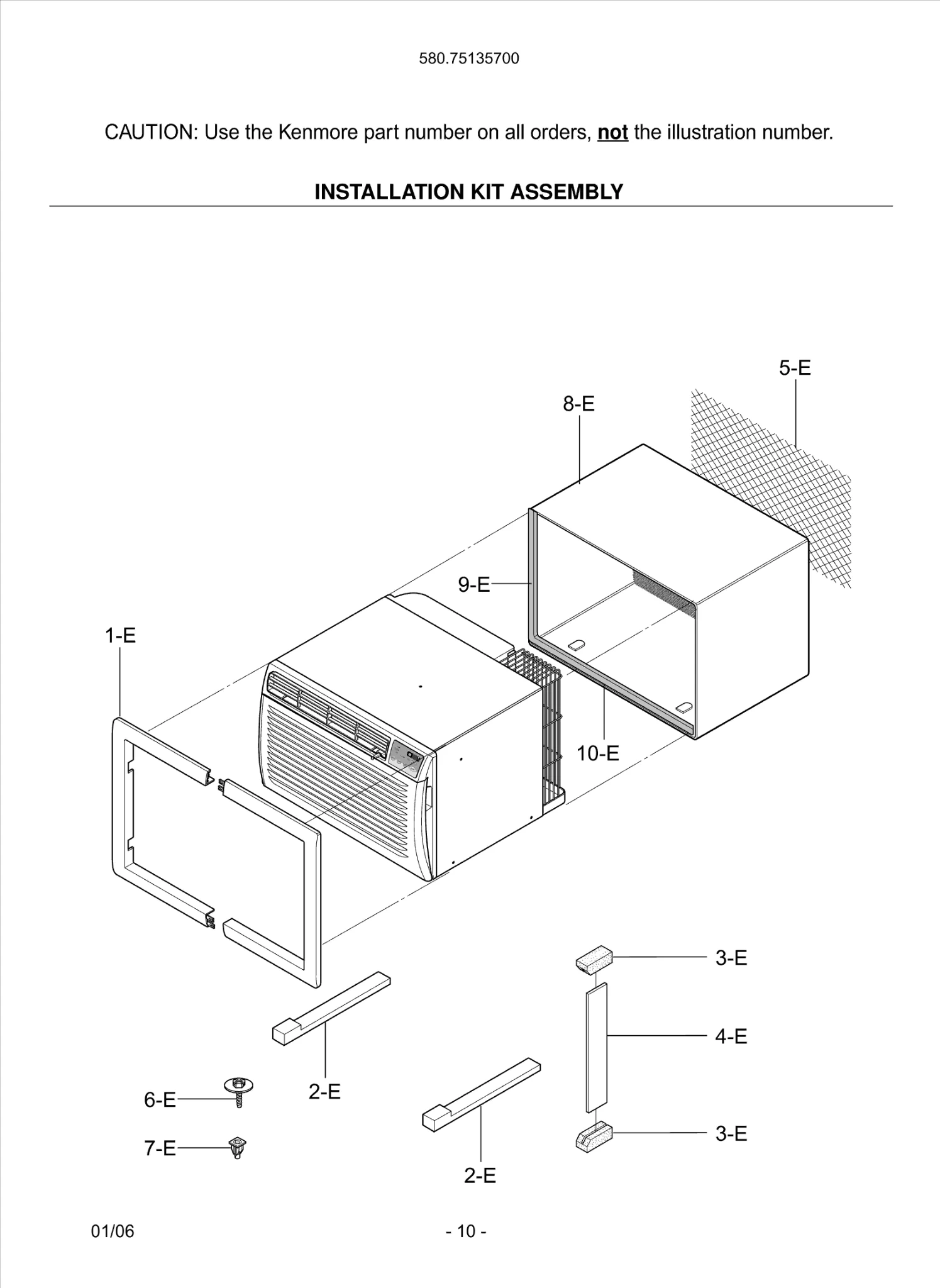

Diagram 4
Common parts from model LG 580.75135700
1-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071G Contact Us For Availability
1-E
FRAME LGE 3210A20075A Contact Us For Availability
2-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
3-B
ESCUTCHEON LGE 3831A10037A Contact Us For Availability
3-D
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
3-E
INSULATION,PE LGE 5410A20069A Contact Us For Availability
4-E
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
5-B
PCB Assembly,Display LGE EBR30852301 Contact Us For Availability
5-C
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
6-B
CAPACITOR SH LGE 6120AR2194B Contact Us For Availability
6-D
Compressor Set,China LGE TBZ31170601 Contact Us For Availability
7-C
BASE ASSEMBLY,SINGLE LGE 3041A10046K Contact Us For Availability
8-E
Cabinet Assembly,Sleeve LGE 3091A10028G Contact Us For Availability
9-D
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
10-C
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
10-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A29024H Contact Us For Availability
10-E
INSULATION,PU LGE 5410A20046Q Contact Us For Availability
11-C
Condenser Assembly,Bending LGE 5403A20183M Contact Us For Availability
11-D
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A21809A Contact Us For Availability
12-C
AIR GUIDE LGE 5238A20033A Contact Us For Availability
14-B
Case,Control LGE MBN35987101 Contact Us For Availability
15-B
Cover LGE 3550A20257B Contact Us For Availability
× ![]()
