Model LG 580.73082 300 RAC for Sears – Common Parts & Diagrams

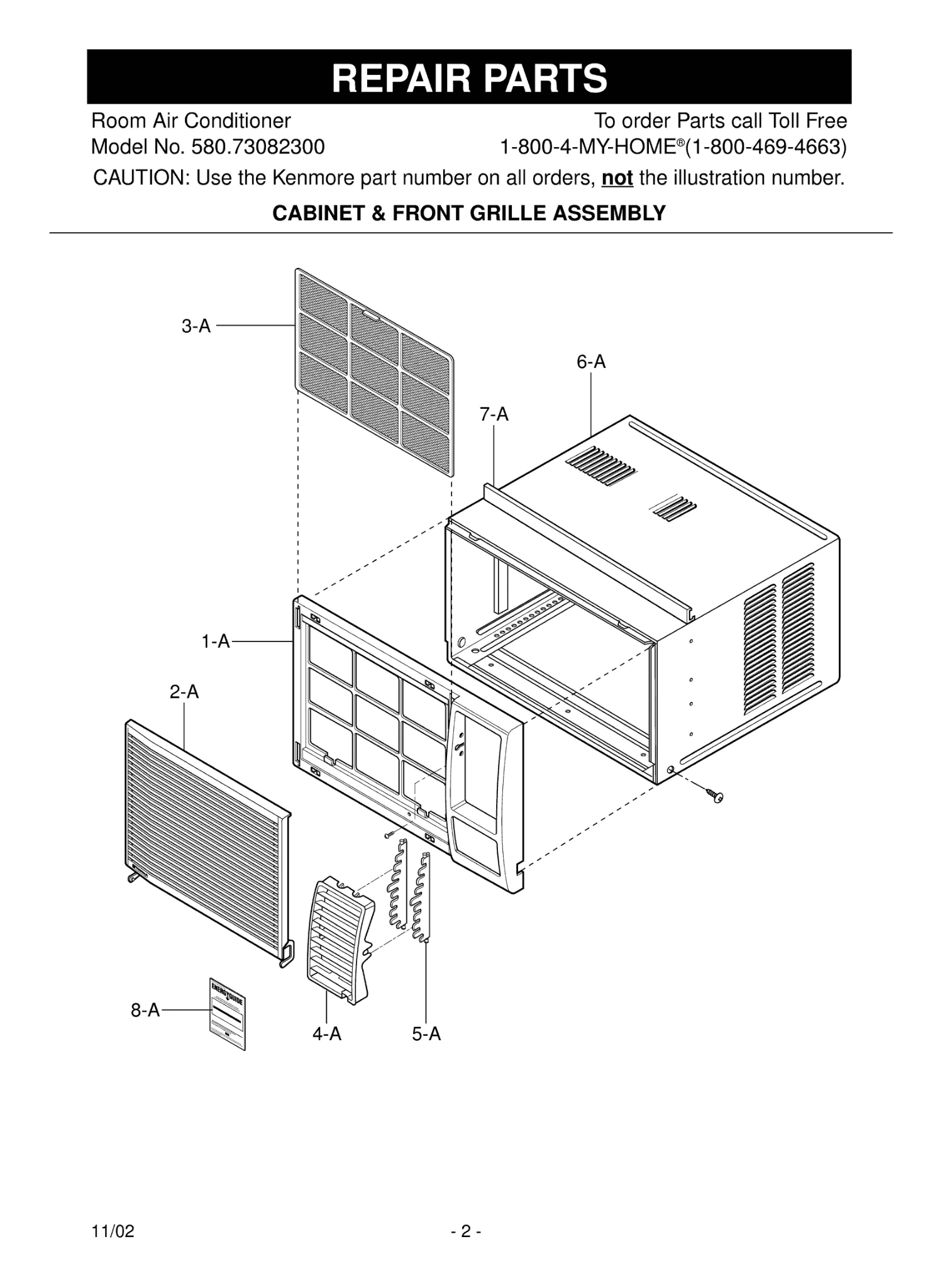

Diagram 0

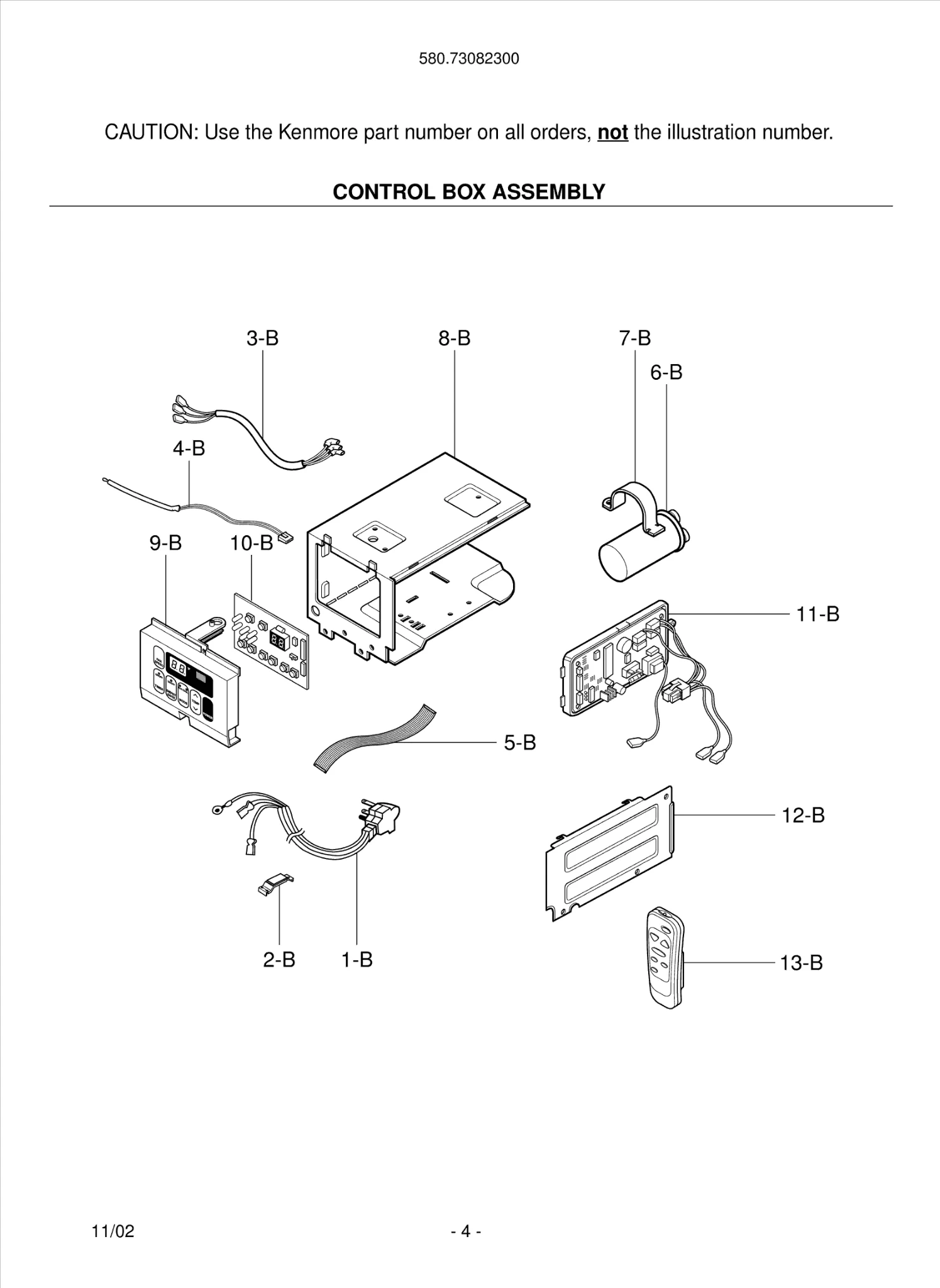

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG 580.73082 300 RAC for Sears
1-B
POWER CODE ASSY WA-CHASSIS, S LGE 2H00677P Contact Us For Availability
1-C
BASE ASSEMBLY,SINGLE LGE 3041A30011D Contact Us For Availability
1-E
CURTAIN LW-B0811CL B0810C LGE 4959AR3402B Contact Us For Availability
2-C
AIR GUIDE LGE 5238A10006A Contact Us For Availability
2-D
COMPRESSOR LGE 5416A20014B Contact Us For Availability
2-E
CURTAIN ASSY LW-B0811CL B0810C LGE 4959AR3402A Contact Us For Availability
3-C
ORIFICE LGE 4948A30007A Contact Us For Availability
3-E
BRACKET SILL SUPPORT "WC" FOR LGE 4810AR3240A Contact Us For Availability
4-A
LOUVER,HORIZONTAL LGE 4758A20003A Contact Us For Availability
4-B
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
4-D
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
4-E
HEXAGON HEAD BOLT M COARSE 1 LGE 1BHD1004006 Contact Us For Availability
5-A
LOUVER,VERTICAL LGE 4758A30008A Contact Us For Availability
5-D
GASKET LGE 4986A30001A Contact Us For Availability
5-E
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
6-A
BASE ASSY,SINGLE LGE 3091A30005J Contact Us For Availability
6-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20073A Contact Us For Availability
6-D
O.L.P LGE 6750A30001N Contact Us For Availability
7-A
GUIDE LGE 5210AR3196G Contact Us For Availability
7-B
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
7-C
SCROLL LGE 3072A20004A Contact Us For Availability
7-D
COVER LGE 3550A30048A Contact Us For Availability
8-A
LABEL,ENERGY LGE 3850A20423V Contact Us For Availability
8-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
9-B
PANEL,CONTROL LGE 3720A20053A Contact Us For Availability
10-B
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20189G Contact Us For Availability
10-D
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A20708A Contact Us For Availability
11-C
SHROUD LGE 4998A10019A Contact Us For Availability
11-D
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20130M Contact Us For Availability
13-B
REMOTE CONTROLLER ASSY LGE 6711A20035E Contact Us For Availability
13-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20061E Contact Us For Availability
13-D
TUBE ASSEMBLY,FORMED COND LGE 5211AR3399T Contact Us For Availability
14-C
CONDENSER ASSEMBLY,FIRST LGE 5403A20092A Contact Us For Availability
15-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
15-D
DRIER ASSEMBLY LGE 5851A30001G Contact Us For Availability
19-C
GRILLE,REAR LGE 3530A20009B Contact Us For Availability
× ![]()
