Model Electrolux 57-2707-10-03 RANGE – Common Parts & Diagrams
02 - EXTRUSION ASSEMBLY
03 - BODY PARTS

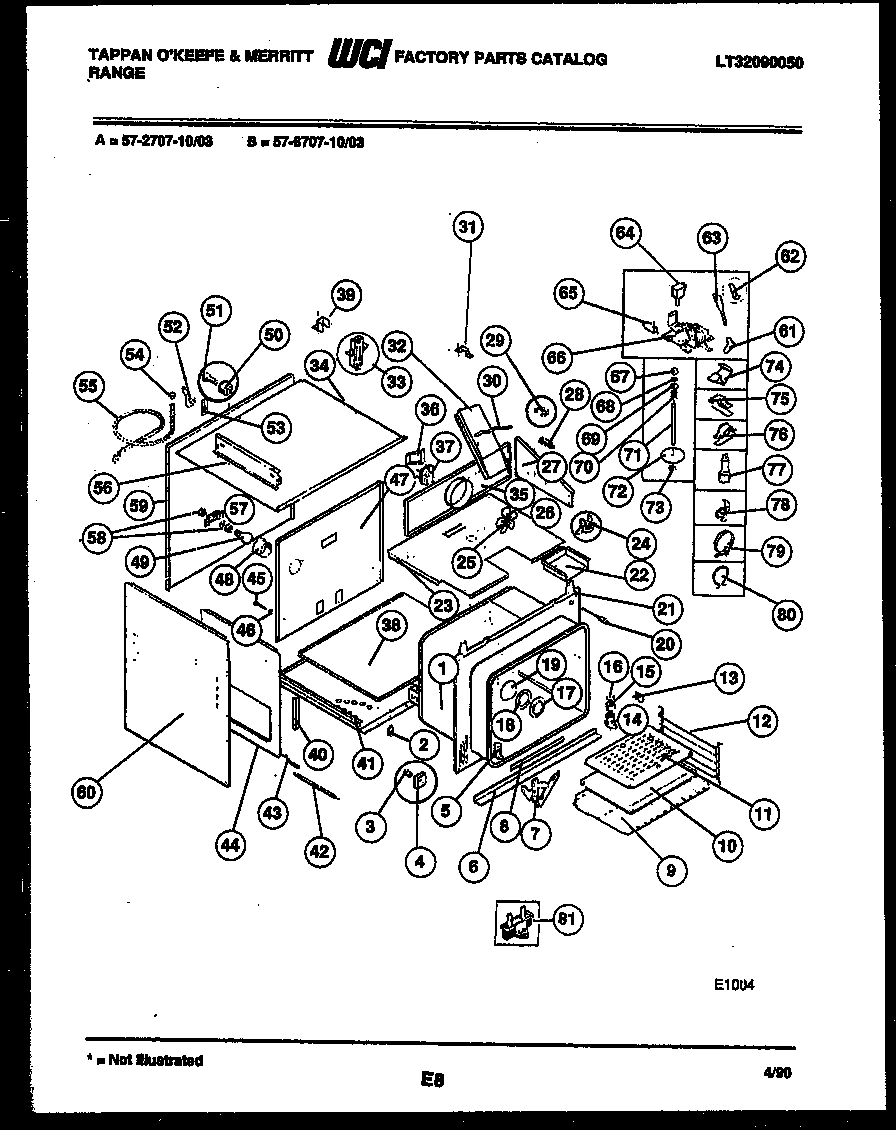

04 - BODY PARTS

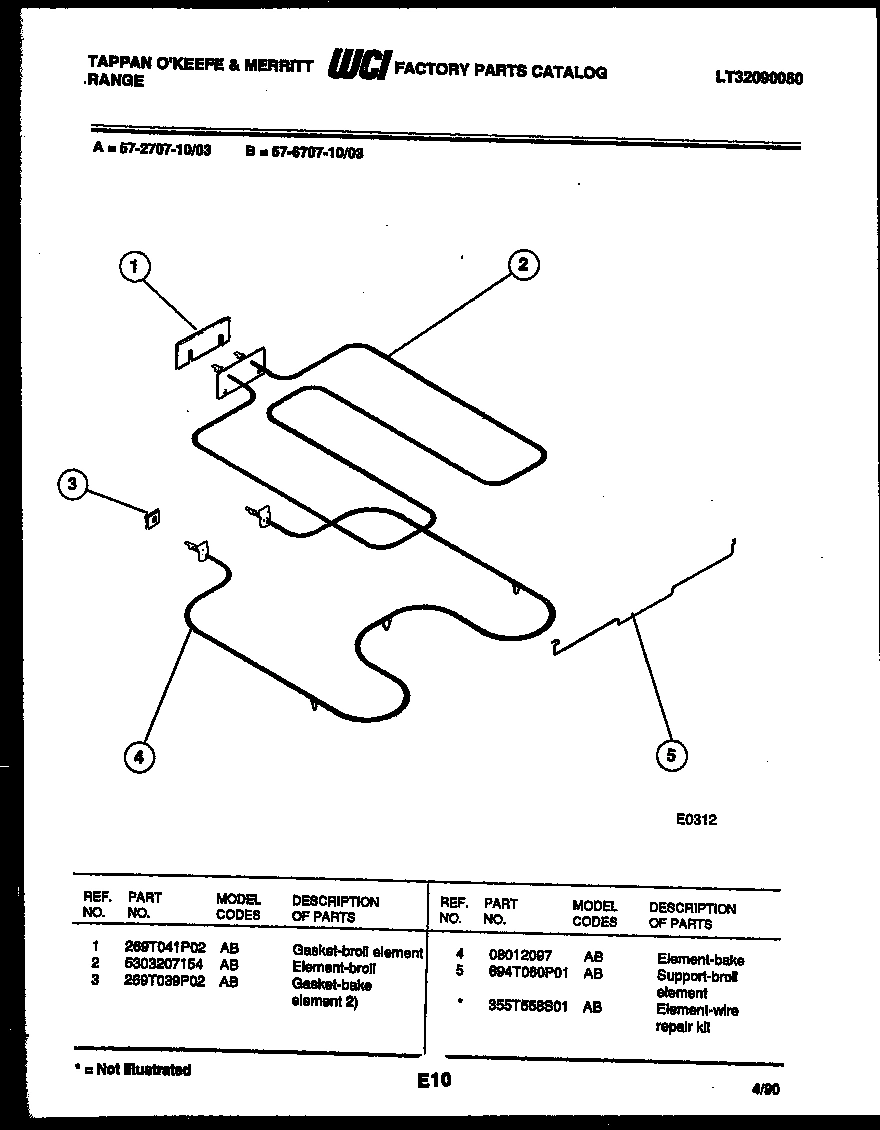

05 - BROILER PARTS

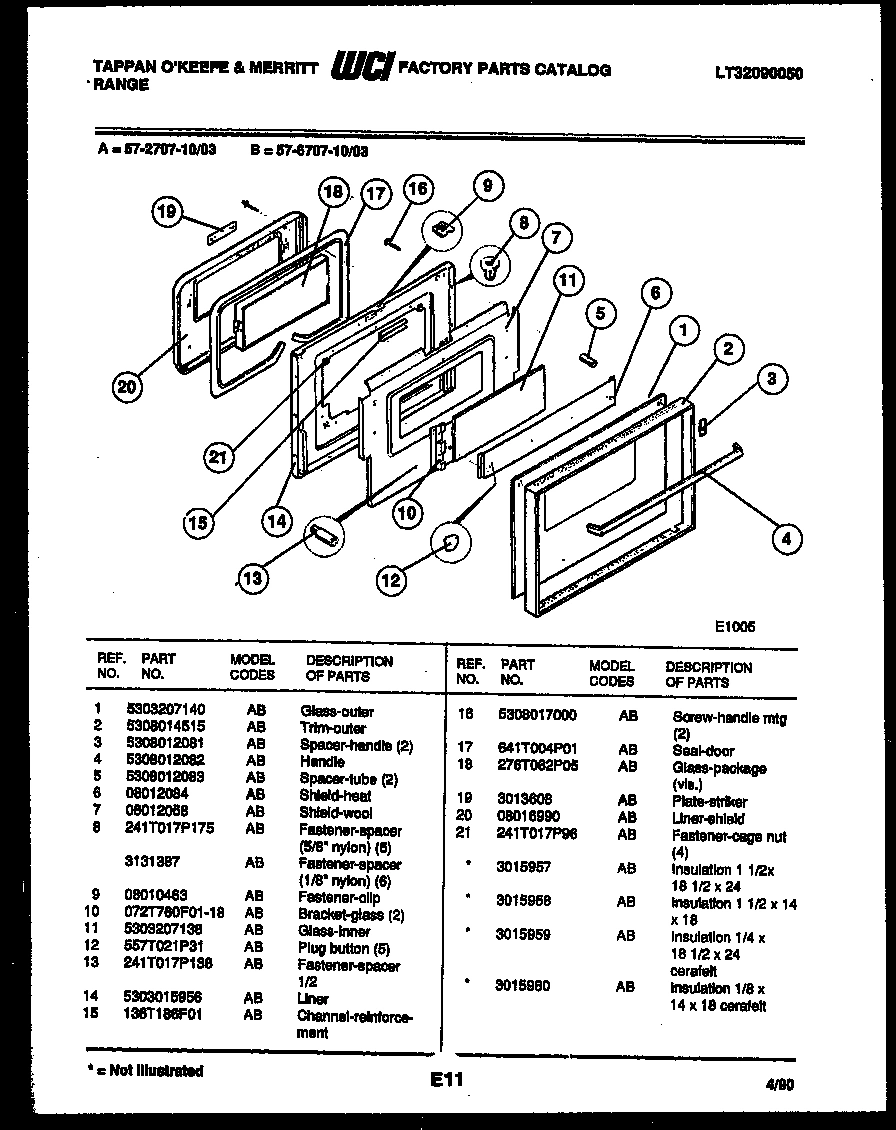

06 - DOOR PARTS

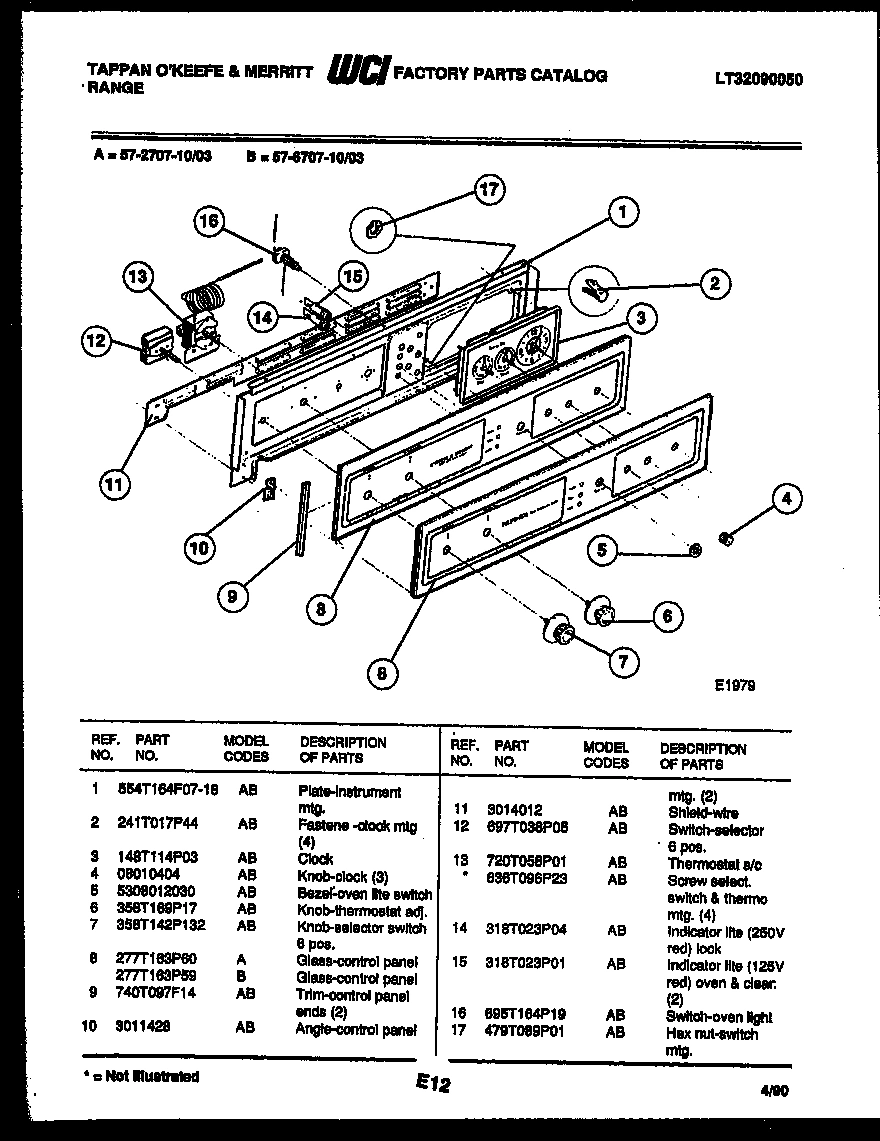

07 - CONTROL PANEL

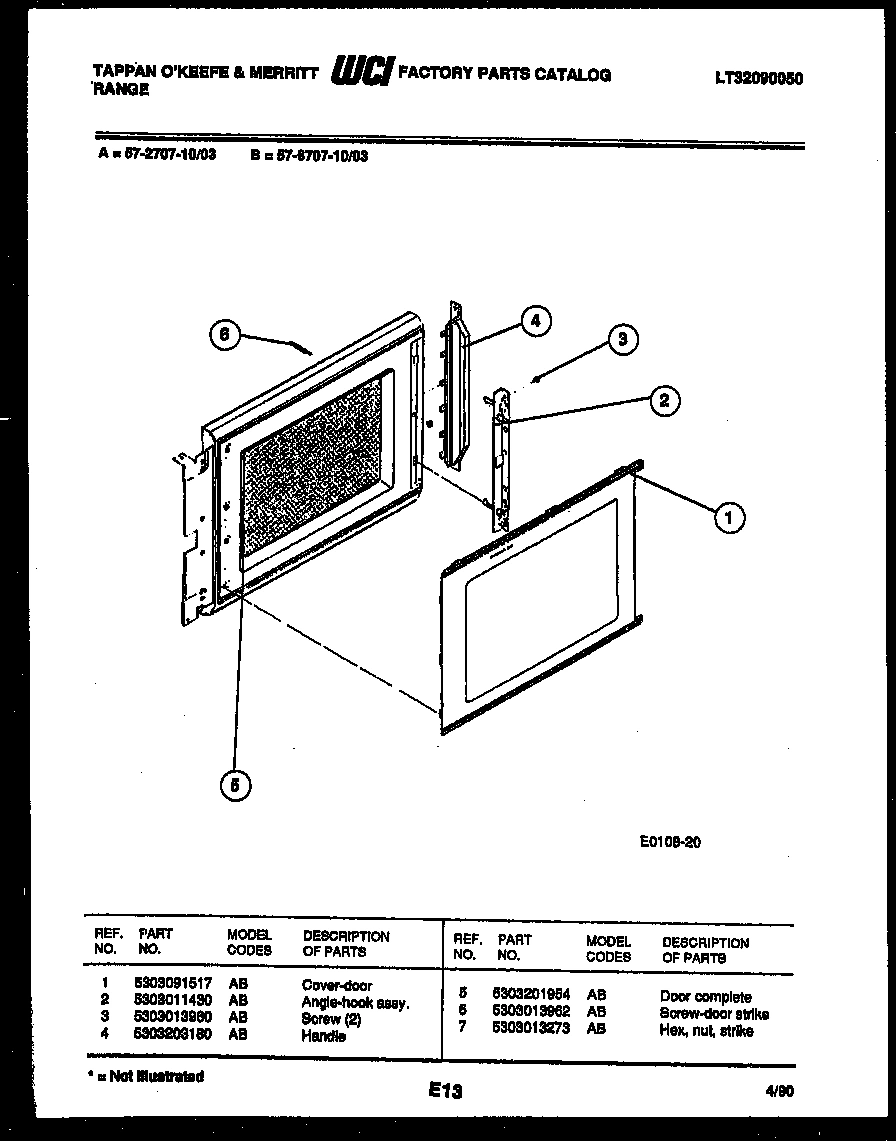

08 - DOOR PARTS

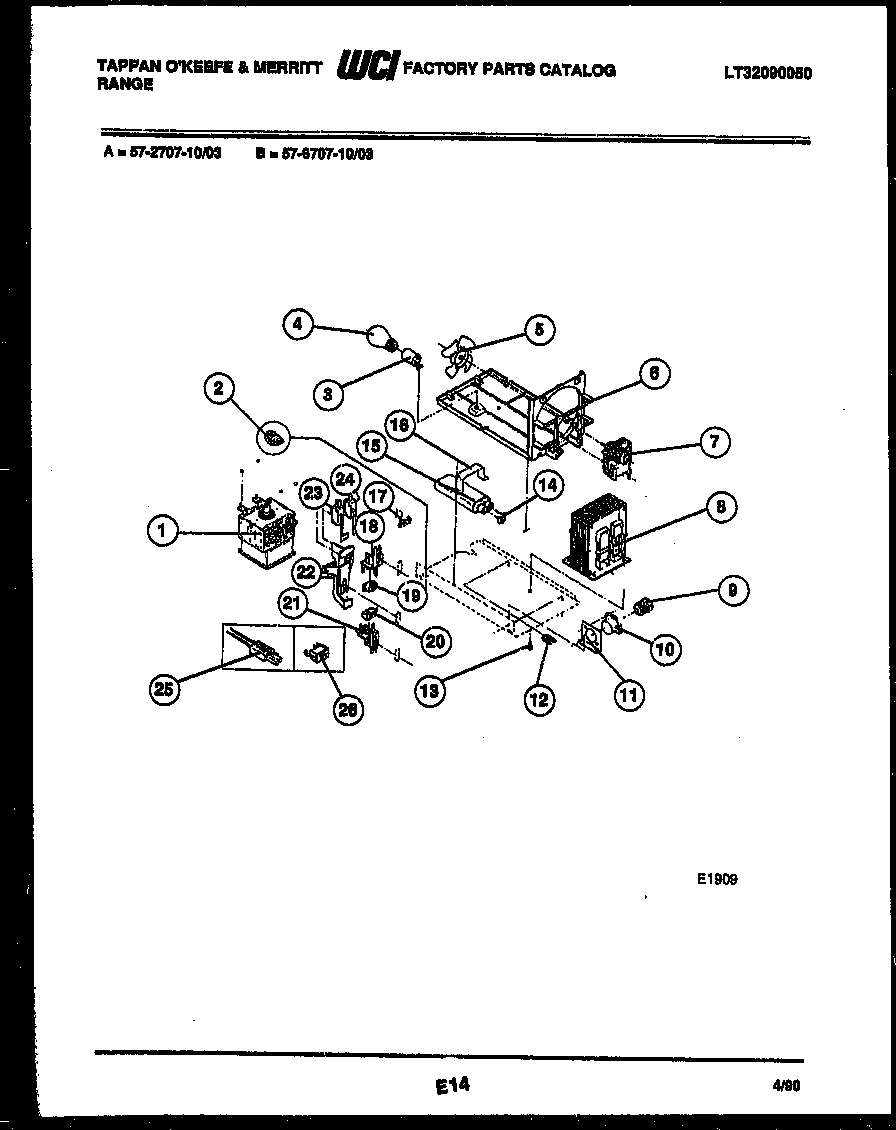

09 - POWER CONTROL

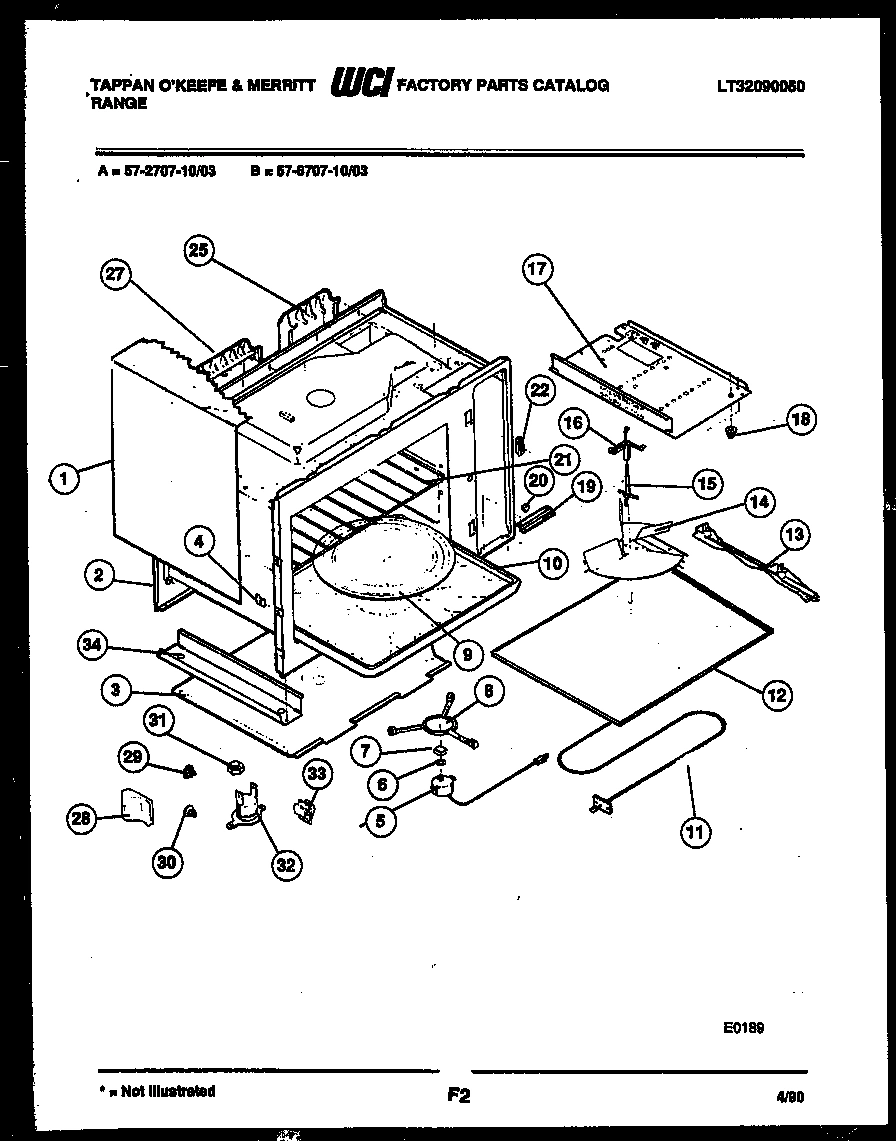

10 - WRAPPER AND BODY PARTS

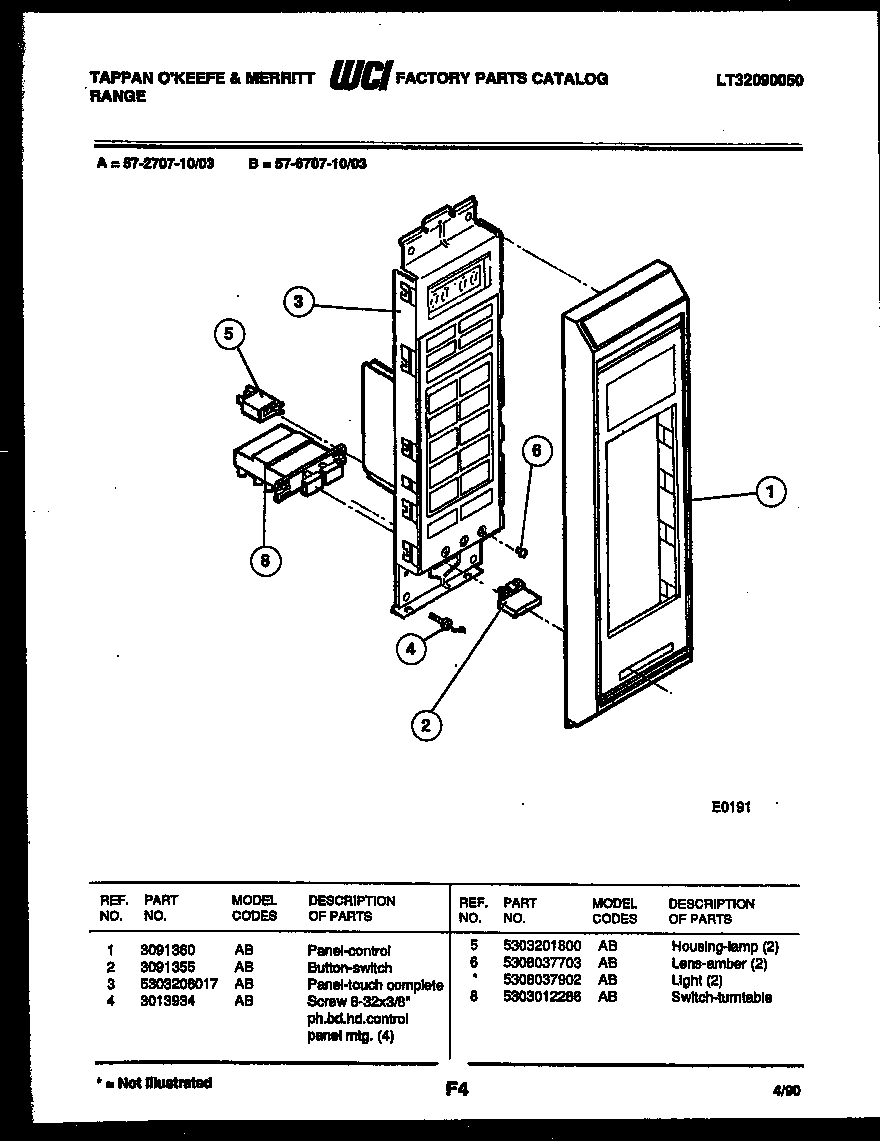

11 - CONTROL PANEL
Common parts from model Electrolux 57-2707-10-03 RANGE
*37111
ELEMENT-WIRE REPAIR KIT WCI 355T558S01 Contact Us For Availability
*37113
INSULATION 1 1/2 X 18 1/2 X 24 WCI 3015957 Contact Us For Availability
*37113
INSULATION 1 1/2 X 14 X 18 WCI 3015958 Contact Us For Availability
*37114
INSULATION 1/4 X 18 1/2 X 24 CERAFELT WCI 3015959 Contact Us For Availability
*37114
INSULATION 1/8 X 14 X 18 CERAFELT WCI 3015960 Contact Us For Availability
*37128
SHIELD-OVEN LIGHT (MYLAR) WCI 5303011685 Contact Us For Availability
*37128
LABEL-COOK, GUIDE WCI 5303018849 Contact Us For Availability
*37128
WASHER STIRRER WCI 5303922010 Contact Us For Availability
*37128
DUCT AIR FOAM WCI 5308037640 Contact Us For Availability
1
LINER-OVEN WCI 384T015W12-86 Contact Us For Availability
1
WCI 269T041P02 WCI 269T041P02 Contact Us For Availability
1
WCI 5303207140 WCI 5303207140 Contact Us For Availability
1
WCI 554T164F07-18 WCI 554T164F07-18 Contact Us For Availability
1
WCI 5303091517 WCI 5303091517 Contact Us For Availability
1
WCI 5303011673 WCI 5303011673 Contact Us For Availability
1
WRAPPER-TOP & SIDES WCI 5303203254 Contact Us For Availability
1
WCI 3091360 WCI 3091360 Contact Us For Availability
2
WCI 08010560 WCI 08010560 Contact Us For Availability
2
WCI 5308014515 WCI 5308014515 Contact Us For Availability
2
FASTENE-CLOCK MTG (4) WCI 241T017P44 Contact Us For Availability
2
WCI 5303011430 WCI 5303011430 Contact Us For Availability
2
WCI 102T024P03 WCI 102T024P03 Contact Us For Availability
2
WCI 3091355 WCI 3091355 Contact Us For Availability
3
GROMMET-SPACER MTG (4) WCI 287T019P01 Contact Us For Availability
3
GASKET-BAKE ELEMENT 2) WCI 269T039P02 Contact Us For Availability
3
SPACER-HANDLE (2) WCI 5308012081 Contact Us For Availability
3
WCI 148T114P03 WCI 148T114P03 Contact Us For Availability
3
SCREW (2) WCI 5303013960 Contact Us For Availability
3
WCI 5303014070 WCI 5303014070 Contact Us For Availability
3
WCI 3014600 WCI 3014600 Contact Us For Availability
3
WCI 5303206017 WCI 5303206017 Contact Us For Availability
4
WCI 665T092P01 WCI 665T092P01 Contact Us For Availability
4
WCI 08012097 WCI 08012097 Contact Us For Availability
4
WCI 5308012082 WCI 5308012082 Contact Us For Availability
4
WCI 08010404 WCI 08010404 Contact Us For Availability
4
WCI 5303203180 WCI 5303203180 Contact Us For Availability
4
SCREW 8-32 X 3/8`` PH BD HD CONTROL PANEL MTG WCI 3013934 Contact Us For Availability
5
TUBE-OVEN FRONT WCI 750T217P02 Contact Us For Availability
5
WCI 694T060P01 WCI 694T060P01 Contact Us For Availability
5
WCI 5308012083 WCI 5308012083 Contact Us For Availability
5
WCI 5308012030 WCI 5308012030 Contact Us For Availability
5
WCI 5303201954 WCI 5303201954 Contact Us For Availability
5
WCI 5303203192 WCI 5303203192 Contact Us For Availability
5
WCI 5308037652 WCI 5308037652 Contact Us For Availability
5
HOUSING LAMP (2) WCI 5303201800 Contact Us For Availability
6
WCI 5303208312 WCI 5303208312 Contact Us For Availability
6
WCI 740T499F01-18 WCI 740T499F01-18 Contact Us For Availability
6
WCI 08012084 WCI 08012084 Contact Us For Availability
6
WCI 358T169P17 WCI 358T169P17 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 5303012194 Contact Us For Availability
6
WCI 5303017094 WCI 5303017094 Contact Us For Availability
6
LENS-AMBER (2) WCI 5308037703 Contact Us For Availability
6A
LIGHT (2) (NON-ILLUSTRATED) WCI 5308037902 Contact Us For Availability
7
WCI 5303922044 WCI 5303922044 Contact Us For Availability
7
WCI 233T114P02 WCI 233T114P02 Contact Us For Availability
7
WCI 5303208218 WCI 5303208218 Contact Us For Availability
7
WCI 08012058 WCI 08012058 Contact Us For Availability
7
WCI 358T142P132 WCI 358T142P132 Contact Us For Availability
7
MOTOR-FAN WCI 5308037636 Contact Us For Availability
7A
WCI 5308014463 WCI 5308014463 Contact Us For Availability
7A
WCI 5303207693 WCI 5303207693 Contact Us For Availability
7A
SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATE WCI 5308014502 Contact Us For Availability
8
SUPPORT-ROLLER ASSY WCI 5303091004 Contact Us For Availability
8
WCI 08014574 WCI 08014574 Contact Us For Availability
8
SHIELD-OVEN DOOR-BTM. WCI 655T395F01 Contact Us For Availability
8
FASTENER-SPACER (5/8`` NYLON) (5) WCI 241T017P175 Contact Us For Availability
8
WCI 277T163P60 WCI 277T163P60 Contact Us For Availability
8
WCI 5308037626 WCI 5308037626 Contact Us For Availability
8
SWITCH-TURNTABLE WCI 5303012286 Contact Us For Availability
8A
WCI 3012268 WCI 3012268 Contact Us For Availability
8A
FASTENER-SPACER (1/8`` NYLON) (6) WCI 3131387 Contact Us For Availability
8A
NUT-6-32 MTR MTG (2) (NON-ILLUSTRATED) WCI 5303013273 Contact Us For Availability
9
WCI 591T038P09 WCI 591T038P09 Contact Us For Availability
9
WCI 08010463 WCI 08010463 Contact Us For Availability
9
TRIM-CONTROL PANEL ENDS (2) WCI 740T097F14 Contact Us For Availability
9
WCI 5308012055 WCI 5308012055 Contact Us For Availability
9
TRAY-OVEN (CIRCULAR) WCI 5308037674 Contact Us For Availability
10
WCI 5303013568 WCI 5303013568 Contact Us For Availability
10
WCI 072T760F01-18 WCI 072T760F01-18 Contact Us For Availability
10
ANGLE-CONTROL PANEL MTG. (2) WCI 3011428 Contact Us For Availability
10
WCI 5303200606 WCI 5303200606 Contact Us For Availability
10
WCI 5303011698 WCI 5303011698 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
GLASS-INNER WCI 5303207138 Contact Us For Availability
11
WCI 3014012 WCI 3014012 Contact Us For Availability
11
WCI 008T404F01 WCI 008T404F01 Contact Us For Availability
11
WCI 5303012207 WCI 5303012207 Contact Us For Availability
12
GLIDE-OVEN RACK (2) WCI 280T051P01-86 Contact Us For Availability
12
PLUG BUTTON (5) WCI 557T021P31 Contact Us For Availability
12
SWITCH-SELECTOR 6 POS. WCI 697T038P05 Contact Us For Availability
12
FASTENER-WIRE CLIP (3) WCI 5308037677 Contact Us For Availability
12
WCI 5303012681 WCI 5303012681 Contact Us For Availability
13
BRACKET-RACK GLIDE (4) WCI 3011544 Contact Us For Availability
13
FASTENER-SPACER 1/2 WCI 241T017P138 Contact Us For Availability
13
WCI 720T058P01 WCI 720T058P01 Contact Us For Availability
13
SCREW, TRANSFORMER (4) WCI 5303013944 Contact Us For Availability
13
CHANNEL SUPPORT LH WCI 5303011776 Contact Us For Availability
13A
CHANNEL SUPPORT RH WCI 5303011777 Contact Us For Availability
14
TUBE-VENT-CATALYST WCI 750T206P01 Contact Us For Availability
14
WCI 5303015956 WCI 5303015956 Contact Us For Availability
14
INDICATOR LITE (250V RED) LOCK WCI 318T023P04 Contact Us For Availability
14
DIODE HIGH VOLTAGE WCI 5303091303 Contact Us For Availability
14
WCI 5303091414 WCI 5303091414 Contact Us For Availability
15
WCI 244T048P02 WCI 244T048P02 Contact Us For Availability
15
CHANNEL-REINFORCEMENT WCI 136T186F01 Contact Us For Availability
15
INDICATOR LITE (125V RED) OVEN & CLEAN (2) WCI 318T023P01 Contact Us For Availability
15
CAPACITOR-HIGH VOLTAGE WCI 5308037624 Contact Us For Availability
15
WCI 5303202875 WCI 5303202875 Contact Us For Availability
16
WCI 612T079P02 WCI 612T079P02 Contact Us For Availability
16
WCI 5308017000 WCI 5308017000 Contact Us For Availability
16
WCI 695T164P19 WCI 695T164P19 Contact Us For Availability
16
RETAINER-CAPACITOR MTG WCI 5303013773 Contact Us For Availability
16
WCI 5303011826 WCI 5303011826 Contact Us For Availability
17
COLLAR-LENS MTG WCI 154T010F02 Contact Us For Availability
17
WCI 641T004P01 WCI 641T004P01 Contact Us For Availability
17
HEX NUT SWITCH MTG WCI 479T089P01 Contact Us For Availability
17
WCI 5303091280 WCI 5303091280 Contact Us For Availability
17
WCI 5303018904 WCI 5303018904 Contact Us For Availability
18
WCI 269T040P05 WCI 269T040P05 Contact Us For Availability
18
GLASS-PACKAGE (VIS.) WCI 276T062P05 Contact Us For Availability
18
WCI 5303014097 WCI 5303014097 Contact Us For Availability
19
LENS-LIGHT COVER WCI 277T175P02 Contact Us For Availability
19
WCI 3013608 WCI 3013608 Contact Us For Availability
19
BRACKET-CONTROL MTG (LOWER) WCI 5303011555 Contact Us For Availability
20
WCI 08012146 WCI 08012146 Contact Us For Availability
20
WCI 08016990 WCI 08016990 Contact Us For Availability
20
WCI 5303203636 WCI 5303203636 Contact Us For Availability
20
WCI 5308037644 WCI 5308037644 Contact Us For Availability
21
FRONT-FRAME (INCLUDE REF. 3 & 4) WCI 259T027S08 Contact Us For Availability
21
WCI 241T017P96 WCI 241T017P96 Contact Us For Availability
21
BRACKET-SWITCH (LOWER) WCI 5303011556 Contact Us For Availability
21
WCI 5303206085 WCI 5303206085 Contact Us For Availability
22
BOX-LATCH WCI 3011525 Contact Us For Availability
22
BAZEL-LATCH (2) WCI 5303200551 Contact Us For Availability
23
SHIELD-WOOL-TOP WCI 655T208F04-18 Contact Us For Availability
24
WCI 695T095P08 WCI 695T095P08 Contact Us For Availability
25
WCI 5303011668 WCI 5303011668 Contact Us For Availability
25
PLUG-DISCONNECT-MALE WCI 558T031P01 Contact Us For Availability
25
WCI 5303012196 WCI 5303012196 Contact Us For Availability
25A
WCI 08012199 WCI 08012199 Contact Us For Availability
25B
WCI 3091359 WCI 3091359 Contact Us For Availability
25C
WCI 3091370 WCI 3091370 Contact Us For Availability
25D
WCI 5308014479 WCI 5308014479 Contact Us For Availability
25E
HARNESS INTERLOCK (NON-ILLUSTRATED) WCI 299T405S368 Contact Us For Availability
26
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
26
WCI 072T819F01 WCI 072T819F01 Contact Us For Availability
27
WCI 024T079F01-18 WCI 024T079F01-18 Contact Us For Availability
27
WCI 024T079F02-18 WCI 024T079F02-18 Contact Us For Availability
27
WCI 5303201371 WCI 5303201371 Contact Us For Availability
28
WCI 709T008P03 WCI 709T008P03 Contact Us For Availability
28
FASTENER-WRAPPER CLIP (2) WCI 5303012322 Contact Us For Availability
29
WCI 5303013629 WCI 5303013629 Contact Us For Availability
30
WCI 08012171 WCI 08012171 Contact Us For Availability
30
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
31
WCI 072T517F01 WCI 072T517F01 Contact Us For Availability
31
FASTENER-TWIST NUT CHANNEL SUPPORT L&R (4) WCI 5303131215 Contact Us For Availability
32
WCI 211T004S05 WCI 211T004S05 Contact Us For Availability
32
SWITCH-THERMO CUTOUT WCI 5308037683 Contact Us For Availability
33
WCI 558T031P02 WCI 558T031P02 Contact Us For Availability
33
SUPPORT RACK (8) WCI 5303014221 Contact Us For Availability
34
WCI 08014454 WCI 08014454 Contact Us For Availability
34
WCI 5303011773 WCI 5303011773 Contact Us For Availability
35
COVER-INSTRUMENT-RR WCI 174T117W01 Contact Us For Availability
36
WCI 072T274F01 WCI 072T274F01 Contact Us For Availability
37
WCI 08012183 WCI 08012183 Contact Us For Availability
38
WCI 3011483 WCI 3011483 Contact Us For Availability
39
WCI 174T299F01 WCI 174T299F01 Contact Us For Availability
40
WCI 024T080F01-18 WCI 024T080F01-18 Contact Us For Availability
41
WCI 036T030W05-18 WCI 036T030W05-18 Contact Us For Availability
42
SPRING-DOOR CAM (2) WCI 675T041P03 Contact Us For Availability
43
WCI 072T476F01 WCI 072T476F01 Contact Us For Availability
44
WRAPPER-SIDE (INNER) (2) WCI 3014706 Contact Us For Availability
45
WCI 08010579 WCI 08010579 Contact Us For Availability
46
WCI 789T053P25 WCI 789T053P25 Contact Us For Availability
47
WCI 805T009F05-18 WCI 805T009F05-18 Contact Us For Availability
48
WCI 3014480 WCI 3014480 Contact Us For Availability
51
SCREW-GROUND PL. MTG. WCI 636T097P08 Contact Us For Availability
52
WCI 5301506869 WCI 5301506869 Contact Us For Availability
53
WCI 554T356F01 WCI 554T356F01 Contact Us For Availability
54
BUSHING-INSULATION (2) WCI 5308012121 Contact Us For Availability
56
WCI 008T502F01-18 WCI 008T502F01-18 Contact Us For Availability
56A
WCI 008T502F02-18 WCI 008T502F02-18 Contact Us For Availability
57
WCI 08010585 WCI 08010585 Contact Us For Availability
58
WCI 662T020P01 WCI 662T020P01 Contact Us For Availability
59
WCI 5303206969 WCI 5303206969 Contact Us For Availability
60
WCI 5303014707 WCI 5303014707 Contact Us For Availability
61
KNOB DOOR LATCH HANDLE WCI 5308010597 Contact Us For Availability
62
WCI 08013188 WCI 08013188 Contact Us For Availability
63
HANDLE-LATCH MECH. WCI 296T068P01 Contact Us For Availability
63A
WCI 08016997 WCI 08016997 Contact Us For Availability
64
WCI 5303207825 WCI 5303207825 Contact Us For Availability
65
WCI 355T413S01 WCI 355T413S01 Contact Us For Availability
66
WCI 368T013S09 WCI 368T013S09 Contact Us For Availability
66A
WCI 675T053R01 WCI 675T053R01 Contact Us For Availability
67
WCI 124T011P01 WCI 124T011P01 Contact Us For Availability
68
RETAINER-RING CLIP WCI 08012153 Contact Us For Availability
69
WASHER-VENT (2) WCI 789T022P03 Contact Us For Availability
70
WCI 675T059P01 WCI 675T059P01 Contact Us For Availability
71
WCI 08012150 WCI 08012150 Contact Us For Availability
72
WCI 174T141F01 WCI 174T141F01 Contact Us For Availability
73
HEX NUT WCI 5303203103 Contact Us For Availability
74
CLIP-OVEN TO FRONT FRAME (8) WCI 145T110P01 Contact Us For Availability
75
FASTENER-CABLE CLAMP WCI 241T017P155 Contact Us For Availability
76
WCI 241T017P128 WCI 241T017P128 Contact Us For Availability
77
SPACER-NYLON TRIM TO BASE MTG (2) WCI 665T186P01 Contact Us For Availability
78
CLIP-THERMO BULB (2) WCI 145T025P03 Contact Us For Availability
80
CLAMP-PURSELOCK (4) WCI 142T033P01 Contact Us For Availability
80A
INSULATION-WRAPPER (NON-ILLUSTRATED) WCI 3015953 Contact Us For Availability
80B
INSULATION-BACK (NON-ILLUSTRATED) WCI 3015954 Contact Us For Availability
81
THERMO CUTOUT WCI 5303203651 Contact Us For Availability
× ![]()
